$134.99

SKU: SKURnw3qUCLpC Categories: , Tag: Brand:
TITANMAX 40881 includes TITAN Temperature Clamps (2), Vacuum Sensor and USB-C Charging/Data Cable and offers the most comprehensive Apps available, YJACK VIEW and measureQuick.
TheYellow Jacket 40881 TITANMAXis a4-valve digital manifoldwith a high resolution, full color, backlit, 5″ touchscreen display providing fast and accurate measurements for refrigeration and A/C systems. TheYellow Jacket 40881 digital manifoldtouchscreen display eliminates the need for multi-function buttons and provides clear graphical and digital measurements. The40881 digital manifoldfeatures internal data logging that can be exported to your computer with a USB or to your phone via the YJack View App or MeasureQuick App for further analysis. TheYellow Jacket 40881 TITANMAXincludes the TITANMAX Manifold, (2) Titan Temperature Clamps, Vacuum Sensor, and USB-C Charging/Data Cable.

Key Features

  • Measures high and low side pressures and temperatures
  • Displays vapor and liquid saturation temperatures
  • Calculates system superheat and subcooling
  • On-board data logging; export to your computer with USB or to your phone via YJACK VIEW App
  • Compatible with measureQuick App
  • Pressure hold mode displays rate of change for vacuum and positive pressure measurements
  • Wirelessly measure and display relative humidity, dry bulb, wet bulb and dew point temperature alongside system pressure and temperature measurements with YJACK DEW
  • External vacuum sensor with high and low alarms
  • Vacuum measurements, set targets and leak testing

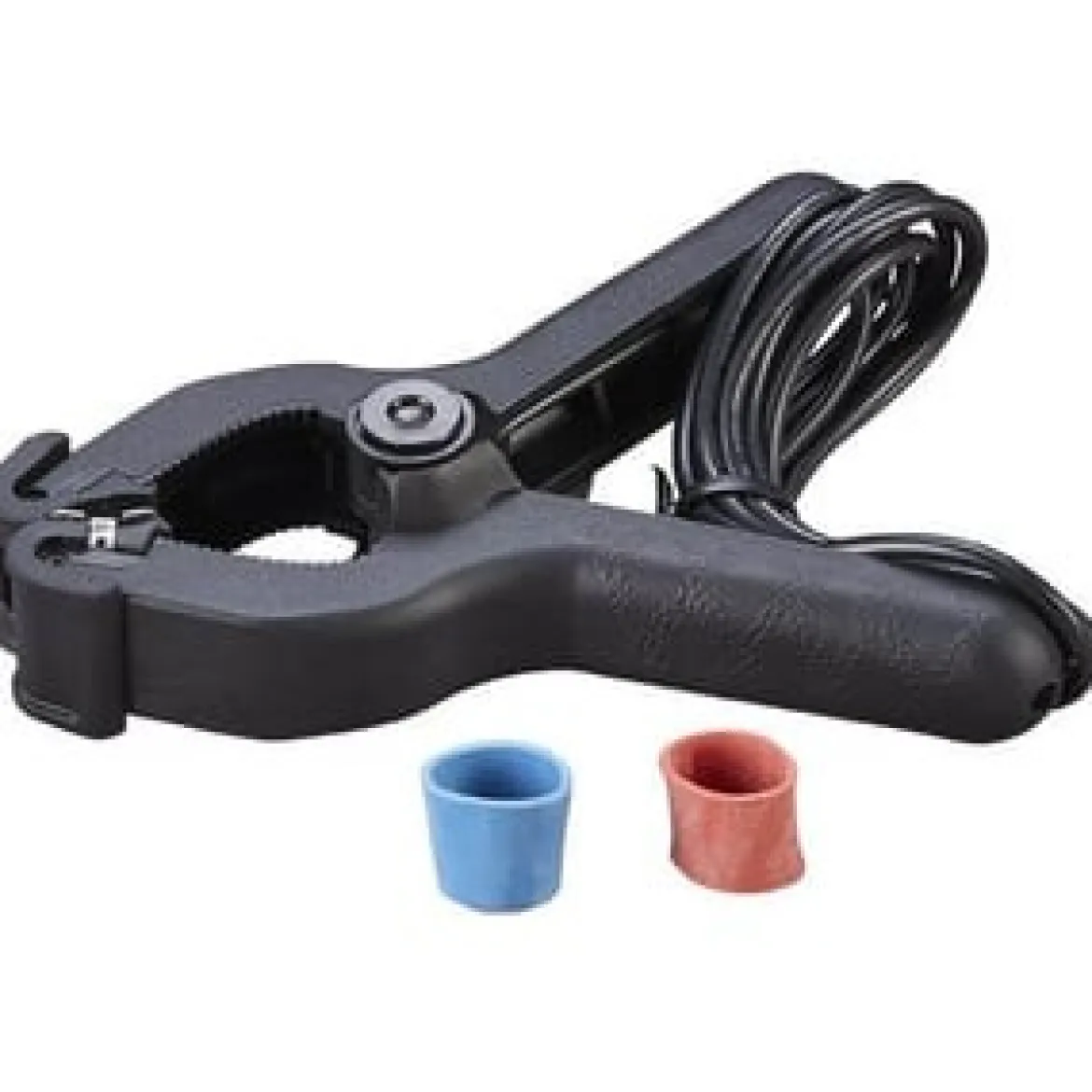

  • Larger temperature clamps (2) for up to 1-5/8″ pipes
  • Bluetooth 5.2; range up to 1,000 feet
  • Maximum working pressure 740 psia (51.0 bar)
  • Re-chargeable battery with life indicator
  • Continuous use no backlight: 80 hours
  • Continuous use with full backlight: 4.5 hours
  • US and INTL units (bar, psia, psig, kPa, MPa, kg/cm2)
  • IP52 certified

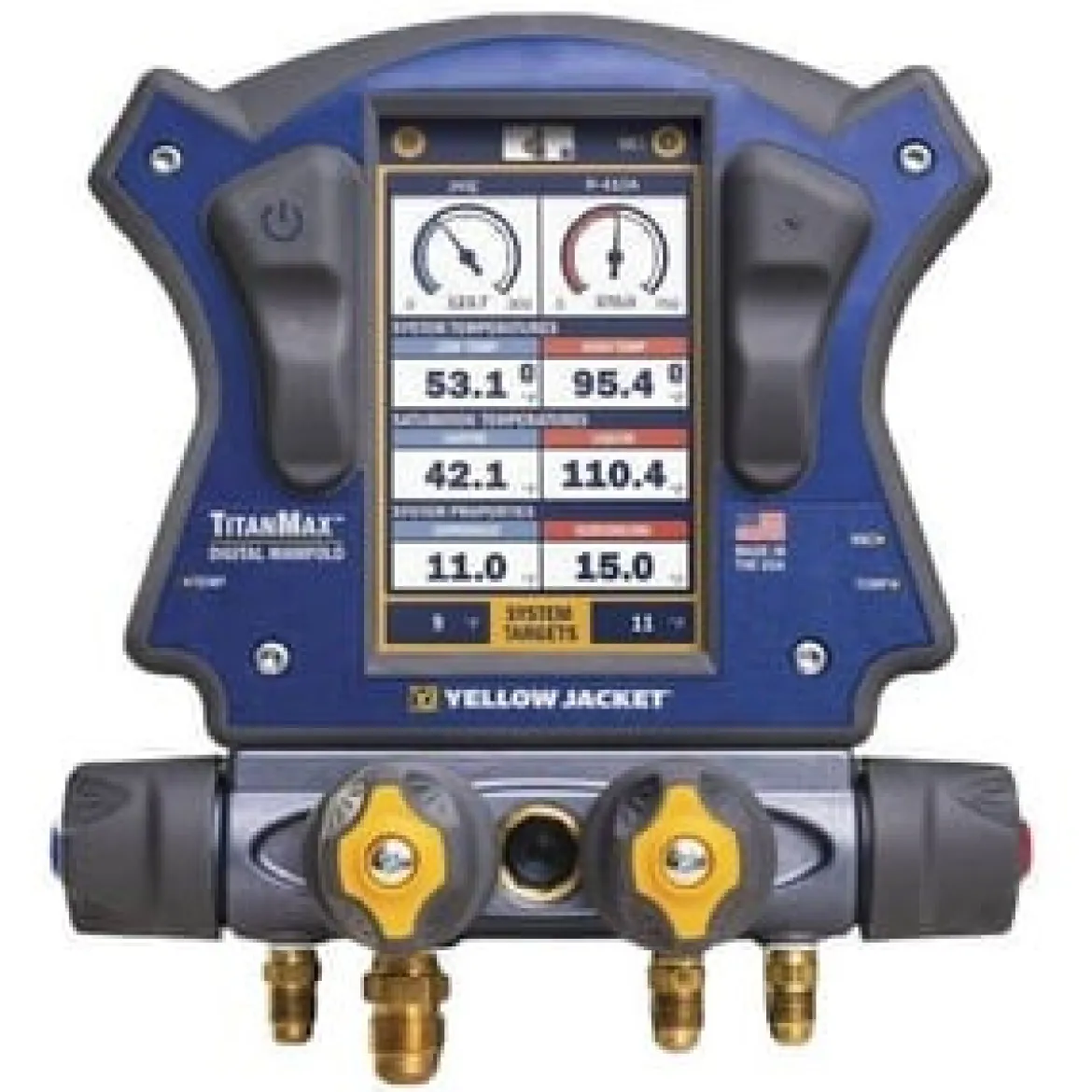

High resolution, full color, backlit, 5″ touchscreen display
  • Ultimate user interface – information on major screens
  • Adjustable timing for auto shut-off
  • Touchscreen never has to be calibrated
  • Digital and graphical pressure/temperature measurements
  • Choose from relevant refrigerant profiles stored including A2L – may designate 3 favorites
Robust housing with ergonomic grip
  • 4-way TITAN valve block

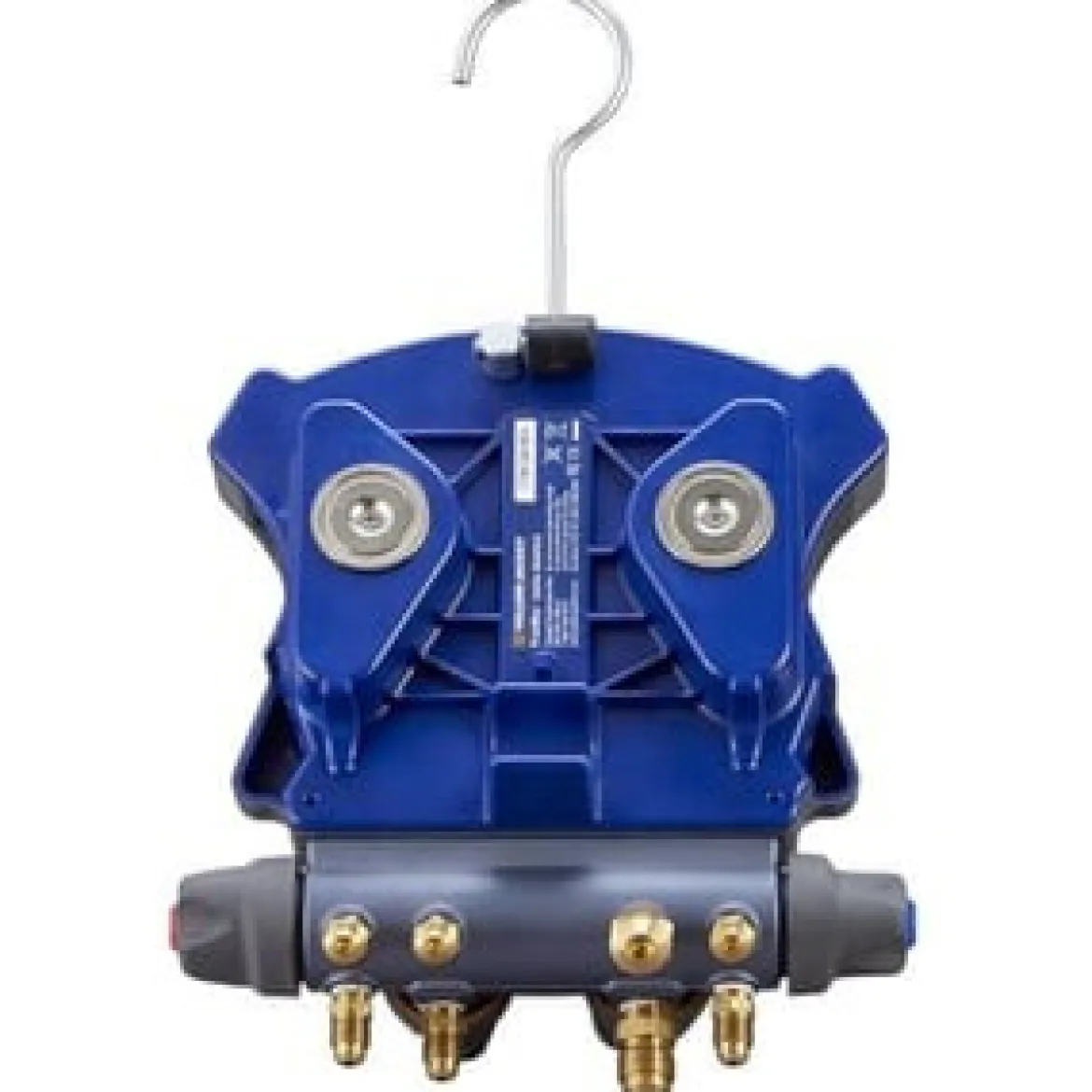

  • Integrated magnets for mounting on equipment cabinet may also be used to store TITAN Temperature Clamps
  • Pivoting hook
  • Convenient connections for USB port, temperature clamps, and vacuum sensor
TheYellow Jacket TITANMAX 40881 digital manifoldcan be paired with the YJACK VIEW App. The YJACK VIEW App offers a complete HVAC/R system diagnostic solution when paired with the YJACK series of devices and the TITANMAX 40881 digital manifold. A technician can receive and analyze live data from all powered-on, nearby YJACK, TITANMAX™, and P51-870 TITAN devices, including system pressure, temperature, vacuum, psychometrics, and current draw.
YJACK View App Features
  • Measure HVAC/R system pressure, temperature, saturation temperature, superheat and subcooling
  • Monitor system evacuation status
  • Check indoor air comfort and system efficiency with psychrometric air calculations: Percent relative humidity, dry
  • bulb, wet bulb and dew point temperature measurements
  • Monitor status of all nearby YJACK and TITANMAX™ and P51-870 TITAN devices
  • Customize data view for each measurement
  • Freely switch between multiple simultaneous sessions without loss of data
  • Create highly customized datalogs to be saved or emailed from your smart device
  • All relevant refrigerant profiles found in the REFPROP database
  • Available on iOS (version 10 or later) and Android (version 8 or later) smart devices

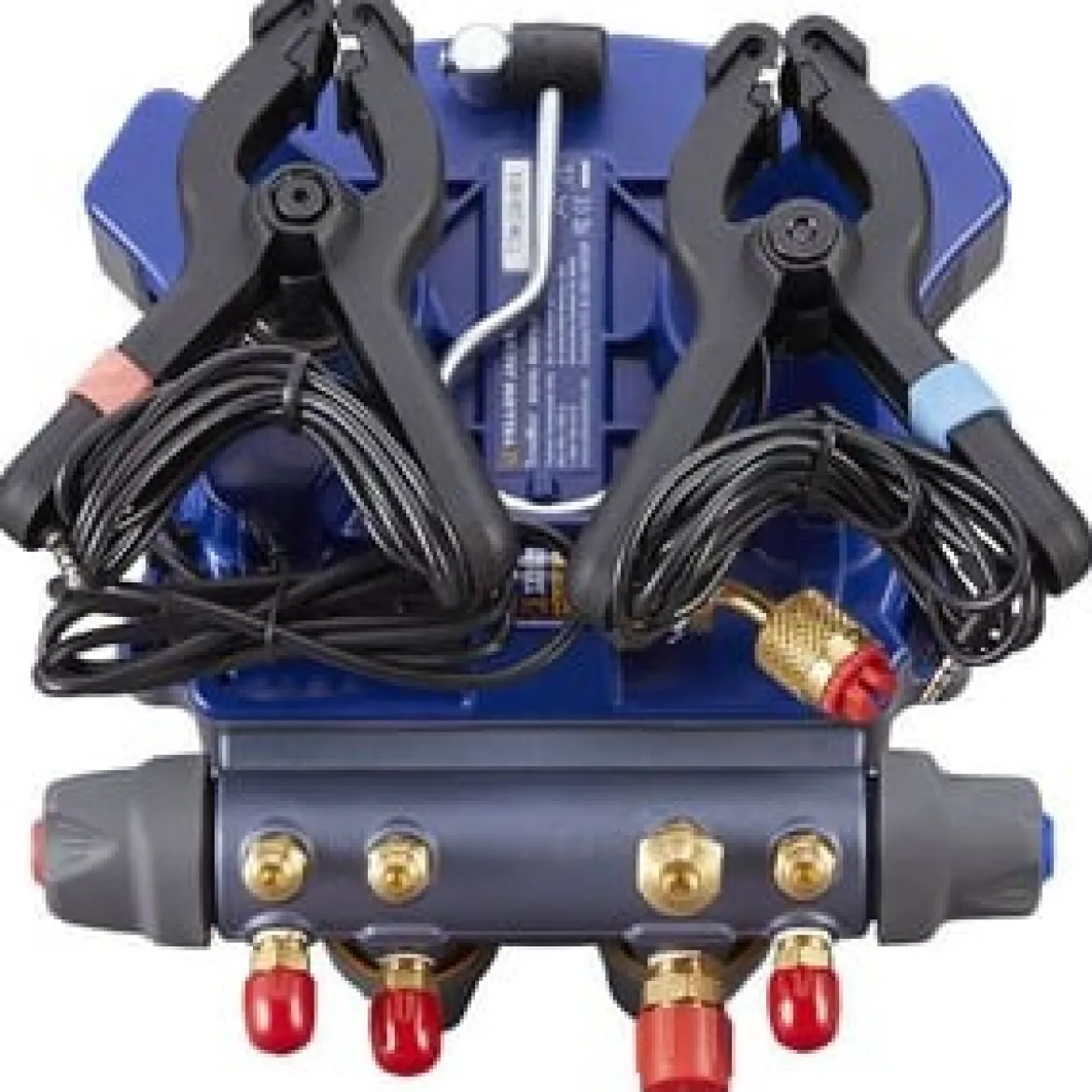

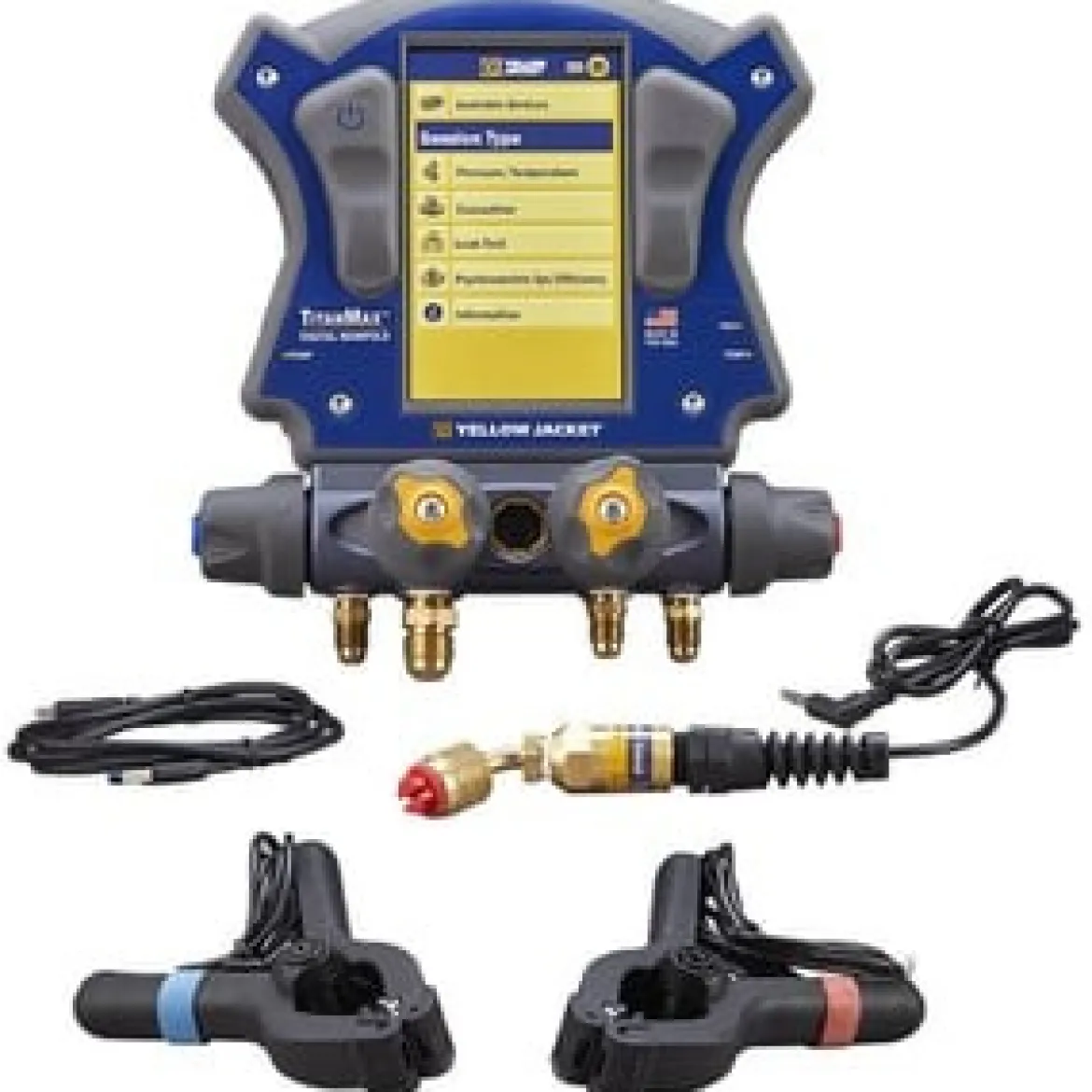

What’s in the Box?

  • TITANMAX manifold
  • Vacuum sensor
  • (2) Titan temperature clamps
  • USB-C cord
  • User Manual
  • 2-year warranty
