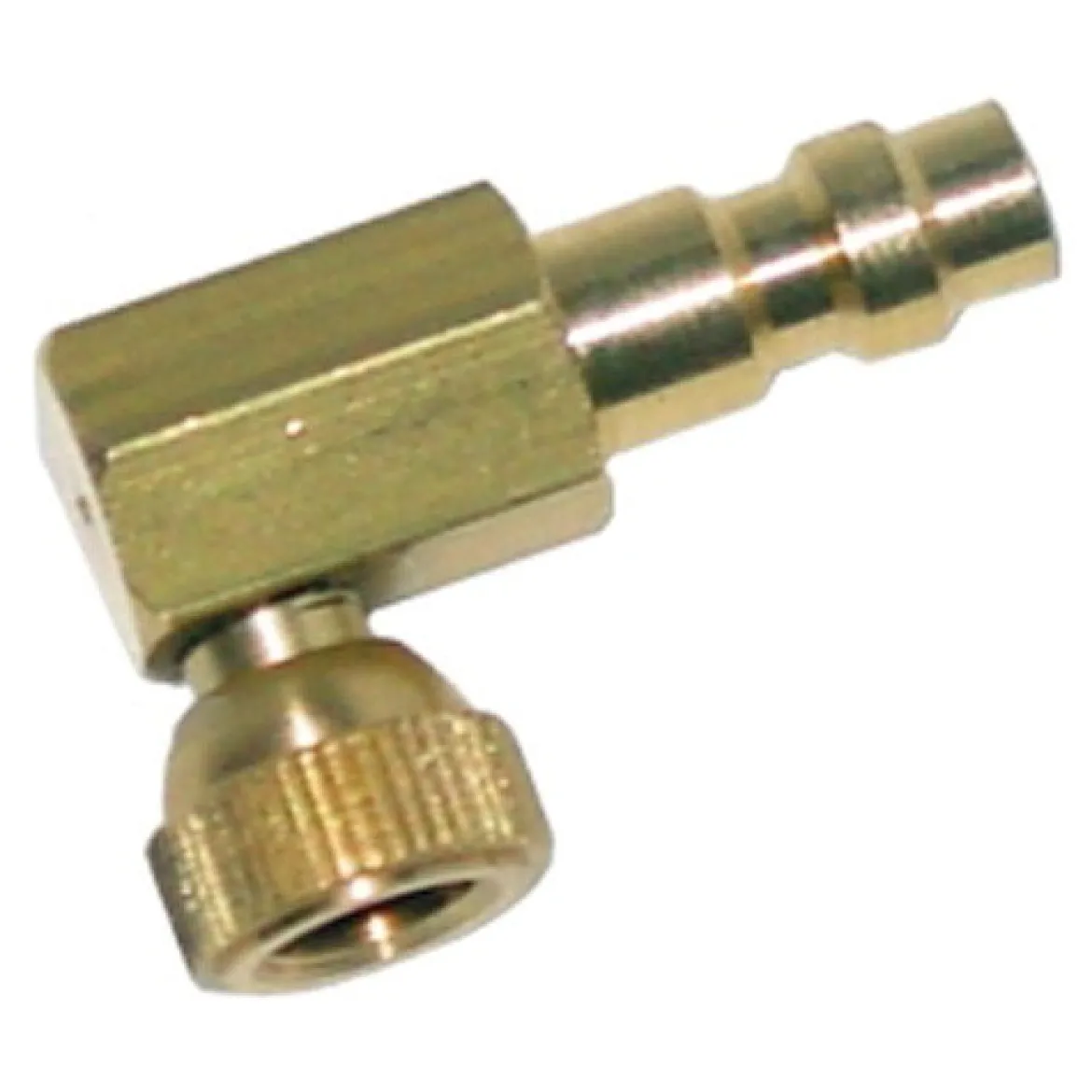

Lang Tools Small Schrader Right Angle Adapter (74853)

The Lang Tools Small Schrader Right Angle Adapter (74853) is an indispensable tool for automotive technicians and enthusiasts alike, designed to streamline fuel injection pressure testing, especially in vehicles where access to the Schrader valve is limited. Modern engine compartments often present a challenge for traditional straight-line connections due to their compact design and the strategic placement of components. This adapter expertly navigates these tight spaces, providing a crucial right-angle connection that makes accurate diagnostics possible.

KEY FEATURES AND BENEFITS:

• Right-Angle Design: Provides essential access to fuel system Schrader valves located in cramped or obstructed areas, making fuel pressure testing feasible where straight connections cannot reach.
• Small Schrader Valve Compatibility: Specifically designed for smaller Schrader valves found on many contemporary vehicles, ensuring a precise and secure fit for accurate readings.
• Quick Coupler Plug: Facilitates rapid and secure attachment of fuel pressure gauges and testing equipment, speeding up diagnostic procedures and minimizing potential for connection errors or leaks.
• Enhanced Accessibility: Allows technicians to perform critical fuel pressure tests on vehicles with limited engine bay space, such as late-model Ford and GM vehicles, without needing extensive disassembly.
• Improved Diagnostic Accuracy: Ensures that fuel pressure tests can be conducted reliably, providing essential data for diagnosing fuel delivery system issues effectively.
• Integration with Test Equipment: Seamlessly connects with compatible fuel injection test kits, including Lang Tools’ TU-550 and TU-74489, expanding their utility and application.

SPECIFICATIONS:

• Includes: 1 x Lang Tools Small Schrader Right Angle Adapter (74853)

HOW TO USE:

1. Locate the Schrader Valve: Identify the small Schrader test port on your vehicle’s fuel rail or fuel line. Refer to your vehicle’s service manual if you are unsure of its exact location.
2. Prepare the Valve: Ensure the Schrader valve and the surrounding area are clean and free from dirt or debris to prevent contamination.
3. Connect the Adapter: Carefully push the Lang Tools Small Schrader Right Angle Adapter (74853) onto the Schrader valve. You should feel it click securely into place.
4. Attach Pressure Gauge: Connect your fuel injection pressure gauge or testing equipment to the quick coupler plug on the opposite end of the adapter. Ensure this connection is also secure.
5. Perform Test: Follow the instructions for your specific fuel pressure gauge to perform the required diagnostic test.
6. Disconnect Safely: Once testing is complete, relieve any remaining fuel pressure according to your gauge’s instructions or vehicle’s service manual. Then, disconnect the pressure gauge from the adapter by retracting its quick-coupler collar. Finally, carefully remove the Lang Tools adapter from the vehicle’s Schrader valve.

BENEFITS OF USING LANG TOOLS SMALL SCHRADER RIGHT ANGLE ADAPTER (74853):

• Significantly improves the efficiency and accuracy of fuel system diagnostics.
• Eliminates frustration of connecting equipment in confined engine bays.
• Ensures precise fuel pressure readings for correct issue identification.
• Prevents fuel leaks during testing for safer and cleaner workspace.
• Integrates seamlessly with Lang Tools test kits for wider vehicle compatibility.
• Saves time and reduces effort in complex diagnostics.

FEATURES:

• Compact, low-profile design for tight access points
• Precision-machined fittings for reliable connections
• Corrosion-resistant material for extended tool life
• Spring-loaded quick-release mechanism for easy operation
• Secure sealing to prevent fuel leaks during operation
• Specific sizing for small automotive Schrader valves
• Designed to integrate with standard quick-connect fuel system testers
