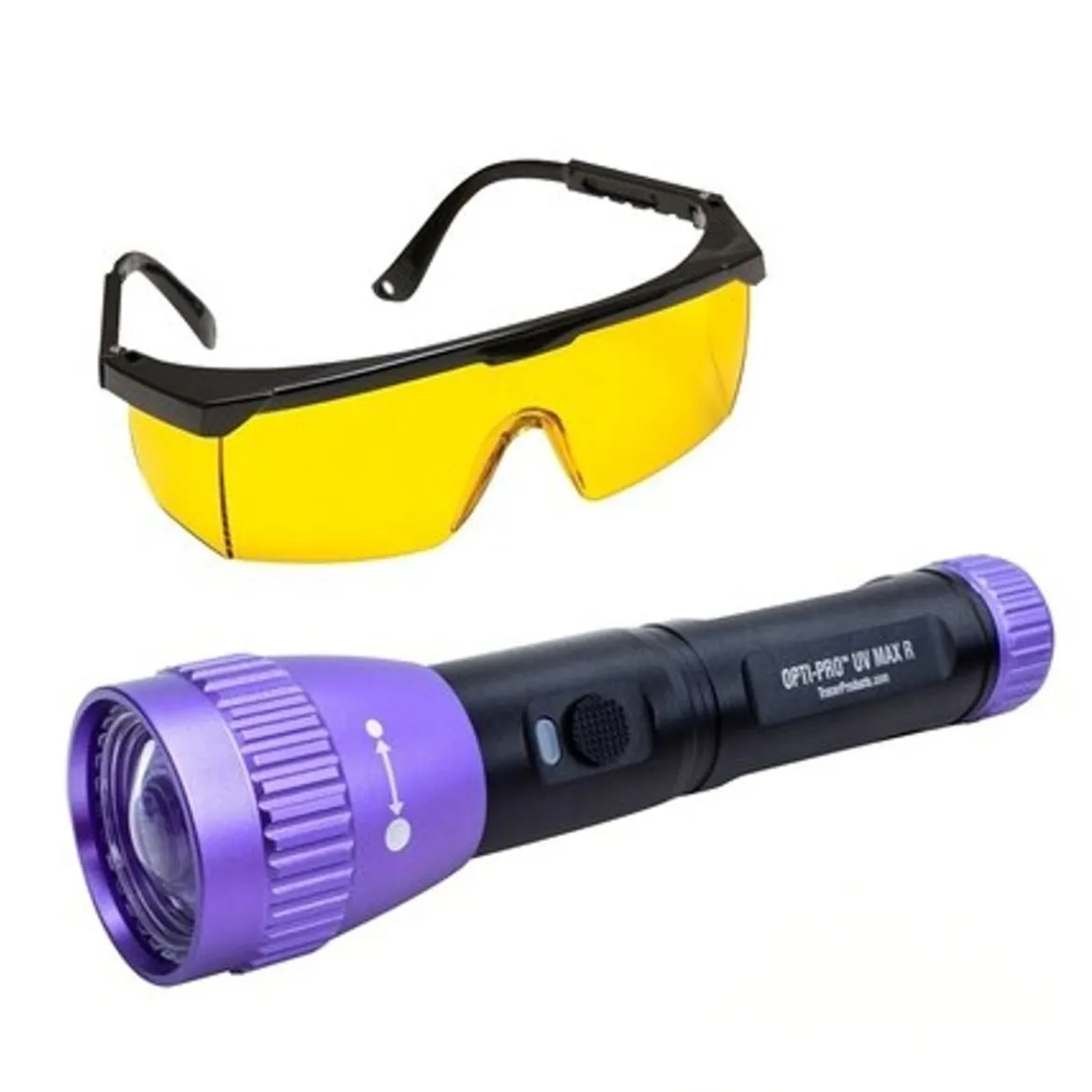

Tracerline OPTI-PRO UV MAX Violet LED Light (TPOPUVM)

The Tracerline OPTI-PRO UV MAX Violet LED Light (TPOPUVM) is an essential tool for precise leak detection in a variety of fluid systems. Engineered with a powerful violet light LED, this flashlight delivers an exceptionally effective beam profile, making it easier than ever to locate even the most elusive leaks. Its advanced features, including an adjustable focus lens and a high-low output setting, provide technicians with the versatility needed for any leak detection scenario, whether scanning broad areas or pinpointing tiny imperfections.

KEY FEATURES AND BENEFITS:

• Most Powerful Beam Profile: Features an exceptionally strong violet light LED beam, designed for superior effectiveness in illuminating fluorescent dyes, ensuring no leak goes unnoticed.
• Adjustable Focus Lens: Provides the ability to easily narrow the light beam for intense illumination of small, hard-to-reach leaks or widen it for broader area scans and to minimize reflections from shiny surfaces.
• High-Low Output Setting: Offers flexible light intensity options, allowing technicians to adjust the brightness based on the inspection environment and the specific leak detection needs.
• Strobe Light Feature: Helps to significantly contrast the fluorescent dye from the surrounding area, making leaks more apparent and potentially enabling the detection of multiple leaks simultaneously.
• Extended Inspection Range: Capable of illuminating leaks up to 30 feet (9 meters) away, providing a wide detection field for efficient system checks.
• Long Run Time: Delivers over 5 hours of continuous operation on a single set of 3 AA batteries, ensuring extended use without frequent battery changes.

SPECIFICATIONS:

• Light Source: Violet Light LED
• Range: Up to 30 ft (9m)
• Battery: 3 AA Batteries
• Run Time: 5+ Hours
• Included: 3 AA Batteries, Fluorescence-enhancing Glasses

HOW TO USE:

1. Introduce Fluorescent Dye: Begin by adding the appropriate fluorescent leak detection dye to the system you intend to inspect (e.g., automotive A/C, cooling, or oil system). Allow the dye to circulate thoroughly within the system to mix with the fluid.
2. Wear Protective Glasses: Put on the included fluorescence-enhancing glasses. These glasses are designed to filter out ambient light and enhance the visibility of the fluorescent dye under UV illumination.
3. Activate the Flashlight: Turn on the Tracerline OPTI-PRO UV MAX flashlight using its power button.
4. Adjust Focus and Output (Optional): If needed, adjust the focus of the beam by rotating the lens to either narrow it for pinpoint accuracy on small areas or widen it for broader scans. You can also switch between high and low output settings depending on the ambient light conditions and the desired intensity.
5. Scan the System: Systematically scan all components, connections, hoses, and potential leak points within the system with the UV light. The fluorescent dye will glow brightly at the exact location of any leak.
6. Utilize Strobe Feature (Optional): For difficult-to-spot leaks or in environments with reflections, activate the strobe light feature to enhance the contrast between the dye and the background, making leaks more discernible.
7. Identify and Repair: Once a leak is identified by the glowing dye, mark the location for repair.

BENEFITS OF USING TRACERLINE OPTI-PRO UV MAX VIOLET LED LIGHT (TPOPUVM):

• Accurate Leak Identification: Helps pinpoint the exact source of leaks, preventing guesswork and ensuring that repairs address the actual problem.
• Reduced Rework: By accurately finding all leaks the first time, this tool minimizes the need for follow-up repairs, saving time and resources.
• Enhanced Customer Satisfaction: Ensures comprehensive leak detection and repair, leading to more reliable system performance and fewer comebacks for customers.
• Efficiency in Diagnostics: Speeds up the diagnostic process, allowing technicians to quickly identify issues and proceed with necessary repairs.
• Versatile Application: Effective for a wide range of fluid systems in various industries, particularly valuable in automotive diagnostics for AC, oil, coolant, and hydraulic leaks.

FEATURES:

• High-intensity violet LED ensures vibrant dye fluorescence.
• Comfortable ergonomic grip ideal for long inspections.
• Precision lens system allows flexible beam adjustments.
• Durable build quality supports reliable use in various environments.
• Simple mode control switch for quick brightness and strobe toggling.
• Compact and lightweight for easy transport and handling.
• Includes AA batteries for immediate deployment.
• Special glasses enhance dye visibility under UV light.
