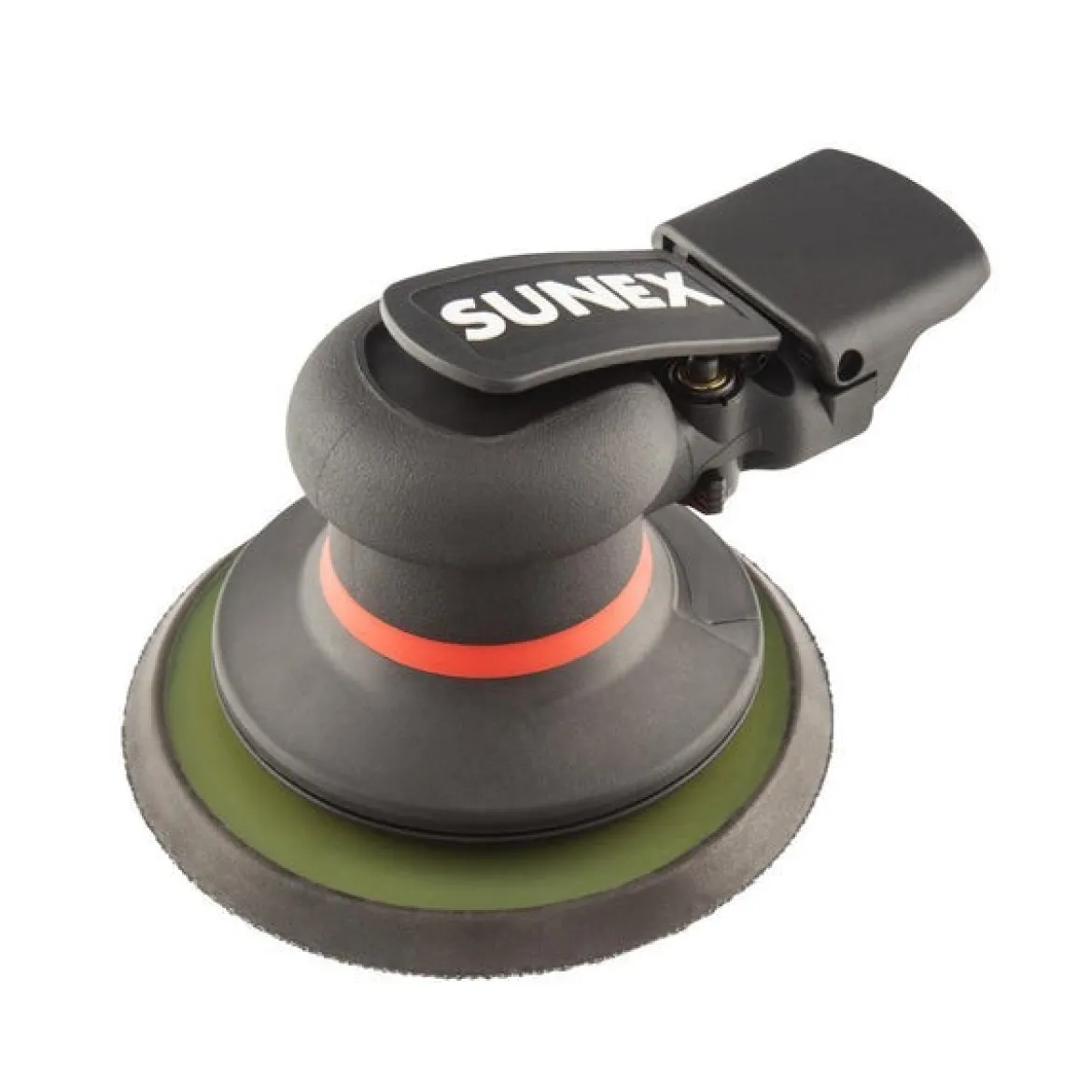

Sunex Tools 3/16″ Orbital Palm Sander (SXSN6P01)

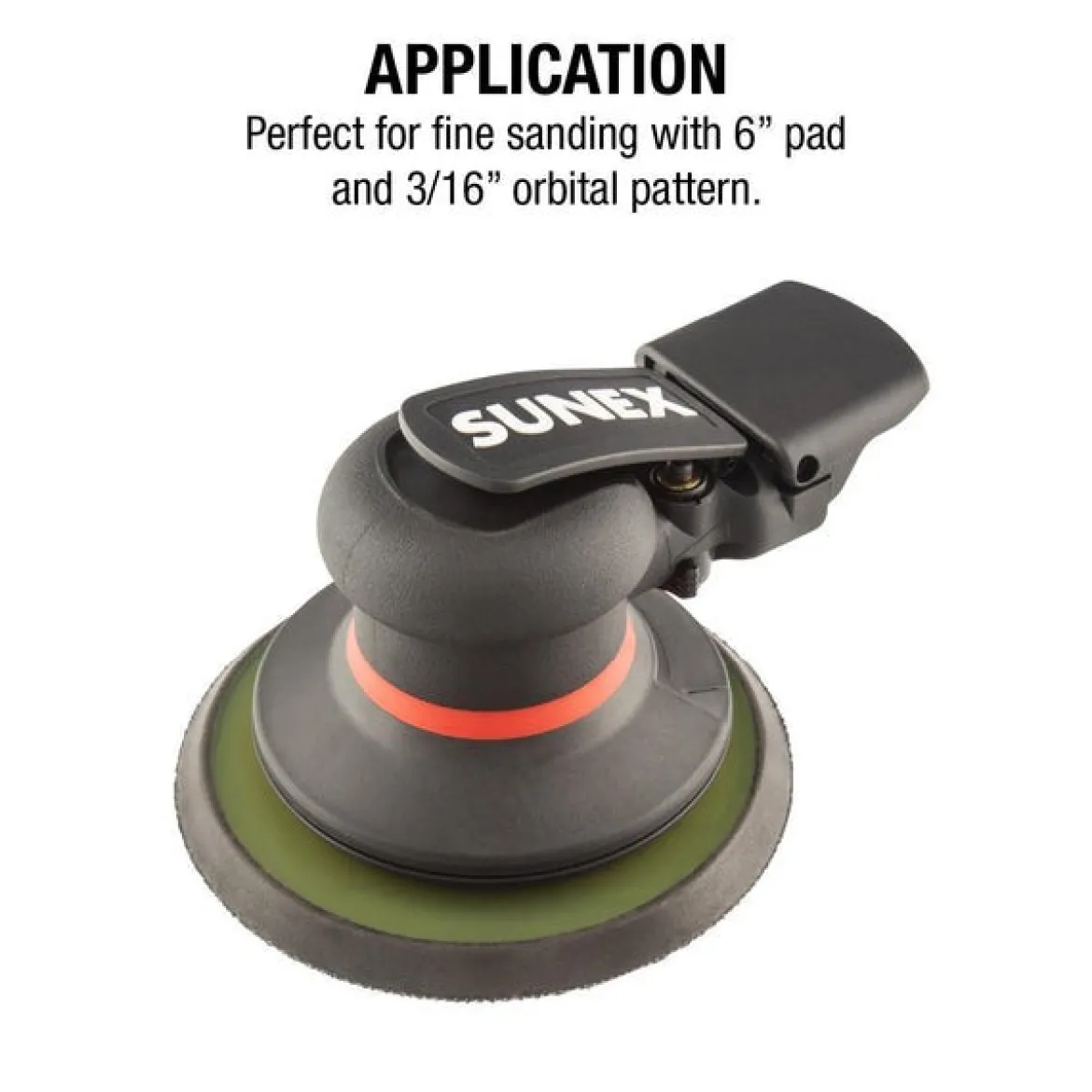

Sunex Tools 3/16″ Orbital Palm Sander (SXSN6P01) is a professional-grade pneumatic tool engineered specifically for high-precision finishing work. In environments like automotive body shops or high-end woodworking studios, the quality of the final surface is paramount. This tool addresses that need by combining a high-speed 11,000 RPM motor with a 3/16-inch random orbital action. This orbit diameter is the industry standard for fine sanding, providing sufficient movement for efficiency while preventing deep swirl marks often left by larger-stroke sanders.

Key Features and Benefits:

• Fine Sanding Precision: The 3/16″ random orbit action operating at 11,000 RPM allows users to achieve professional-grade results, ensuring a smooth finish for paint or stain.
• Keflar-Impregnated Rotor Blades: These specialized blades increase the tool’s lifespan by 50%, leading to significant cost savings on tool replacements.

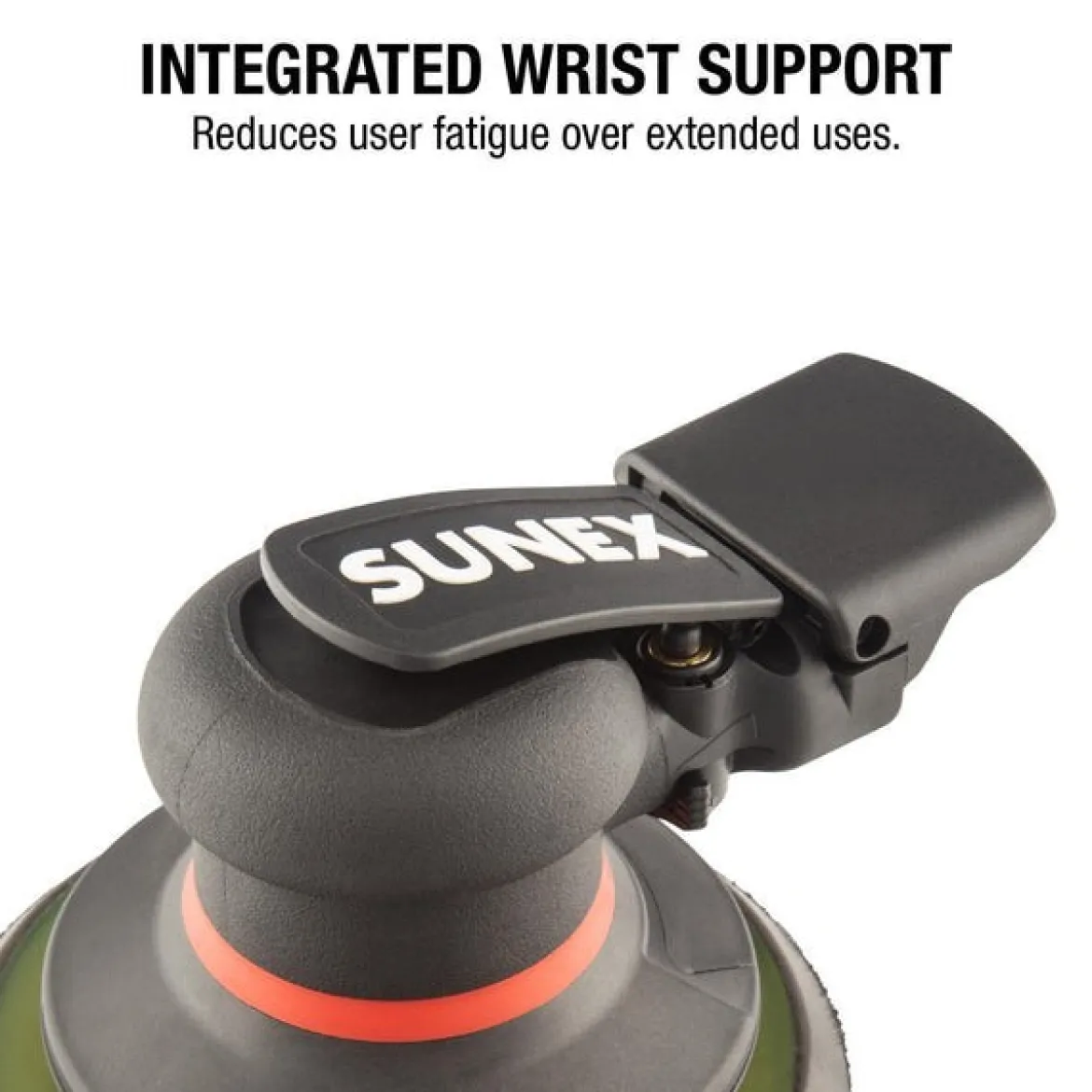

• Integrated Wrist Support: Reduces fatigue during long work sessions and keeps the operator comfortable by diverting exhaust air.

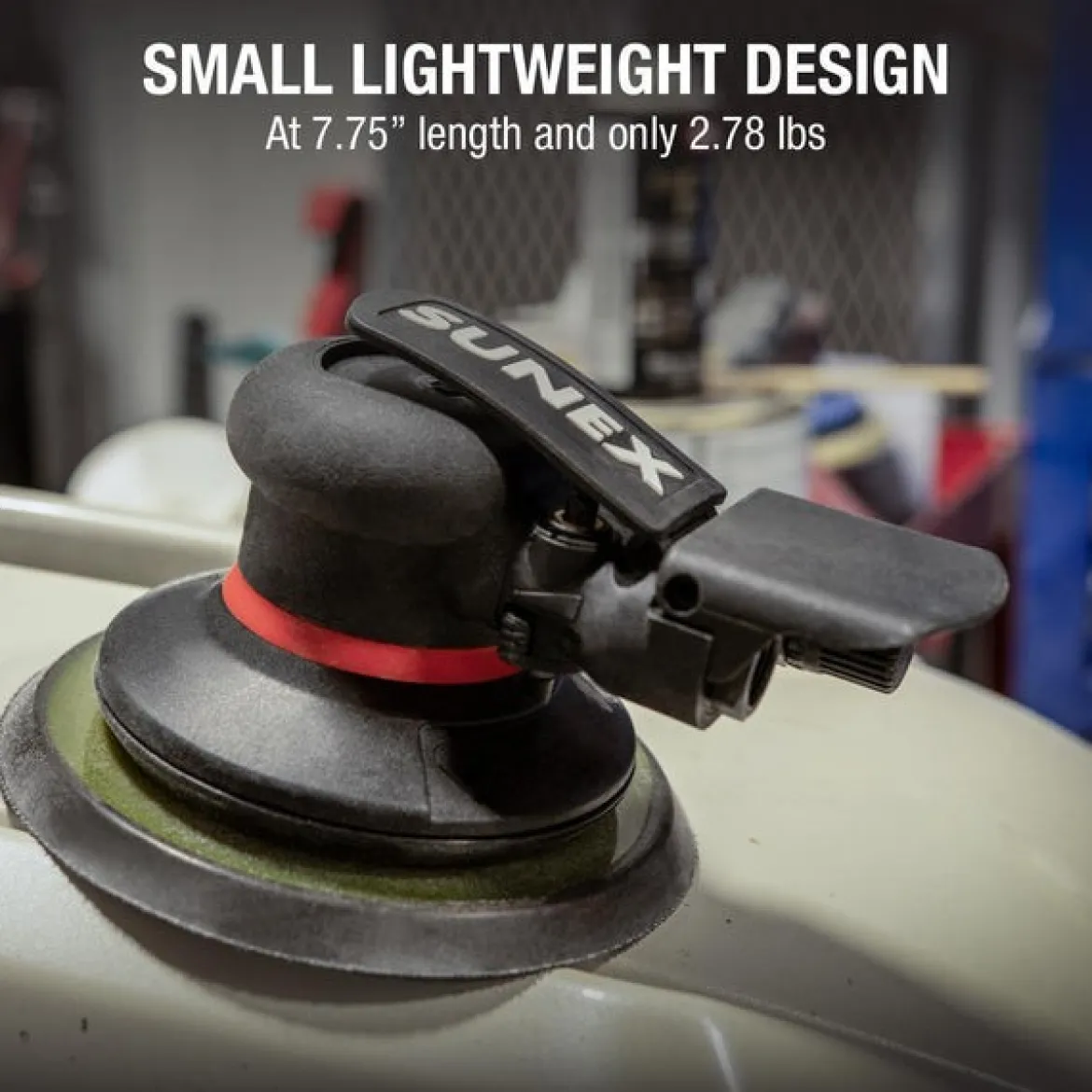

• Lightweight Compact Design: At only 2.78 lbs and 7.75″ in length, the tool is easy to maneuver in tight spaces or on vertical surfaces.
• Vibration Reduction: A precision-balanced pad minimizes movement transfer to the userÕs hand, providing a more controlled and smooth sanding experience.

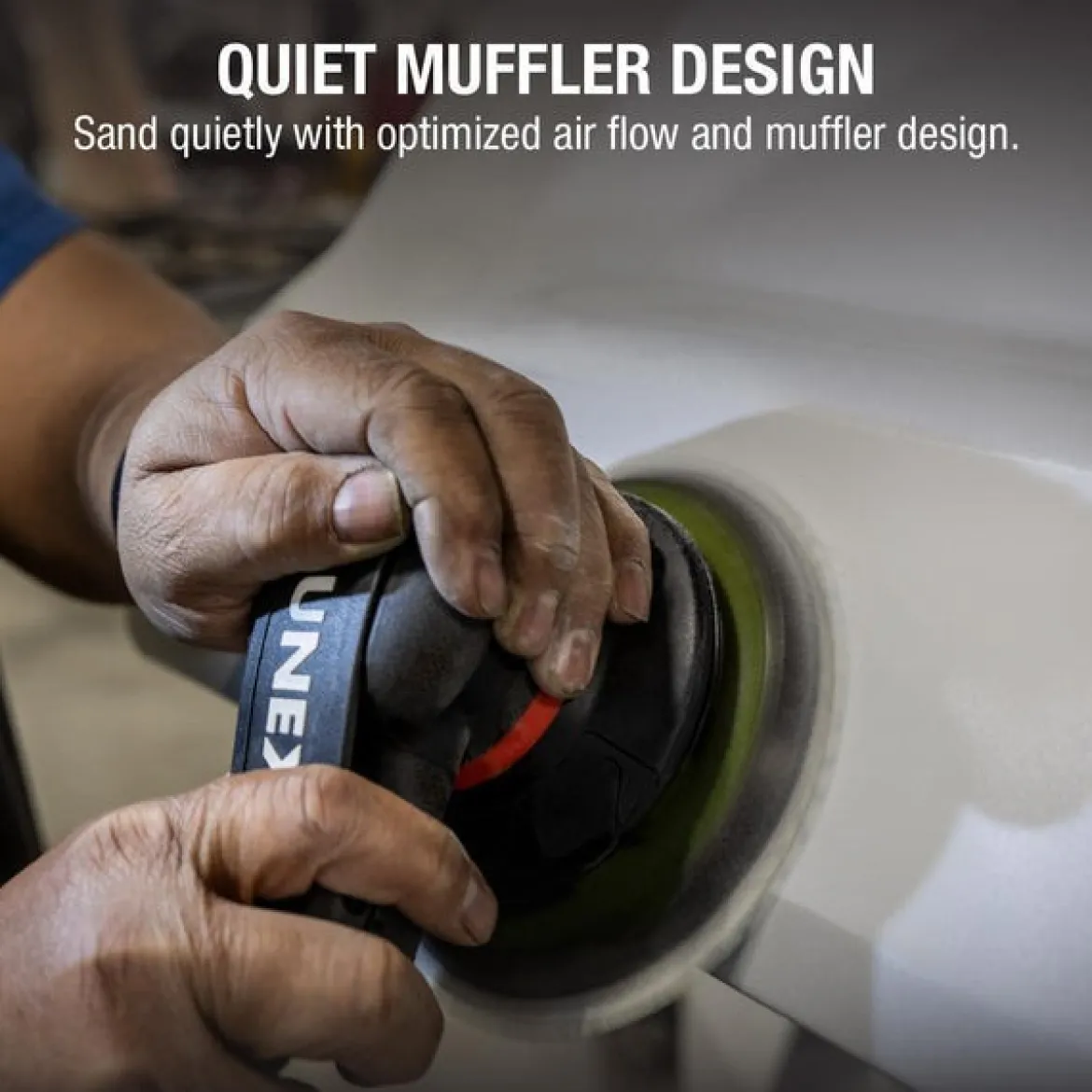

• Quiet Operation: An optimized internal air path and low-noise muffler maintain operation at 81.2 dB(a), protecting the user’s hearing without losing power.
• Improved Grip Retention: The rubber over-mold ensures secure handling even in dusty or humid environments.

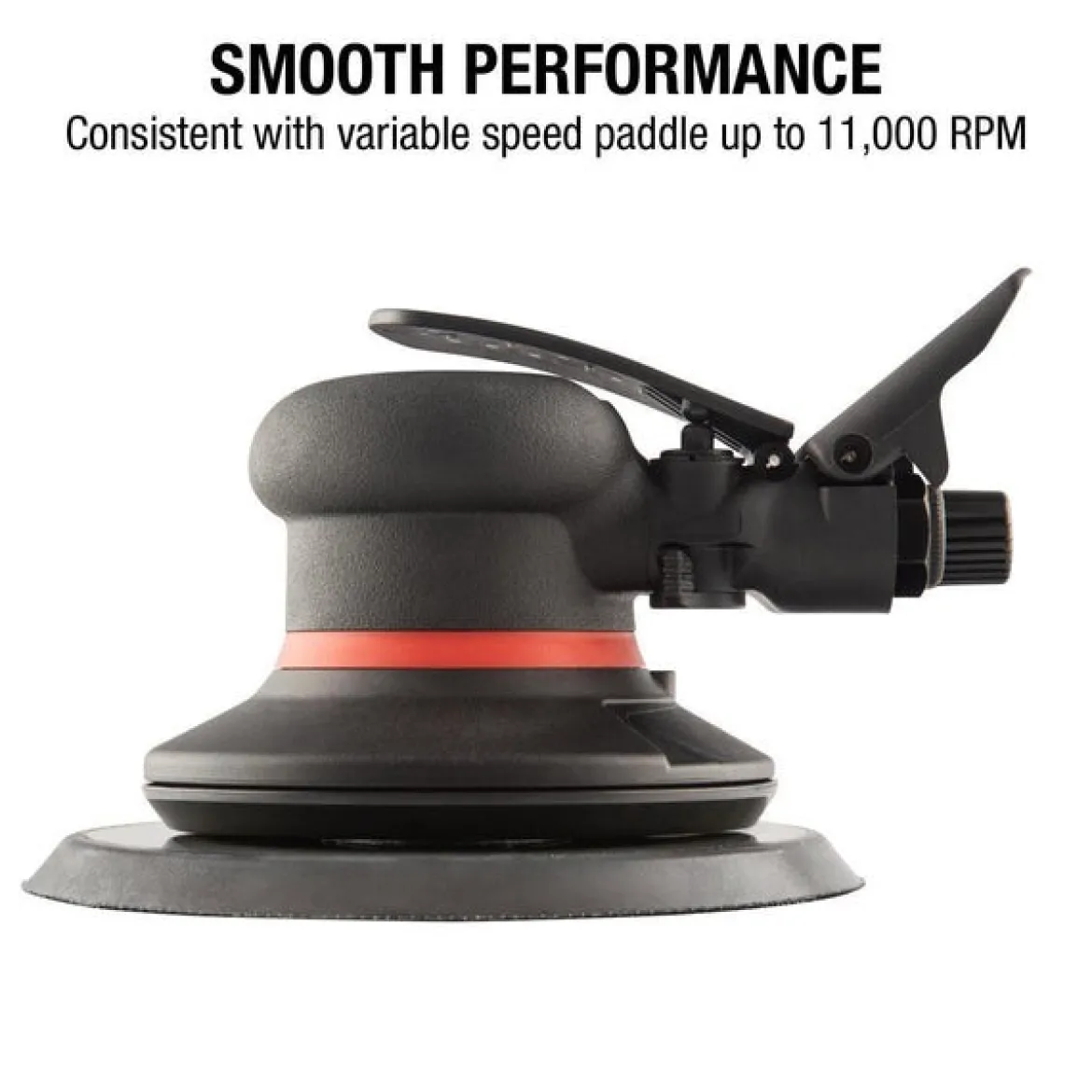

• One-Handed Speed Control: The thumb regulator is positioned for easy access, allowing for immediate speed adjustments during sanding.
• Oil-Free Motor Design: Reduces maintenance needs and prevents oil from ruining the work surface.

Specifications:

• Orbit Diameter: 3/16″
• Max Speed: 11,000 RPM
• Noise Level: 81.2 dB(a)
• Weight: 2.78 lb.
• Length: 7.75″
• In the Box: Sunex SXSN6P01 Orbital Palm Sander, 6-inch Sanding Pad, and Wrench.

How to Use:

• Air Supply Connection: Ensure your air compressor is set to 90 PSI and connect a standard air hose to the inlet at the rear of the sander.
• Pad Attachment: Securely tighten the 6-inch sanding pad using the included wrench before attaching your preferred grit sandpaper.
• Abrasive Application: Align your 6-inch hook-and-loop or sticky-back sandpaper with the sanding disc and press firmly to secure.
• Speed Adjustment: Move the speed regulator located near the paddle trigger to set your desired RPM with your thumb.
• Operation: Place the sander flat on the work surface before engaging the paddle trigger to prevent “gouging.”
• Sanding Motion: Move the sander in slow, overlapping strokes across the material; do not apply heavy downward pressure.
• Shutdown: Release the paddle trigger and wait for the pad to stop spinning completely before lifting the tool off the work surface.

Benefits of Using Sunex Tools 3/16″ Orbital Palm Sander (SXSN6P01):

• Ensures finishing work meets professional standards with minimal physical effort.
• Eliminates the risk of “pigtail” swirls common in finishing tasks thanks to the 3/16″ stroke and 11,000 RPM motor.
• Precision-balanced design allows for prolonged use without hand numbness associated with high-vibration air tools.
• Kevlar-reinforced internals provide a reliable return on investment for technicians and hobbyists alike.

Features:

• Composite Motor Housing: High-strength materials protect internal components while keeping overall weight low.
• Double-Sealed Bearings: Prevent fine dust from entering bearing races, extending the smooth rotational life of the pad.
• Directional Air Exhaust: Channels air away from the operator’s hand and immediate work area.
• Thumb-Actuated Regulator: Allows for precise RPM tuning without needing to disconnect the tool.
• Low-Profile Paddle Trigger: Designed to sit flush with the tool body to prevent pressure points on the palm.
• High-Flow Air Inlet: Provides consistent air volume to the rotor for steady speed under load.
• Internal Muffler System: Dampen the high-pitched whine typical of pneumatic motors using a baffled path.
