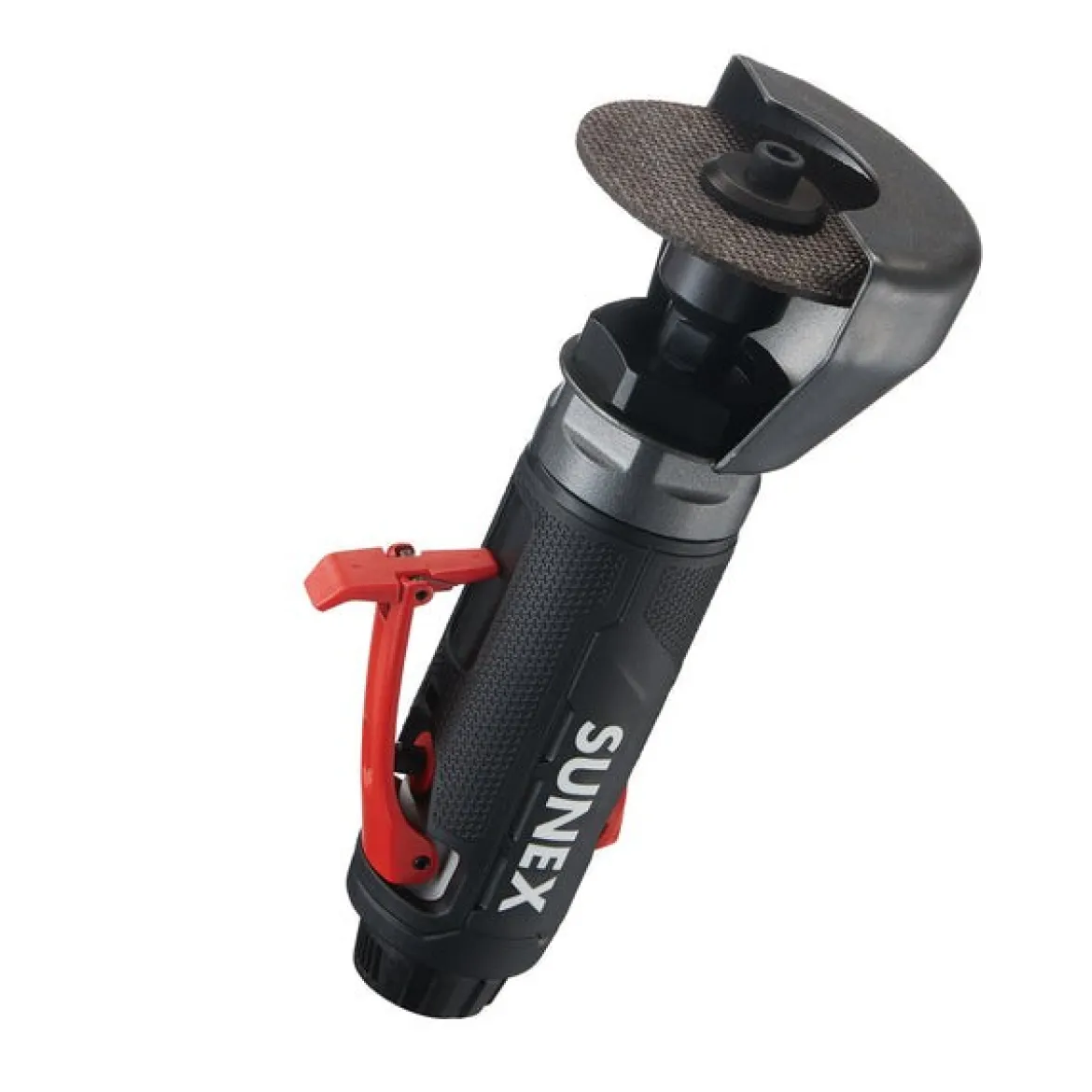

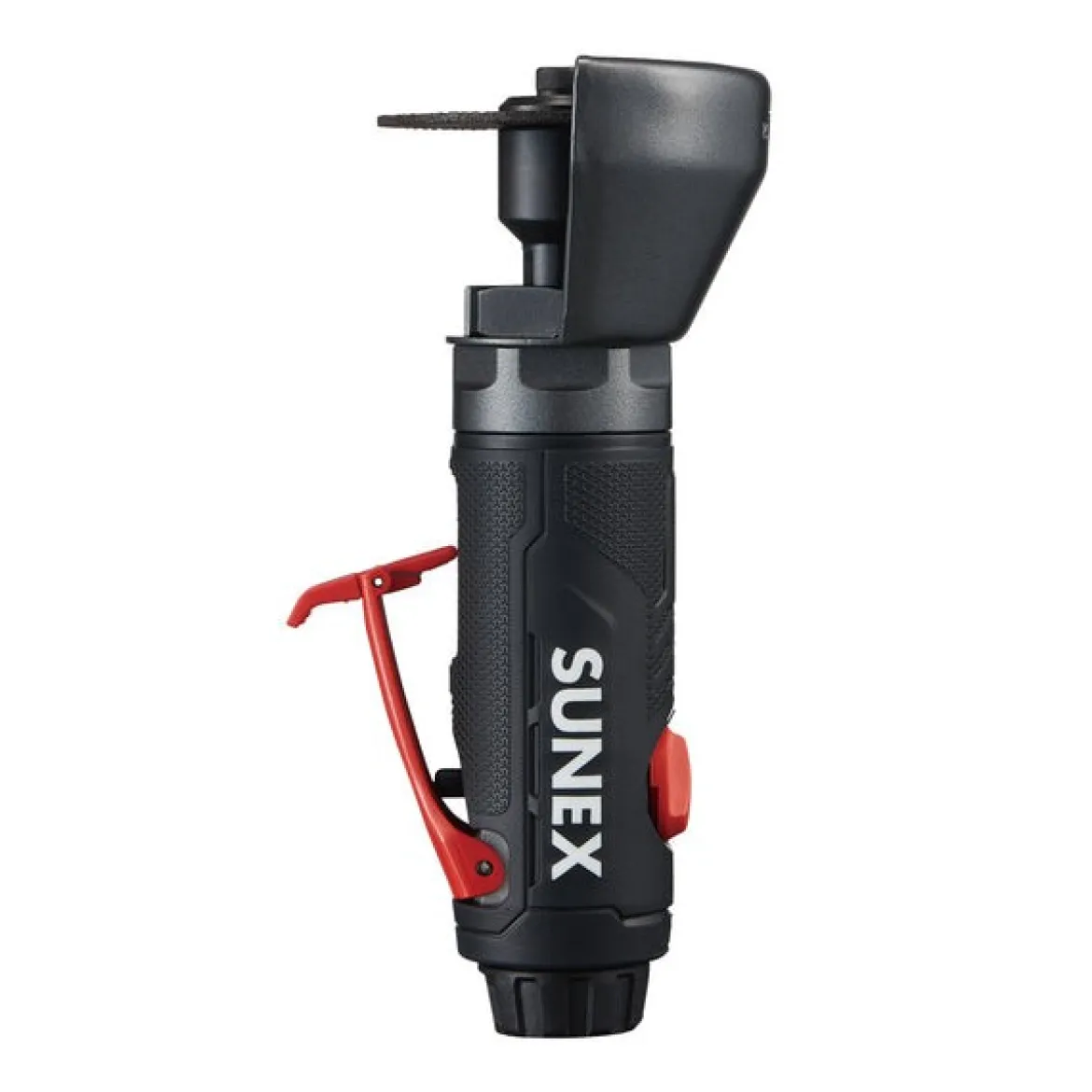

Sunex Tools 0.5HP 3″ Cut-Off Tool (SX6213)

Sunex Tools 0.5HP 3″ Cut-Off Tool (SX6213) is a professional-grade pneumatic instrument engineered for high-speed metal removal and fabrication. Built around a 0.5HP motor, this tool is designed to handle the rigorous demands of automotive repair shops and metalworking facilities. Its primary function is the rapid shearing of metal components, including exhaust pipes, mufflers, and seized fasteners, where traditional saws or manual tools are impractical. By combining a 22,000 RPM free speed with a lightweight 1.8 lb composite frame, the SX6213 provides the power necessary for heavy-duty cutting without the physical strain often associated with larger, all-metal pneumatic tools.

Key Features and Benefits:

• Power and Ergonomics: The SX6213 combines a 0.5HP motor with a lightweight composite body, ensuring comfort and ease of use during prolonged tasks.
• Consistent Torque: The motor delivers consistent torque, ensuring that the 3-inch cutting wheel maintains velocity under load.
• Thermal Comfort: Unlike aluminum housings, the composite material remains comfortable to the touch even during extended operation.
• Vibration Dampening: The ergonomic overmold grip dampens vibrations generated at 22,000 RPM, improving control and comfort.
• Safety Features: A lock-off trigger mechanism prevents accidental activation, and the oversized guard protects against flying debris.

Specifications:

• Motor: 0.5 HP
• Free Speed: 22,000 RPM
• Wheel Size: 3 Inches
• Weight: 1.8 lbs
• Air Consumption: 3.5 CFM @ 90 PSI
• Air Inlet: 1/4″ NPT
• Min. Hose Size: 3/8″ I.D.
• Exhaust: Rear
• Housing Material: Composite
• Set Includes: (1) 3Ó Cut-Off Disc Wheel and required wrenches for wheel installation.

How to Use:

• Preparation: Add 2-3 drops of air tool oil into the 1/4″ NPT air inlet before connecting to an air source to ensure lubrication.

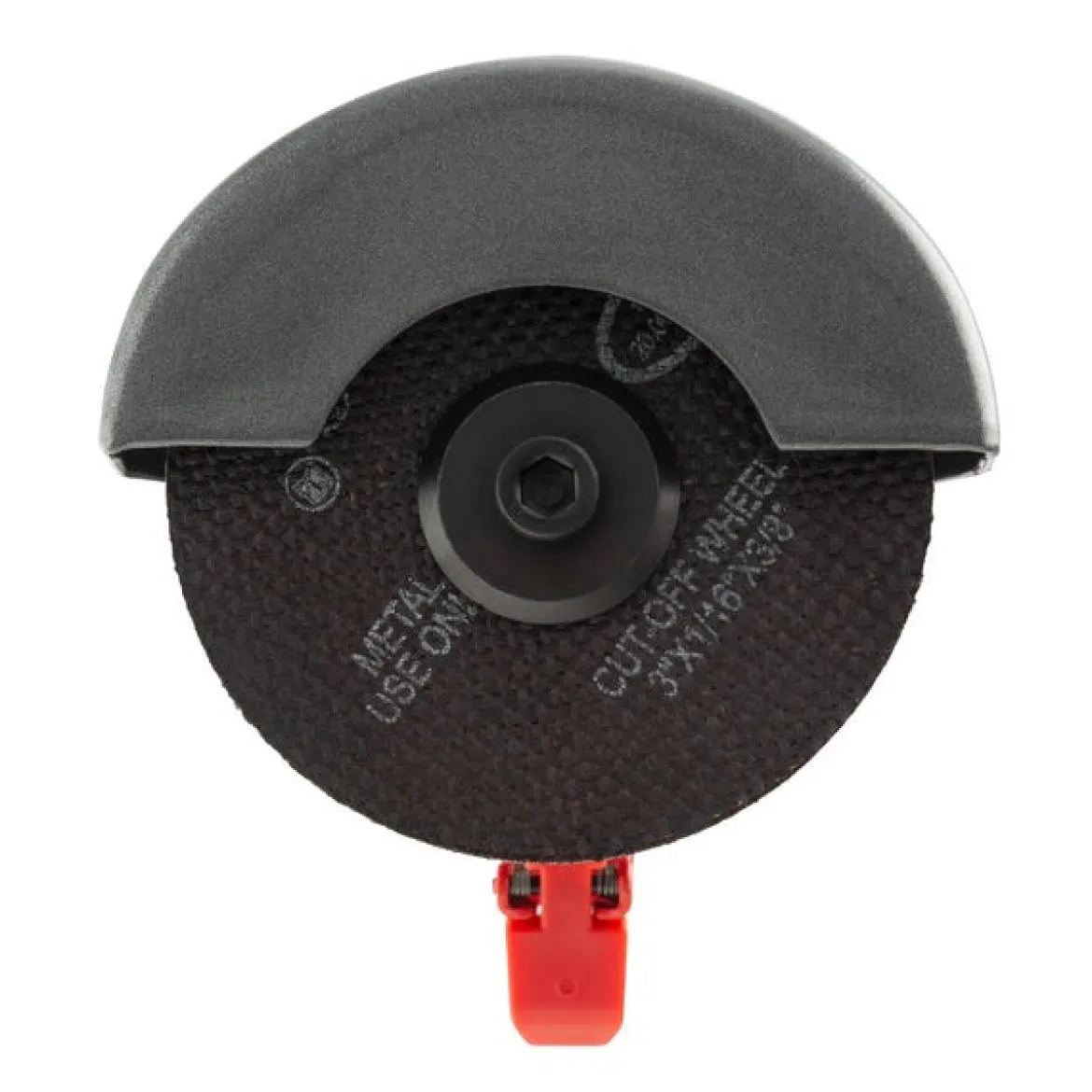

• Mounting the Wheel: Use the included wrenches to loosen the arbor nut, slide the 3-inch cutting wheel onto the spindle, and tighten the nut securely.
• Adjusting the Guard: Rotate the oversized cutting guard to deflect sparks away from your body and flammable materials.
• Air Connection: Attach a 3/8″ I.D. air hose to the tool and set your compressor to 90 PSI for optimal performance.
• Speed Selection: Adjust the built-in power regulator to the desired speed based on the thickness of the metal being cut.
• Operation: Depress the safety lock-off trigger and the paddle simultaneously to start the motor; allow it to reach full 22,000 RPM before contacting the workpiece.

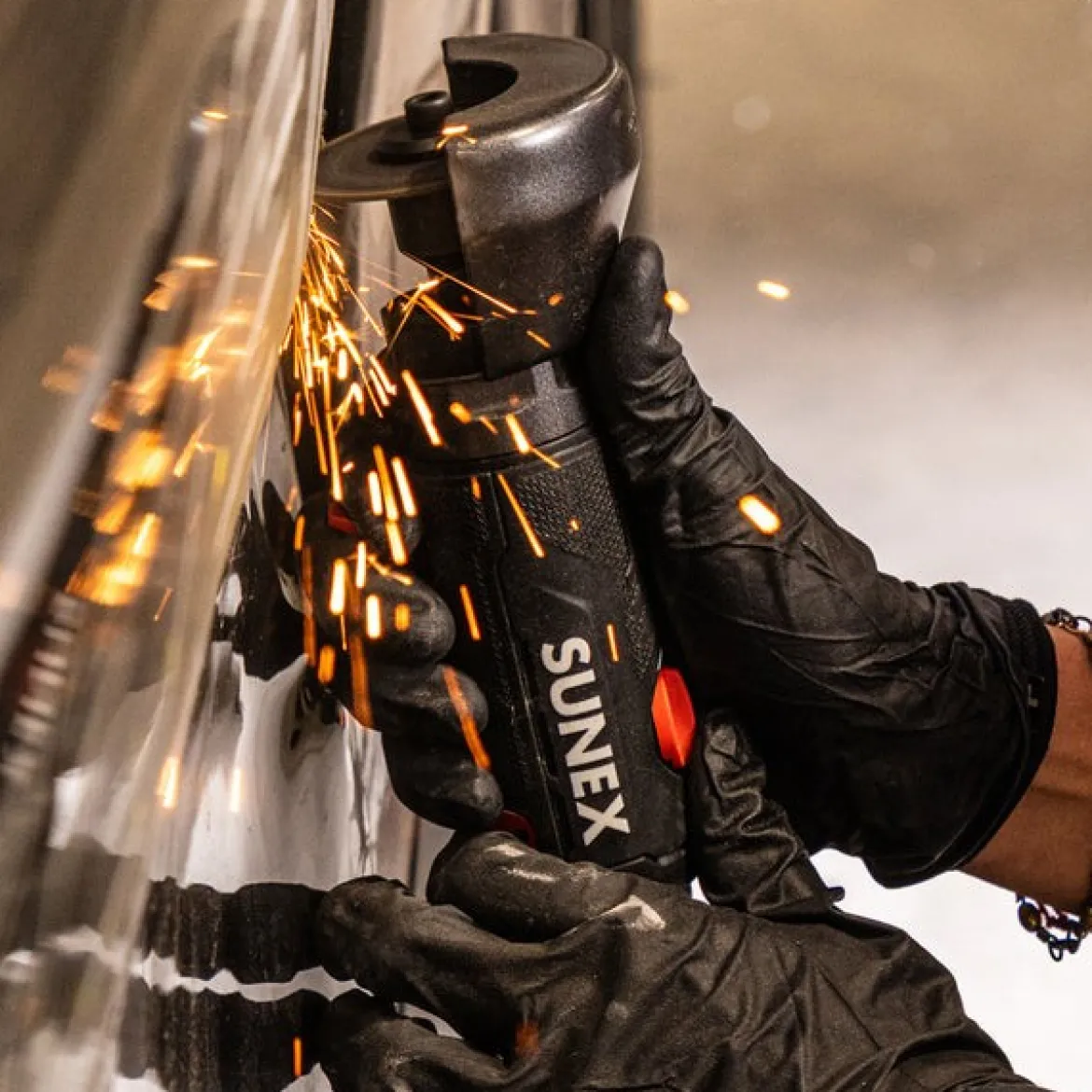

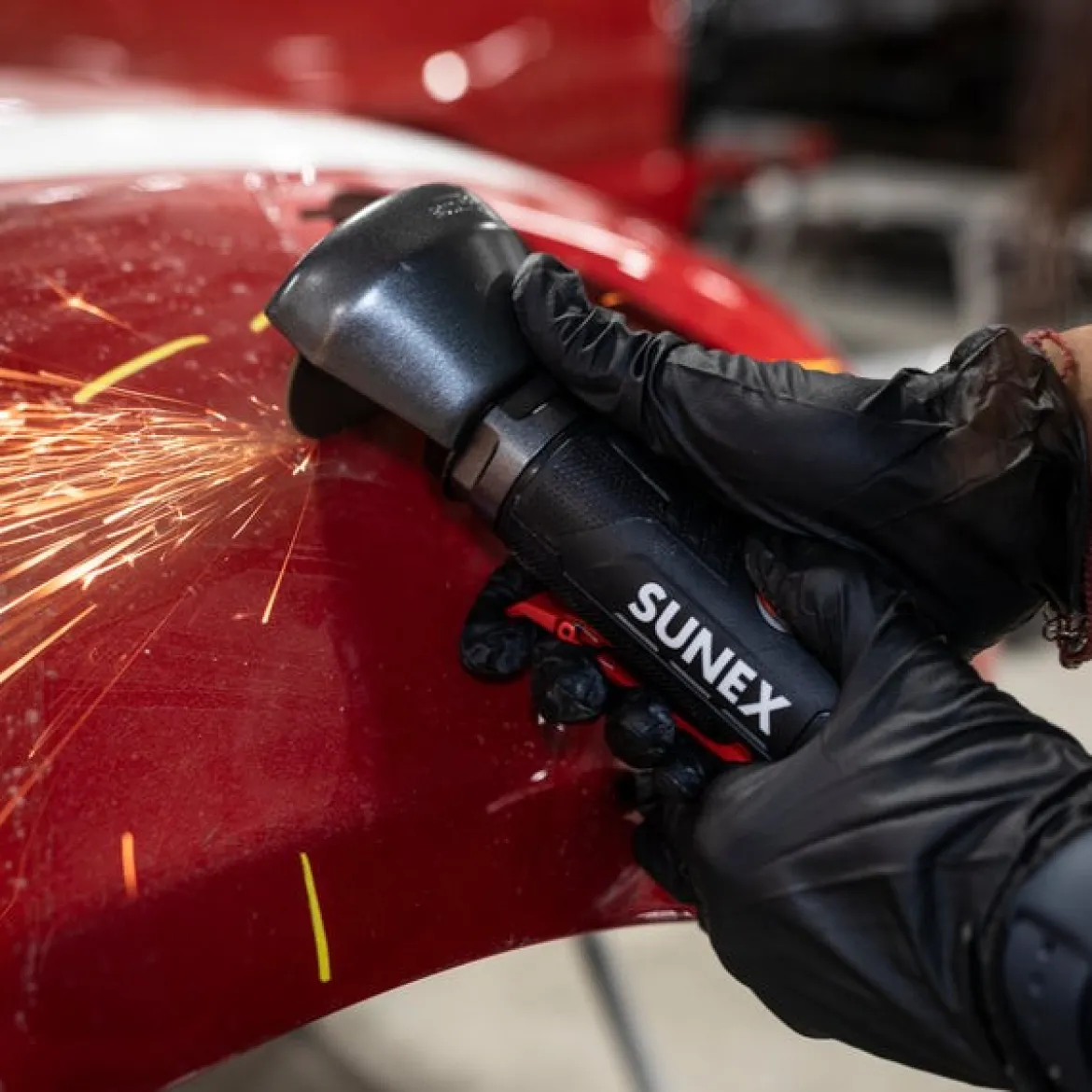

• Cutting: Apply light, steady pressure, letting the speed of the tool do the work without forcing the disc into the metal.
• Shutdown: Release the trigger and wait for the wheel to stop completely before placing the tool down.

Benefits of Using Sunex Tools 0.5HP 3″ Cut-Off Tool (SX6213):

• Increased Productivity: Offers a high-speed cutting solution that’s easy to maneuver in tight spaces.
• Reduced Fatigue: The lightweight design minimizes user fatigue during long grinding and cutting sessions, enhancing accuracy.
• Comfortable Handling: Composite construction and an ergonomic grip minimize vibration and maintain a neutral temperature.
• Versatile Cutting: The adjustable regulator and 22,000 RPM speed allow for seamless transition between delicate sheet metal and heavy-duty pipe cutting.

Features:

• Pneumatic Power System: Operates on 3.5 CFM at 90 PSI, compatible with most standard shop compressors.
• Vibration Dampening: The overmold grip absorbs mechanical feedback, ensuring smoother operation.
• Debris Management: A rear-facing exhaust port prevents air discharge from blowing dust or metal shavings back toward the operator.
• Spark Deflection: The oversized guard protects against hot metal fragments and sparks.
• Accidental Start Prevention: A safety lever must be disengaged before the throttle can be depressed, enhancing user safety.
• Speed Optimization: The internal regulator allows for variable RPM, essential when switching between different metal gauges.
