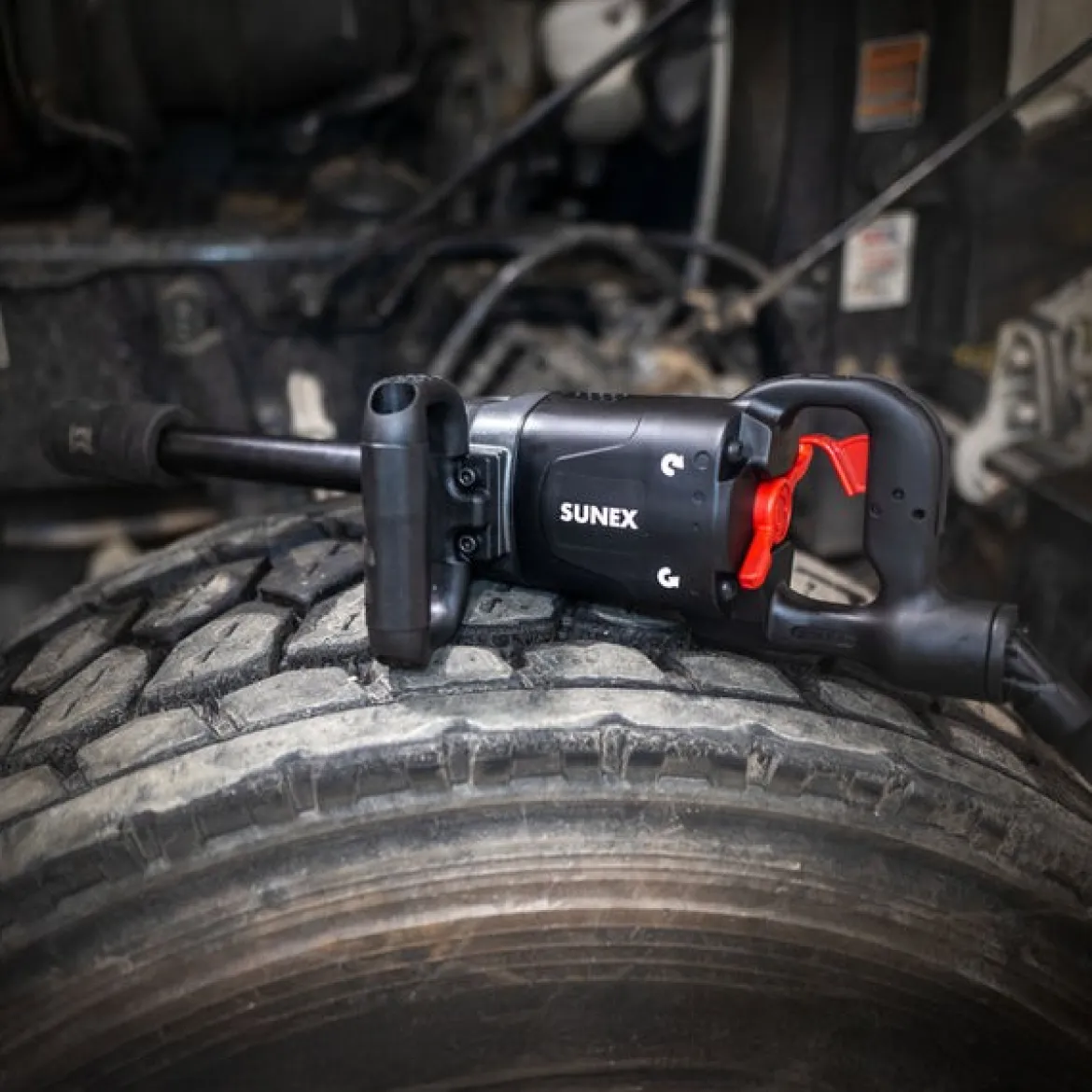

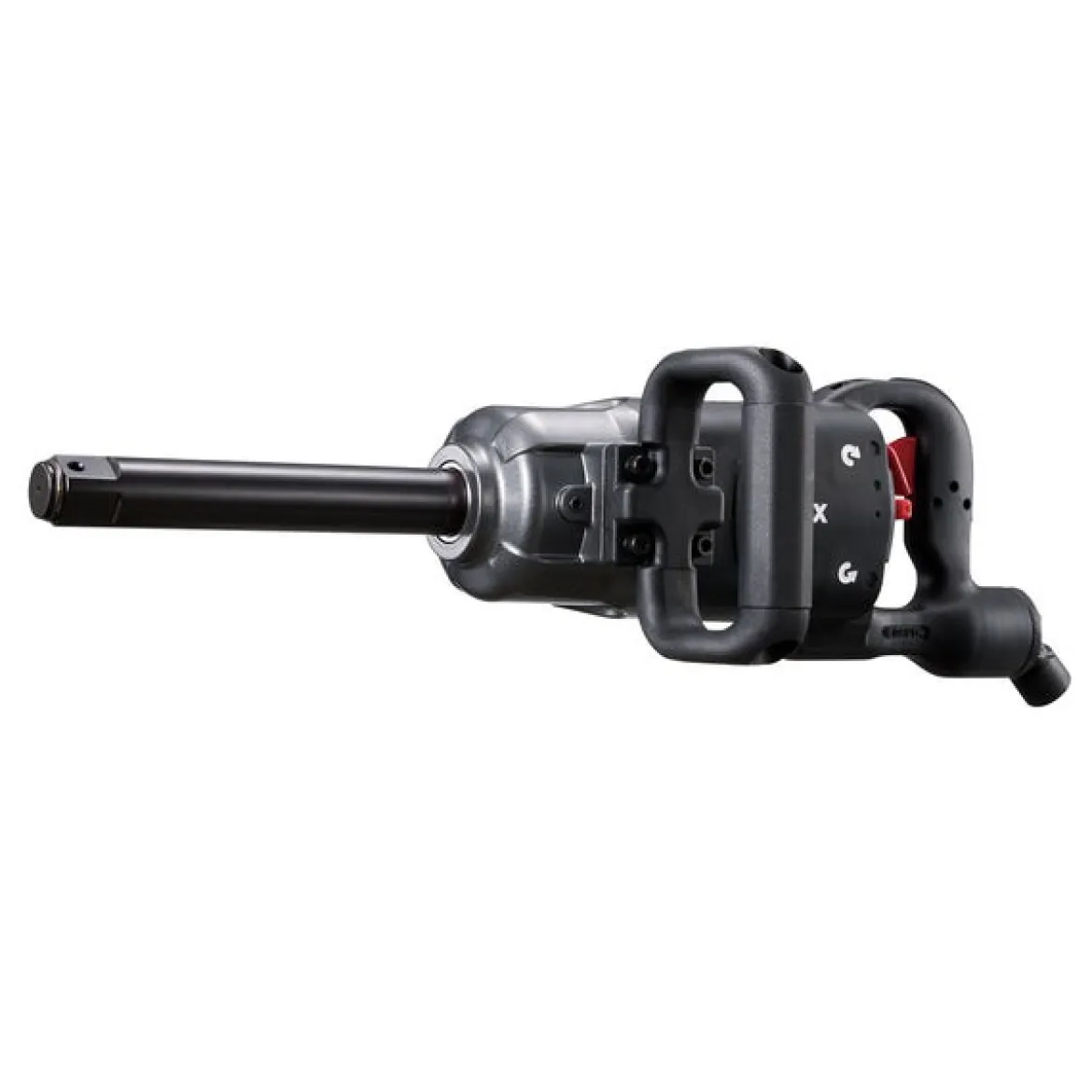

Sunex Tools 1″ Drive Magnesium Composite Impact Wrench w/ 6″ Anvil (SX01026)

Sunex Tools 1″ Drive Magnesium Composite Impact Wrench w/ 6″ Anvil (SX01026) is a specialized pneumatic tool engineered for the most demanding high-torque environments. Designed to bridge the gap between heavy industrial power and user-focused ergonomics, this tool is primarily used in commercial truck shops, agricultural equipment maintenance, and heavy machinery assembly. The core of its performance lies in the magnesium alloy housing, which significantly reduces the tool’s weight to 15.8 lbs, allowing operators to work longer without the physical strain typically associated with 1-inch drive wrenches.

Key Features and Benefits:

• High-Efficiency Magnesium Housing: The use of magnesium alloy instead of traditional steel or aluminum provides a superior power-to-weight ratio and improves heat dissipation, ensuring stable operating temperatures during high-cycle use.

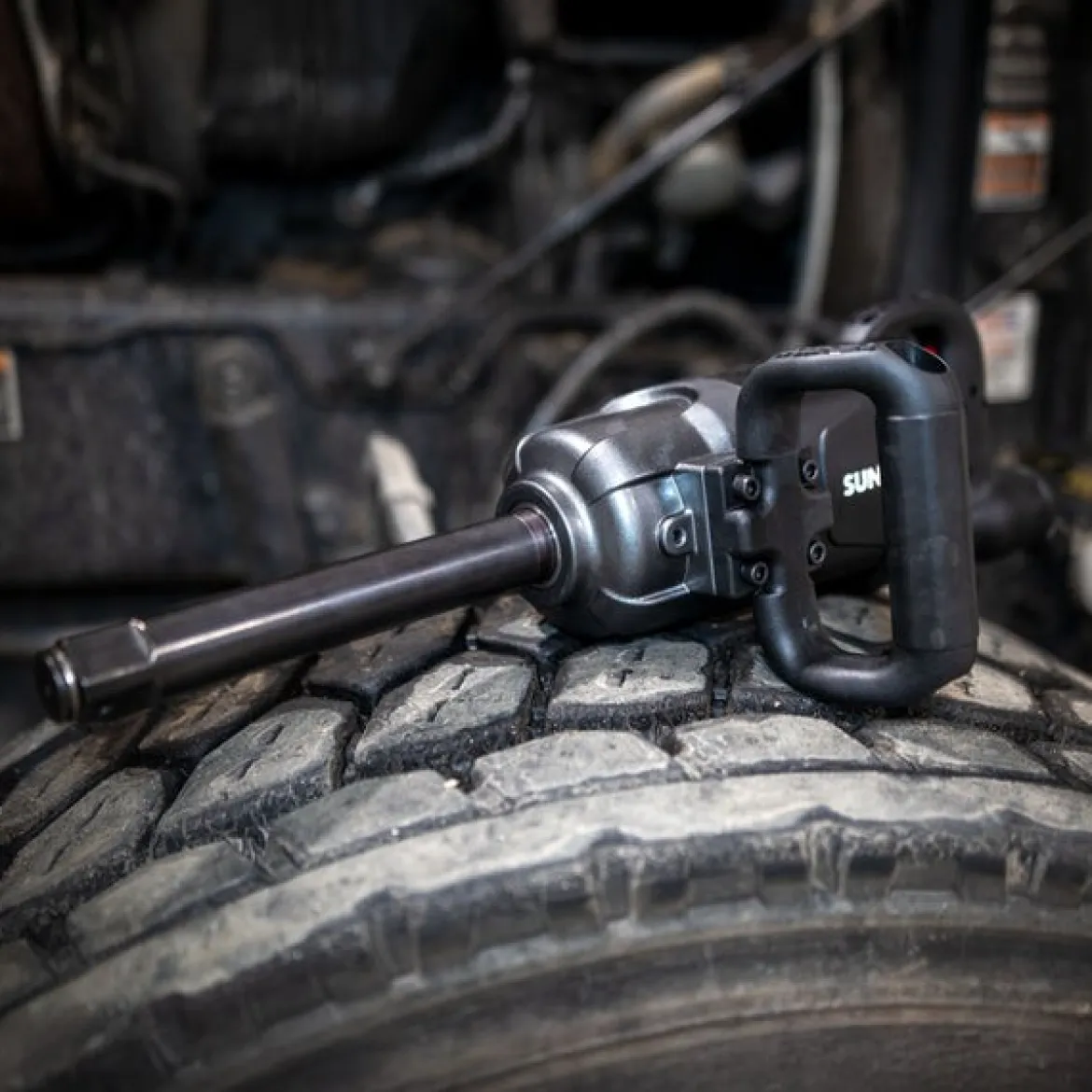

• Extended Reach: The 6-inch anvil is specifically designed for applications where standard anvils cannot reach, making it a standard choice for heavy-duty tire service.
• Optimized Air Motor: The 7 spring-loaded rotor blades provide more consistent power strokes per revolution compared to standard 5-blade motors, resulting in smoother delivery of its 2,000 ft-lbs of working torque.
• Advanced Composite Handle: Constructed from 40% glass-filled nylon, the handle is designed to withstand high-impact drops and resist degradation from common automotive chemicals and oils.
• Enhanced Maneuverability: A 360-degree rotating air inlet allows the operator to move freely around the workspace without the 1/2-inch air hose binding or tangling.
• User Comfort: With a sound level of 102.2 dBA and an ergonomic grip, the tool is designed to be less taxing on the operator’s hearing and physical health during long shifts.

Specifications:

• Drive Size: 1″
• Anvil Type: 6″ Extended
• Breakaway Torque: 3,200 ft-lbs
• Working Torque: 2,000 ft-lbs
• Free Speed: 5,500 RPM
• Impacts Per Minute: 1,250 IPM
• Weight: 15.8 lbs
• Overall Length: 22.8″
• Air Inlet Thread: 1/2″ NPT
• Minimum Hose Size: 1/2″ I.D.
• Average Air Consumption: 7.5 CFM
• Sound Level: 102.2 dBA
• Housing Material: Magnesium Alloy
• Handle Material: 40% Glass-Filled Nylon
• Included in Box: SX01026 Impact Wrench, Side Handle, User Manual

How to Use:

• Air Supply Connection: Ensure your air compressor is set to the required PSI (typically 90 PSI at the tool). Attach a 1/2″ NPT quick-connect fitting to the rotating air inlet.
• Lubrication: Before use, add 3-5 drops of air tool oil directly into the air inlet to ensure the 7-blade rotor remains lubricated.
• Socket Attachment: Securely fit a 1″ drive-rated impact socket onto the 6-inch anvil. Ensure the retaining ring or pin is properly engaged.

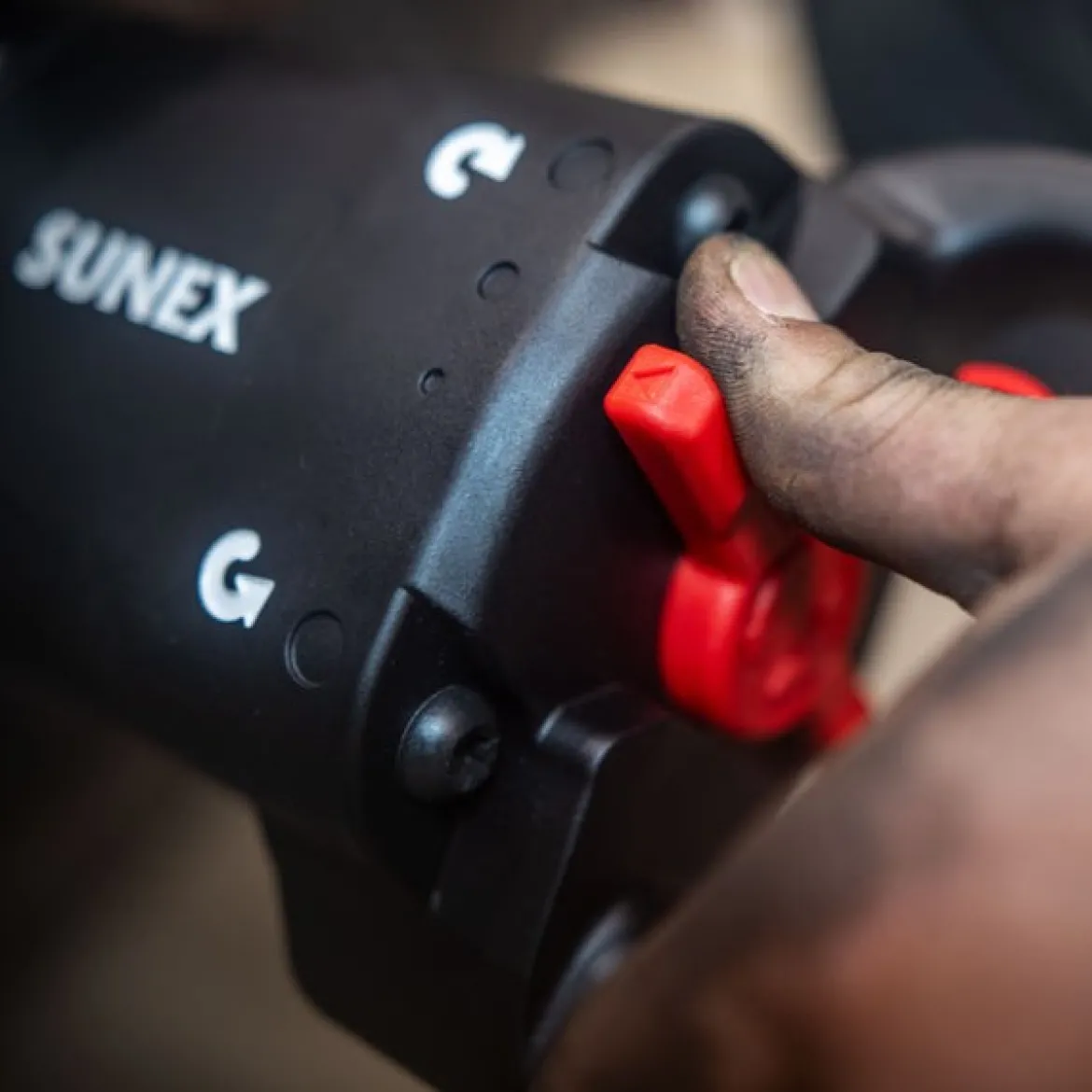

• Setting Direction and Power: Use the one-hand switch regulator to select the desired rotation (Forward or Reverse) and the appropriate torque setting for the task.

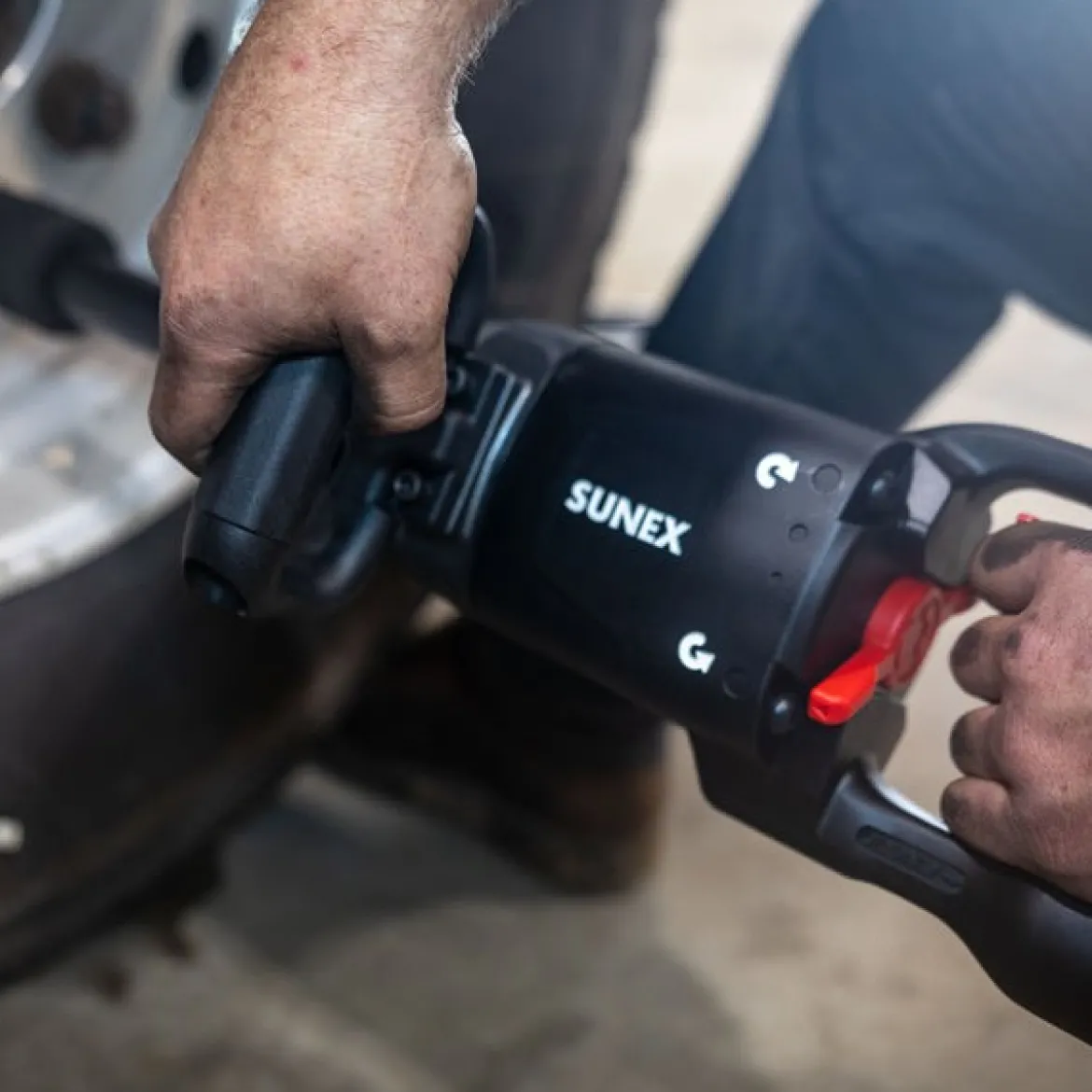

• Positioning: Firmly grasp the glass-filled nylon handle with your dominant hand and the side support handle with your other hand to maintain stability.
• Operation: Place the socket squarely on the fastener. Squeeze the trigger to begin impacting. For loosening, apply steady pressure until the breakaway torque overcomes the fastenerÕs resistance.
• Post-Use: Disconnect the air hose and wipe the tool housing clean of any grease or debris before storage.

Benefits of Using Sunex Tools 1″ Drive Magnesium Composite Impact Wrench w/ 6″ Anvil (SX01026):

• Increased Productivity: The SX01026 significantly improves productivity in high-volume shops by providing a power-to-weight ratio of 203 ft-lb/lb, allowing for massive torque with less physical strain.
• DReduced Weight: The magnesium housing lightens the tool, ensuring it can withstand harsh impacts in a garage environment.
• Direct Energy Transfer: The extended anvil eliminates the need for extra accessories, maintaining the direct transfer of energy to the fastener for more efficient removals.

Features:

• 360-Degree Swiveling Air Inlet: Prevents hose binding during movement.
• Magnesium Alloy Clutch Housing: Offers balanced weight distribution and excellent durability.
• 7-Blade Spring-Loaded Rotor Motor: Reduces vibration and ensures smooth torque delivery.

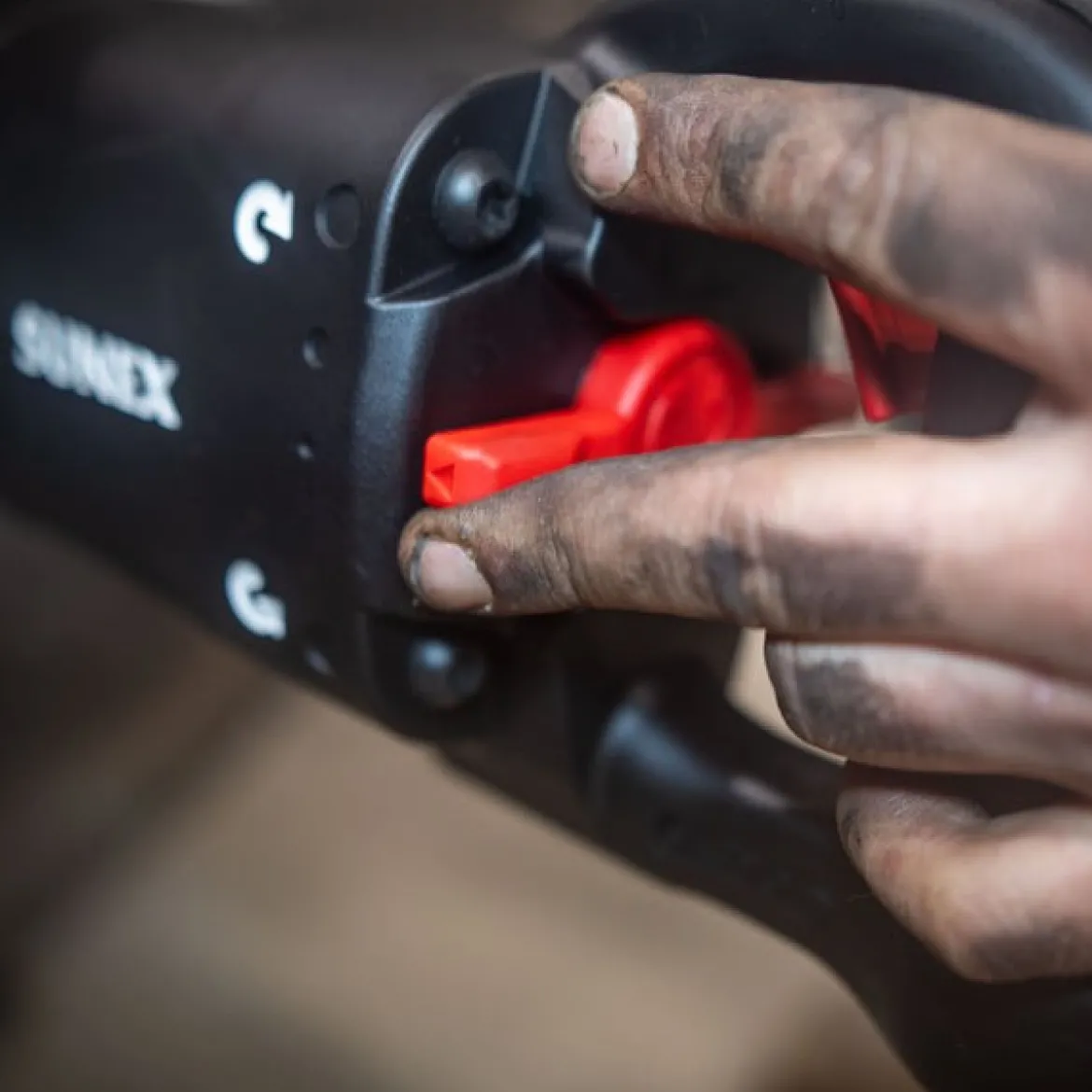

• One-Hand Regulator Control: Enables simultaneous power and direction shifts.
• 40% Glass-Filled Nylon Handle: Provides chemical and impact resistance for enhanced durability.
• 6-Inch Extended Anvil: Allows for deep-well lug nut access.
• 102.2 dBA Noise Rating: Ensures quieter high-torque operation.

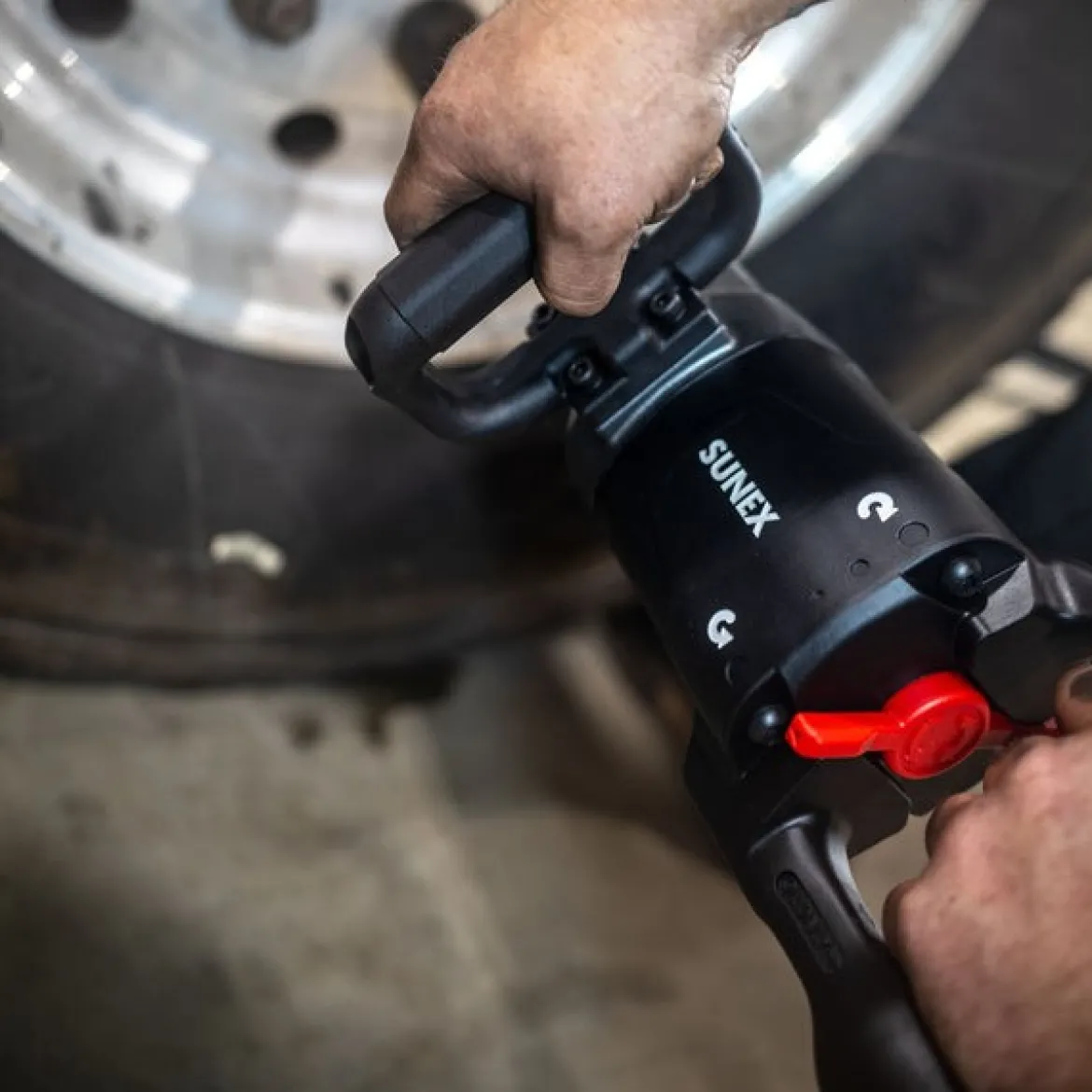

• Integrated Side Handle: Improves tool stabilization during high-impact tasks.
