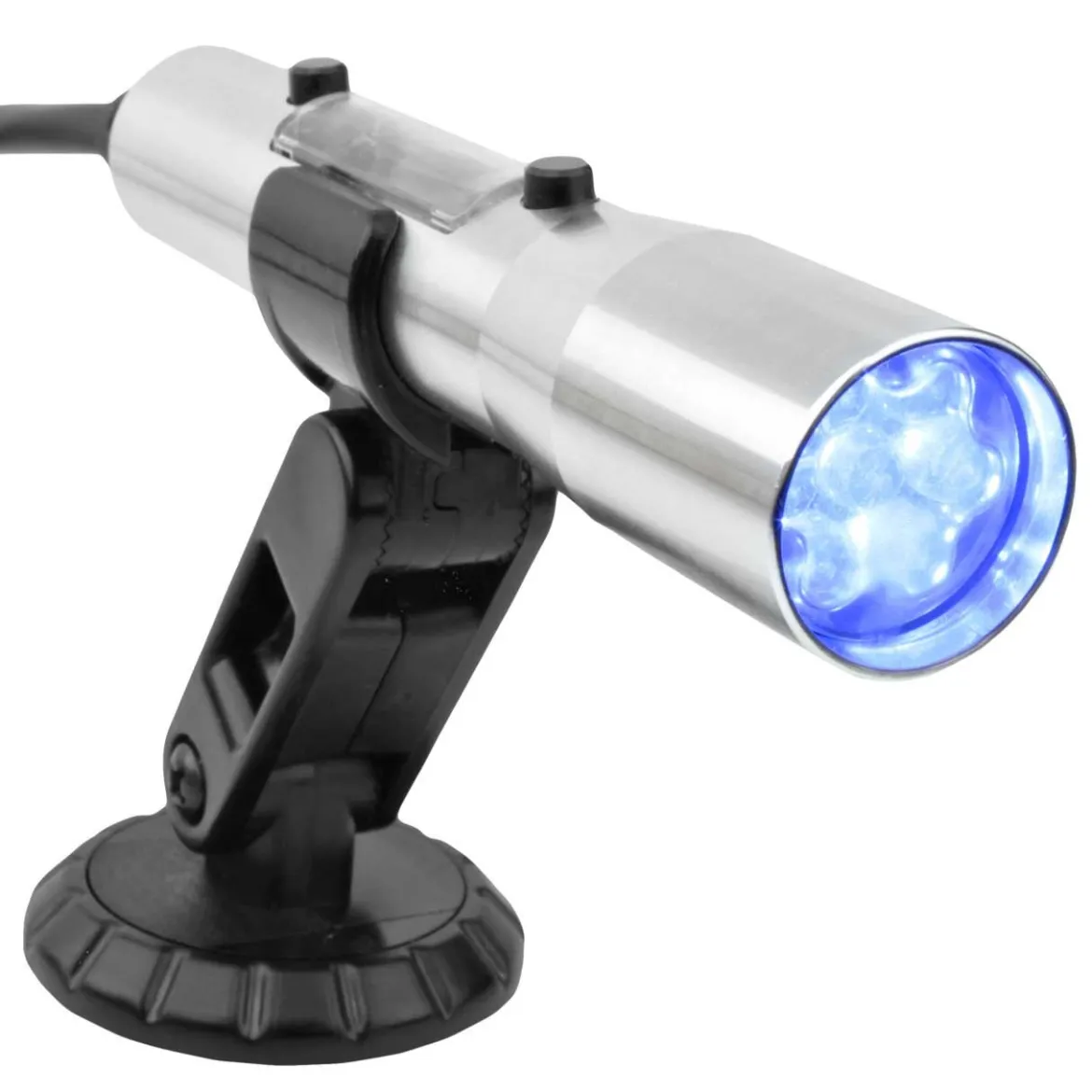

Speedhut Blue LEDs Silver Tube SST-MAX OBDII Shift Light (A-265)

The Speedhut Blue LEDs Silver Tube SST-MAX OBDII Shift Light (A-265) is engineered for performance-focused drivers who want to optimize their shifting with precision. Incorporating advanced Smart-Shift Technology™, this device communicates directly with your vehicle’s ECU to track gear position and RPM in real time. It provides visual alerts via bright blue LEDs at the ideal moment to shift gears, thereby enhancing your vehicle’s responsiveness and efficiency. Designed for OBDII vehicles using the CAN (J1979) protocol from 2008 onward in the USA, Canada, and UK, this shift light offers an effortless plug-and-play installation. With custom shift point programming for up to 10 gears and peak RPM recall, the SST-MAX is a powerful tool for performance tuning and driver feedback.

KEY FEATURES AND BENEFITS:

• Smart-Shift Technology™: Delivers real-time monitoring of gear position and engine RPM via ECU communication.
• Custom Shift Points: Set up to 10 distinct RPM thresholds for gear-specific shift alerts.
• Plug-and-Play Installation: Connects directly to the OBDII port without requiring additional wiring.
• Wide RPM Range: Supports engines operating from 0 to 10,000 RPM.
• High-Visibility LED Alerts: Seven blue LEDs provide a vivid, attention-grabbing signal.
• Brightness Control: Choose from 5 brightness settings, including an off mode.
• Peak RPM Recall: Captures and stores the highest RPM reached per gear.
• Intuitive Display: Built-in 3-character LED display for easy programming and setup.
• Durable Housing: Made of silver billet aluminum for a sleek and strong exterior.
• Long Cable: 8-foot cable allows versatile mounting positions inside your vehicle.

SPECIFICATIONS:

• Compatibility: OBDII compliant vehicles (CAN/J1979 protocol), typically 2008 and newer models in the USA, Canada, and UK.
• RPM Range: 0 – 10,000 RPM
• LED Color: Blue
• Housing Material: Billet Aluminum
• Housing Finish: Silver
• LED Brightness Levels: 5 settable levels (including OFF)
• Shift Points: Settable for up to 10 gears
• Menu Display: 3-segment LED
• Cable Length: 8 feet
• Connector Type: OBDII (16-pin Data Link Connector)
• Warranty: Lifetime Warranty
• Included: Shift Light unit with integrated cable and OBDII connector, Adjustable Mount

HOW TO USE:

1. Locate the OBDII Port: Find your vehicle’s 16-pin OBDII connector, typically beneath the dashboard on the driver’s side.
2. Connect the Shift Light: Insert the OBDII plug into the port until securely connected.
3. Mount the Shift Light: Use the provided adjustable mount to install the device in a clear, visible location.
4. Power On: The device will automatically power up when the vehicle is turned on.
5. Access the Menu: Use the 3-character LED interface to enter the setup mode (refer to the product manual for button use).
6. Set the Number of Gears: Configure your vehicle’s gear count.
7. Program Shift Points: Set RPM thresholds for each gear—either by real-time input or via menu entry.
8. Adjust Brightness: Select your preferred LED brightness level.
9. (Optional) Set Launch RPM: If drag racing, configure a launch RPM.
10. (Optional) Use Peak Recall: After driving, review the maximum RPM reached in each gear.

BENEFITS OF USING THE SPEEDHUT BLUE LEDS SILVER TUBE SST-MAX OBDII SHIFT LIGHT (A-265):

• Improved Shifting Accuracy: Provides timely visual cues for optimal gear changes.
• Performance Enhancement: Enhances acceleration and overall vehicle performance.
• Real-Time ECU Communication: Delivers immediate, accurate RPM and gear data.
• Easy Installation: Installs via the OBDII port without any need for complex wiring.
• Tailored Configuration: Set custom RPM shift points for each gear based on your driving needs.
• High Visibility: Bright blue LEDs ensure shift alerts are not missed.
• Durable and Reliable Build: Billet aluminum construction and lifetime warranty ensure long-term use.

FEATURES:

• Uses ECU data from the OBDII port to determine real-time gear and RPM status.
• Supports individual RPM configurations for up to ten gears.
• Functions within a broad 0-10,000 RPM range.
• Simple plug-in setup using the vehicle’s diagnostic connector.
• Seven blue high-intensity LEDs offer clear shift alerts.
• Adjustable brightness with five intensity levels, including an off setting.
• 3-character LED display for user-friendly navigation and setup.
• Crafted with robust silver billet aluminum for a professional look and feel.
• Peak RPM recall feature helps track performance in each gear.
• 8-foot integrated cable enables flexible mounting in the driver’s view.
