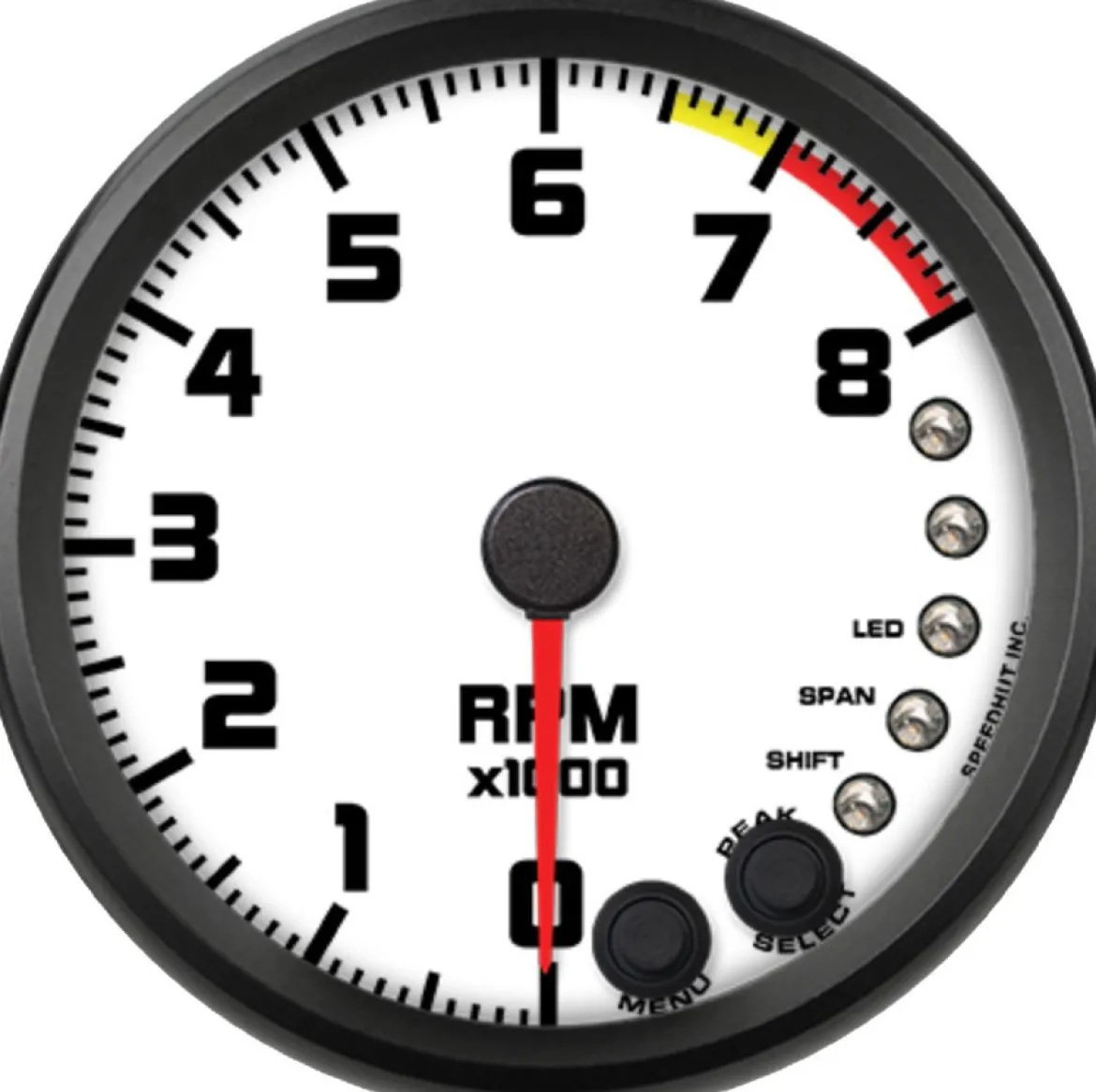

Speedhut 4″ Street XL 8K RPM Shift-light Tachometer (R4-TC3-SXL)

The Speedhut 4″ Street XL 8K RPM Shift-light Tachometer (R4-TC3-SXL) is an essential instrument for monitoring your engine’s performance. This 4-inch gauge provides accurate readings of engine revolutions per minute (RPM) up to 8,000. Equipped with an intensely bright internal shift light, it allows drivers to optimize gear changes for improved performance and efficiency. Its compatibility with most gasoline engines utilizing standard spark plug ignition systems (1–12 cylinders) and tach signals over one volt makes it a versatile tool for a wide range of vehicles. The tachometer’s robust design and straightforward installation ensure it can reliably deliver real-time RPM data, helping you achieve peak engine responsiveness.

KEY FEATURES AND BENEFITS:

• Provides precise RPM readings: Up to 8,000 for accurate engine monitoring.
• Built-in shift light: Intensely bright and can be calibrated from 1/2 pulse to 6 pulses per revolution to indicate optimal gear change points.
• Broad compatibility: Works with 1 to 12 cylinder gasoline engines using standard spark plug ignition systems (tach signal over one volt).
• Easy installation: Includes gauge mounting ring for straightforward dashboard integration.
• Reliable readings: Ensures pointer precision even in demanding driving conditions.
• Engine optimization: Helps drivers achieve peak performance and efficiency with real-time RPM information.

SPECIFICATIONS:

• Gauge Type: Tachometer
• Range: 0–8,000 RPM
• Size: 4 inches
• Hole Size: 3.95 inches (100mm)
• Internal Shift Light: Yes
• Compatibility: 1–12 cylinder gasoline engines with standard spark plug ignition systems (tach signal over one volt)
• Included: 3 ft Power & Lighting Harness, 8 ft Tachometer Harness, Gauge Mounting Ring

HOW TO USE:

1. Mount the Gauge: Locate a suitable 4-inch (100mm) diameter opening on your dashboard or instrument panel and secure the tachometer with the included mounting ring.
2. Connect the Power and Lighting Harness: Wire the 3 ft Power & Lighting Harness to a suitable 12V power source and ground in your vehicle.
3. Connect the Tachometer Signal Harness: Use the 8 ft Tachometer Harness to connect to your engine’s tach signal output (usually the coil negative or tach output).
4. Calibrate the Shift Light (if needed): Adjust the tachometer settings to match your engine’s pulses per revolution for accurate shift light activation.
5. Verify Operation: Start your engine and confirm that the tachometer reflects accurate RPM readings and that the shift light functions as desired.

BENEFITS OF USING THE SPEEDHUT 4″ STREET XL 8K RPM SHIFT-LIGHT TACHOMETER (R4-TC3-SXL):

• Improved Performance: Enables optimal gear changes for enhanced acceleration and engine power.
• Enhanced Engine Awareness: Keeps you informed about your engine’s real-time operating speed.
• Easy Monitoring: The high-intensity shift light provides a clear visual cue for shift timing.
• Wide Compatibility: Suitable for a range of gasoline engines using standard ignition systems.
• Simple Installation: Designed for ease of use with all necessary hardware included.

FEATURES:

• 4-inch Analog Display: Offers a clear and readable view of RPM data.
• Internal High-Intensity LED Shift Light: Alerts the driver when it’s time to shift gears.
• Adjustable Shift Light Calibration: Set your preferred shift point based on your engine setup (1/2 to 6 pulses per revolution).
• Direct Compatibility with Standard Spark Plug Ignitions: No need for extra adapters in most setups.
• Included Mounting Hardware: Comes with a spin-lock mounting ring for a secure installation.
• Dedicated Wiring Harnesses: Includes separate harnesses for power, lighting, and tach signal input for ease of setup.
