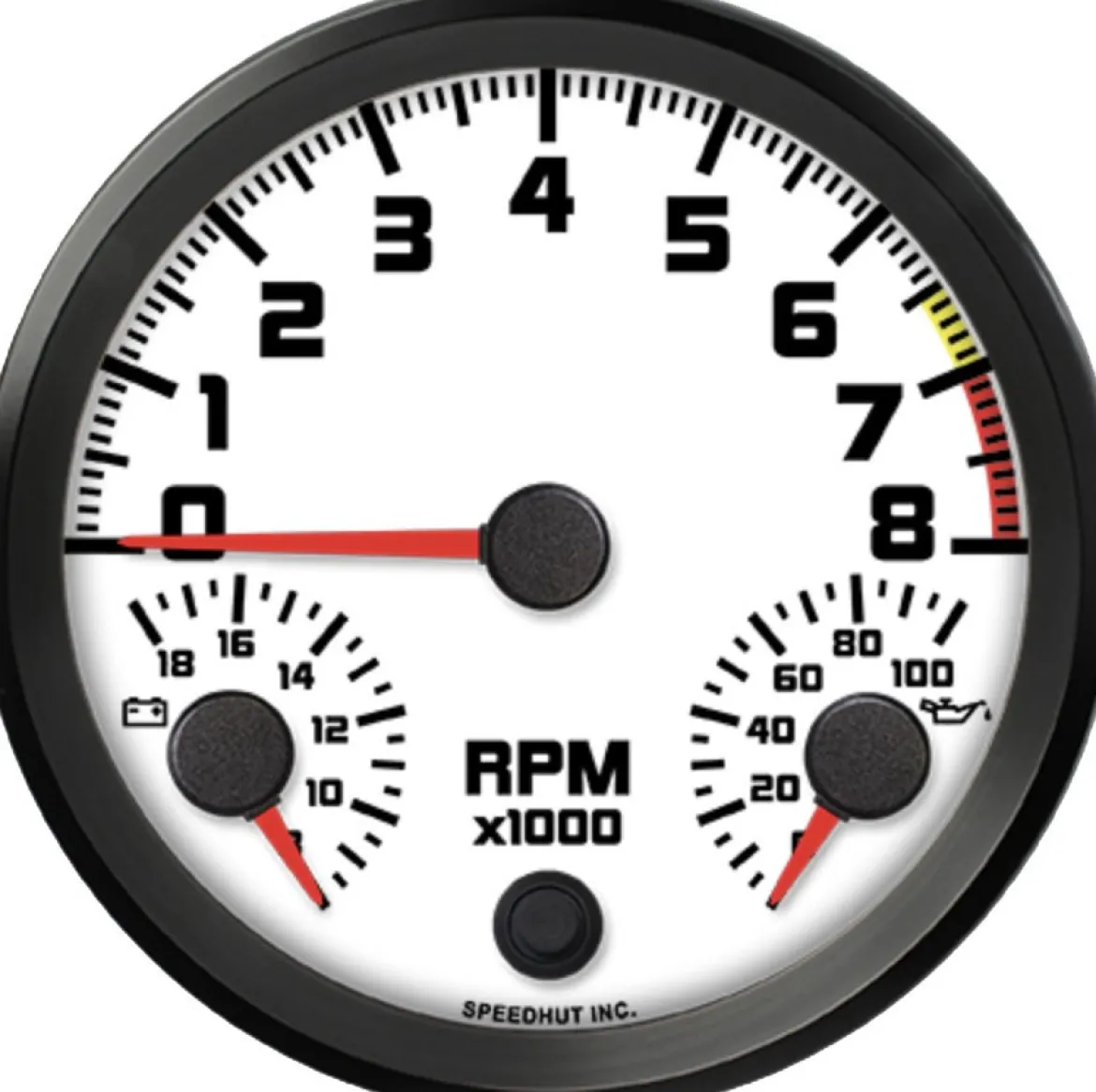

Speedhut 4.5″ Street XL 8K Tachomet/Volt/Oil PSI Gauge (L45-TG002-SXL)

The Speedhut 4.5″ Street XL 8K Tachomet/Volt/Oil PSI Gauge (L45-TG002-SXL) is a comprehensive engine monitoring solution, integrating three essential instruments into a single, space-efficient unit. This gauge provides real-time data on your engine’s speed, electrical system health, and lubrication pressure, allowing for a complete understanding of its operational status. Designed for clarity and ease of use, it offers at-a-glance access to critical information, empowering you with enhanced control over your vehicle’s performance. The tachometer component is engineered for precision, functioning with 1/2 to 6 pulses per revolution and accommodating any tach signal exceeding one volt, ensuring accurate readings even under demanding conditions. Its robust construction and straightforward installation process make it an indispensable tool for optimizing engine efficiency and responsiveness. With this essential instrument, you can significantly improve your driving experience and maintain a closer watch on your vehicle’s vital metrics.

KEY FEATURES AND BENEFITS:

• Three-in-One Functionality: Combines a tachometer (0-8000 RPM), voltmeter (8-18V), and oil pressure gauge (0-100 PSI) in a single 4.5″ unit, saving dashboard space.
• Real-Time Monitoring: Provides immediate and accurate readings of critical engine parameters for proactive maintenance and performance awareness.
• Universal Tachometer Compatibility: Works with a wide range of engines and tach signals over one volt, supporting 1/2 to 6 pulses per revolution for precise RPM readings.
• Easy to Read Display: The 4.5″ size ensures excellent visibility of all three readings at a glance.
• LED Backlighting: Offers clear illumination for day and night viewing.
• Complete Installation Kit: Ships with all necessary wiring harnesses and the oil pressure sensor for a straightforward setup.

SPECIFICATIONS:

• Gauge Type: Triple Tachometer (Tachometer, Voltmeter, Oil Pressure)
• Tachometer Range: 0-8,000 RPM
• Voltmeter Range: 8-18 Volts
• Oil Pressure Range: 0-100 PSI
• Size: 4 1/2 inch (4.5″)
• Mounting Hole Size: 4.230″ (108mm)
• Units: Standard (Imperial)
• Lighting: LED
• Included:
• 3 ft Power & Lighting Harness
• Pressure Gauge Wiring Harness (3-Wire Cable)
• 8 ft Tachometer Harness (1 Wire 2 Pin Connector)
• Pressure Sensor (100 PSI)
• 8 ft Wiring Harness (1 Wire 3 Pin Connector)

HOW TO USE:

1. Mount the Gauge: Secure the 4.5″ Speedhut Triple Gauge in a 4.230″ (108mm) diameter opening in your dashboard or mounting solution.
2. Connect Power and Lighting: Attach the 3 ft Power & Lighting Harness to a suitable power source (typically 12V), ground, and your vehicle’s lighting circuit for the LED illumination.
3. Connect the Tachometer: Use the 8 ft Tachometer Harness (1 Wire 2 Pin Connector) to connect the gauge to your engine’s tachometer signal output. Ensure proper connection based on your engine type (refer to your vehicle’s service manual if needed).
4. Install the Pressure Sensor: Mount the included 100 PSI pressure sensor to an appropriate port on your engine’s oil system.
5. Connect the Pressure Sensor Wiring: Use the Pressure Gauge Wiring Harness (3-Wire Cable) to connect the pressure sensor to the corresponding terminals on the back of the gauge.
6. Verify Connections: Double-check all wiring connections for secure and correct attachment.
7. Test the Gauge: Start your vehicle and observe the gauge readings to ensure proper functionality of the tachometer, voltmeter, and oil pressure displays.

BENEFITS OF USING THE SPEEDHUT 4.5″ STREET XL 8K TACHOMET/VOLT/OIL PSI GAUGE (L45-TG002-SXL):

• Provides a centralized display for three crucial engine parameters, reducing clutter and improving monitoring efficiency.
• Offers immediate feedback on engine RPM, allowing for optimal gear selection and performance driving.
• Enables constant monitoring of the vehicle’s electrical system voltage, helping to identify potential charging issues early.
• Keeps you informed about the engine’s oil pressure, crucial for preventing engine damage due to lubrication problems.
• The clear and illuminated display ensures easy readability in various lighting conditions, enhancing driver safety and awareness.
• The gauge’s compatibility with a wide range of engines makes it a versatile solution for different vehicle types.
• The inclusion of all necessary hardware simplifies the installation process.

FEATURES:

• Integrates three essential readings: engine speed in revolutions per minute, battery voltage, and oil pressure in pounds per square inch.
• Large 4.5-inch diameter gauge face: for enhanced visibility of all displayed information.
• Utilizes LED technology: for bright and long-lasting illumination of the gauge face.
• Designed to accurately read tachometer signals: ranging from 1/2 pulse to 6 pulses per engine revolution.
• Capable of interpreting any tachometer signal: with a voltage exceeding one volt.
• Robust construction: ensures reliable performance in various automotive environments.
• Comes with all the necessary wiring harnesses: and the specific oil pressure sensor required for operation.
