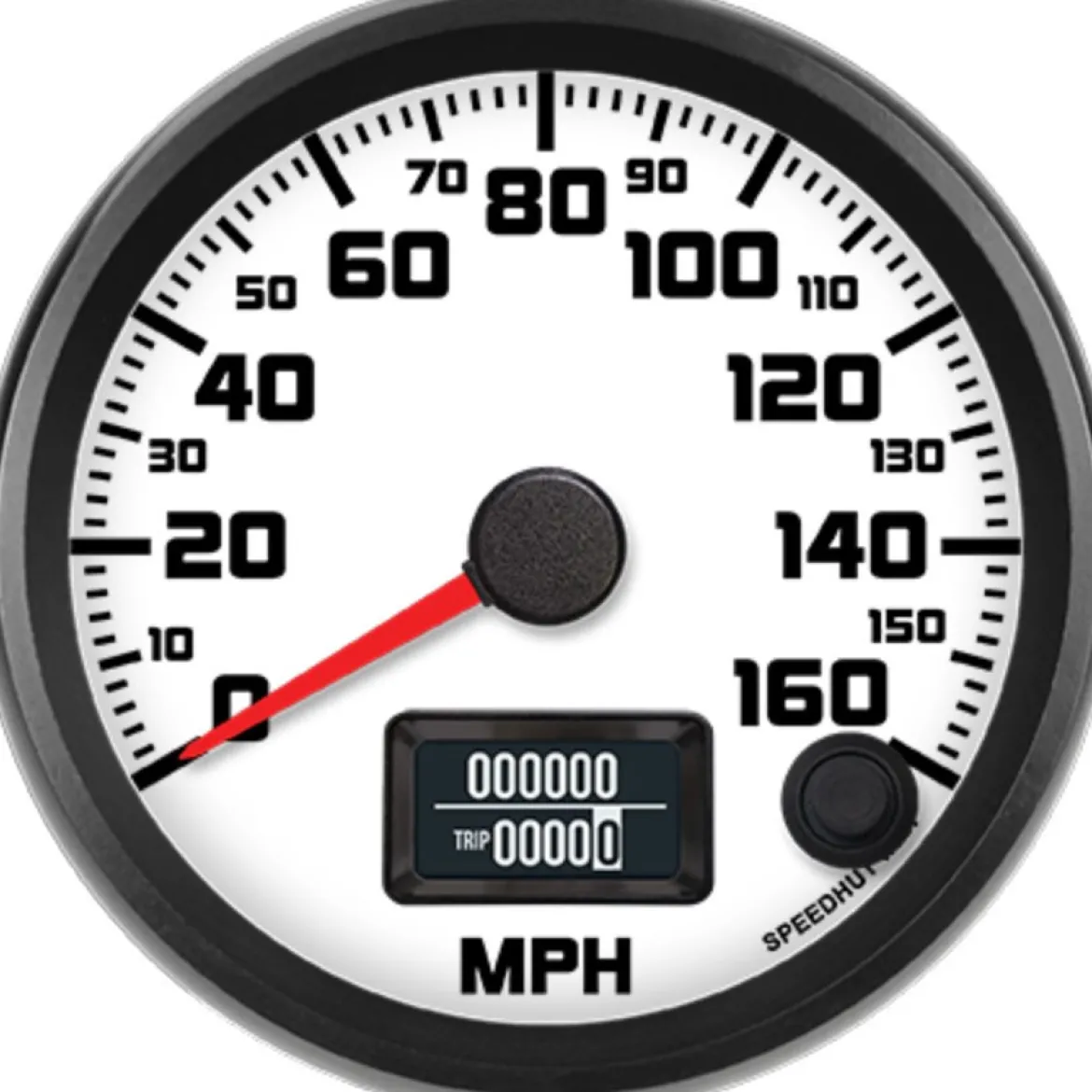

Speedhut 3-3/8″ Street XL 160 mph GPS Speedometer (R3-S3-SXL)

The Speedhut 3-3/8″ Street XL 160 mph GPS Speedometer (R3-S3-SXL) delivers highly accurate speed readings for your vehicle without the complexities of traditional speed sensors. Utilizing global positioning system technology, this gauge provides precise velocity information with a straightforward installation process. Simply connect it to a 12V power source and mount the included waterproof GPS antenna. Forget about the need to input tire sizes or gear ratios, as this speedometer requires no calibration. It operates worldwide using free GPS signals and only receives data, ensuring your privacy. Built with a focus on durability and ease of use, this GPS speedometer features a clear LCD screen, making it an essential instrument for any driver who values performance and accuracy.

KEY FEATURES AND BENEFITS:

• Provides accurate speed readings using GPS technology: Eliminates the need for traditional speed sensors.
• Offers a simple installation process: Requires only a 12V power connection and the included GPS antenna.
• Eliminates the need for calibration: No adjustments needed for tire size or gear ratios.
• Operates globally with free GPS service: No subscription required.
• Features an internal microprocessor: Delivers precise and reliable readings.
• Equipped with a high-torque stepper motor: Ensures accurate pointer movement in all driving conditions.
• Designed with a slim case: Includes a convenient spin-lock ring for easy mounting.
• Features a solid billet aluminum bezel: Enhances durability and visual appeal.
• Boasts a weather-resistant design: Ensures longevity in various environmental conditions.
• Backed by a Lifetime Warranty: Provides peace of mind regarding dependability.
• Proudly manufactured in America: Reflects high standards of quality and craftsmanship.

SPECIFICATIONS:

• Gauge Type: Speedometer
• Speedometer Signal Type: GPS
• Range: 160 MPH
• Size: 3 3/8 inch
• Hole Size: 3.3 inches (84mm)
• Standard or Metric: Standard
• Gauge Mounting Ring: Included
• Ships With:
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • GPS Antenna with 9.8 ft long cable and male SMA connector

HOW TO USE:

1. Mount the Gauge: Locate a suitable 3 3/8 inch (84mm) diameter opening in your vehicle’s dashboard. Insert the speedometer into the opening and secure it using the included spin-lock mounting ring from the back.
2. Connect the Power Harness: Connect the red wire from the included 3 ft Power & Lighting Harness to a 12V positive power source in your vehicle. Connect the black wire to a suitable ground. If your gauge has LED lighting, connect the additional wires in the harness according to the provided instructions for your specific lighting setup.
3. Mount the GPS Antenna: Choose a location on your vehicle’s exterior (or interior near a window) with a clear view of the sky for the included waterproof GPS antenna. Ensure the mounting surface is clean and secure the antenna.
4. Connect the GPS Antenna: Connect the male SMA connector on the 9.8 ft cable of the GPS antenna to the corresponding connector on the back of the speedometer.
5. Power On: Once all connections are secure, turn on your vehicle’s ignition. The speedometer should power on and begin receiving GPS signals. It will then display your vehicle’s speed.

BENEFITS OF USING THE SPEEDHUT 3-3/8″ STREET XL 160 MPH GPS SPEEDOMETER (R3-S3-SXL):

• Unmatched Accuracy: Provides precise speed readings without relying on mechanical or electronic speed sensors that can be affected by tire size, gear ratios, or sensor malfunctions.
• Simplified Installation: GPS-based system eliminates the complexities of wiring to the transmission or wheel speed sensors.
• No Calibration Required: Automatically provides accurate readings without manual input.
• Universal Compatibility: Ideal for a wide range of vehicles, especially custom builds or those lacking traditional speed outputs.
• Global Operation: Works anywhere in the world with access to GPS signals.
• Reliable Performance: Internal microprocessor and high-torque stepper motor ensure consistent speed display.
• Peace of Mind: Backed by a Lifetime Warranty for long-term reliability.

FEATURES:

• Utilizes satellite-based positioning for precise velocity measurement.
• Installs easily with a simple two-wire power connection and antenna placement.
• Automatically determines speed without user input for calibration.
• Operates using free global positioning system signals.
• Incorporates an advanced processing unit for accurate data interpretation.
• Features a robust motor for smooth and precise needle movement.
• Offers a streamlined gauge body with a secure mounting mechanism.
• Presents a strong and stylish front bezel crafted from aluminum.
• Withstands exposure to various weather elements.
• Guaranteed against electronic defects for the life of the product.
• Manufactured with high-quality components in the USA.
