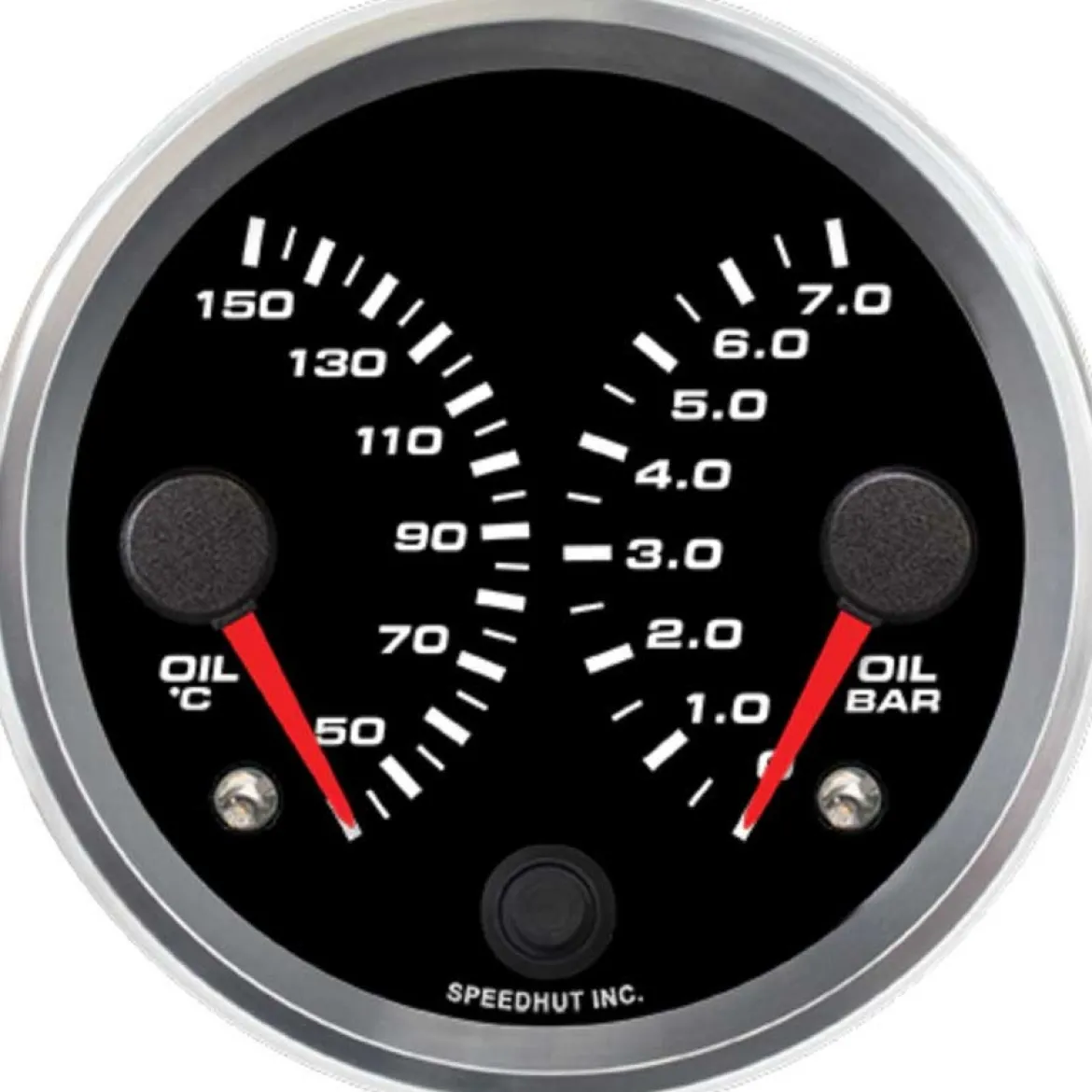

Speedhut 3-3/8″ Dual Met Oil Temp / Oil Pressure Gauge (R3-DG9-REV)

The Speedhut 3-3/8″ Dual Metric Oil Temp / Oil Pressure Gauge (R3-DG9-REV) offers a comprehensive solution for monitoring two critical aspects of your engine’s performance: oil temperature and oil pressure. This single, compact gauge provides real-time readings, allowing you to stay informed about your engine’s health and prevent potential issues. Designed with accuracy and ease of installation in mind, this gauge is a valuable addition for any vehicle owner or enthusiast who prioritizes engine monitoring.

KEY FEATURES AND BENEFITS:

• Dual Monitoring Capability: Combines oil temperature and oil pressure readings into one unit, reducing dashboard clutter.
• Simultaneous Readings: Displays oil temperature (40–150°C) and oil pressure (0–7 bar) in real time.
• Metric Units: Uses Celsius and bar for compatibility with global vehicle standards.
• Integrated Warning Light: Provides immediate visual alerts for critical conditions.
• Standard Size Compatibility: Fits standard 3-3/8 inch (86mm) dashboard openings.
• Complete Installation Kit: Includes all necessary wiring harnesses and sensors for a streamlined setup.
• Easy Mounting: Comes with a mounting ring for secure dashboard installation.

SPECIFICATIONS:

• Gauge Type: Dual Gauge
• Combo Options: Oil Temperature and Oil Pressure
• Oil Temperature Range: 40 – 150 °C
• Oil Pressure Range: 0 – 7 bar
• Standard or Metric: Metric
• Size: 3 3/8 inch (86mm)
• Hole Size: 3.375 inches (86mm)
• Warning Light: Yes
• Gauge Mounting Ring: Included
• Ships With:
  • Pressure Sensor – 100 psi
  • Pressure Gauge Wiring Harness (3-Wire Cable)
  • Speedhut Temperature Sensor
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • Temperature Gauge Wiring Harness (2-Wire Cable)

HOW TO USE:

1. Mount the Gauge: Secure the 3-3/8″ gauge in a compatible 3.375″ (86mm) opening using the provided gauge mounting ring.
2. Connect the Pressure Sensor: Install the 100 psi sensor at a proper oil port on the engine. Connect the 3-wire harness from the sensor to the gauge.
3. Connect the Temperature Sensor: Install the Speedhut temperature sensor at a suitable location on the engine. Connect the 2-wire harness to the sensor and gauge.
4. Connect the Power and Lighting Harness: Attach the 3 ft power and lighting harness to a 12V power source and the gauge to enable functionality and LED illumination.
5. Verify Connections: Check that all wiring connections are properly secured and correctly matched using the provided wiring diagram or manual.
6. Start Your Vehicle: Turn on your engine to activate the gauge.
7. Monitor Readings: Ensure the gauge displays accurate oil temperature and pressure readings.
8. Heed Warning Light: If the warning light illuminates, investigate immediately as it signals abnormal readings.

BENEFITS OF USING THE SPEEDHUT 3-3/8″ DUAL MET OIL TEMP / OIL PRESSURE GAUGE (R3-DG9-REV):

• Allows real-time monitoring of two critical engine parameters from a single unit.
• Helps detect and address issues like overheating or low oil pressure early, preventing engine damage.
• Improves dashboard space efficiency by combining two gauges into one.
• LED warning light enables immediate awareness of abnormal conditions.
• Simplifies installation with included sensors and wiring components.

FEATURES:

• Integrated Dual Function: Monitors oil temperature (40-150°C) and oil pressure (0-7 bar).
• Compact Standard Size: 3-3/8″ diameter fits standard dashboard openings.
• Visual Alerts: Built-in warning light notifies driver of abnormal readings.
• Accurate Pressure Measurement: Includes 100 psi oil pressure sensor.
• Dedicated Wiring: Comes with harnesses for both pressure and temperature sensors.
• Separate Power and Lighting Harness: Allows easy integration into the vehicle’s electrical system.
• Mounting Ring Included: Facilitates secure and easy installation.
