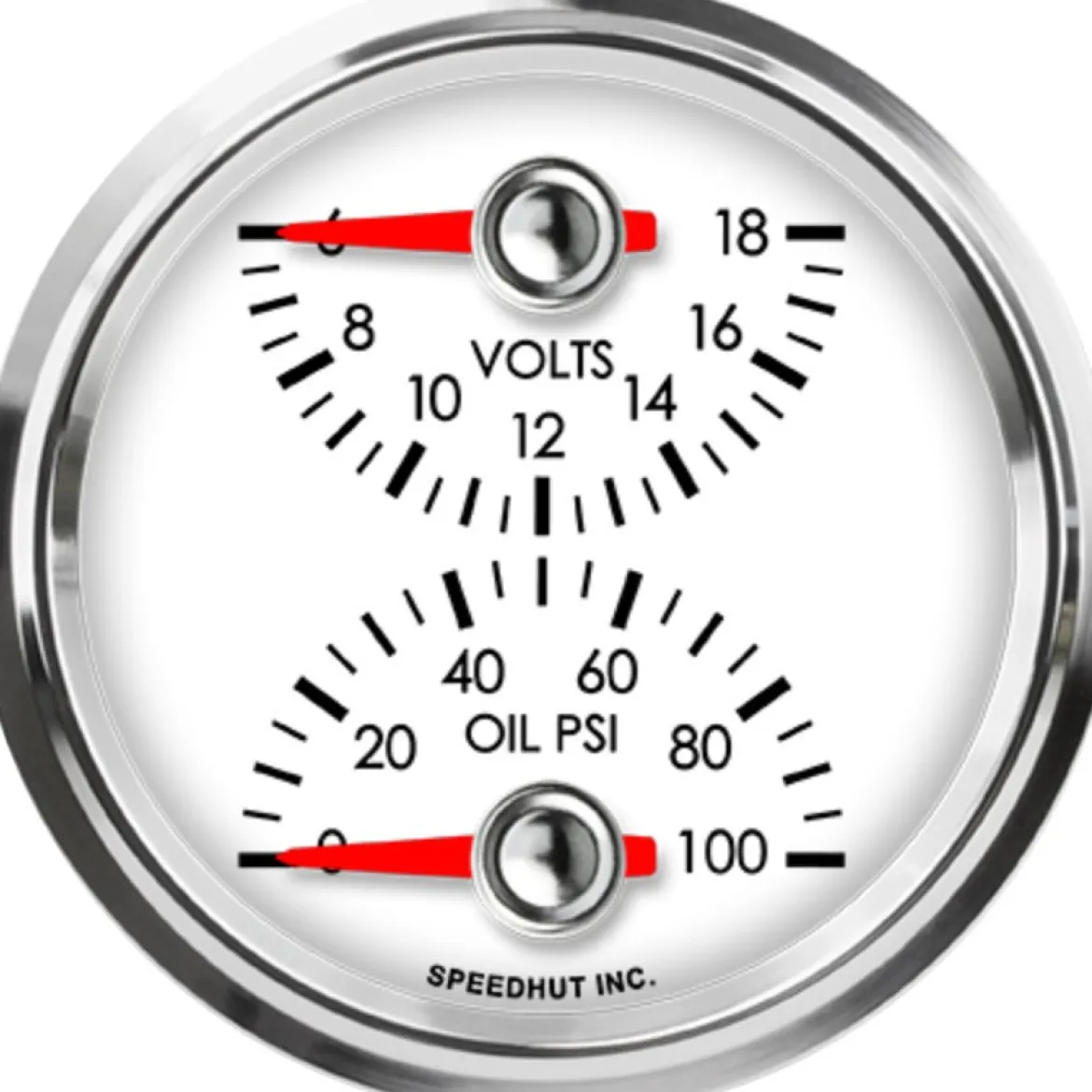

Speedhut 2-5/8″ Volts / Oil PSI Gauge (top/bot) (L25-DG13-LEG)

The Speedhut 2-5/8″ Volts / Oil PSI Gauge (top/bot) (L25-DG13-LEG) is a convenient and reliable solution for monitoring two critical aspects of your vehicle’s performance: electrical system voltage and engine oil pressure. This dual-function gauge allows you to keep a close watch on both parameters in a single, space-saving unit. With clear and easy-to-read displays, you can quickly assess the health of your battery and charging system, as well as ensure proper engine lubrication to prevent costly damage. The included warning light provides an immediate visual alert if readings fall outside the normal operating range, giving you crucial time to address potential issues. Designed for straightforward installation, this gauge comes complete with the necessary sensor and wiring harnesses.

KEY FEATURES AND BENEFITS:

• Dual Monitoring: Combines voltage (6-18V range) and oil pressure (0-100 psi) readings in one compact 2-5/8″ gauge.
• Early Warning System: Integrated warning light alerts you to abnormal voltage or oil pressure levels.
• Complete Installation Kit: Ships with a 100 psi pressure sensor, 3 ft power & lighting harness for LED illumination, and a 3-wire pressure gauge wiring harness.
• Easy Mounting: Includes a gauge mounting ring for secure and hassle-free installation in a 2.67″ (68mm) hole.
• Standard Measurement: Displays readings in standard units (Volts and PSI) for easy understanding.

SPECIFICATIONS:

• Gauge Type: Dual Gauge (Voltage and Oil Pressure)
• Voltage Range: 6-18 Volts
• Oil Pressure Range: 0-100 psi
• Measurement Standard: Standard
• Size: 2 5/8 inch
• Hole Size: 2.67 inches (68mm)
• Warning Light: Yes
• Included:
• Pressure Sensor – 100 psi
• 3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks)
• Pressure Gauge Wiring Harness (3-Wire Cable)
• Gauge Mounting Ring

HOW TO USE:

1. Mount the Gauge: Locate a suitable 2.67″ (68mm) diameter hole in your desired mounting location. Insert the gauge and secure it using the included mounting ring.
2. Install the Pressure Sensor: Identify the appropriate port on your engine for the oil pressure sensor. Install the included 100 psi pressure sensor securely.
3. Connect the Pressure Sensor Wiring: Connect the 3-wire pressure gauge wiring harness between the newly installed pressure sensor and the designated terminals on the back of the gauge.
4. Connect the Power and Lighting Harness: Connect the 3 ft power & lighting harness to a suitable power source in your vehicle (typically a fused 12V ignition source and ground) and to the corresponding terminals on the back of the gauge. This harness also powers the LED backlighting.
5. Verify Connections: Double-check all wiring connections to ensure they are secure and correct.
6. Test the Gauge: Start your vehicle and observe the gauge readings to ensure they are functioning correctly. Check if the warning light illuminates under abnormal conditions (refer to your vehicle’s service manual for typical operating ranges).

BENEFITS OF USING THE SPEEDHUT 2-5/8″ VOLTS / OIL PSI GAUGE (TOP/BOT) (L25-DG13-LEG):

• Allows proactive monitoring of both battery voltage and oil pressure from a single compact unit.
• Helps prevent unexpected breakdowns and costly repairs by offering real-time visibility of essential parameters.
• Maximizes dashboard efficiency by consolidating two gauges into one.
• Integrated warning light provides a clear alert in case of abnormal readings.
• Pre-packaged with all required installation components for a simplified setup.

FEATURES:

• Simultaneous display of electrical system status and engine lubrication levels.
• Clear and easily interpreted analog-style readouts for both voltage and oil pressure.
• Illuminated display via the included power and lighting harness for excellent visibility in all lighting conditions.
• Pre-calibrated to provide accurate readings for the specified voltage and pressure ranges.
• Robust sensor included, specifically designed for accurate oil pressure measurement up to 100 psi.
• Wiring harnesses provided for a direct and secure connection between the gauge, sensor, and power source.
• Mounting ring ensures a tight and professional-looking installation in the designated hole size.
