Speedhut 2-5/8″ Volts / Oil Bar Gauge (top/bot) (L25-DG12-LEG)

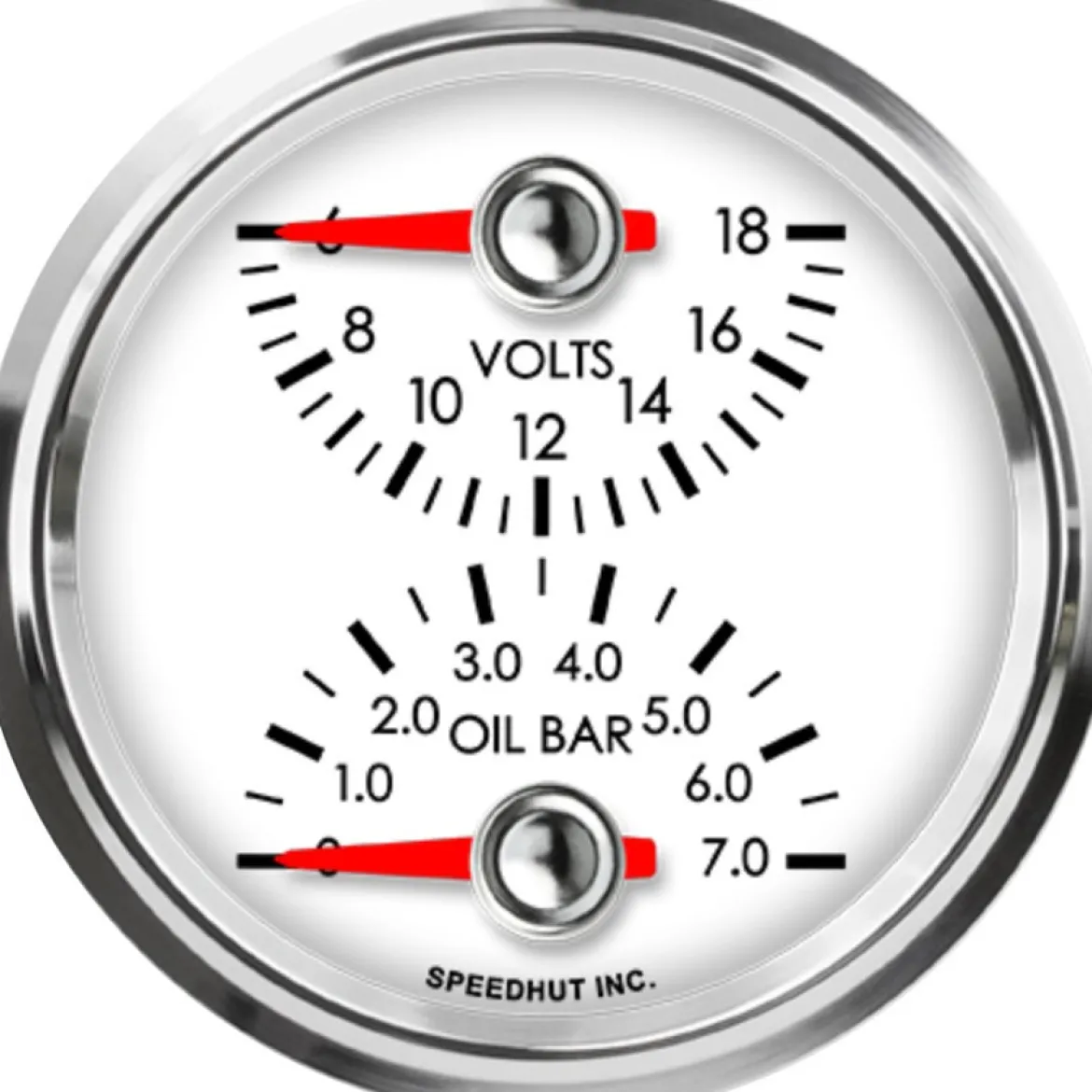

The Speedhut 2-5/8″ Volts / Oil Bar Gauge (top/bot) (L25-DG12-LEG) is a practical solution for monitoring two critical aspects of your vehicle’s performance in a single, space-saving instrument. This dual gauge displays both the electrical system voltage and the engine’s oil pressure, allowing you to stay informed about the health of your vehicle at a glance. Designed for standard mounting in a 2.67″ (68mm) diameter hole, this gauge integrates seamlessly into your dashboard. It comes equipped with a warning light to alert you to potential issues, ensuring you can take action before they escalate. The included mounting ring simplifies the installation process.

KEY FEATURES AND BENEFITS:

• Dual Monitoring: Combines voltage (6-18V range) and oil pressure (0-100 psi range) readings in one gauge, saving dashboard space.
• Early Warning System: Features a built-in warning light to indicate abnormal voltage or oil pressure levels.
• Easy Installation: Designed for a standard 2 5/8″ (68mm) mounting hole and includes a mounting ring for secure placement.
• Complete Kit: Ships with the necessary pressure sensor and wiring harnesses for immediate setup of the oil pressure function.
• Clear Readings: Provides straightforward and easy-to-understand readings for both voltage and oil pressure.

SPECIFICATIONS:

• Gauge Type: Dual Gauge
• Combo Options: Voltage and Oil Pressure
• Voltage Range: 6-18 Volts
• Oil Pressure Range: 0-100 psi
• Standard or Metric: Standard
• Size: 2 5/8 inch
• Hole Size: 2.67 inches (68mm)
• Warning Light: Yes
• Gauge Mounting Ring: Included
• Ships With:
• Pressure Sensor – 100 psi
• Pressure Gauge Wiring Harness (3-Wire Cable)
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks

HOW TO USE:

1. Mount the Gauge: Locate a suitable 2.67″ (68mm) diameter hole in your dashboard. Insert the Speedhut dual gauge into the hole and secure it using the included mounting ring from the back.
2. Connect the Power and Lighting: Attach the 3 ft Power & Lighting Harness to the gauge. Connect the power wire to a switched 12V source in your vehicle, the ground wire to a suitable ground point, and the lighting wire to your vehicle’s lighting circuit if you desire the gauge to illuminate with your other instruments.
3. Install the Pressure Sensor: Locate the appropriate port on your engine for installing the oil pressure sensor. Thread the included 100 psi pressure sensor into this port, ensuring a secure and leak-free connection.
4. Connect the Pressure Sensor Wiring: Connect the 3-Wire Pressure Gauge Wiring Harness to the pressure sensor. Route the other end of this harness to the back of the gauge and connect it to the designated terminals for the oil pressure input.
5. Verify Connections: Double-check all wiring connections to ensure they are secure and correct according to the gauge’s wiring diagram (refer to any included documentation from Speedhut for specific wiring details).
6. Test the Gauge: Start your vehicle and observe the gauge readings. The voltmeter should display the current voltage of your electrical system, and the oil pressure gauge should indicate the engine’s oil pressure. Check if the warning light illuminates under abnormal conditions (refer to the gauge’s documentation for warning light thresholds).

BENEFITS OF USING THE SPEEDHUT 2-5/8″ VOLTS / OIL BAR GAUGE (TOP/BOT) (L25-DG12-LEG):

• Immediate and continuous insight into battery voltage and oil pressure for proactive maintenance.
• Helps identify issues with the charging system or oil circulation before serious problems develop.
• Combines two gauges in one compact unit, preserving valuable dashboard space.
• Integrated warning light ensures real-time alerts for abnormal conditions.
• Complete installation kit simplifies setup and reduces the need for additional parts.

FEATURES:

• Simultaneously displays electrical system voltage and engine oil pressure.
• Voltage reading capability from 6 to 18 volts.
• Oil pressure measurement range from 0 to 100 PSI.
• Standard 2 5/8″ (66mm) gauge size for common dashboard integration.
• Requires a 2.67″ (68mm) diameter mounting hole.
• Equipped with a programmable warning light for critical readings.
• Mounts securely with the included gauge mounting ring.
• Comes with a dedicated 100 PSI pressure sensor.
• Includes a 3-wire harness specifically for the pressure sensor connection.
• Features a separate 3 ft power and lighting harness for easy electrical hookup and illumination.
