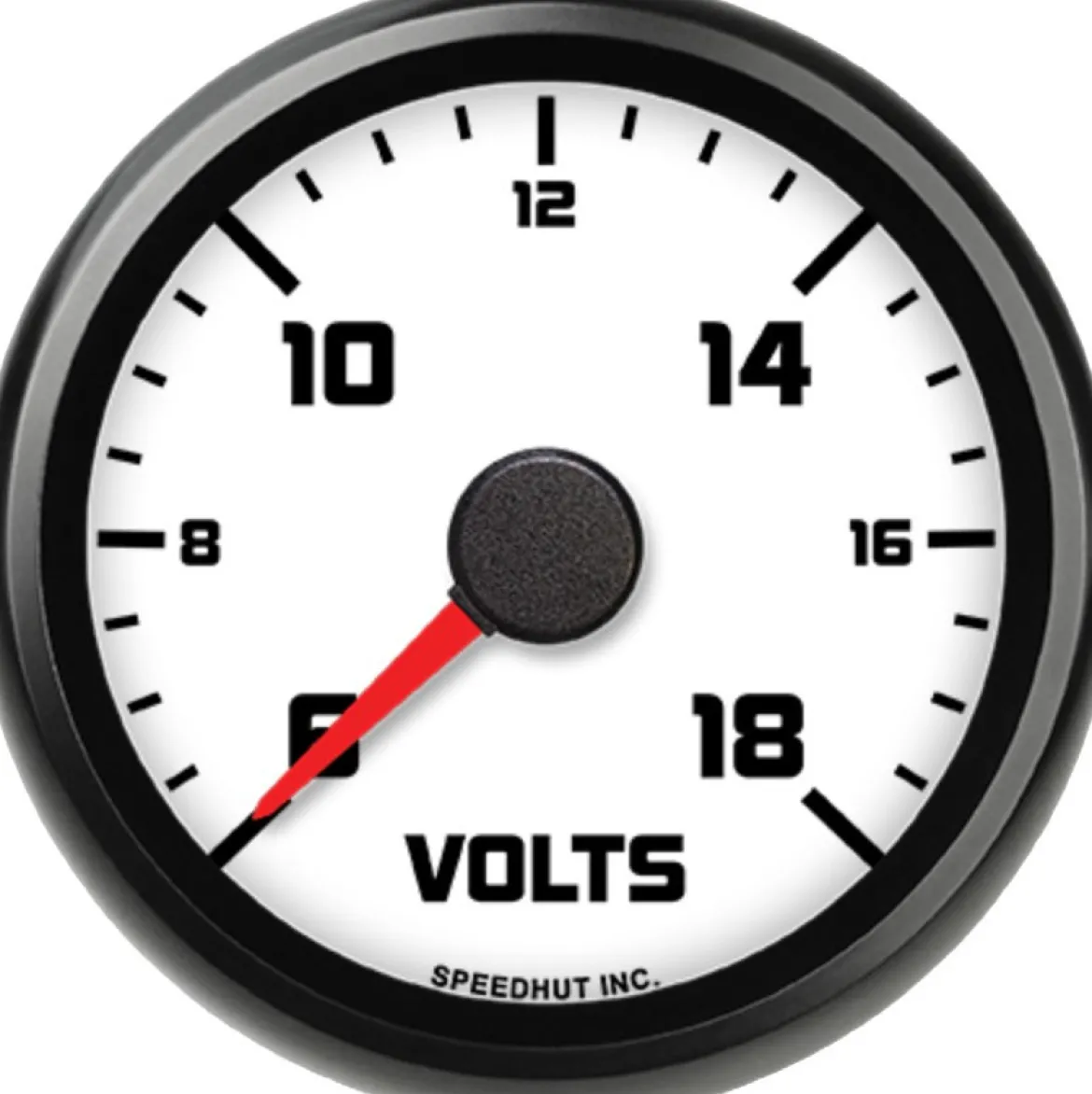

Speedhut 2-5/8″ Street XL 6-18V Volt Gauge (L25-V1-SXL)

The Speedhut 2-5/8″ Street XL 6-18V Volt Gauge (L25-V1-SXL) is a reliable instrument designed to provide accurate voltage readings for electrical systems operating between 6 and 18 volts. This gauge is ideal for monitoring the electrical health of various applications, ensuring optimal performance and helping to identify potential issues before they escalate. Its clear display and included lighting harness make it a practical and user-friendly addition to any setup requiring precise voltage monitoring.

KEY FEATURES AND BENEFITS:

• Accurate Voltage Monitoring: Provides precise readings of electrical potential difference within a 6 to 18 volt range.
• Auxiliary Wire Connection: Simple and direct connection to the voltage source you need to monitor.
• Optimal Size: The 2-5/8 inch gauge size offers a balance between visibility and ease of installation in various dashboards or panels.
• Standard Mounting: Designed to fit a common 2.67″ (68mm) diameter mounting hole, ensuring compatibility with many standard gauge setups.
• LED Backlighting Ready: Ships with a 3-foot power and lighting harness, indicating it is designed for LED illumination, enhancing visibility in all lighting conditions.

SPECIFICATIONS:

• Gauge Type: Voltage Gauge
• Voltage Signal Type: Voltage from Auxiliary Wire
• Range: 6-18 volts
• Size: 2 5/8 inch
• Hole Size: 2.67″ (68mm)
• Included: 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks

HOW TO USE:

1. Identify the Mounting Location: Choose a suitable flat surface with a 2.67″ (68mm) diameter opening to install the gauge.
2. Connect the Power Harness: Attach the provided 3-foot power and lighting harness to the designated terminals on the back of the volt gauge. Ensure proper polarity is observed for the power connection.
3. Connect to the Auxiliary Wire: Connect the appropriate wire from the harness to the auxiliary wire or circuit you wish to monitor the voltage of.
4. Mount the Gauge: Carefully insert the gauge into the 2.67″ (68mm) mounting hole and secure it using any provided mounting hardware (not specified in the provided details).
5. Test the Gauge: Once all connections are secure, power on the system you are monitoring to ensure the gauge is displaying the voltage correctly and the LED backlighting (if applicable) is functioning.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ STREET XL 6-18V VOLT GAUGE (L25-V1-SXL):

• Allows for proactive monitoring of your electrical system’s voltage to maintain operational reliability.
• Helps diagnose issues such as weak batteries, faulty alternators, or excessive electrical draw.
• Facilitates early detection of problems, preventing more serious electrical failures.
• Standardized size and mounting simplify integration into existing gauge setups.
• LED-ready with included lighting harness for improved readability in low-light environments.

FEATURES:

• Direct Voltage Input: Measures voltage directly from the connected auxiliary wire for immediate and accurate readings.
• Clear Analog Style Display: Offers an easy-to-read format for quick interpretation of voltage levels.
• Compact and Versatile: The 2-5/8 inch size makes it suitable for a wide range of applications where space might be a consideration.
• Standardized Fitment: Designed to fit common 2.67″ (68mm) openings, simplifying the installation process.
• Wiring Included: Comes with a dedicated power and lighting harness, streamlining the electrical connections required for operation and illumination.
