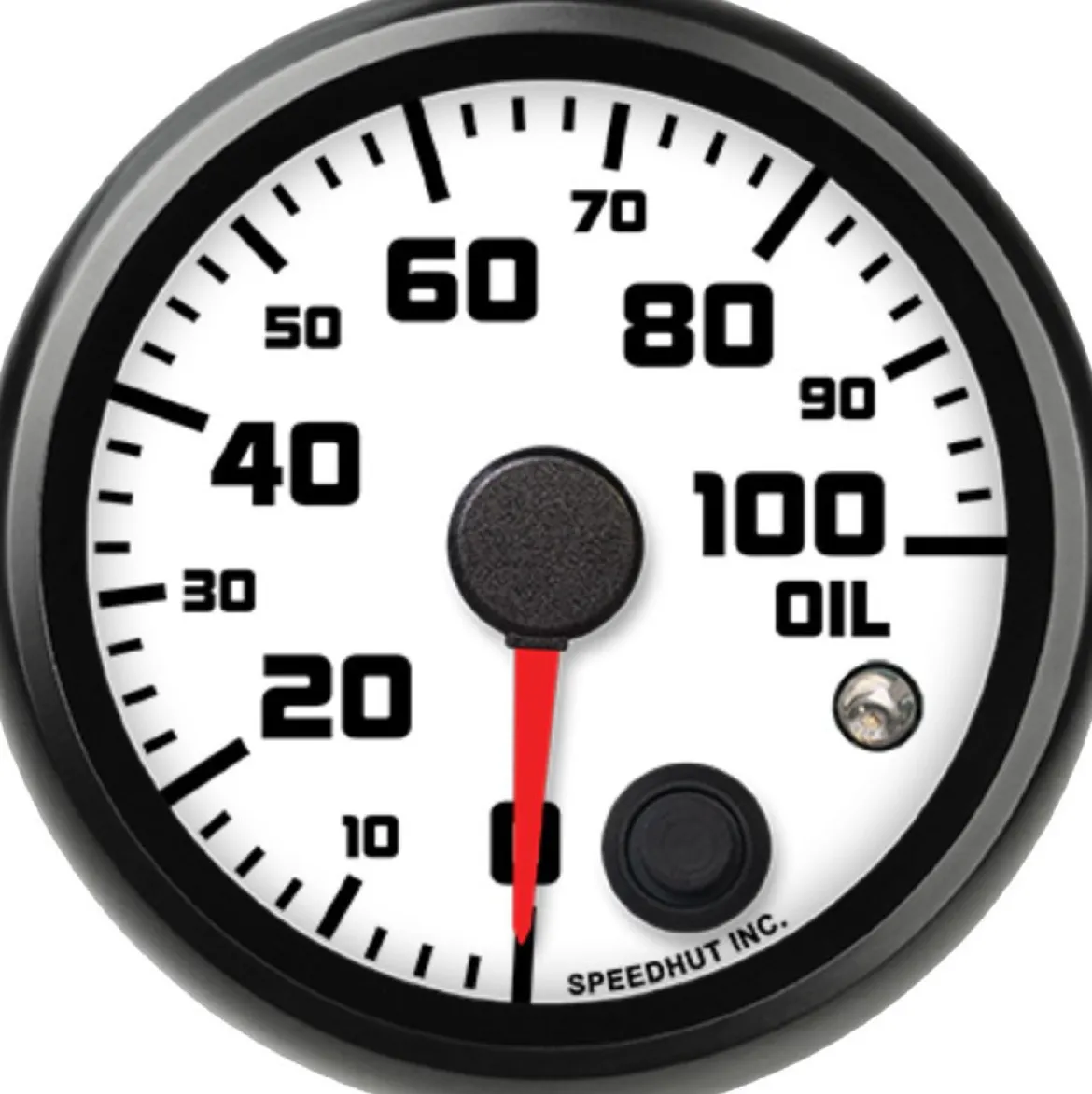

Speedhut 2-5/8″ Street XL 100 PSI Oil Pressure w/Warning (R25-OP3-SXL)

The Speedhut 2-5/8″ Street XL 100 PSI Oil Pressure w/Warning (R25-OP3-SXL) provides accurate and reliable monitoring of your vehicle’s oil pressure. This gauge features a clear, easy-to-read analog display and includes a warning light to notify users of abnormal pressure levels. It comes equipped with a military-grade 3-wire transducer to ensure high accuracy and consistency. With the ability to display pressure readings in both PSI and metric units, this gauge offers versatility and ease of use for a wide range of applications. Its 2-5/8 inch size and standard 2.67″ mounting hole ensure compatibility with most aftermarket gauge setups.

KEY FEATURES AND BENEFITS:

• Accurate Monitoring: Provides precise oil pressure readings from 0 to 100 PSI to track engine lubrication status.
• Early Warning System: Integrated warning light alerts to low or high pressure conditions to help prevent engine damage.
• High-Performance Sensor: Equipped with a 3-wire military-grade pressure transducer for consistent and accurate readings.
• Versatile Display: Capable of displaying values in PSI and metric units for user convenience.
• Standard Size: Designed to fit common aftermarket applications using the 2-5/8″ gauge size.
• Easy Installation: Compatible with 2.67″ (68mm) mounting holes and includes essential harnesses.

SPECIFICATIONS:

• Gauge Type: Pressure Gauge
• Gauge Subtype: Oil Pressure Gauge
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Range: 0-100 psi
• Size: 2 5/8 inch
• Hole Size: 2.67″ (68mm)
• Warning Light: Yes
• Ships With:
  • Pressure Sensor – 100 psi
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • Pressure Gauge Wiring Harness (3-Wire Cable)

HOW TO USE:

1. Mount the Gauge: Secure the 2-5/8″ gauge into a 2.67″ diameter opening using appropriate mounting hardware.
2. Connect the Power and Lighting Harness: Attach the 3 ft power and lighting harness to the gauge, ensuring correct polarity and connections.
3. Install the Pressure Sensor: Fit the 100 PSI sensor to an appropriate oil pressure port on your engine. Make sure the connection is secure and leak-free.
4. Connect the Sensor Wiring: Use the 3-wire pressure gauge harness to connect the sensor to the gauge as per the wiring diagram provided.
5. Connect the Warning Light (Optional): If desired, wire the warning light output to an external visual indicator, following the product’s instruction manual.
6. Power Up and Test: Turn on your vehicle’s ignition. Confirm that the gauge illuminates and displays current oil pressure. Verify the functionality of the warning light.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ STREET XL 100 PSI OIL PRESSURE W/WARNING (R25-OP3-SXL):

• Proactive Engine Protection: Real-time oil pressure monitoring and warning system help prevent engine wear and failure.
• Enhanced Vehicle Monitoring: Adds vital pressure data to your dashboard for better maintenance and performance management.
• Reliable Performance Data: Uses a military-grade sensor for consistent and trustworthy readings.
• Customizable Integration: Fits most aftermarket applications thanks to its standard size and included hardware.
• User-Friendly Operation: Clear display and optional warning light make the gauge intuitive and easy to interpret.

FEATURES:

• Clear analog display for easy readability of oil pressure levels.
• Integrated warning light for immediate alerts of abnormal oil pressure.
• Military-grade 3-wire pressure transducer for superior accuracy.
• Displays pressure in both standard (PSI) and metric units.
• Standard 2-5/8″ (68mm) gauge size for versatile mounting options.
• Designed for a 2.67″ (68mm) mounting hole.
• Includes necessary wiring harnesses and pressure sensor for installation.
