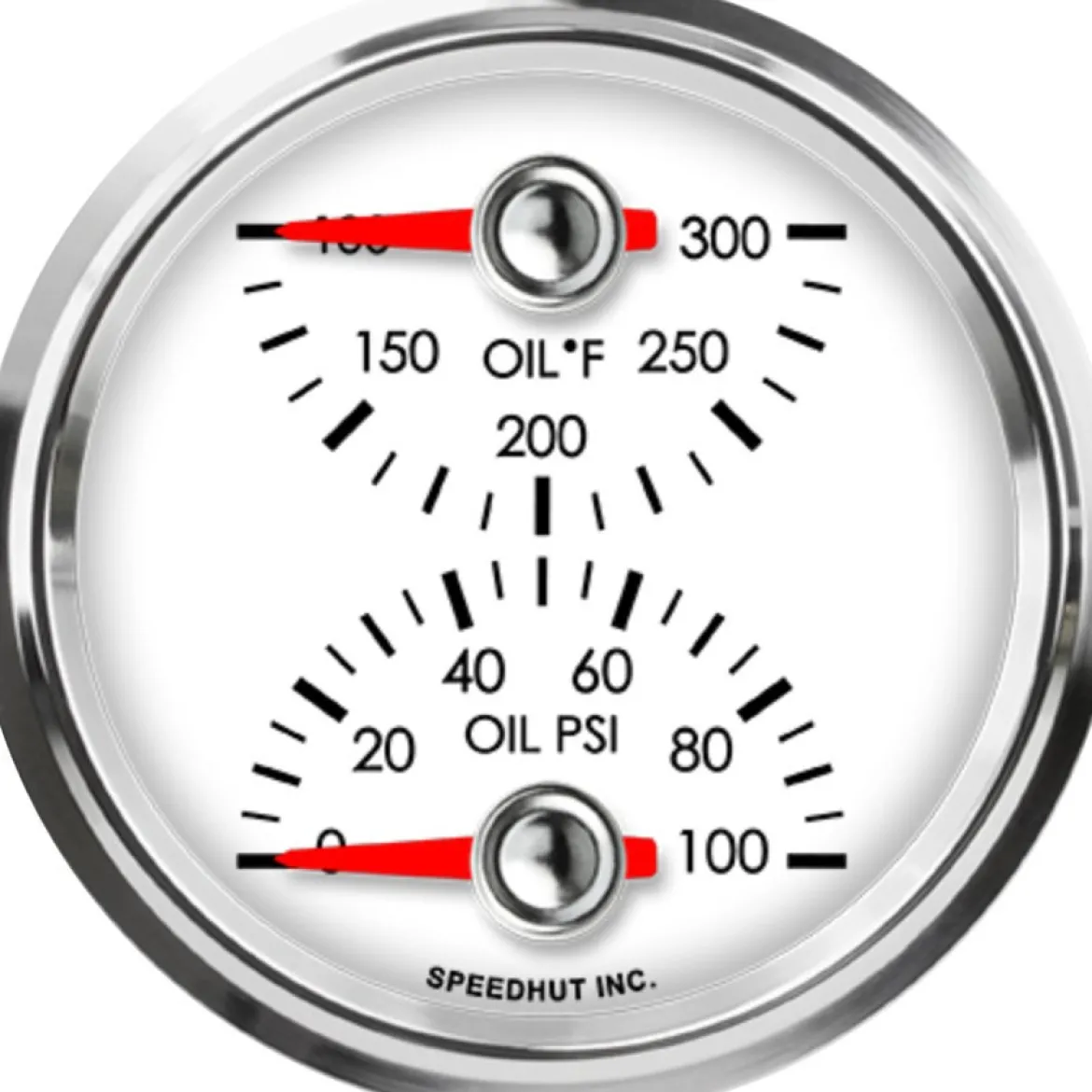

Speedhut 2-5/8″ Oil Temp / Oil Pressure Gauge (top/bot) (L25-DG6-LEG)

The Speedhut 2-5/8″ Oil Temp / Oil Pressure Gauge (top/bot) (L25-DG6-LEG) is a space-saving dual-function instrument designed to monitor two of your engine’s most critical parameters—oil temperature and oil pressure—simultaneously. This 2 5/8 inch (66mm) gauge offers real-time readings in standard units (°F and psi) to help drivers stay informed about their engine’s health. Whether you’re racing, towing, or just driving daily, this gauge provides instant, reliable feedback, promoting timely diagnostics and preventative maintenance. Its integrated sensors and user-friendly wiring harnesses make it a complete, easy-to-install monitoring solution.

KEY FEATURES AND BENEFITS:

• Dual Monitoring: Displays both oil temperature and oil pressure in one unit.
• Real-Time Data: Offers immediate updates on engine performance.
• Compact Form: Saves dashboard space with a single 2 5/8 inch gauge.
• Standard Units: Displays temperature in Fahrenheit (100–300°F) and pressure in psi (0–100 psi).
• Installation Components Included: Comes with all necessary sensors, wiring harnesses, and mounting ring.
• Enhanced Durability: Engineered for automotive environments and consistent performance.
• Custom Lighting Compatibility: Includes wiring for power and illumination.

SPECIFICATIONS:

• Gauge Type: Dual Gauge
• Combo Options: Oil Temperature and Oil Pressure
• Oil Temperature Range: 100–300 °F
• Oil Pressure Range: 0–100 psi
• Units: Standard (Fahrenheit and PSI)
• Size: 2 5/8 inch (66mm)
• Hole Size: 2.67 inches (68mm)
• Warning Light: No
• Gauge Mounting Ring: Included
• Included with Purchase:
• Pressure Sensor – 100 psi
• Pressure Gauge Wiring Harness (3-Wire Cable)
• Temperature Gauge Wiring Harness (2-Wire Cable)
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• Speedhut Temperature Sensor

HOW TO USE:

1. Mount the Gauge: Choose a flat surface or gauge pod with a 2.67″ (68mm) hole. Insert the gauge and secure it using the included ring.
2. Install the Pressure Sensor: Locate an oil pressure port on the engine block and install the 100 psi sensor securely.
3. Install the Temperature Sensor: Identify an oil pan or oil filter housing location, then install the Speedhut temperature sensor.
4. Connect the Wiring Harnesses:
   • Connect the Pressure Gauge Wiring Harness between the sensor and the gauge.
   • Connect the Temperature Gauge Wiring Harness likewise between the sensor and gauge.
   • Connect the Power & Lighting Harness to the power source, ground, and optionally the vehicle’s lighting circuit.
5. Connect to Power and Ground: Attach the power wire to a switched 12V source and the ground wire to a chassis point.
6. Test the Gauge: Turn on the vehicle ignition. Confirm both oil temperature and oil pressure readings appear and are accurate.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ OIL TEMP / OIL PRESSURE GAUGE (TOP/BOT) (L25-DG6-LEG):

• Efficient Monitoring: Consolidates two key readings into one device for streamlined diagnostics.
• Preventative Maintenance: Alerts users to low pressure or high oil temps before damage occurs.
• Enhanced Engine Health: Enables better decision-making to protect and maintain your engine.
• Space-Saving Design: Frees up dashboard space compared to separate gauges.
• DIY-Friendly: Comes with all necessary hardware and clear wiring options for easier installation.
• Clean Appearance: Maintains a professional, uncluttered dashboard look.
• Reliable Operation: Provides consistent, real-time data to support long-term vehicle health.

FEATURES:

• Integrated Design: Combines oil temperature and oil pressure readings into a single 2-5/8″ unit for efficient information display.
• Real-Time Feedback: Provides instantaneous data on crucial engine vitals, allowing for immediate assessment of operating conditions.
• Direct Sensor Connectivity: Includes dedicated wiring harnesses for the provided pressure and temperature sensors, ensuring accurate signal transmission.
• Illumination Ready: Comes with a power and lighting harness, prepared for connection to your vehicle’s electrical system for enhanced visibility.
• Secure Mounting: The included mounting ring ensures a stable and professional-looking installation in your dashboard or gauge pod.
• Space Optimization: The dual functionality maximizes the use of available dashboard area without requiring multiple individual gauges.
• Comprehensive Kit: Ships with all necessary sensors and wiring, eliminating the need for separate purchases of these essential components.
