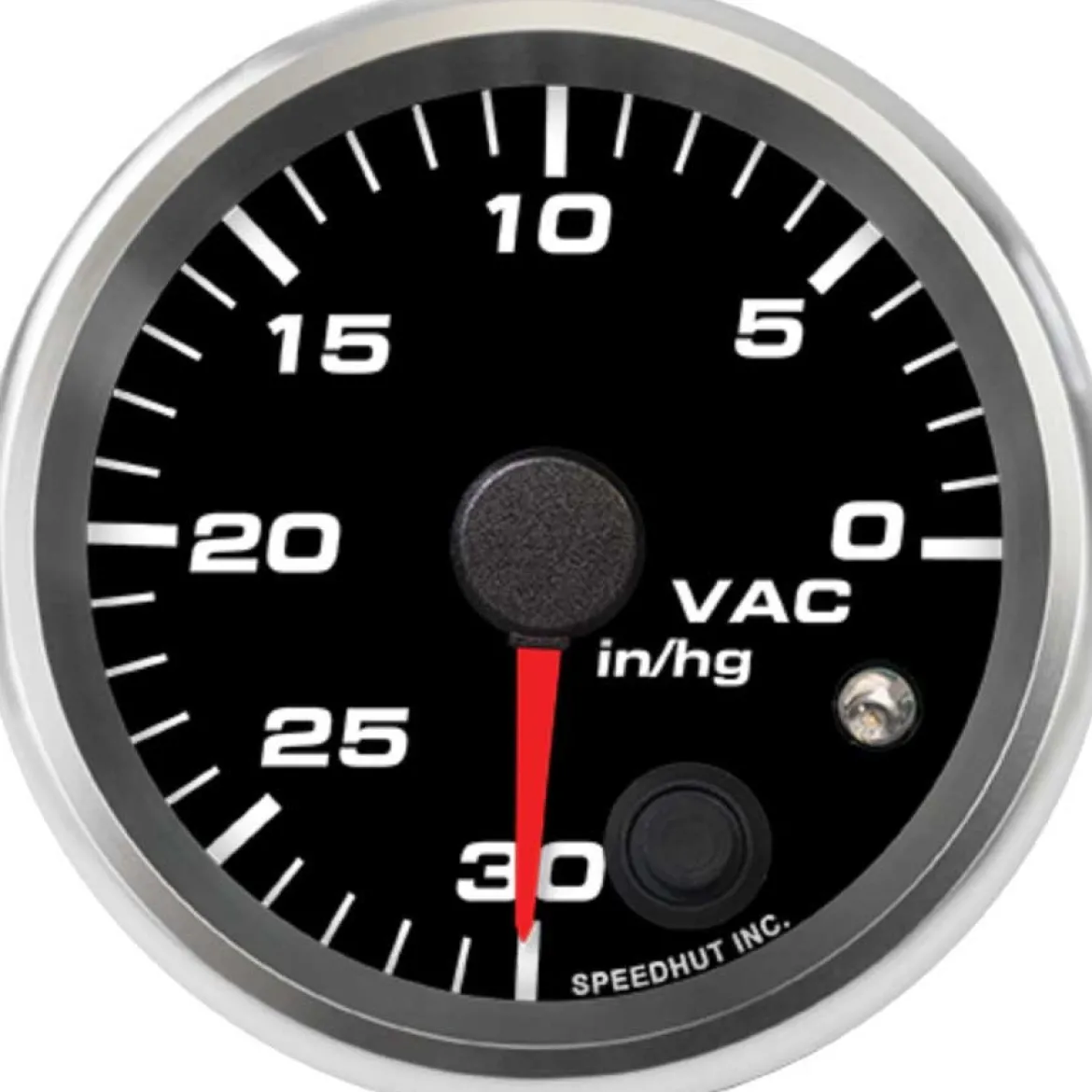

Speedhut 2-5/8″ 30-0in/hg Vacuum Gauge w/ Warning (R25-VC1-REV)

The Speedhut 2-5/8″ 30-0in/hg Vacuum Gauge w/ Warning (R25-VC1-REV) is a crucial instrument for monitoring the performance of your engine. This gauge provides accurate readings of both vacuum within the intake manifold and positive pressure generated by turbochargers or superchargers. Its 2-5/8 inch size ensures it fits seamlessly into most gauge pods, offering a clear and easily readable display of vital engine conditions. Equipped with a user-configurable warning light, this gauge allows you to set critical pressure thresholds, providing an immediate visual alert should your engine’s performance deviate from the norm.

KEY FEATURES AND BENEFITS:

• Dual Functionality: Measures both vacuum (30-0 in/hg) and boost pressure (up to 30 PSI), providing comprehensive engine monitoring.
• Accurate Readings: Utilizes a 3-wire military-grade transducer for precise and reliable pressure measurements, ensuring you receive trustworthy data about your engine’s state.
• Early Warning System: Features an integrated warning light that can be set to illuminate when pressure levels fall outside a defined range, helping to identify potential issues before they become severe.
• Convenient Installation: Ships with all necessary wiring harnesses (power/lighting and pressure sensor) and the pressure sensor itself, simplifying the installation process.
• Optimal Size: The 2-5/8 inch (68mm) diameter offers a balance between a prominent display and ease of integration into various dashboards.

SPECIFICATIONS:

• Gauge Type: Boost/Vacuum Gauge
• Vacuum Range: 30-0 in/hg
• Size: 2 5/8 inch (68mm mounting hole)
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Warning Light: Yes
• Included: 3 ft Power & Lighting Harness, Pressure Gauge Wiring Harness (3-Wire Cable), Pressure Sensor (30 psi)

HOW TO USE:

• Mount the Gauge: Secure the 2-5/8″ gauge into a suitable 2.67″ (68mm) diameter hole in your desired location.
• Connect the Power and Lighting Harness: Attach the provided 3 ft power and lighting harness to the gauge, ensuring proper connections for power and illumination.
• Install the Pressure Sensor: Mount the included 30 PSI pressure sensor in a suitable location on your engine where vacuum and boost pressure can be accurately measured (typically the intake manifold).
• Connect the Pressure Sensor Wiring Harness: Connect the 3-wire cable from the pressure sensor to the corresponding terminals on the back of the gauge.
• Configure the Warning Light (Optional): If desired, set the parameters for the warning light according to the manufacturer’s instructions to illuminate at specific vacuum or boost pressure levels.
• Start Your Engine: With all connections secure, start your vehicle’s engine to begin receiving pressure readings on the gauge.
• Monitor Readings: Observe the gauge to track your engine’s vacuum and boost levels during operation.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 30-0IN/HG VACUUM GAUGE W/ WARNING (R25-VC1-REV):

• Enhanced Engine Awareness: Provides real-time information about your engine’s operational state, allowing you to monitor its health and performance.
• Early Problem Detection: The warning light feature can alert you to potential issues like vacuum leaks or over-boosting before they cause significant damage.
• Optimized Performance: By accurately monitoring boost levels, you can ensure your turbocharged or supercharged engine is operating within its optimal range.
• Increased Vehicle Longevity: Early detection of problems through accurate monitoring can contribute to the overall lifespan and reliability of your engine.
• Easy Installation: The included components and straightforward wiring simplify the process of adding this valuable monitoring tool to your vehicle.

FEATURES:

• Displays both negative (vacuum) and positive (boost) pressure readings in a single, compact 2-5/8 inch unit.
• Utilizes a robust, military-grade 3-wire transducer to deliver precise and consistent pressure data.
• Integrates a user-configurable visual warning system to alert the driver to out-of-range pressure conditions.
• Designed with a standard 2.67″ (68mm) mounting dimension for broad compatibility with gauge pods.
• Operates on standard units (inches of mercury for vacuum, PSI for boost – inferred from the 30 PSI sensor).
• Illuminated for clear visibility under various lighting conditions (requires connection to the included power/lighting harness).
