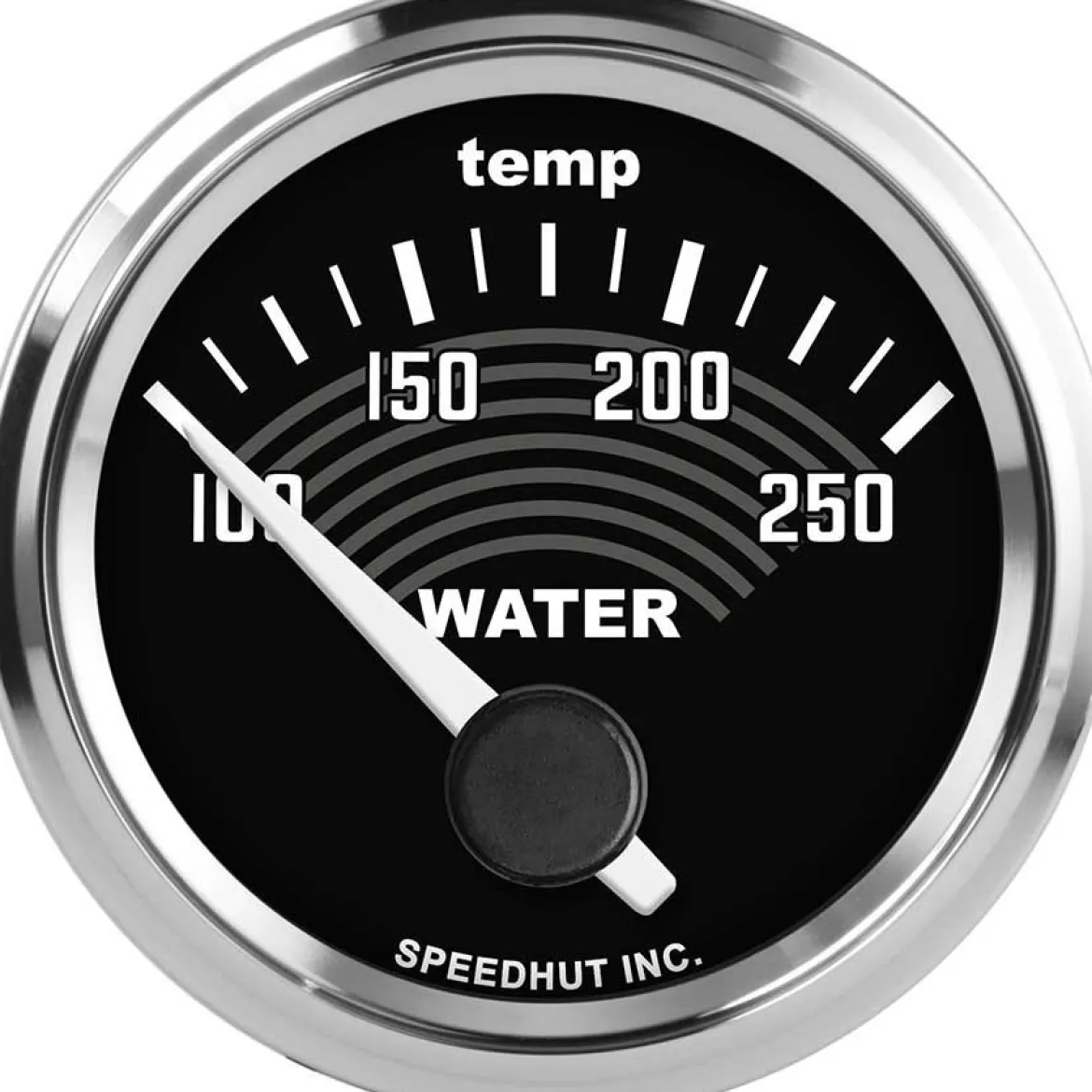

Speedhut 2-1/16″ VW Design 100-250F Water Temp (L2-WT3-VW)

The Speedhut 2-1/16″ VW Design 100-250F Water Temp (L2-WT3-VW) is an aftermarket instrument designed to provide accurate monitoring of your vehicle’s coolant temperature. With a measurement range of 100 to 250 degrees Fahrenheit, this gauge allows you to easily observe your engine’s operating temperature, helping you identify potential overheating issues before they lead to significant problems. While styled to complement the interior of Volkswagen vehicles, this gauge offers a universal fit for a wide range of custom automotive applications. It is important to note that this is not a direct OEM replacement but rather a gauge intended for custom installation.

KEY FEATURES AND BENEFITS:

• Accurate Temperature Monitoring: Provides precise readings of your engine’s coolant temperature within the 100-250°F range.
• VW-Inspired Design: Features an aesthetic that integrates well with Volkswagen interior styling.
• Standard Size: The 2-1/16 inch (52mm) size ensures compatibility with many aftermarket gauge pods and mounting solutions.
• Performance Sender Included: Comes with a 2-wire performance temperature sender for reliable and responsive readings.
• Complete Wiring Harnesses: Includes all necessary wiring harnesses for power, lighting (for LED-lit versions), and connecting the temperature sensor.
• Universal Fit: Designed for installation in various vehicles, offering flexibility for custom setups.

SPECIFICATIONS:

• Gauge Type: Temperature Gauge
• Gauge Subtype: Water Temperature Gauge
• Temp Sender Type: 2-Wire Temp Sender (Performance)
• Range: 100-250 °F
• Size: 2 1/16 inch (52mm)
• Hole Size: 2.062 inches (52mm)
• Standard or Metric: Standard
• Warning Light: No
• Included: Speedhut Temperature Sensor, 3 ft Power & Lighting Harness, Temperature Gauge Wiring Harness (2-Wire Cable)

HOW TO USE:

1. Mount the Gauge: Choose a suitable location in your vehicle and create a 2.062-inch (52mm) diameter hole for mounting the gauge. Secure the gauge in place using appropriate mounting hardware (not included).
2. Install the Temperature Sensor: Locate a suitable port in your engine’s cooling system (e.g., thermostat housing, coolant passage) and install the included 2-wire temperature sensor. Ensure a good seal to prevent leaks.
3. Connect the Sensor Wiring: Run the provided Temperature Gauge Wiring Harness (2-Wire Cable) from the installed temperature sensor to the back of the gauge and connect the wires according to the gauge’s wiring diagram (usually included with the product).
4. Connect Power and Lighting: Connect the 3 ft Power & Lighting Harness to a suitable 12V power source in your vehicle (typically an ignition-switched power source) and to a ground. Connect the lighting wire to your vehicle’s lighting circuit if you desire the gauge to illuminate with your other instruments. Refer to the gauge’s wiring diagram for correct connections.
5. Test the Gauge: Once all connections are made, start your vehicle and allow it to warm up. Observe the gauge to ensure it is reading the coolant temperature accurately.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ VW DESIGN 100-250F WATER TEMP (L2-WT3-VW):

• Engine Protection: Enables early detection of overheating to prevent potential engine damage.
• Seamless Styling: VW-inspired look complements Volkswagen interiors while remaining suitable for custom setups.
• Reliable Readings: The included performance sender ensures accurate and responsive temperature monitoring.
• Clear Visibility: LED illumination supports easy reading under various lighting conditions.
• Custom Integration: Adds a critical monitoring feature to your vehicle’s dashboard while supporting personalization and modification.

FEATURES:

• Visually Cohesive: The gauge face is styled to complement the aesthetics of Volkswagen dashboards.
• Compact Form Factor: The 2-1/16″ size allows for installation in various locations without taking up excessive space.
• Enhanced Accuracy: The included performance 2-wire temperature sender provides precise temperature readings.
• Illuminated Display: Designed to be used with the included power and lighting harness for clear visibility in all lighting conditions (assuming LED lighting).
• Direct Sensor Connection: Comes with a dedicated wiring harness for a straightforward connection to the temperature sensor.
• Versatile Application: While styled for VW, its universal design allows for use in a wide range of vehicles for custom temperature monitoring.
