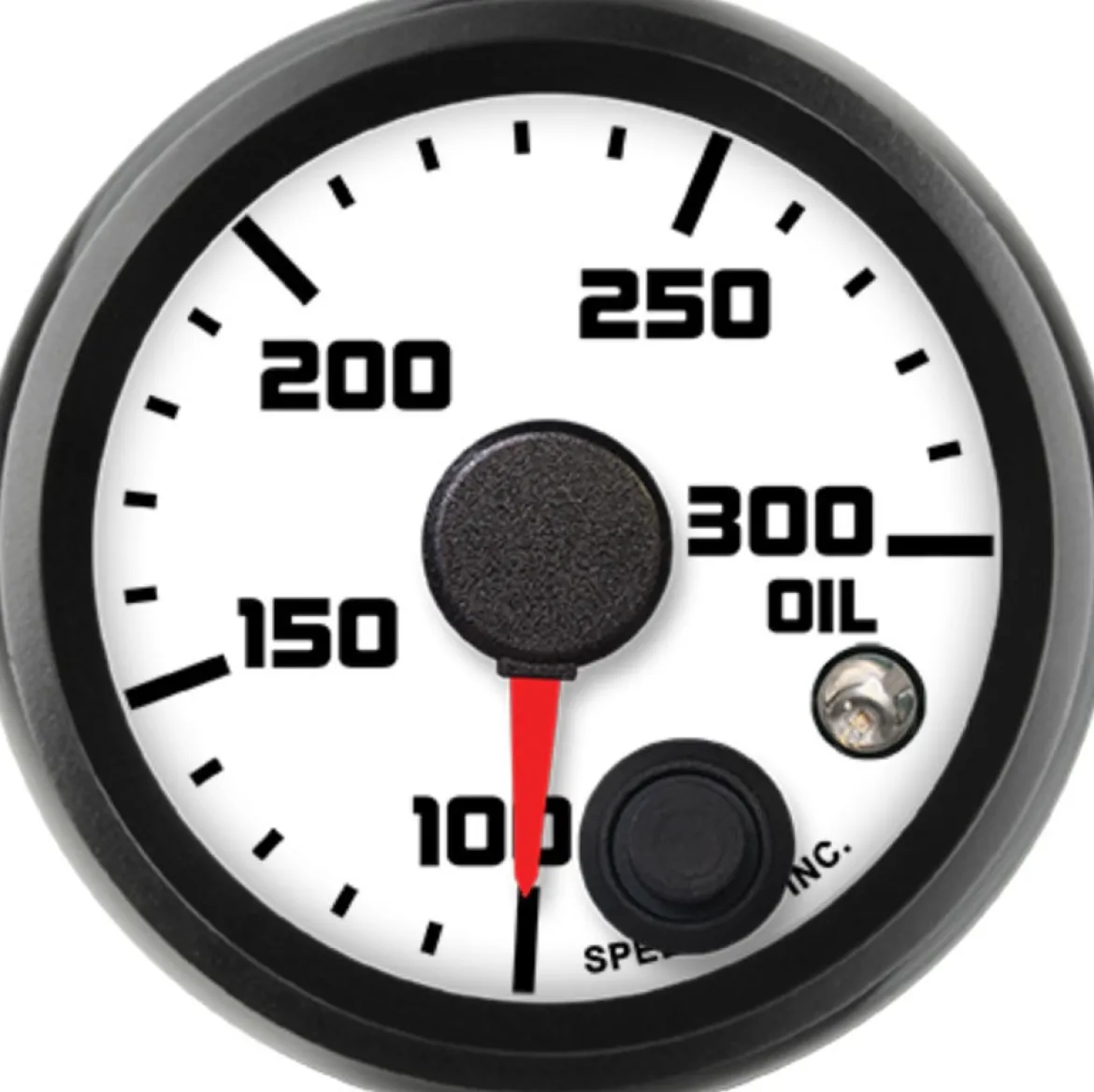

Speedhut 2-1/16″ Street XL 100-300F Oil Temp w/ Warning (R2-OT1-SXL)

The Speedhut 2-1/16″ Street XL 100-300F Oil Temp w/ Warning (R2-OT1-SXL) is designed to provide accurate and reliable monitoring of your engine’s oil temperature. This gauge features a measuring range of 100 to 300 degrees Fahrenheit, allowing you to easily track this critical parameter for optimal engine health. Equipped with a performance-oriented 2-wire temperature sender, it ensures quick and precise readings. The integrated warning light provides an immediate visual alert if your oil temperature exceeds a predefined safe level, helping to prevent potential engine damage. This gauge is part of Speedhut’s Street XL series, known for its clear and easy-to-read display. With a standard 2-1/16 inch mounting size, it fits seamlessly into most aftermarket gauge pods.

KEY FEATURES AND BENEFITS:

• Accurate Oil Temperature Monitoring: Provides precise readings of your engine’s oil temperature within the 100-300°F range, crucial for maintaining optimal engine performance and longevity.
• Performance Temperature Sender: Includes a high-quality 2-wire temperature sender that delivers fast and reliable temperature data to the gauge.
• Integrated Warning Light: Features a built-in warning light that can be configured to illuminate when the oil temperature reaches a critical level, alerting you to potential overheating issues.
• Standard Size: The 2-1/16 inch (52mm) size ensures compatibility with a wide variety of aftermarket gauge mounts and installations.
• Complete Wiring Included: Comes with all the necessary wiring harnesses, including the temperature sensor cable and the power/lighting harness, simplifying the installation process.

SPECIFICATIONS:

• Gauge Type: Temperature Gauge
• Gauge Subtype: Oil Temperature Gauge
• Temperature Sender Type: 2-Wire Temp Sender (Performance)
• Range: 100-300 °F
• Size: 2 1/16 inch (52mm)
• Hole Size: 2.10 inches (54mm)
• Units: Standard (Fahrenheit)
• Warning Light: Yes
• Ships With:
• Speedhut Temperature Sensor
• Temperature Gauge Wiring Harness (2-Wire Cable)
• 3 ft Power & Lighting Harness

HOW TO USE:

1. Mount the Gauge: Choose a suitable location in your vehicle and create a 2.10-inch (54mm) diameter hole. Securely mount the Speedhut Oil Temperature Gauge in this opening.
2. Install the Temperature Sensor: Locate an appropriate port on your engine’s oil system (typically the oil pan or filter housing). Install the provided Speedhut Temperature Sensor into this port, ensuring a tight and leak-free connection.
3. Connect the Sensor Wiring: Using the included Temperature Gauge Wiring Harness (2-Wire Cable), connect one end to the terminals on the Speedhut Temperature Sensor and the other end to the corresponding terminals on the back of the Oil Temperature Gauge.
4. Connect Power and Lighting: Use the provided 3 ft Power & Lighting Harness. Connect the power wire (typically red) to a 12V switched power source in your vehicle. Connect the ground wire (typically black) to a suitable ground point on the vehicle’s chassis. Connect the lighting wire (often orange or a similar color) to your vehicle’s headlight or instrument panel lighting circuit if you desire the gauge to illuminate with your other lights.
5. Test the Gauge: Once all connections are made, start your vehicle and observe the gauge. The needle should move as the engine oil warms up. Verify that the warning light functionality is working as expected (refer to the Speedhut documentation for setting the warning threshold if applicable).

BENEFITS OF USING THE SPEEDHUT 2-1/16″ STREET XL 100-300F OIL TEMP W/ WARNING (R2-OT1-SXL):

• Early Detection of Overheating: By continuously monitoring your oil temperature, you can identify potential overheating issues before they lead to significant engine damage and costly repairs.
• Optimized Engine Performance: Knowing your engine’s oil temperature helps ensure it’s operating within its ideal range, contributing to optimal performance and fuel efficiency.
• Increased Engine Longevity: Maintaining the correct oil temperature is crucial for the longevity of engine components, preventing premature wear and tear.
• Clear and Immediate Feedback: The analog display provides an easy-to-understand, real-time indication of your oil temperature. The integrated warning light offers an instant alert to critical conditions.
• Easy Installation: With the included sensor and wiring harnesses, the installation process is simplified for both DIY enthusiasts and professional installers.

FEATURES:

• Clear and easy-to-read analog display for quick temperature assessment.
• Performance-designed 2-wire temperature sensor for rapid and accurate readings.
• Integrated warning light for immediate notification of high oil temperature conditions.
• Standard 2-1/16″ (52mm) size for versatile mounting options.
• Specifically calibrated for a 100-300°F temperature measurement range.
• Includes all necessary electrical connections for straightforward installation.
• Part of the Speedhut Street XL series, known for its distinct gauge face design.
