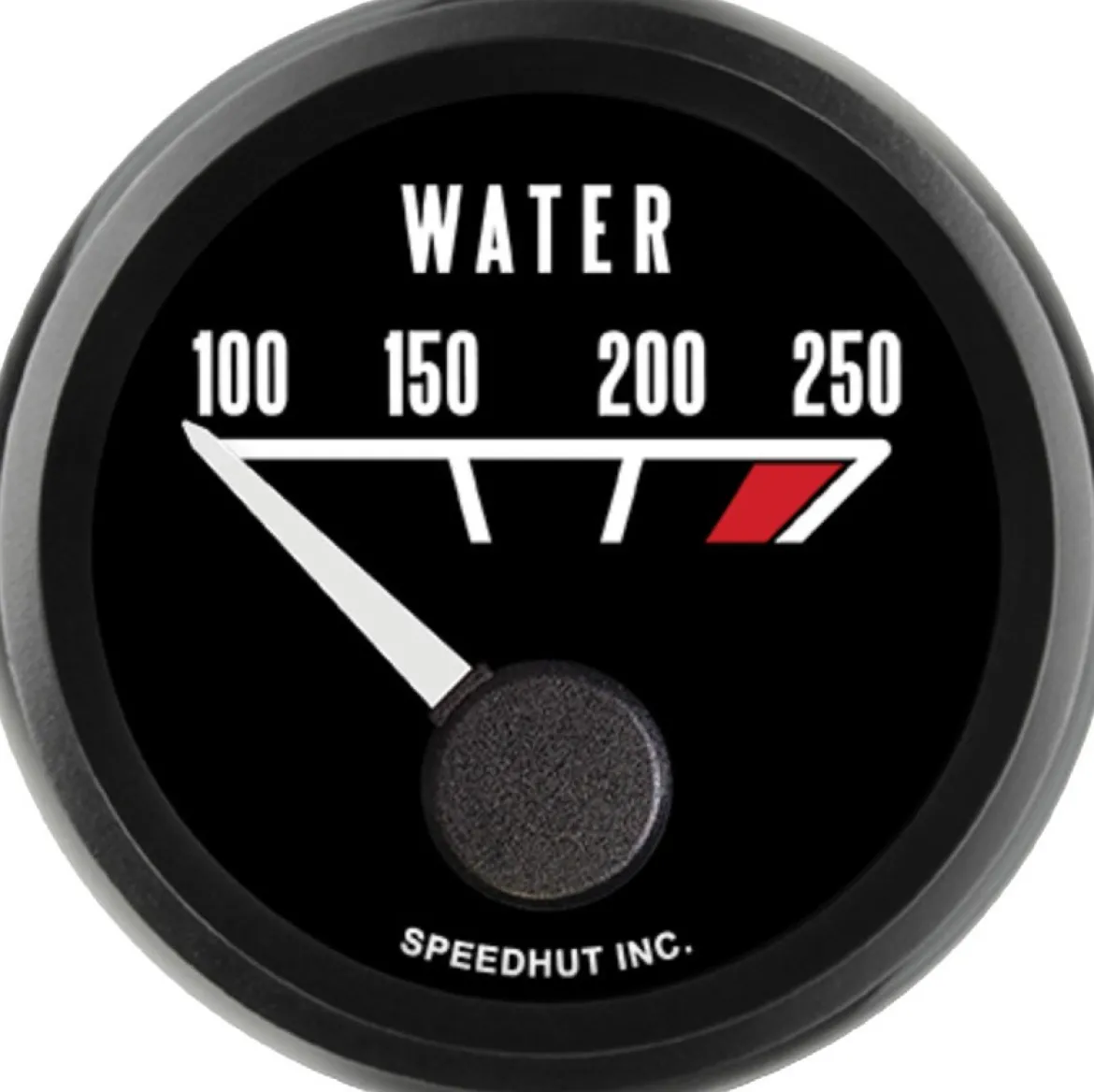

Speedhut 2-1/16″ Pontiac 100-250F 90° Sweep Water Temp (L2-WT3-PTC)

The Speedhut 2-1/16″ Pontiac 100-250F 90° Sweep Water Temp (L2-WT3-PTC) gauge provides accurate monitoring of your engine’s coolant temperature within a range of 100 to 250 degrees Fahrenheit. Designed with a 2-1/16 inch (52mm) diameter, this gauge offers a look reminiscent of classic Pontiac OEM instrumentation. It utilizes a 2-wire performance temperature sender to deliver reliable readings. This model (L2-WT3-PTC) does not include a warning light feature. The gauge features LED backlighting for enhanced visibility during nighttime driving.

KEY FEATURES AND BENEFITS:

• Accurate Temperature Monitoring: Provides precise readings of your engine’s coolant temperature, helping you identify potential overheating issues early.
• Pontiac OEM Style: Designed to complement the interior aesthetics of Pontiac vehicles with its gauge face styling.
• Enhanced Night Visibility: Features LED backlighting for clear readings in low-light conditions.
• Easy Installation: The 2-1/16 inch size fits standard gauge pods with a 2.062″ (52mm) hole size.
• Complete Wiring Included: Ships with a 3 ft power and lighting harness and a dedicated temperature gauge wiring harness (2-wire cable).
• Performance Sender Included: Comes with a reliable 2-wire performance temperature sensor.

SPECIFICATIONS:

• Gauge Type: Temperature Gauge
• Gauge Subtype: Water Temperature Gauge
• Range: 100-250 °F
• Size: 2 1/16 inch (52mm)
• Hole Size: 2.062 inches (52mm)
• Sender Type: 2-Wire Temp Sender (Performance)
• Lighting: LED
• Warning Light: No
• Ships With:
  • 3 ft Power & Lighting Harness
  • Temperature Gauge Wiring Harness (2-Wire Cable)
  • Speedhut Temperature Sensor

HOW TO USE:

1. Mount the Gauge: Locate a suitable 2-1/16 inch (52mm) mounting location in your vehicle’s dashboard or gauge pod. Secure the gauge using the provided mounting hardware (typically a spin-lock ring).
2. Install the Temperature Sensor: Identify a suitable port on your engine’s coolant system (usually on the intake manifold or thermostat housing) to install the included Speedhut temperature sensor. Ensure a good seal to prevent leaks.
3. Connect the Sensor Wiring: Run the provided temperature gauge wiring harness (2-wire cable) from the installed temperature sensor to the back of the gauge. Connect the wires to the corresponding terminals on the gauge.
4. Connect the Power and Lighting Harness: Connect the 3 ft power and lighting harness to the back of the gauge. Typically, this harness will have wires for power (12V), ground, and the LED backlighting.
5. Wire to Vehicle: Connect the power wire to a switched 12V source in your vehicle’s electrical system (one that is on when the ignition is on). Connect the ground wire to a suitable ground point on the vehicle’s chassis. Connect the lighting wire to your vehicle’s headlight circuit or a dedicated lighting switch if desired, so the gauge backlighting illuminates with your other lights.
6. Verify Functionality: Once all connections are made, turn on your vehicle’s ignition. The gauge should power up, and the pointer should move as the engine warms up. Check the LED backlighting function as well.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ PONTIAC 100-250F 90° SWEEP WATER TEMP (L2-WT3-PTC):

• Provides accurate and immediate readings of engine coolant temperature to help avoid overheating and potential engine damage.
• Integrates well with both classic and modern Pontiac interiors thanks to its OEM-inspired styling.
• Offers LED backlighting for easy visibility at night or in dim conditions.
• Includes all required wiring and a performance temperature sender for quick, hassle-free installation.

FEATURES:

• Pontiac-Inspired Styling: Designed with a gauge face that aesthetically matches classic Pontiac OEM instrumentation.
• 90-Degree Sweep: Utilizes a precise 90-degree sweep for easy and quick reading of temperature changes.
• LED Backlighting: Employs LED backlighting for excellent visibility during nighttime driving conditions.
• Performance Sensor: Includes a high-quality 2-wire performance temperature sensor for accurate readings.
• Compact Size: Features a compact 2-1/16 inch (52mm) size, suitable for various mounting options.
• Complete Harness Kit: Comes complete with both power/lighting and temperature sensor wiring harnesses for straightforward installation.
