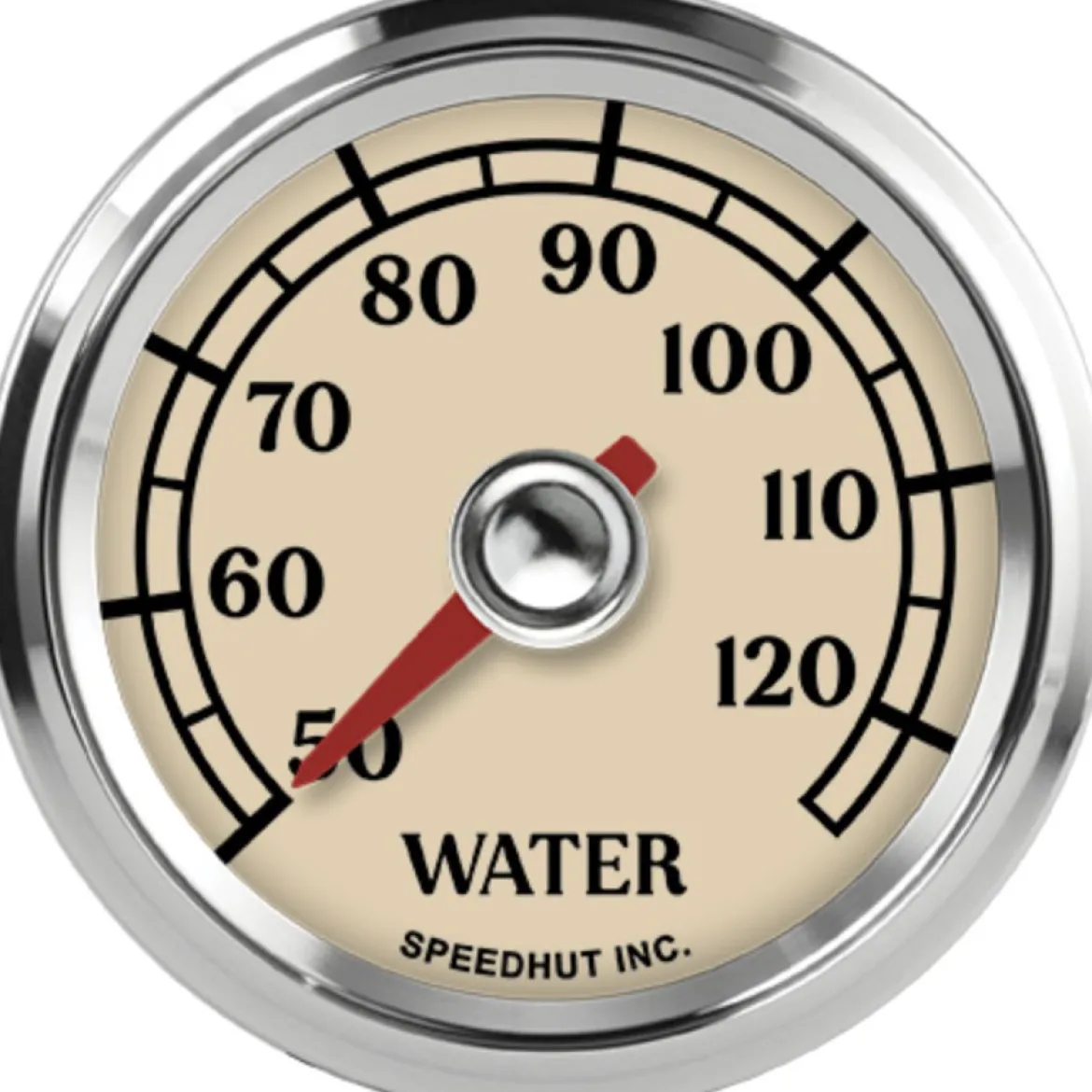

Speedhut 2-1/16″ Antique Series 50-125C Water Temp Gauge (L2-WT2-ATQ)

The Speedhut 2-1/16″ Antique Series 50-125C Water Temp Gauge (L2-WT2-ATQ) offers a blend of classic aesthetics and accurate temperature monitoring for your vehicle’s coolant system. Designed with a vintage-inspired look, this metric gauge provides precise readings within the 50 to 125 degrees Celsius range. It comes complete with the necessary components for installation, ensuring you can easily keep track of your engine’s operating temperature.

KEY FEATURES AND BENEFITS:

• Accurate Monitoring: Provides precise readings of your engine’s coolant temperature, helping you prevent overheating and potential engine damage.
• Classic Style: The Antique Series design offers a timeless and vintage appearance that complements a variety of vehicle interiors.
• Metric Measurement: Displays temperature readings in Celsius (50-125°C), the standard metric unit for temperature.
• Easy Installation: Includes all essential wiring harnesses and a compatible temperature sensor, simplifying the setup process.
• LED Backlighting: Features LED illumination for clear visibility of the gauge readings, even in low-light conditions.
• Performance Sender Included: Comes with a 2-wire performance temperature sender, ensuring reliable and accurate data transmission.
• Standard Size: The 2 1/16 inch (52mm) size fits common aftermarket gauge pods and mounting solutions.

SPECIFICATIONS:

• Gauge Type: Temperature Gauge
• Temperature Sender Type: 2-Wire Temp Sender (Performance)
• Range: 50-125 °C
• Size: 2 1/16 inch (52mm)
• Hole Size: 2.062 inches (52mm)
• Standard or Metric: Metric
• Warning Light: No
• Ships With:
  • Temperature Gauge Wiring Harness (2-Wire Cable)
  • Speedhut Temperature Sensor
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks

HOW TO USE:

• Mount the Gauge: Secure the 2 1/16″ (52mm) gauge in your desired location using a compatible gauge pod or mounting solution. Ensure the 2.062″ (52mm) hole size is appropriate.
• Install the Temperature Sensor: Locate a suitable port on your engine’s cooling system to install the included Speedhut Temperature Sensor. Follow your vehicle’s service manual for the correct location.
• Connect the Sensor Wiring: Attach the Temperature Gauge Wiring Harness (2-Wire Cable) to the terminals on the temperature sensor.
• Connect Power and Lighting: Connect the 3 ft Power & Lighting Harness to a suitable power source in your vehicle (typically a switched 12V source) and to the gauge. This harness also powers the LED backlighting.
• Ground the Gauge: Ensure the gauge and the temperature sensor have a proper ground connection for accurate readings.
• Verify Connections: Double-check all wiring connections to ensure they are secure and correct.
• Test the Gauge: Start your vehicle and allow it to reach operating temperature. Observe the gauge to confirm it is displaying the coolant temperature accurately.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ ANTIQUE SERIES 50-125C WATER TEMP GAUGE (L2-WT2-ATQ):

• Using the Speedhut 2-1/16″ Antique Series Water Temperature Gauge allows you to proactively monitor your engine’s coolant temperature. This helps in identifying potential overheating issues early, preventing costly engine damage and ensuring the longevity and reliable performance of your vehicle.
• The classic design also adds a touch of vintage style to your dashboard.

FEATURES:

• Vintage-Inspired Aesthetics: The gauge face and design evoke a classic, timeless look.
• Precise Celsius Readings: Displays temperature in the metric system, which is widely used and provides accurate measurements.
• Dedicated Performance Sender: The included 2-wire sensor is specifically designed for accurate and responsive temperature readings.
• Illuminated Display: LED backlighting ensures excellent visibility during both day and night driving conditions.
• Complete Wiring Included: Comes with all the necessary harnesses for a straightforward electrical connection.
