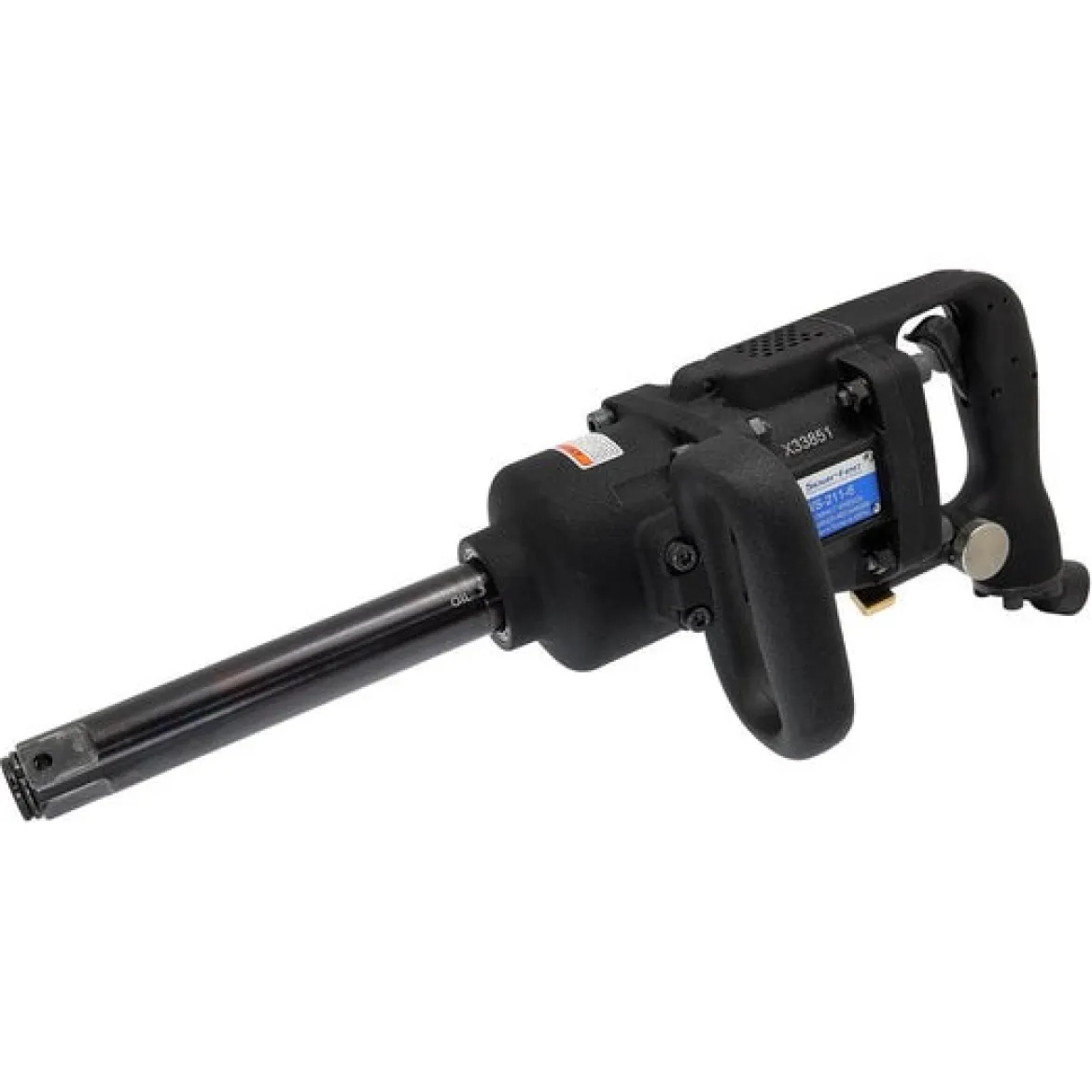

Soartec Air 1″ D-Handle 6″ Anvil 2600 ft-lb Impact Wrench (WS-211T-6)

The Soartec Air 1″ D-Handle 6″ Anvil 2600 ft-lb Impact Wrench (WS-211T-6) is a high-performance pneumatic tool engineered for demanding fastening and loosening tasks across various heavy-duty applications. With an impressive 2600 ft-lb of maximum torque and a 6-inch extended anvil, this impact wrench provides the power and reach needed for large bolts and fasteners in industrial, construction, and automotive settings. Despite its robust capabilities, the WS-211-6 maintains an exceptionally low weight of 11.8 lbs, significantly reducing user fatigue during prolonged operation. Its twin hammer mechanism ensures consistent power delivery and durability, making it a reliable choice for professional environments. The design incorporates user-friendly features like a low-pressure activation trigger, 4-position power settings, and separate switches for forward and reverse operation, allowing for precise control and adaptability to different tasks. Built with an aluminum alloy case, this tool is designed for longevity and withstands the rigors of frequent, heavy use, supported by a 3-year warranty for added assurance. Whether for truck tire service, industrial assembly lines, or agricultural machinery maintenance, the Soartec WS-211-6 offers a powerful, efficient, and ergonomically conscious solution.

KEY FEATURES AND BENEFITS:

• Exceptional Power Output: Delivers 2600 ft-lb of maximum torque, providing ample power to handle stubborn bolts and large fasteners with ease, improving job efficiency.
• Lightweight Design: Weighing only 11.8 lbs, it significantly reduces user fatigue during extended use, enhancing comfort and productivity in demanding applications.
• Extended 6″ Anvil: The longer anvil provides increased reach into recessed or hard-to-access areas, making it versatile for diverse equipment and machinery.
• Twin Hammer Mechanism: Ensures consistent high torque delivery, balanced force, and excellent durability, contributing to the tool’s long lifespan and reliable performance.
• Precise Control Settings: Features a 4-position power setting and independent forward/reverse switches, allowing operators to select the optimal torque and direction for specific tasks.
• Enhanced Safety and Durability: Incorporates an internal trigger for improved safety and an aluminum alloy case for superior resistance to wear and impact in tough working conditions.
• Low Pressure Activation Trigger: Designed for responsive operation, ensuring that the tool activates smoothly and precisely with minimal trigger engagement.

SPECIFICATIONS:

• Type: Air Impact Wrench
• SKU: WS-211-6
• Square Drive: 1 inch
• Standard Bolt Capacity: 1-1/8 inches
• Max. Torque @ 5 sec (ft-lb /Nm): 2600 ft-lb
• Free Speed (rpm): 7500 RPM
• Weight: 11.8 lbs
• Length (mm): 475 mm
• Anvil: 6 inches
• Clutch Type: Twin Hammer
• Minimum Hose Size (in): 1/2 inch
• Air Inlet: 3/8″ NPT
• Air Pressure (psi): 90 PSI
• Air Consumption (cfm/l/min): 21.1 cfm (600 L/min)
• Warranty: 3 years

HOW TO USE:

1. Connect Air Supply: Ensure your air compressor is set to 90 PSI and connect a 1/2″ minimum inner diameter air hose to the tool’s 3/8″ NPT air inlet. Use appropriate thread sealant if necessary to prevent leaks.
2. Select Direction: Use the dedicated forward/reverse switch on the tool to select the desired direction of rotation for tightening or loosening.
3. Adjust Power Setting: Choose one of the 4 available power settings to match the torque requirement of your specific application. Start with a lower setting and increase if more torque is needed.
4. Attach Socket: Securely attach the appropriate 1″ square drive impact-rated socket onto the 6″ anvil.
5. Position Tool: Place the socket firmly onto the fastener (bolt or nut).
6. Activate Trigger: Depress the internal trigger to begin operation. The low-pressure activation design allows for smooth starts.
7. Maintain Control: Hold the tool firmly with both hands, utilizing the D-handle and potentially the auxiliary side handle (if included and attached), to maintain control during operation.
8. Release Trigger: Once the fastener is tightened or loosened, release the trigger.
9. Disconnect Air (When Finished): When finished using the tool, disconnect it from the air supply and store it properly.

BENEFITS OF USING SOARTEC AIR 1″ D-HANDLE 6″ ANVIL 2600 FT-LB IMPACT WRENCH (WS-211T-6):

• The Soartec 1″ Impact Wrench WS-211-6 offers numerous advantages that streamline heavy-duty fastening tasks and enhance operational efficiency.
• Its exceptional power-to-weight ratio allows operators to manage high-torque applications without the strain associated with heavier tools, leading to increased productivity throughout the workday.
• The extended 6-inch anvil provides superior access to deeply set or difficult-to-reach fasteners, broadening the range of compatible applications.
• The precise control offered by the 4-position settings and independent forward/reverse switches ensures that users can adapt the tool’s performance to various materials and fastener types, preventing overtightening or stripping.
• Built with an aluminum alloy housing and a twin hammer mechanism, this tool is designed for longevity and resilience in demanding industrial environments, reducing the need for frequent replacements and minimizing downtime.
• The internal trigger mechanism contributes to operational safety, while the low-pressure activation design offers smooth and immediate response.
• The significant 3-year warranty provides peace of mind, affirming the manufacturer’s confidence in the tool’s quality and reliability for sustained professional use.
• This combination of power, ergonomic design, durability, and control makes the WS-211-6 an asset for any professional requiring efficient and effective heavy-duty fastening solutions.

FEATURES:

• Robust 1-inch square drive for standard heavy-duty sockets.
• Maximum 2600 ft-lb torque at 5 seconds for high-demand applications.
• High free speed of 7500 revolutions per minute for rapid fastening.
• Lightweight construction at 11.8 lbs for reduced operator fatigue.
• Compact length of 475 mm for maneuverability in tight spaces.
• Extended 6-inch anvil for access to recessed fasteners.
• Integrated internal trigger for enhanced operational safety.
• Low-pressure activation trigger design for precise tool engagement.
• Four distinct power settings to tailor torque output.
• Dedicated switches for immediate forward and reverse direction changes.
• Constructed with an aluminum alloy case for superior structural integrity.
• Equipped with a twin hammer clutch system for balanced impact force.
• Requires a minimum 1/2-inch air hose for optimal performance.
• Standard 3/8-inch NPT air inlet connection.
• Operates efficiently at 90 PSI air pressure.
• Air consumption rate of 21.1 cfm (600 L/min).
• Capable of handling standard bolt capacities up to 1-1/8 inches.
• Backed by a comprehensive 3-year limited warranty.
