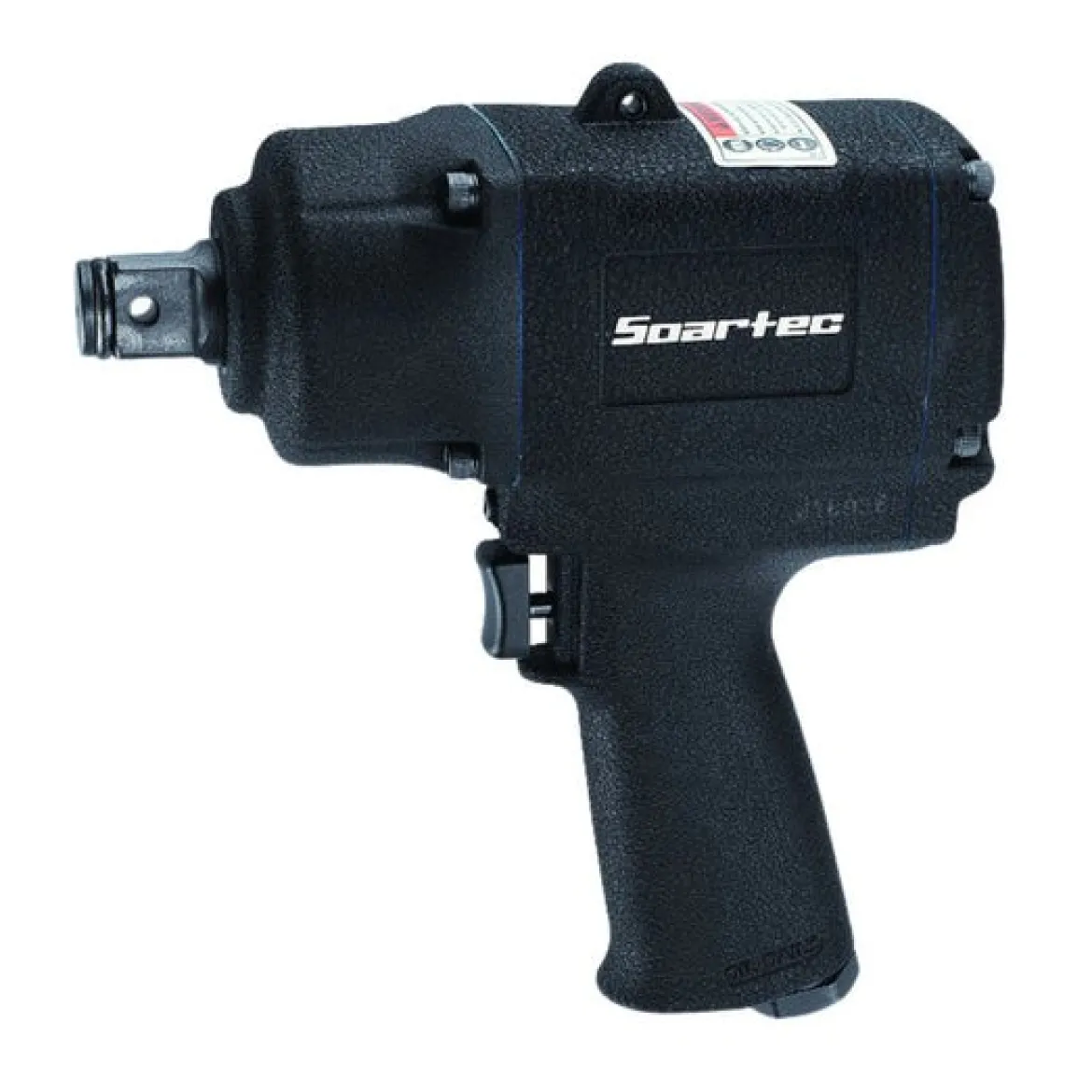

Soartec 3/4″ 1300 ft-lb Air Impact Wrench (WS-2086)

The Soartec 3/4″ 1300 ft-lb Air Impact Wrench (WS-2086) is a professional-grade air tool engineered for high-performance fastening and loosening in demanding environments. This impact wrench is designed to provide substantial torque for applications ranging from automotive repair to heavy industrial maintenance, ensuring efficient operation on various bolt sizes and types. Its robust construction and intelligent design features contribute to reliable performance and user comfort.

KEY FEATURES AND BENEFITS:

• High Torque Output: Delivers a maximum reverse torque of 1300 ft-lbs (nut busting torque) and a maximum forward torque of 1200 ft-lbs, allowing for effective handling of stubborn fasteners and powerful tightening.
• Twin Hammer Mechanism: Provides balanced and consistent powerful blows, ensuring efficient torque transfer and rapid task completion. This mechanism is known for its effectiveness in heavy-duty applications.
• Precise Power Control: Features a 6-position power regulator with three settings for forward rotation and three for reverse, allowing the operator to select the appropriate power level for specific applications, preventing overtightening or fastener damage.
• Optimized Handling: Weighing only 5.8 lbs, the tool offers an excellent weight-to-balance ratio. This design minimizes user fatigue during extended use and improves overall control and maneuverability.
• Enhanced Durability: An advanced motor design with a built-in spring contributes to maximum efficiency and prolonged tool life. The blade, mounted with a spring, helps prevent internal dead-lock or power-loss issues, ensuring consistent performance.
• Variable Speed Control: The tease trigger with a low-pressure activation design allows for precise variable speed control, enabling operators to gradually apply power and maintain better control over the fastening or loosening process.

SPECIFICATIONS:

• Type: Air Impact Wrench
• SKU: WS-2086
• Square Drive: 3/4″
• Standard Bolt Capability: 13/16″ (20 mm)
• Max. Torque @ 5 sec: 1300 ft-lb / 1762 Nm (Max Reverse Torque/Nut Busting Torque)
• Max. Forward Torque: 1200 ft-lbs
• Min. Working Torque: 50 ft-lbs
• Max. Working Torque: 800 ft-lbs
• Free Speed: 7500 RPM
• Weight: 5.8 lb
• Length: 178 mm
• Anvil: Standard
• Clutch Type: Twin Hammer
• Min. Hose Size: 3/8″
• Air Inlet: 1/4″ NPT
• Air Pressure: 90 psi
• Air Consumption: 17 cfm (485 L/min)
• Noise Level: 101.8 dB

HOW TO USE:

1. Prepare Air Supply: Connect a 3/8″ minimum diameter air hose to the 1/4″ NPT air inlet on the impact wrench. Ensure your air compressor can provide at least 17 CFM at 90 PSI to achieve optimal performance.
2. Attach Socket: Select the appropriate 3/4″ drive impact socket for your fastener and firmly attach it to the square drive anvil of the wrench.
3. Set Direction and Power: Use the 6-position power regulator switch to select the desired direction (forward for tightening, reverse for loosening) and the appropriate power setting (1, 2, or 3) for your application. Start with a lower setting if unsure to avoid overtightening.
4. Position the Tool: Place the socket squarely onto the fastener.
5. Operate the Trigger: Gently depress the tease trigger to begin operation. Gradually increase pressure on the trigger to achieve the desired speed and torque. For loosening, apply full power if necessary. For tightening, use controlled bursts to prevent overtightening, especially when approaching the final torque.
6. Monitor Fastening: For critical applications, always verify final torque settings with a calibrated torque wrench after using the impact wrench for tightening.

BENEFITS OF USING SOARTEC 3/4″ 1300 FT-LB AIR IMPACT WRENCH (WS-2086):

• Time Efficiency: Its high torque output and rapid fastening speed significantly reduce the time required for tightening and loosening large or stubborn bolts.
• Reduced Manual Effort: Eliminates the need for manual leverage and excessive force, making strenuous tasks easier and more comfortable for the operator.
• Versatility: Capable of handling a wide range of industrial and automotive applications, from general maintenance to heavy vehicle repair, due to its substantial power and bolt capacity.
• Consistent Performance: The twin hammer mechanism ensures reliable and uniform power delivery, leading to consistent results whether tightening or loosening.
• Ergonomic Design: The lightweight aluminum alloy casing and balanced design contribute to reduced operator fatigue, especially during prolonged use, enhancing productivity.
• Precise Control: The 6-position power regulator and variable speed trigger allow operators to match the tool’s output precisely to the task at hand, preventing damage to fasteners or materials.

FEATURES:

• Aluminum alloy casing construction for reduced weight and enhanced robustness.
• Integrated spring mechanism within the motor for improved efficiency and prolonged lifespan.
• Spring-mounted blade design to prevent internal operational disruptions and power loss.
• Low pressure activation trigger for improved user comfort and fine control.
• Optimized body-to-weight ratio for improved handling and reduced user strain.
• Standard anvil design for compatibility with common 3/4″ drive impact sockets.
• Internal air flow design optimized for efficient air consumption at 17 CFM.
