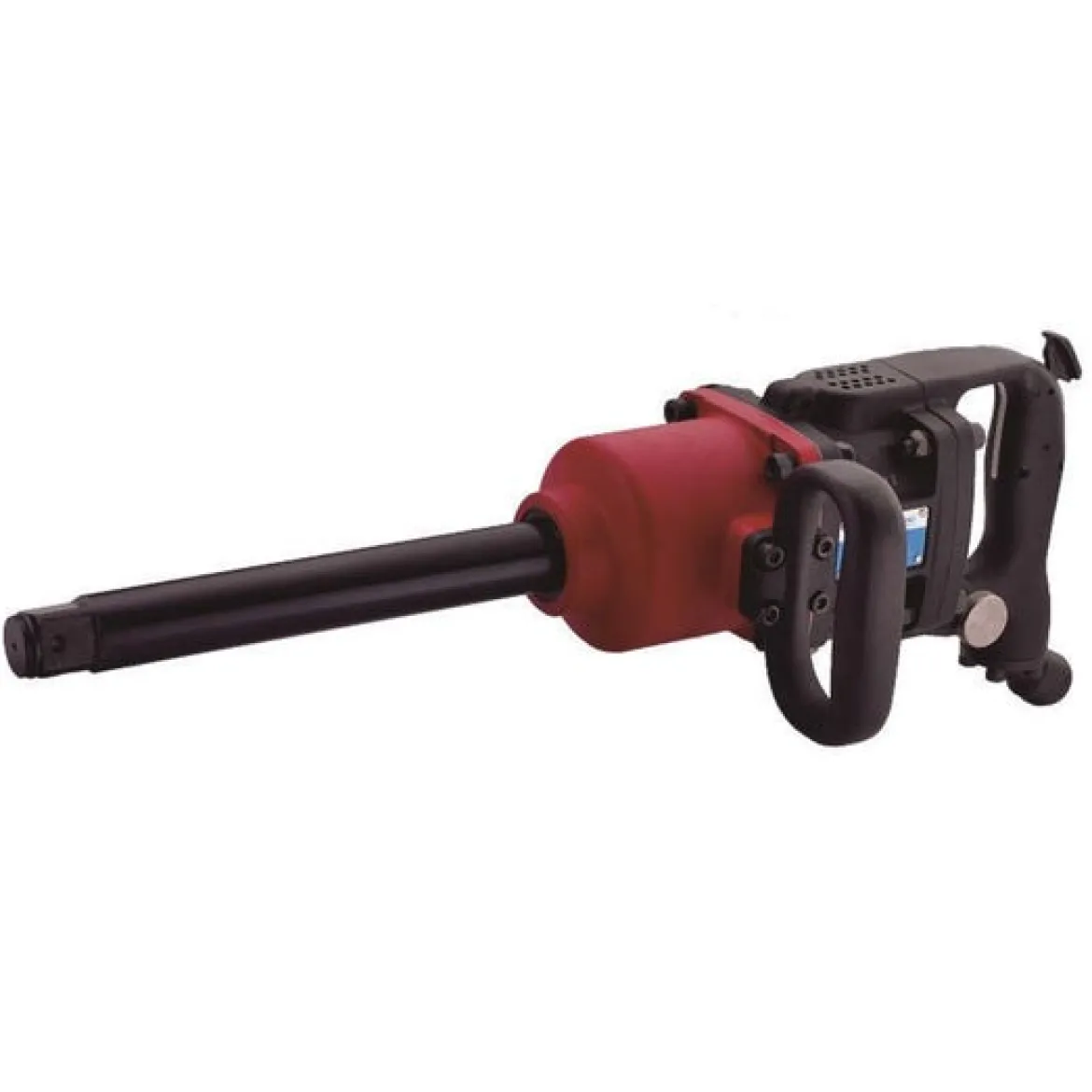

Soartec 1″ D-Handle 8″ Anvil 2500 ft-lb Impact Wrench (WS-215T-8L)

Soartec 1″ D-Handle 8″ Anvil 2500 ft-lb Impact Wrench (WS-215T-8L) is a professional-grade pneumatic tool engineered for demanding fastening and loosening tasks. Designed with an 8-inch extended anvil and a robust D-handle, this impact wrench provides the necessary reach and control for challenging applications in truck repair, machinery manufacturing, shipbuilding, construction, and metalworking. Its advanced motor design and twin hammer mechanism ensure efficient power delivery, making it highly effective for removing even the most stubborn bolts and nuts. This tool is built to perform consistently in professional environments.

KEY FEATURES AND BENEFITS:

• High Torque Output: Provides a maximum forward torque of 2,100 ft-lbs and a maximum reverse torque (nut busting torque) of 2,200 ft-lbs, making it highly effective for loosening difficult bolts.
• Extended Anvil for Reach: Features an 8-inch extended anvil, offering improved access and reach for recessed or hard-to-access fasteners.
• Enhanced Control and Comfort: Equipped with both a D-handle and an auxiliary side handle, providing improved grip, balance, and control during operation, reducing user fatigue.
• Efficient Power Transfer: Utilizes a twin hammer mechanism to deliver powerful and consistent impacts for efficient fastening and removal of large bolts.
• Optimized Performance: The tightly matched motor and casing design contribute to enhanced torque and air tightness, supporting sustained performance and tool longevity.
• Variable Speed Control: Offers four-speed settings on each side (forward and reverse), allowing users to adjust the output power to suit the specific requirements of the task.
• Durable Construction: Built with an aluminum alloy case, ensuring the tool’s resilience and extended lifespan even under rigorous use.

SPECIFICATIONS:

• Type: Air Impact Wrench
• SKU: WS-215T-8L
• Drive Size: 1 inch Square Drive
• Standard Bolt Capacity: 1-3/4 inches
• Maximum Forward Torque: 2,100 ft-lbs.
• Maximum Reverse Torque (Nut Busting Torque): 2,200 ft-lbs.
• Minimum Working Torque: 500 ft-lbs.
• Maximum Working Torque: 1,950 ft-lbs.
• Free Speed: 6,000 RPM
• Weight: 21.0 lbs
• Tool Length: 21.85 inches (555 mm)
• Clutch Type: Twin Hammer
• Minimum Hose Size: 3/4 inch
• Air Inlet Size: 1/2 inch NPT
• Air Pressure: 90 PSI
• Air Consumption: 30 CFM (850 L/min)
• Noise Level: 105 dB
• Warranty: 3-year limited warranty.

HOW TO USE:

1. Connect Air Supply: Ensure your air compressor is set to 90 PSI. Connect a 3/4 inch minimum internal diameter air hose to the 1/2 inch NPT air inlet of the impact wrench.
2. Select Socket: Choose the appropriate 1-inch drive impact socket for the fastener you are working with. Securely attach the socket to the 8-inch extended anvil.
3. Adjust Direction: Use the separate switch to select the desired rotation direction (forward for tightening, reverse for loosening).
4. Set Speed/Power: Utilize the four-position setting dial to select the appropriate speed/power level for the task. Begin with a lower setting and increase if more torque is needed.
5. Position Tool: Place the socket firmly onto the bolt or nut. Use the D-handle and side handle to maintain a secure and balanced grip.
6. Activate Tool: Depress the internal trigger to activate the impact mechanism. Apply steady pressure and allow the tool to work, avoiding excessive force.
7. Monitor Progress: Listen and feel for the impact wrench to cease impacting or for the fastener to reach the desired state (tight or loose). Release the trigger when done.
8. Disconnect: Once finished, release the trigger, and disconnect the air hose from the impact wrench.

BENEFITS OF USING SOARTEC 1″ D-HANDLE 8″ ANVIL 2500 FT-LB IMPACT WRENCH (WS-215T-8L):

• Increased Productivity: Its high torque output and rapid impact action significantly speed up the removal and installation of large fasteners, saving time on heavy-duty jobs.
• Reduced Manual Effort: Minimizes the physical strain on operators by performing tasks that would otherwise require considerable manual leverage and effort.
• Enhanced Precision: The variable speed settings allow for finer control over the torque applied, helping to prevent overtightening or damage to fasteners.
• Reliable Performance: Engineered for consistent power delivery, ensuring that challenging bolts are handled effectively without compromising tool integrity.
• Long-Term Value: The robust construction materials and design contribute to a longer service life, reducing the need for frequent replacements and lowering overall operational costs.
• Versatile Application: Suitable for a wide range of industrial and automotive maintenance tasks, making it a valuable addition to various professional workshops.

FEATURES:

• Low pressure activation trigger design for responsive tool engagement.
• Advanced motor with built-in spring enhances efficiency and operational lifespan.
• Tightly matched motor and casing optimize power transfer and maintain air tightness.
• Internal trigger provides safer operation.
• Four-position setting enables precise power output control in both forward and reverse.
