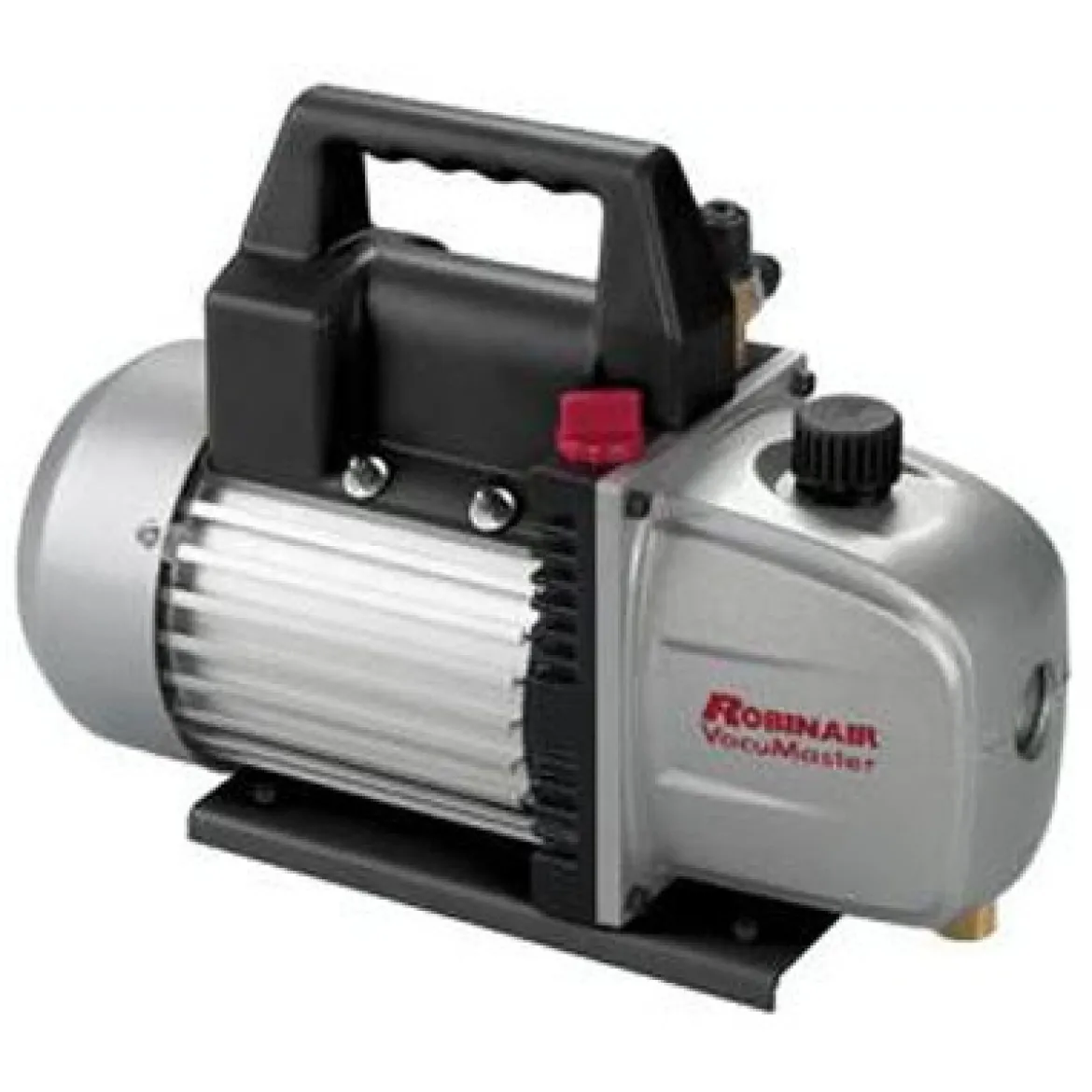

Robinair VacuMaster Single-Stage Vacuum Pump, 5 CFM for HVAC (15510)

Robinair VacuMaster Single-Stage Vacuum Pump (15510) is engineered for high performance, the Robinair VacuMaster™ offers a 5 CFM free air displacement and a single-stage design optimized for HVAC applications.

The vacuum pump includes innovative features such as an angled oil drain valve for faster and more complete draining, and a top oil fill port for easy access during maintenance. Its intake screen prevents foreign matter from entering the pumping chamber, while the external exhaust filter separates oil vapor from the exhaust flow.

• Specifications and Dimensions
  • Motor Size: 1/3 HP
  • Voltage: 110V, 60Hz
  • Oil Capacity: 10 oz. (300 ml)
  • Intake Fitting: 1/4″ flare and 1/2″ ACME
  • Weight: 21 lbs. (9.7 kg)
  • Dimensions: 10″ H x 4.875″ W x 13.25″ L (255 mm x 123 mm x 336 mm)
  • Free Air Displacement: 5 CFM
  • Factory Micron Rating: 75 microns
  • Approvals: CSA certified as of June 2020
  • Cord Length: 6′ (1.82 m)
  • UPC: 637335039674
  • Warranty: One Year
• Key Features and Benefits
  • Durable Design: Features a cast aluminum body for lightweight durability.
  • Efficient Operation: Designed for quick setup with 1/4″ flare and 1/2″ ACME intake ports, ideal for up to 10 tons (35 kW) domestic refrigeration and passenger cars.
  • User-Friendly Features: Includes an angled oil drain valve, top oil fill port, and an intake screen that guards against contaminants.
  • Quality Assurance: Performance-tested to meet Robinair’s high standards of quality and durability.
