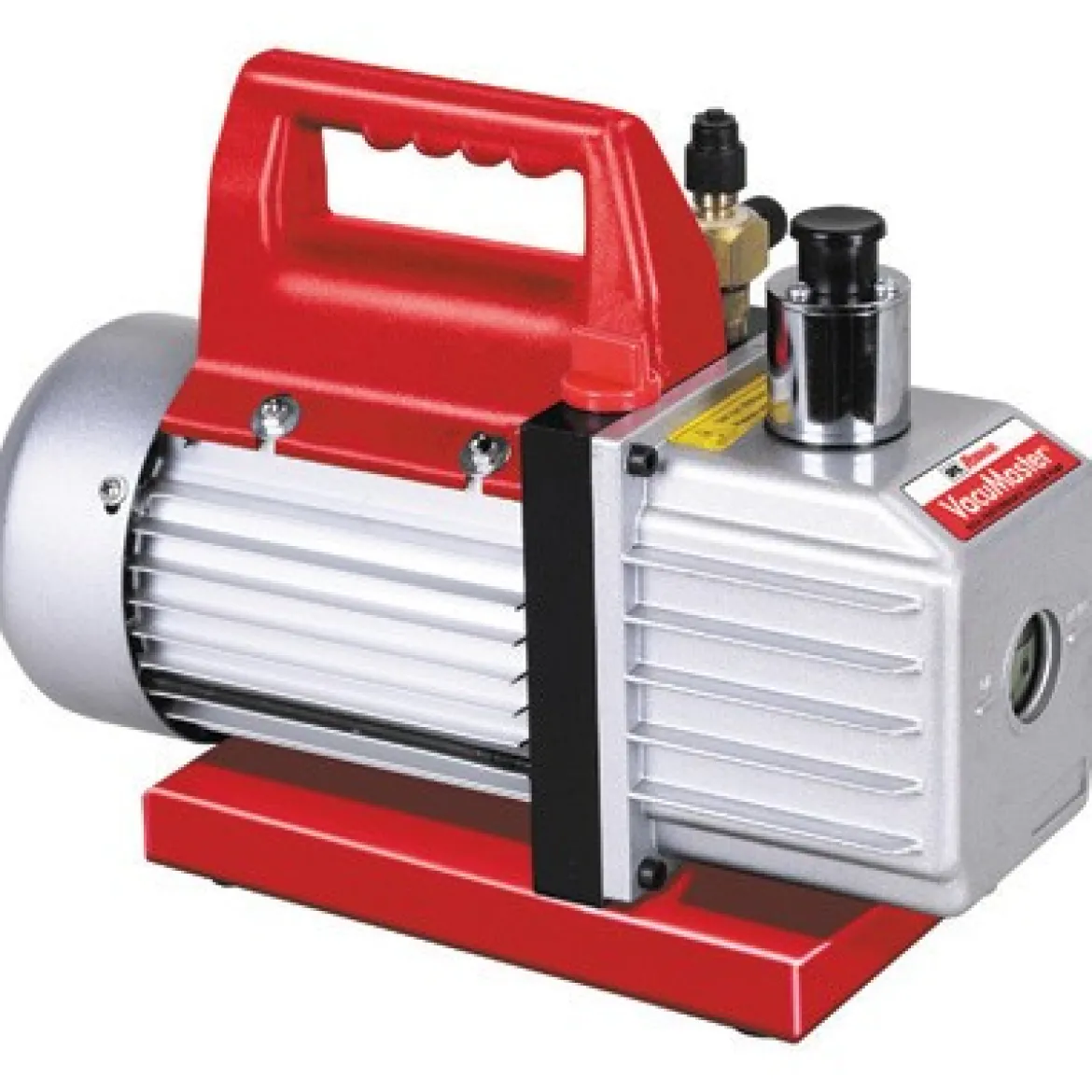

Robinair VacuMaster 1.5 CFM 2-Stage Vacuum Pump, 110-Volt (15150)

Robinair VacuMaster 2-Stage Vacuum Pump (15150) brings advanced technology and high-efficiency to refrigeration and air conditioning maintenance. This vacuum pump integrates a 2-stage rotary vane design, ensuring powerful, quiet operation and quicker moisture removal.

The Robinair 15150 is constructed from lightweight die-cast aluminum, with a heavy-duty motor that starts easily and operates efficiently. Key features include a top oil fill port for easy maintenance, an angled oil drain valve for clean oil changes, and an easy-view sight glass for quick oil checks.

• Specifications and Dimensions
  • Free air displacement: 1.5 CFM
  • Factory micron rating: 50 microns
  • Stages: 2
  • Intake fitting: 1/4″ MFL and 3/8″ Acme, plus 3/8″ FFL x 1/2″ Acme adapter
  • Oil capacity: 7.4 oz. (219 ml)
  • Motor size: 1/3 hp
  • Voltage: 115V 60Hz
  • Weight: 22 lbs. (10 kg)
  • Dimensions: 9.5″ H x 4.75″ W x 12.5″ L (240 mm x 120 mm x 315 mm)
  • Cord length: 6′ (1.8 m)
  • UPC: 637335016231
  • Warranty: One Year
  • Approvals: CSA, as of June 2020
• Key Features and Benefits
  • 2-stage rotary vane design for high vacuum capability and faster evacuation
  • Heavy-duty motor ensures durability and efficient operation
  • Cast aluminum construction provides a lightweight yet robust frame
  • Includes comprehensive over-the-counter replacement warranty
