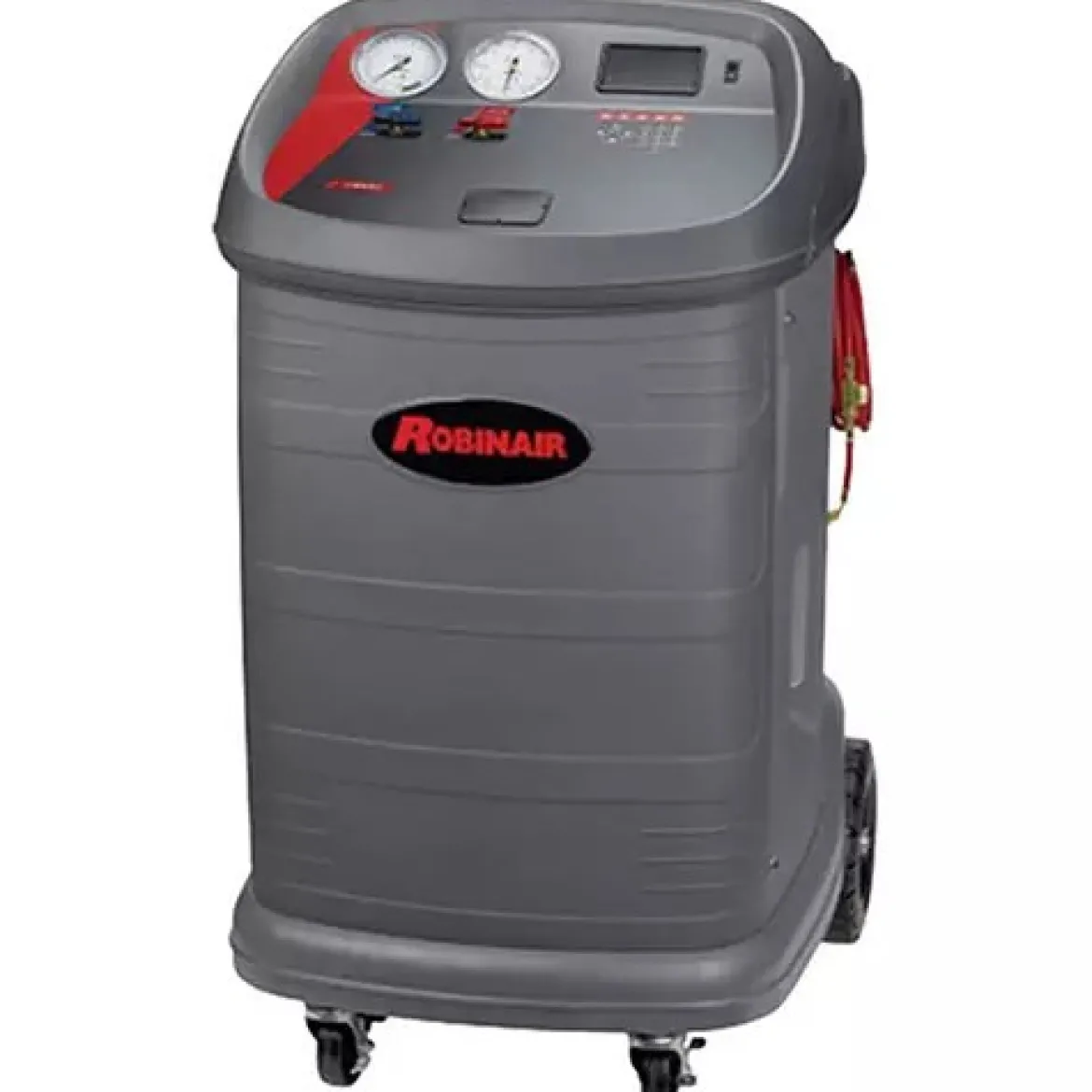

Robinair 17800C Multi-Refrigerant Recover/Recycle/Recharge Machine

Features

• Recovers, recycles, evaluates and recharges multiple refrigerants in one fast and continuous operation through one hookup
• Ideal for mass transit vehicles, buses, refrigerated trailers or containers and other applications that use a refrigerant other than R134a are not typically found in mobile applications
• For use with R134a, R22, 404A, R407C, MP and HP blends
• Automatically controls machine functions, leading the user through operations and also notifying when it’s time to change the filter drier and vacuum pump oil
• Automatically adjusts from liquid to vapor for fast and efficient recovery
• Electronic scale makes it simple to recharge to factory specifications and also weights recovered refrigerant and provides tank overfill protection
• 5 cfm vacuum pump is large enough to thoroughly evacuate almost any system making it ready for recharging
• Manual air purge function to remove any non-condensable contaminants
• Vacuum leak test function allows users to monitor the system for vacuum decay to determine if a leak exists in the A/C system
• Automatic oil drain allows the user to see amount of oil removed from the system being serviced
• Heavy-duty filter can handle up to 300 lbs of refrigerant, effectively removing moisture and acid from the refrigerant
• easy to view 4.3-inch color graphical display
• Maintenance counters to monitor cumulative amounts of refrigerant recovered and charged along with other machine operation variables
• Optional printer can be added to expand capabilities and provide printed record of service performed
• Compatible with R12, R22, R134A, R401A, R401B, R402A, R402B, R404A, R407A, R407B, R407C, R410A, R500, R502 and R507

Specifications:

• Voltage: 115VAC, 60Hz (17800C) or 230VAC, 50Hz (17800C-230)
• Operating temp range: 50 – 105 F (11-41 C)
• Recovery rate: vapor, 0.5 lbs/min and liquid 1 lb/min
• Vacuum pump: 5 CFM at 60 Hz
• Hose length: 18 feet (5.5 meters)
• Recycling filter: 300-pound refrigerant capacity
• Dimensions: 47 x 26 x 30 inches
• Certification: UL 1963, UL Standard for safety refrigerant recovery/recycling equipment
• Weight: 230 pounds (without tank)
