Race Ramps 6″ Height Trailer Ramps (RR-TR-6)

The Race Ramps 6″ Height Trailer Ramps (RR-TR-6) provide a precise and effective solution for loading low-profile vehicles onto trailers without the risk of scraping or damage. Engineered for cars with limited ground clearance, such as race cars, sports cars, and lowered vehicles, these ramps offer a gentler approach, making trailer loading a straightforward and worry-free process. Their thoughtful design includes specific features that simplify the task, ensuring your vehicle remains protected during transport. Lightweight yet robust, the RR-TR-6 ramps are an essential accessory for anyone transporting valuable vehicles on a trailer. They are designed to integrate seamlessly with your existing trailer setup, enhancing efficiency and safety.

KEY FEATURES AND BENEFITS:

• Scrape-Free Loading: The primary benefit of these ramps is their ability to reduce the approach angle to a gentle 8.2 degrees, effectively preventing the front bumper, undercarriage, or other low components of your vehicle from scraping against the trailer door or ramp transition.

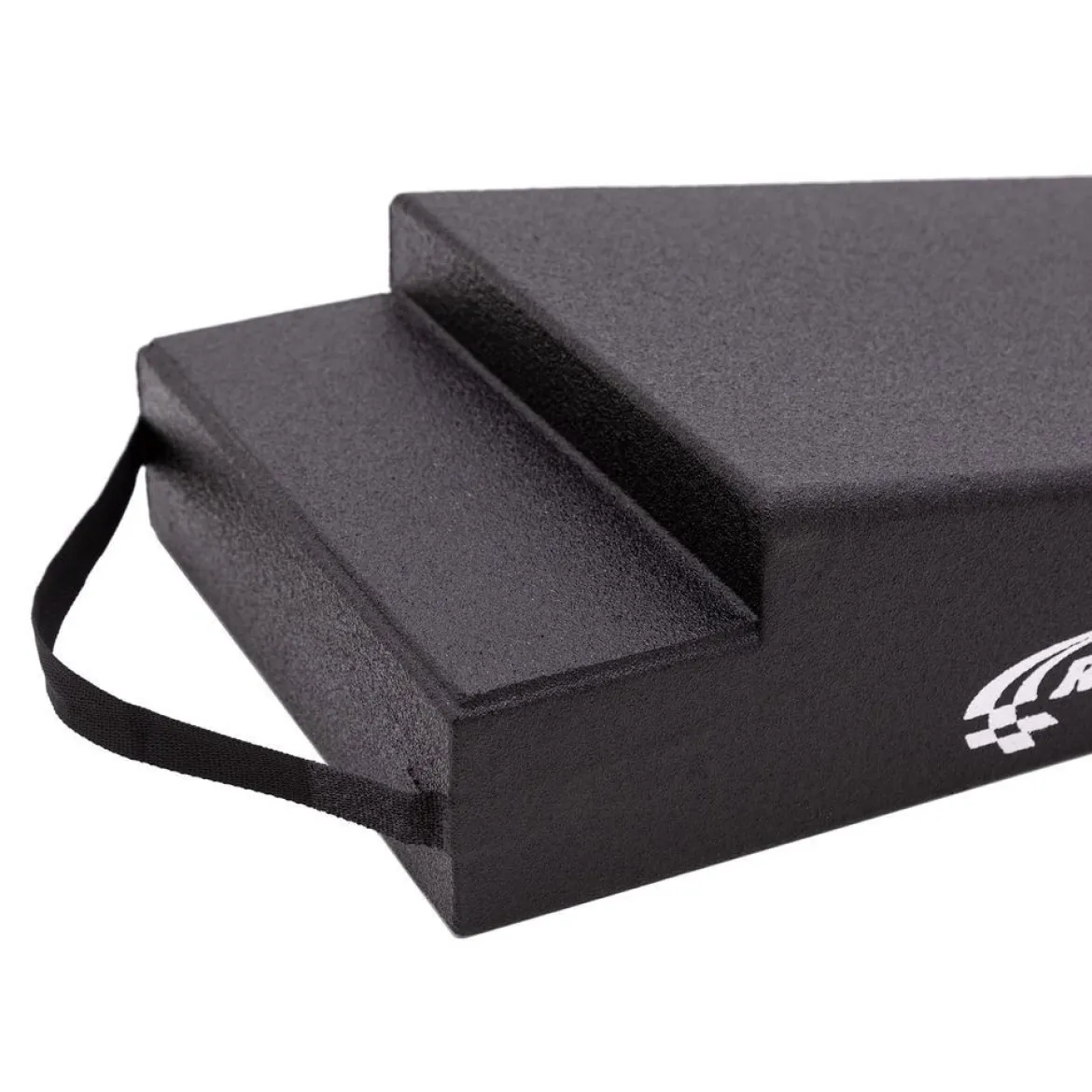

• Integrated Trailer Door Notch: A specifically designed 5-inch long by 2-inch high notch allows the trailer door to rest securely within the ramp, suspending it off the ground. This provides additional clearance and a stable loading platform.
• High Load Capacity: While incredibly lightweight, these ramps are engineered for strength. Each individual ramp can support up to 1,500 pounds, providing a combined vehicle capacity of 6,000 pounds when used as a pair, suitable for a wide range of vehicles.
• Lightweight and Portable: Weighing only 7.5 pounds per ramp, they are easy to carry, position, and store. Each ramp includes a built-in carrying strap for added convenience, simplifying transport to and from events.
• Non-Slip Surface: Constructed with a rugged, anti-slip polyurea coating over a high-density foam core, the ramps provide excellent traction, preventing them from sliding during use and protecting various floor types, including epoxy and RaceDeck® surfaces.

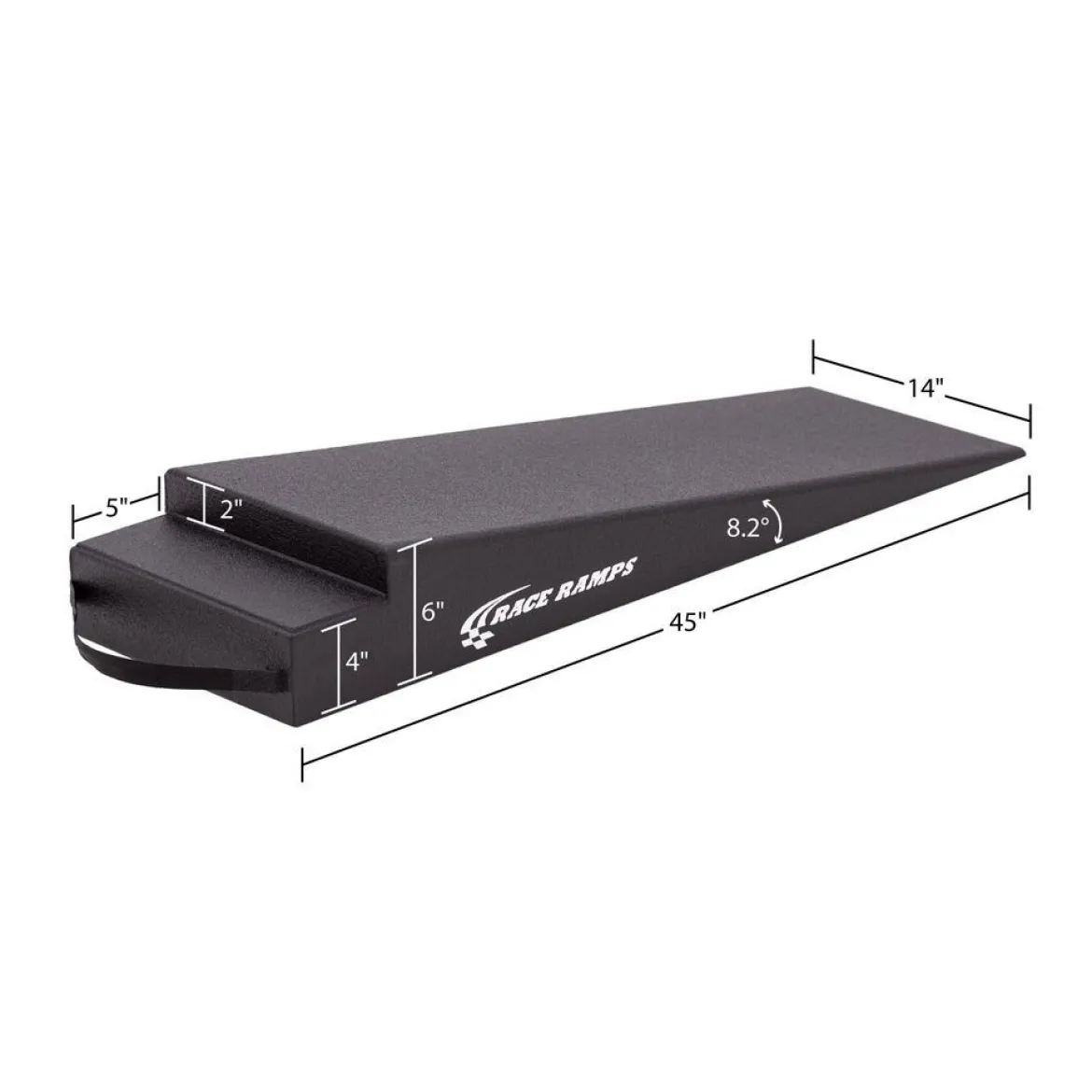

SPECIFICATIONS:

• Model Number: RR-TR-6
• Length (per ramp): 45 inches
• Width (per ramp): 14 inches
• Height (per ramp): 6 inches
• Approach Angle Degree: 8.2°
• Maximum Capacity (per ramp): 1,500 lbs.
• Maximum Vehicle Capacity (pair): 6,000 lbs.
• Maximum Tire Width: 12 inches
• Weight (per ramp): 7.5 lbs.
• Color: Black
• Material: Expanded foam with traction coating
• Notch Size: 5 inches long x 2 inches high
• Included in Purchase: Sold as a pair of ramps.

HOW TO USE:

1. Inspect Ramps: Before each use, thoroughly inspect both Race Ramps to ensure they are free from any damage or debris.
2. Position Ramps: Place the ramps on a flat, level surface directly in front of your trailer door. Ensure that each ramp makes full, stable contact with the ground.
3. Align Trailer Door: Lower your trailer’s door so that it rests securely within the 5-inch long by 2-inch high notch located on each ramp. This will suspend the door off the ground and create a continuous, gentle incline.
4. Align Vehicle: Position your vehicle directly in front of the ramps, ensuring the steering wheel is straight and the tires are aligned with the center of each ramp.
5. Drive Slowly: Begin driving your vehicle up the ramps at a slow, steady, and controlled pace. Avoid sudden acceleration or braking while on the ramps. Continue driving until your vehicle is fully and safely inside the trailer.
6. Secure Vehicle: Once your vehicle is loaded, apply the parking brake and secure it according to your trailer’s safety guidelines using appropriate tie-downs.
7. Remove Ramps: After securing your vehicle, carefully remove the Race Ramps from the trailer entrance and store them safely.

BENEFITS OF USING RACE RAMPS 6″ HEIGHT TRAILER RAMPS (RR-TR-6):

• Vehicle Protection: Effectively prevents costly damage to bumpers, spoilers, and undercarriages of low-profile cars during loading.
• User Convenience: Makes the challenging task of loading lowered vehicles significantly easier and less stressful for the operator.
• Time Saving: Eliminates the need for makeshift solutions or complex maneuvers, streamlining the loading process.
• Reliable Performance: Offers consistent, stable support due to its solid construction and anti-slip coating.
• Long-Term Value: A durable and reusable tool that maintains its integrity over many uses, offering a return on investment through damage prevention.

FEATURES:

• Integrated carrying strap for effortless transport and storage of each individual ramp.
• High-density foam construction provides a lightweight yet robust core, resistant to warping or degradation.
• Polyurea traction coating offers superior grip on tires and prevents the ramps from slipping on various ground surfaces.
• Solid core design eliminates hollow spaces, preventing internal accumulation of debris or pests.
• Temperature resistant for use in a range of conditions, as long as surface temperature does not exceed 150° Fahrenheit.
• Built-in trailer door notch engineered for precise fitment of trailer doors, creating a continuous loading surface.
• Chemical and water resistant coating allows for easy cleaning with soap and water or WD-40.
