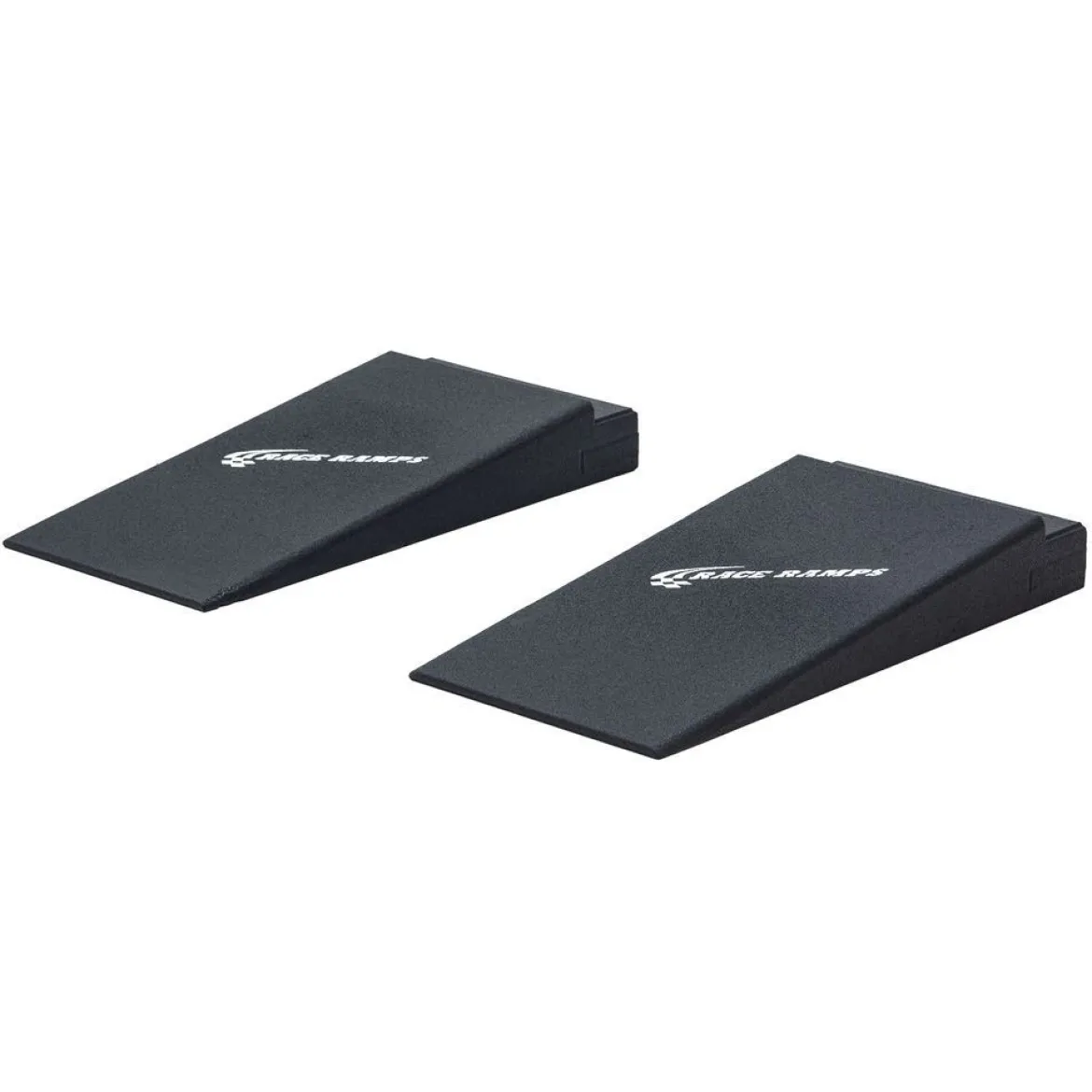

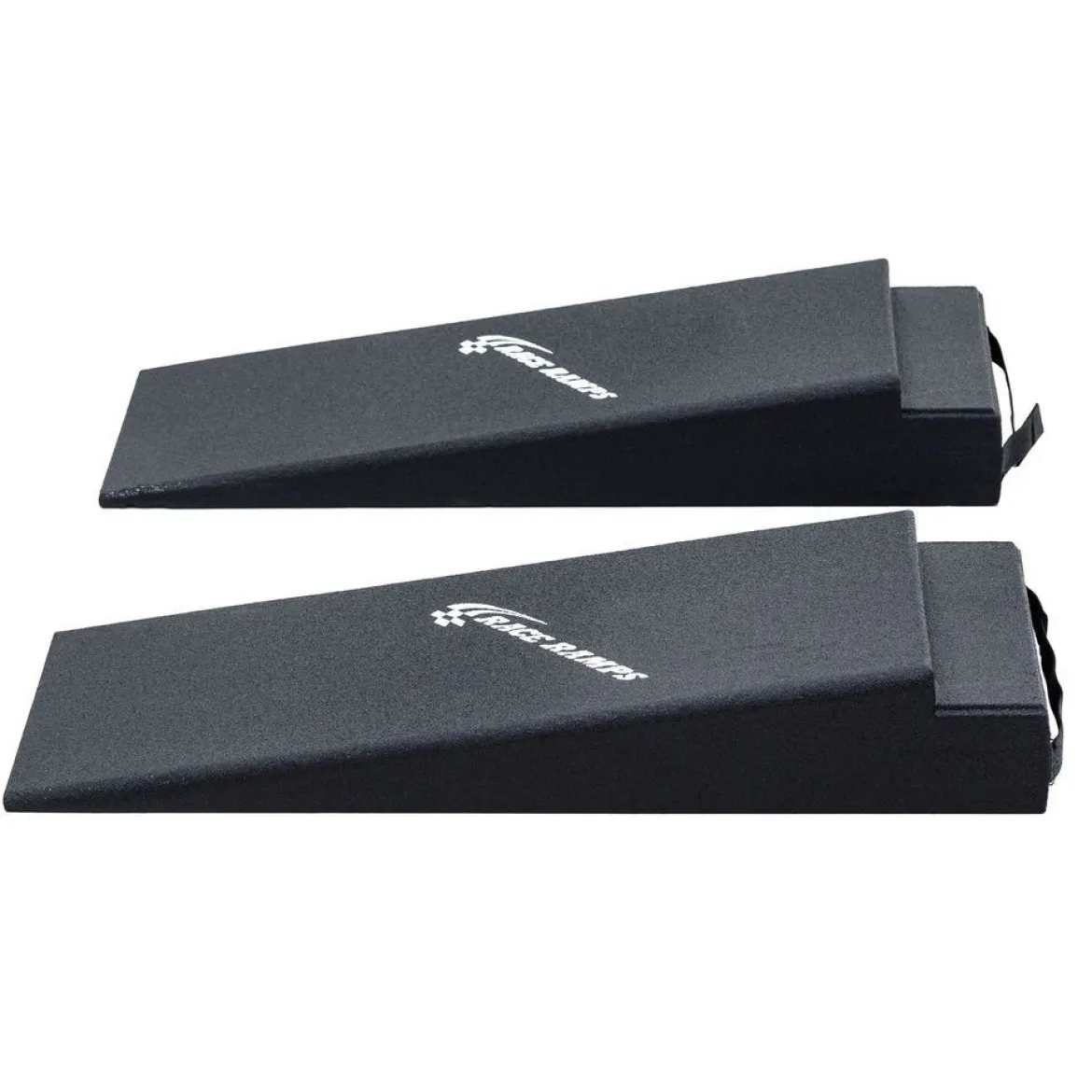

Race Ramps 4″ Height Cutout Rack Ramp (RR-RACK-4)

Race Ramps 4″ Height Cutout Rack Ramp (RR-RACK-4) provides an essential solution for safely and easily positioning low-clearance vehicles onto automotive lifts or service platforms. This innovative product addresses the common challenge faced by owners of sports cars, modified vehicles, or any car with limited ground clearance, allowing them to clear obstructions and engage with lift points without the risk of scraping the front bumper or undercarriage.

KEY FEATURES AND BENEFITS:

• Optimized Approach Angle: Provides an 8.8-degree approach angle, significantly reducing the steepness of a standard lift entry and preventing undercarriage or front bumper damage on low-profile vehicles.
• Lightweight Portability: Each ramp weighs only 4 lbs, making them exceptionally easy to handle, position, and store. This eliminates the struggle associated with heavy traditional ramps.
• Floor Protection: Constructed from materials that will not skid, scuff, or mark your garage or shop floors, preserving the cleanliness and integrity of your workspace. They also do not transfer heat or cold.
• High Load Capacity: While individually light, each ramp can support up to 1,500 lbs, contributing to a total vehicle weight capacity of 6,000 lbs for the pair, accommodating a wide range of passenger vehicles.
• Integrated Design: Features a hook-nose design with a 1-inch or 3-inch cutout (depending on specific production run) that allows them to extend and connect smoothly with existing lift or rack ramps.
• Non-Corrosive Material: Unlike metal ramps, these will never rust, ensuring longevity and consistent performance in various environmental conditions.

SPECIFICATIONS:

• Made In: USA
• Sold As: Pair (Set of two ramps included when purchased)

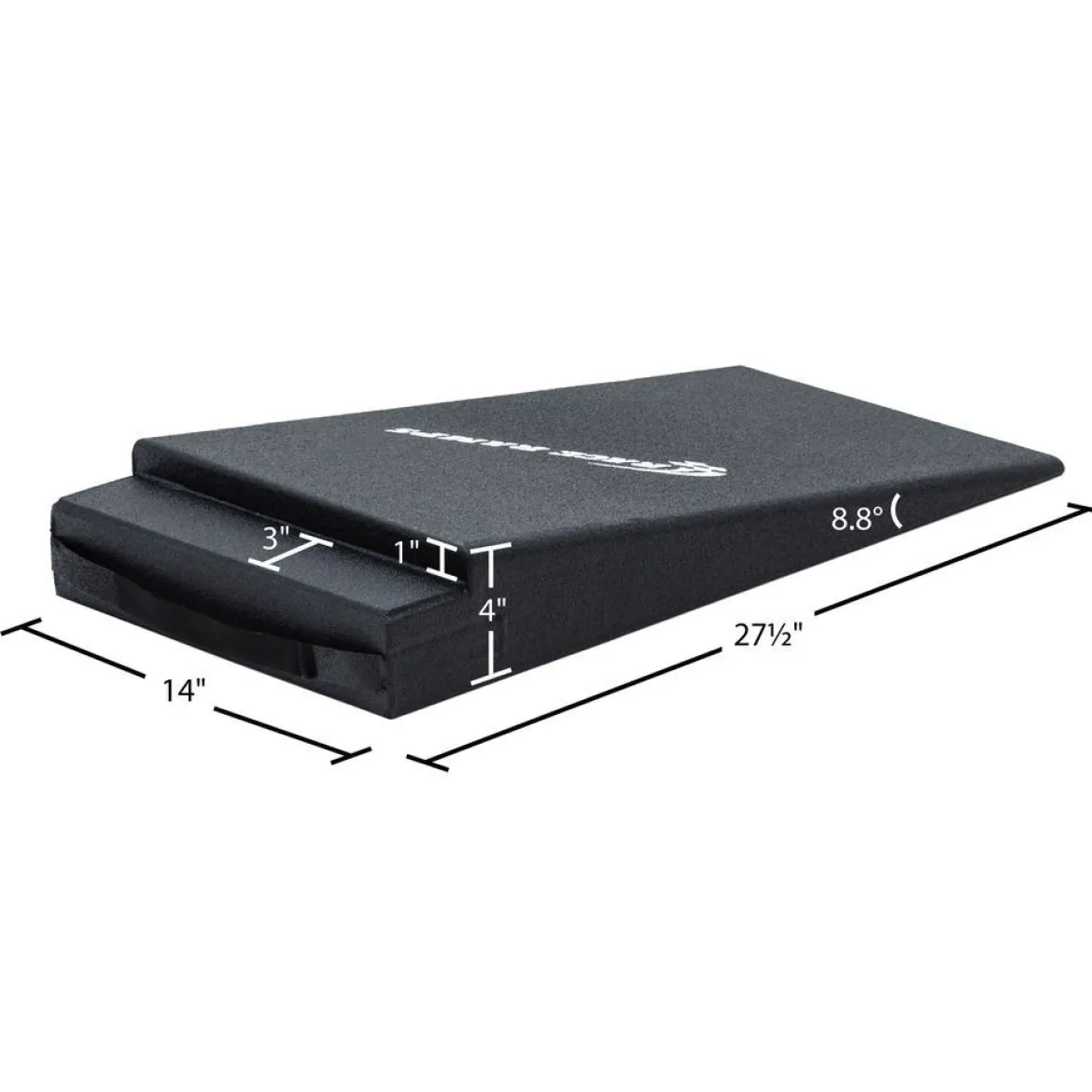

• Length (per ramp): 27.5 inches (69.85 cm)
• Width (per ramp): 14 inches (35.56 cm)
• Height (Lift Provided): 4 inches (10.16 cm)
• Weight (per ramp): 4 lbs (1.81 kg)
• Maximum Capacity (per ramp): 1,500 lbs (680.3 kg)
• Total Vehicle Weight Capacity (per set): 6,000 lbs (2721.5 kg)
• Maximum Tire Width: 12 inches (30.48 cm)
• Approach Angle: 8.8°
• Material: Expanded foam with traction coating
• Connector Type: 1″ notch for extension (some versions may have a 3″ cutout)
• Color: Black

HOW TO USE:

1. Inspect Ramps: Before each use, thoroughly check both Race Ramps for any signs of damage, cracks, or wear. Do not use if damaged.
2. Prepare Surface: Ensure the ground where the ramps will be placed is flat, level, and free of debris (like gravel, dirt, or small stones) that could cause the ramps to slip or deform.

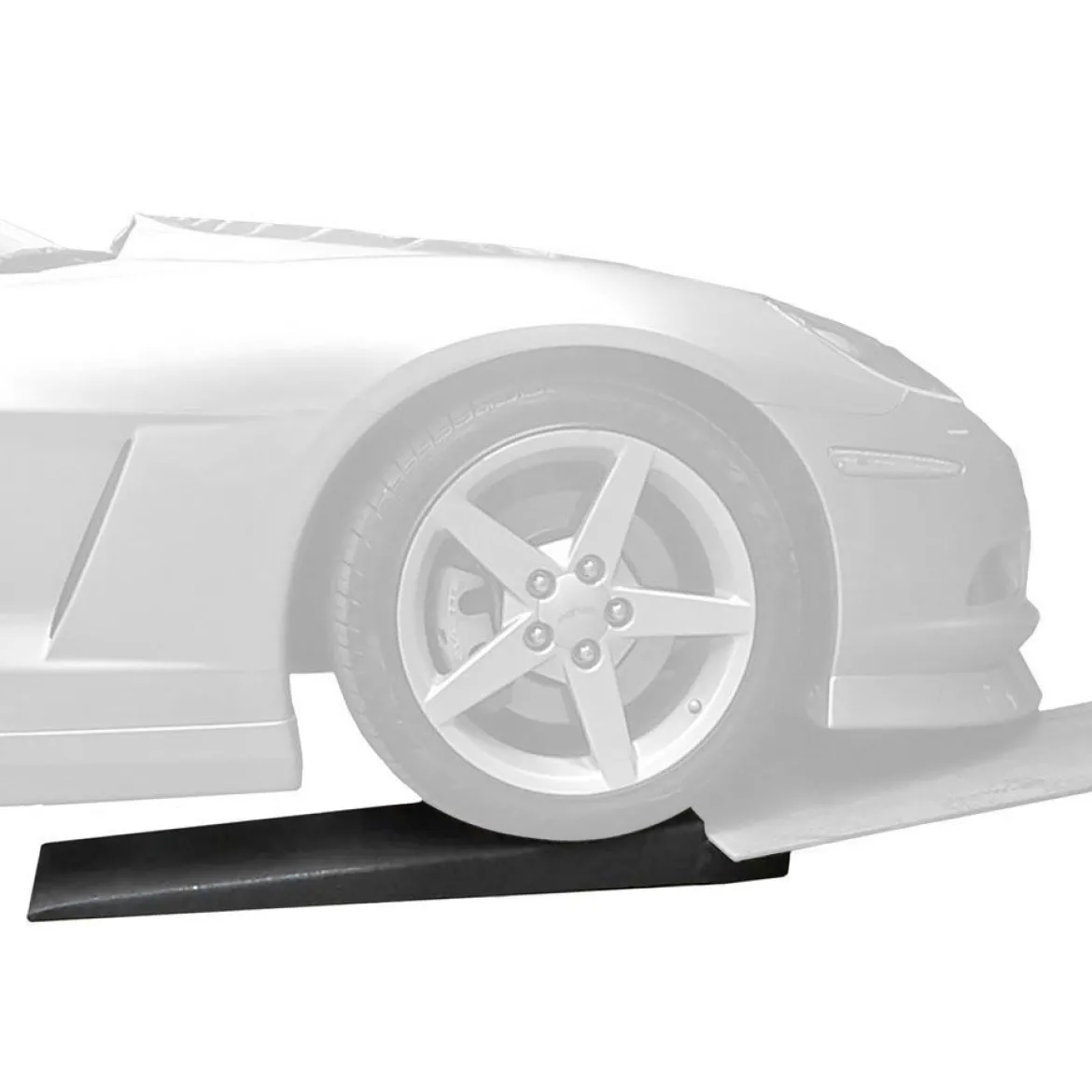

3. Position Ramps: Place each ramp directly in front of the vehicle’s wheels that will be driven onto the lift. Ensure that the hook-nose end with the cutout is correctly aligned to rest over the edge of your lift’s existing ramps or platform. Confirm the Race Ramps make full, stable contact with both the ground and the lift surface.
4. Align Vehicle: Straighten your vehicle’s steering wheel so that the tires are pointed directly forward.
5. Drive Slowly: Drive the vehicle forward at a very slow and steady pace. Maintain a consistent speed as the tires ascend the Race Ramps and transition onto the lift. Avoid sudden braking or acceleration.
6. Secure Vehicle: Once the vehicle is fully on the lift and in its desired position, engage the parking brake and follow your lift manufacturer’s safety procedures, including engaging any safety locks or wheel chocks, before performing any work.
7. Storage: After use, remove the ramps and store them in a cool, dry place, away from prolonged exposure to direct sunlight or extreme temperatures (below 150°F / 65.56°C).

BENEFITS OF USING RACE RAMPS 4″ HEIGHT CUTOUT RACK RAMP (RR-RACK-4):

• Eliminates Front-End Scraping: Ideal for vehicles with low ground clearance entering lifts or ramps.
• Safe and Stable Access: Provides a gradual incline to reduce entry angle and improve clearance.
• Reduces Physical Strain: Lightweight design makes setup and removal fast and effortless.
• Protects Floors: Non-marking material keeps garage and shop floors clean and intact.
• Improves Workflow: Quick deployment increases overall efficiency in service environments.
• Rust- and Temperature-Resistant: Reliable in all climates and storage conditions for long-term use.

FEATURES:

• Patented manufacturing process creating robust, lightweight foam construction.
• Rugged, anti-slip coating for secure tire grip during ascent.
• Hook-nose design for seamless connection to existing rack ramps.
• Designed to prevent skidding or movement during vehicle engagement.
• Impervious to rust and unaffected by temperature extremes.
• No sharp edges, safeguarding both floors and user handling.
• Compatible with tires up to 12 inches in width.
• Engineered to support significant vehicle weight despite minimal individual ramp weight.
