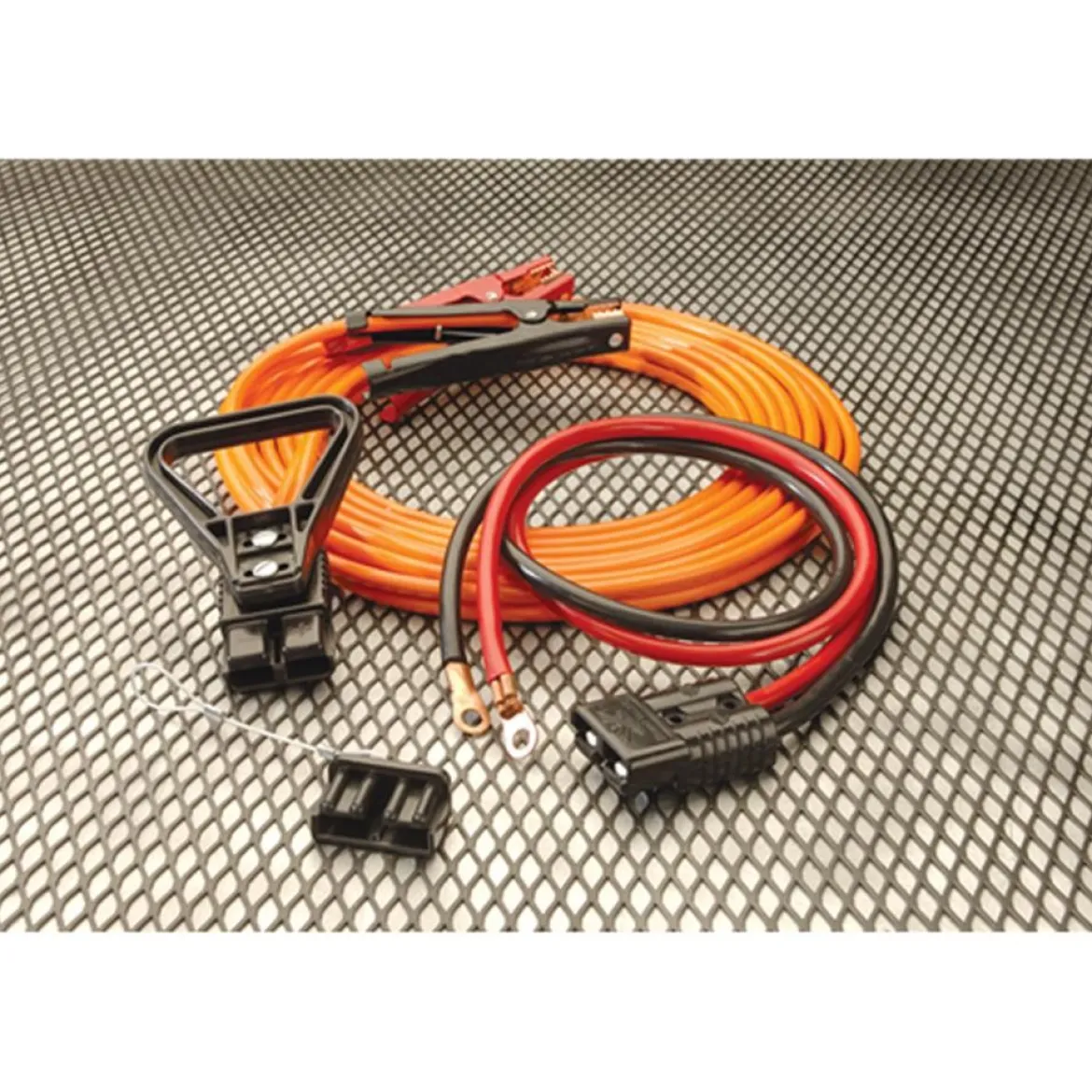

Phoenix USA 30″ Jumper Cable Kit w/ 4″ Harness (JM304)

The Phoenix USA 30″ Jumper Cable Kit w/ 4″ Harness (JM304) is a professional-grade solution designed to provide a reliable and convenient method for jump-starting a wide range of vehicles, including cars, trucks, RVs, and service vehicles. This comprehensive kit features heavy-duty components engineered for efficient power transfer and long-lasting performance, making it an essential tool for roadside assistance, fleet maintenance, and personal emergency preparedness. The inclusion of a permanently installed harness significantly simplifies the jump-starting process, eliminating the need for direct battery access on the disabled vehicle.

KEY FEATURES AND BENEFITS:

• The 30-foot length of the 4-gauge copper cables offers exceptional reach, proving invaluable when the boosting vehicle cannot be positioned close to the disabled one, such as with trailers or RVs.
• Heavy-duty 4-gauge construction ensures optimal current flow, providing the necessary power to start even large engines with a maximum rating of 1250 amps.
• Robust, insulated clamps ensure a secure and safe connection to the battery terminals.
• The integrated 4-foot harness, equipped with a quick-connect plug, allows for a one-time installation on a vehicle’s battery, making future jump-starts quick and effortless.
• A protective dust cover for the vehicle-mounted plug safeguards it from dirt and the elements, ensuring reliable connectivity when needed.
• The handle on the jumper cable plug enhances grip and simplifies the connection and disconnection process.

SPECIFICATIONS:

• Jumper Cable Length: 30 feet
• Harness Length: 4 feet
• Cable Gauge: 4-Gauge
• Maximum Current Rating: 1250 Amps
• Clamps: Heavy-duty, insulated clamps
• Connection Type: Quick-connect plug system (Lexan type in some versions)
• Harness Connection: Ring terminals for battery bolt attachment
• Cable Material: Copper
• Insulation Material: High-grade, resistant to acid, oil, and chemicals
• Additional Features: Dust cover for harness plug, handle on jumper cable plug

HOW TO USE:

• Install the 4-foot Harness: Attach the ring terminals of the 4-foot harness to the positive (+) and negative (-) terminals of the vehicle’s battery using the existing battery bolts or the included battery bolt attachment kit (if applicable). Ensure a secure and tight connection. Mount the quick-connect plug in an easily accessible location on the exterior or front of the vehicle, using the provided mounting hardware. Secure the dust cover over the plug when not in use.
• Prepare the Boosting Vehicle: Position the boosting vehicle so that the 30-foot jumper cables can comfortably reach the quick-connect plug on the disabled vehicle.
• Connect the Jumper Cables: Remove the dust cover from the quick-connect plug on the disabled vehicle. Take the 30-foot jumper cables and insert the corresponding plug into the quick-connect plug on the disabled vehicle.
• Connect to the Boosting Vehicle’s Battery: Attach the red clamp of the jumper cables to the positive (+) terminal of the boosting vehicle’s battery. Then, attach the black clamp to a solid, unpainted metal part of the boosting vehicle’s engine block or chassis, away from the battery and any moving parts. Do not connect the black clamp directly to the negative (-) terminal of the boosting vehicle’s battery.
• Start the Boosting Vehicle: Start the engine of the boosting vehicle and let it run for a few minutes to allow the disabled vehicle’s battery to gain some charge.
• Attempt to Start the Disabled Vehicle: Try starting the engine of the disabled vehicle. If it doesn’t start immediately, wait a few more minutes and try again.
• Disconnect the Jumper Cables: Once the disabled vehicle has started, disconnect the jumper cables in the reverse order of connection: first, remove the black clamp from the boosting vehicle’s engine block or chassis, then remove the red clamp from the boosting vehicle’s positive (+) terminal. Finally, unplug the 30-foot jumper cable from the quick-connect plug on the now-started vehicle and replace the dust cover.

BENEFITS OF USING THE PHOENIX USA 30″ JUMPER CABLE KIT W/ 4″ HARNESS (JM304):

• Utilizing this jumper cable kit offers several advantages. The extended 30-foot reach provides flexibility in positioning the boosting vehicle, especially useful in situations where direct access is limited.
• The heavy-duty 4-gauge cables ensure efficient and reliable power transfer, crucial for starting larger engines.
• The quick-connect harness system simplifies the jump-starting process significantly, making it faster and more convenient, particularly in emergency situations or for frequent use.
• The robust construction of the cables and clamps ensures long-term reliability and resistance to harsh environmental conditions.
• The added safety of insulated clamps and the ability to connect remotely reduces the risk associated with direct battery terminal access.
• This kit is an ideal solution for individuals and professionals who require a dependable and user-friendly jump-starting system for a variety of vehicles.

FEATURES:

• Extended Reach: The 30-foot cable length allows for convenient positioning of the boosting vehicle.
• High Conductivity: 4-gauge copper cables maximize power transfer for effective jump-starting.
• Simplified Connection: The quick-connect plug and 4-foot harness streamline the jump-start procedure.
• Secure Attachment: Heavy-duty clamps provide a firm and reliable grip on battery terminals or grounding points.
• Element Protection: The dust cover safeguards the vehicle-mounted plug from dirt, moisture, and debris.
• Enhanced Handling: The handle on the jumper cable plug offers improved grip during connection and disconnection.
• Permanent Option: The included harness can be permanently installed for immediate access.
• Versatile Application: Suitable for a wide range of vehicles, including cars, trucks, and recreational vehicles.
