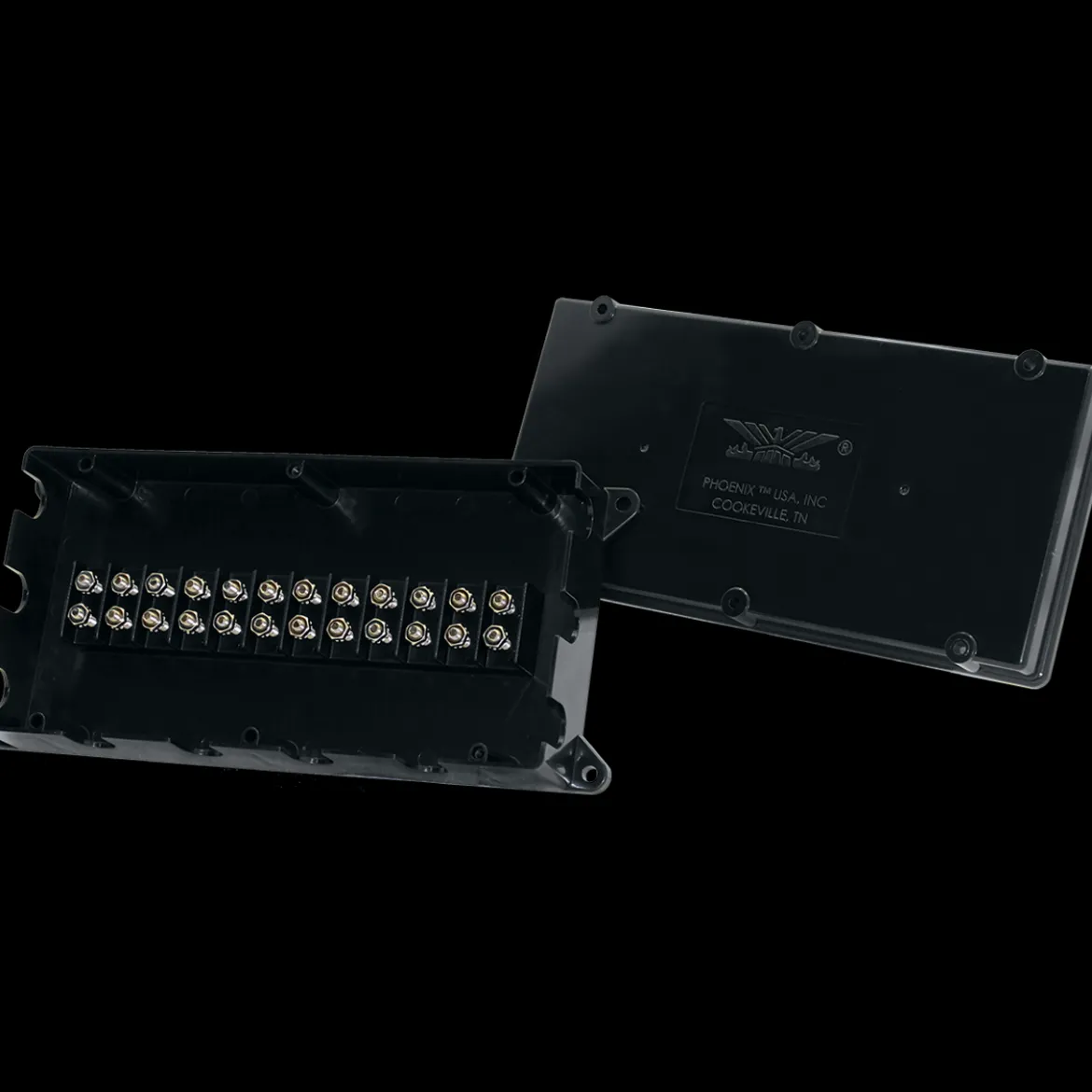

Phoenix USA 24-Pole Electrical Junction Box (PH4518)

The Phoenix USA 24-Pole Electrical Junction Box (PH4518) is a vital component for managing and safeguarding the electrical wiring systems in various vehicles, particularly trucks, trailers, recreational vehicles (RVs), and utility vehicles. This robust junction box provides a centralized and organized location for connecting multiple electrical wires and circuits, ensuring secure and reliable electrical pathways throughout the vehicle. With its 24 poles, it offers ample connection points for complex wiring setups, contributing to a cleaner, safer, and more easily maintainable electrical system. Its construction from durable materials is intended to withstand the demanding conditions often encountered in vehicular applications, offering protection against environmental factors and physical damage. By consolidating numerous wire connections into a single enclosed unit, this junction box plays a crucial role in preventing short circuits, reducing the risk of electrical hazards, and simplifying troubleshooting and maintenance procedures.

KEY FEATURES AND BENEFITS:

• Ample Connection Capacity: Featuring 24 individual poles, this junction box allows for the connection of a significant number of wires and circuits, making it suitable for intricate electrical systems.
• Organized Wiring: Provides a structured and neat solution for managing multiple electrical connections, eliminating tangled wires and improving overall system organization.
• Enhanced Protection: The enclosed design safeguards wire connections from moisture, dust, debris, and accidental physical damage, contributing to the longevity and reliability of the electrical system.
• Improved Safety: By containing electrical connections within a secure housing, the junction box reduces the risk of accidental contact with live wires, thereby enhancing the overall safety of the vehicle’s electrical system.
• Simplified Maintenance: Centralizing connections in an accessible location makes it easier to diagnose and resolve electrical issues, simplifying maintenance and repair procedures.
• Durable Construction: Typically manufactured from robust plastic materials designed to resist corrosion and withstand the vibrations and environmental stresses common in vehicular applications.
• Easy Installation: Designed for straightforward mounting, often including necessary hardware to facilitate a secure and stable installation within the vehicle.

SPECIFICATIONS:

• Product Name: Phoenix USA Inc. Electrical Junction Box 24 Pole
• Manufacturer: Phoenix USA Inc.
• Number of Poles: 24
• Typical Part Number: PH4518 (often associated with models including a logo)
• Material: Typically Plastic (for weather and corrosion resistance)
• Approximate Dimensions: 12.1″ (Length) x 5.43″ (Width) x 2.61″ (Height) (or 307mm x 138mm x 66mm)
• Approximate Weight: 1.4 lbs (0.63 kg)
• Construction: 2-Piece Design
• Mounting: Mounting hardware often included (verify with seller)
• Compatibility: Suitable for use in trucks, trailers, RVs, and other vehicles requiring organized multi-wire connections.

HOW TO USE:

1. Plan Your Wiring Layout: Before installation, carefully plan the routing and connections of all the wires that will terminate in the junction box. Identify which wires need to be connected to which poles.
2. Mount the Junction Box: Choose a suitable location within the vehicle where the junction box can be securely mounted. Use the provided mounting hardware to attach it to a stable surface. Ensure the location is accessible for future maintenance.
3. Prepare the Wires: Strip the ends of the wires that will be connected to the junction box, exposing the conductive core. The length of the stripped portion should be appropriate for the terminals in the box.
4. Connect the Wires: Open the junction box cover. Identify the appropriate terminal for each wire based on your wiring diagram. Securely connect each stripped wire end to a terminal using screws or other designated connection mechanisms within the box. Ensure each connection is tight and properly fastened to prevent loose wires.
5. Organize and Route Wires Inside the Box: Arrange the connected wires neatly within the junction box to avoid tangling or interference when closing the cover.
6. Close the Junction Box Cover: Once all connections are made and the wires are organized, carefully close and secure the cover of the junction box. Ensure it is properly sealed to protect the internal connections from the environment.
7. Test the Connections: After installation, thoroughly test all the electrical circuits connected through the junction box to ensure proper functionality and that there are no short circuits or incorrect connections.

BENEFITS OF USING THE PHOENIX USA 24-POLE ELECTRICAL JUNCTION BOX (PH4518):

• Promotes a cleaner and more organized wiring setup, facilitating easier wire tracing and issue diagnosis.
• Protects electrical connections from environmental hazards like moisture and dust, extending their service life.
• Enhances safety by securely housing wires and preventing accidental exposure or shorts.
• Centralized connection point simplifies troubleshooting and future maintenance.
• Capable of handling complex wiring systems with its 24-pole capacity.

FEATURES:

• Provides a centralized hub for up to two dozen individual wire terminations.
• Features a two-piece assembly for easy access during wiring and maintenance.
• Constructed from non-conductive material to further enhance electrical safety.
• Offers a compact and space-efficient design for installation in various locations.
• May include pre-drilled holes or knockouts to facilitate wire entry and exit.
• Designed to meet or exceed industry standards for electrical components in vehicles.
• Contributes to a professional and well-maintained appearance of the vehicle’s wiring system.
