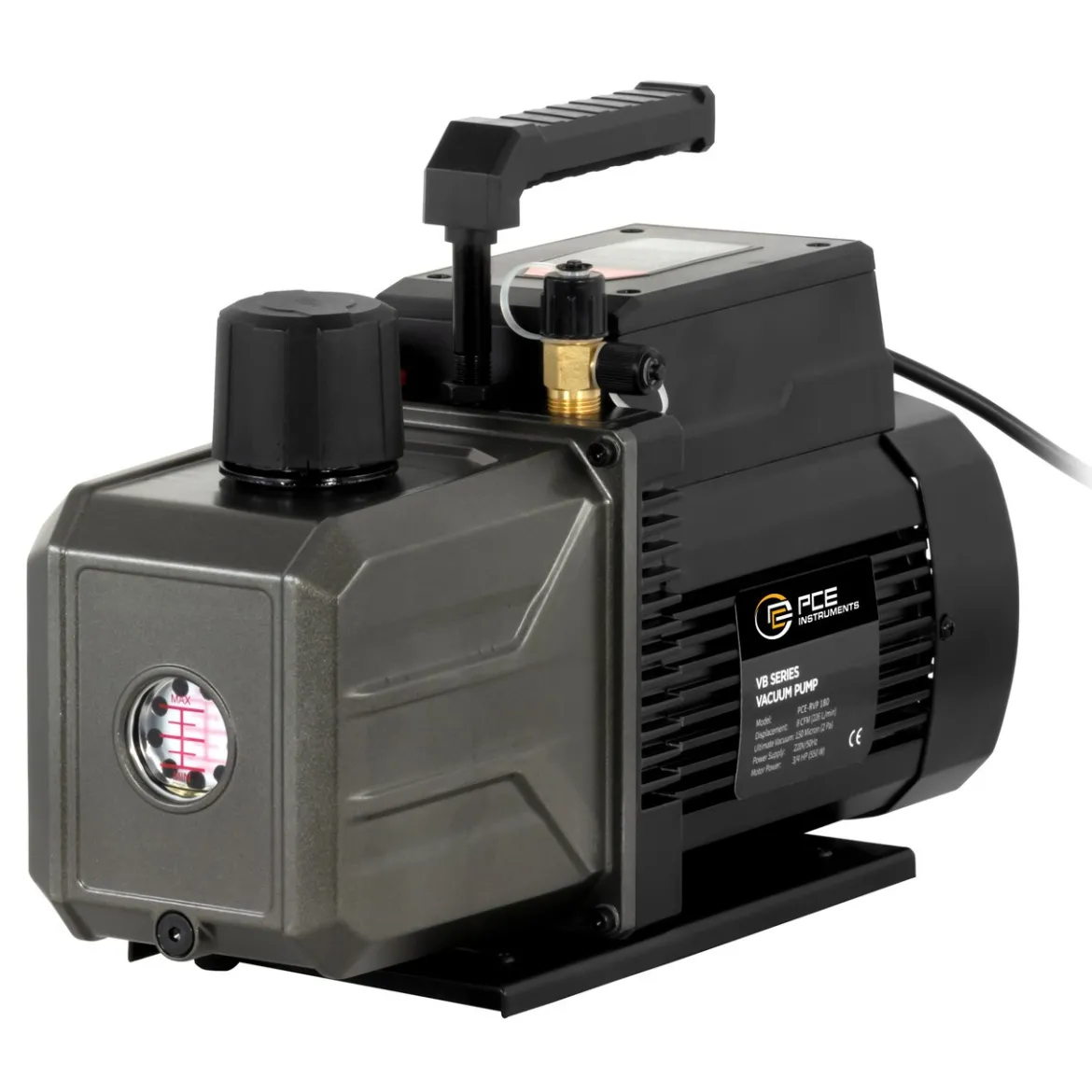

PCE Instruments Vacuum Pump for Refrigerant Evacuation (PCE-RVP 180)

PCE Instruments Vacuum Pump for Refrigerant Evacuation (PCE-RVP 180) is designed to evacuate air, moisture, and non-condensable gases from HVAC, refrigeration, and heat pump systems. With a powerful 0.75 HP (550 W) motor, this vacuum pump ensures efficient refrigerant extraction while maintaining a high flow rate of 226 l/min.

Equipped with a durable filter element, this vacuum pump minimizes oil mist emissions, contributing to a cleaner work environment. The ergonomically designed rubber handle allows for secure transport and easy handling.

• Specifications and Dimensions
  • Motor Power: 0.75 HP (550 W)
  • Flow Rate: 226 l/min
  • Ultimate Vacuum: 150 Microns
  • Oil Capacity: 660 ml
  • Connection Type: 1/4″ SAE, 3/8″ SAE
  • Protection Class: IP20
  • Power Supply: Schuko Plug (230V AC)
  • Weight: 13.54 kg (Device), 13.6 kg (with Accessories), 15 kg (with Packaging)
  • Dimensions (L x W x H): 390 x 140 x 260 mm
  • Operating Conditions: 5 … 40 °C, 20 … 80 % RH
  • Storage Conditions: 5 … 40 °C, 20 … 80 % RH
• Key Features and Benefits
  • Designed for refrigerants including R12, R22, and R134a
  • High-torque motor ensures powerful vacuum performance
  • Efficient moisture and air removal enhances system efficiency
  • Filter element reduces oil mist for cleaner operation
  • Comfortable rubber handle for easy transport
  • Compatible with multiple refrigerant hoses and applications
  • Compact and lightweight design for convenient use
