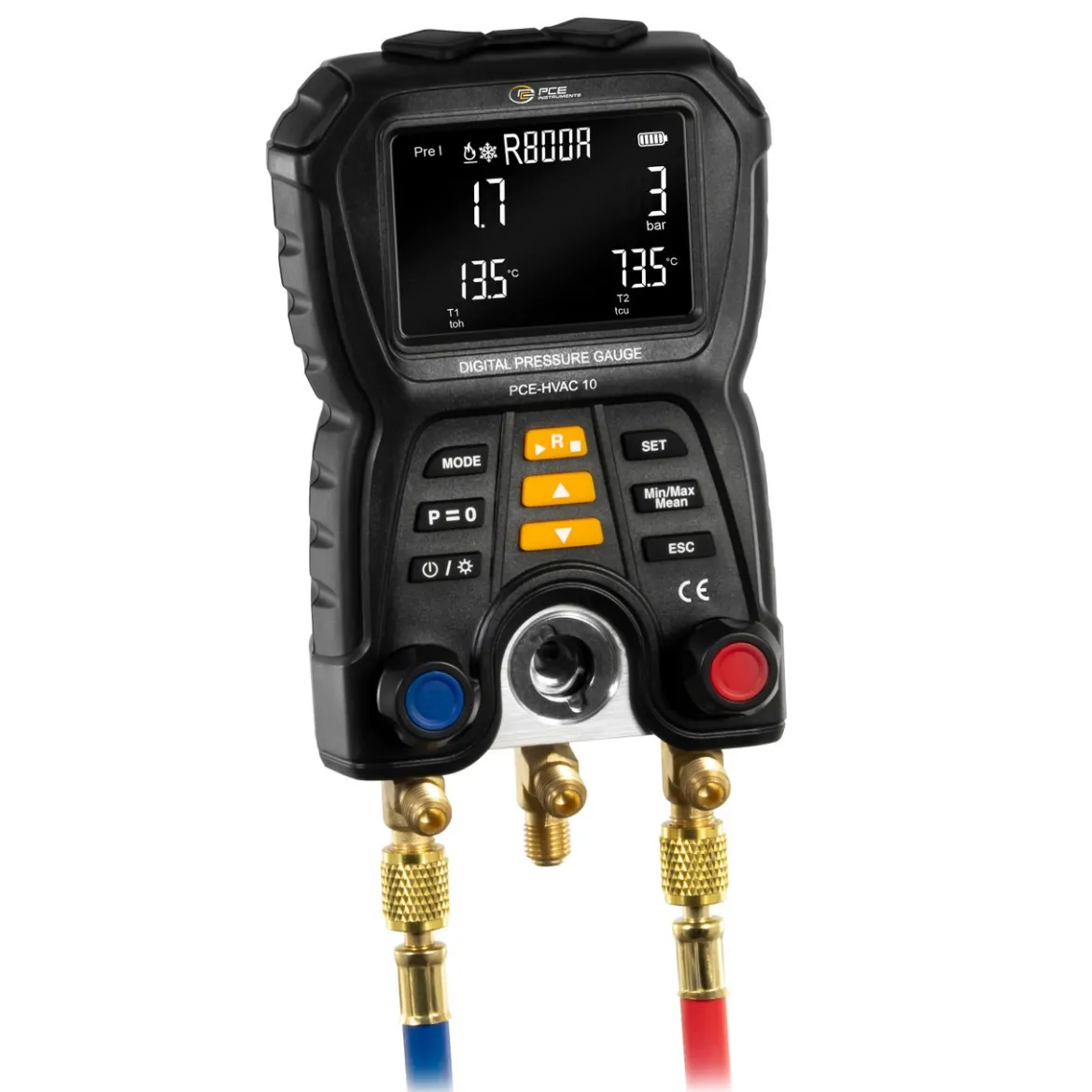

PCE Instruments Manifold Tester (PCE-HVAC 10)

PCE Instruments Manifold Tester (PCE-HVAC 10) is a reliable tool designed for measuring pressure and temperature in refrigeration systems and heat pumps. This robust HVAC meter is equipped with a 2-way valve block and 3 hose connectors, allowing for seamless operation and quick pressure readings.

The HVAC manifold tester supports 83 preloaded refrigerants, making it an ideal instrument for service and maintenance applications. It features an automatic heat pump mode, reducing the need to swap hoses during measurements.

• Specifications and Dimensions
  • Temperature Measurement (NTC): -10°C … +200°C
  • Temperature Resolution: 0.1°C
  • Temperature Accuracy: ±(1°C + 1 Digit)
  • Pressure Measurement Range: -1 bar … +60 bar
  • Pressure Resolution: 0.01 bar
  • Pressure Accuracy: ±0.5% FS (Full Scale)
  • Units: MPa, kPa, psi, bar, °F, °C
  • Connection Type: 3 x 7/16″ – UNF
  • Display Type: LCD
  • Automatic Shutdown: 30 min.
  • Measuring Medium: Refrigerant (see manual)
  • Battery Type: 4 x AA Battery (1.5V)
  • Menu Language: English
  • Protection Class: IP42
  • Device Weight: 768 g
  • Device Weight with Accessories: 2185 g
  • Dimensions: 204 x 116 x 65 mm (L x W x H)
  • Package Dimensions: 345 x 275 x 105 mm (L x W x H)
  • Refrigerant Hose Length: 0.8 m
  • Temperature Sensor Length: 0.8 m
  • Operating Conditions: 0°C … +45°C, +10% … 95% RH
  • Storage Conditions: -20°C … +60°C, +10% … 95% RH
• Key Features and Benefits
  • Measures pressure from -1 to +60 bar with 0.01 bar resolution
  • Integrated 2-way valve block with 3 connection ports (7/16″ – UNF)
  • Preloaded with 83 refrigerants for instant selection
  • Automatic heat pump mode reduces the need to switch hoses
  • LCD display for clear visibility of readings
  • Includes a hanging fixture for secure placement during use
• Includes
  • 1 x HVAC Meter PCE-HVAC 10
  • 3 x Refrigerant Hoses (Red, Blue, Yellow)
  • 2 x Clamp-On NTC Temperature Sensors
  • 4 x 1.5V AA Batteries
  • 1 x Carrying Case
  • 1 x User Manual
