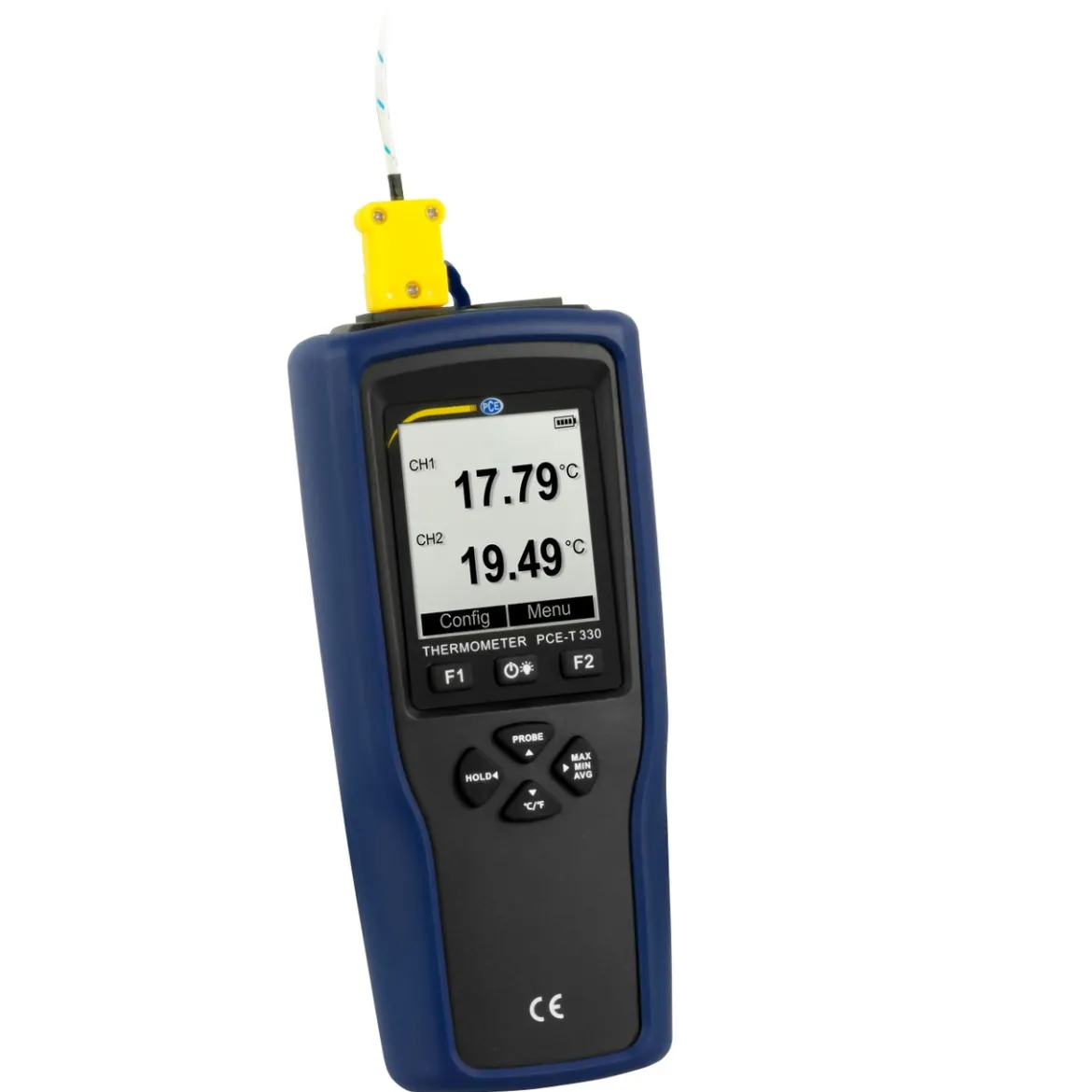

PCE Instruments Dual-Channel Thermometer with Data Logging (PCE-T 330)

PCE Instruments Thermometer (PCE-T 330) is a high-precision dual-channel data logging device designed for accurate temperature measurement using Type K, T, and J thermocouples. With a measuring rate of 2 Hz, it detects rapid temperature fluctuations, making it ideal for industrial applications, food processing, and scientific research.

This digital thermometer features a built-in data logger with a capacity of 20,000 measurements, allowing long-term monitoring without frequent data transfers. The stored data can be easily accessed through a USB connection and saved in multiple formats including TXT, CSV, and XLS.

• Specifications and Dimensions
  • Temperature Range:
    • Type K: -200 … 1370 °C / -328 … +2498 °F
    • Type T: -200 … 400 °C / -328 … 752 °F
    • Type J: -200 … 1200 °C / -328 … 2192 °F
  • Resolution: 0.01 °C
  • Accuracy: ±0.3% of reading + 0.4 °C
  • Units: °C / °F
  • Number of Channels: 2
  • Measuring Rate: 2 Hz
  • Data Storage: 20,000 data points (15,328 kB)
  • File Formats: TXT, CSV, XLS, DLG
  • Storage Interval: 1 … 86,399 seconds
  • Interface: Micro-USB
  • Battery Life: Approx. 190 hours
  • Power Supply: 3 x 1.2 V AAA rechargeable batteries or 3 x 1.5 V AAA batteries
  • Operating Conditions: -10 … 50 °C / 14 … 122 °F
  • Storage Conditions: -20 … 60 °C / -4 … +140 °F (without batteries)
  • Dimensions: 173 x 71 x 38 mm / 6.8 x 2.8 x 1.5 inches
  • Weight: 226 g / 7.9 oz
• Key Features and Benefits
  • Dual-channel thermometer with data logging
  • Compatible with Type K, T, and J thermocouples
  • Real-time measurement with 2 Hz sampling rate
  • USB connectivity for easy data transfer
  • Stores up to 20,000 temperature readings
  • Long-lasting battery life (up to 190 hours)
  • Multi-format data storage: TXT, CSV, XLS, and DLG
  • Durable rubberized protective cover for rugged environments
• Includes
  • 1 x Thermometer PCE-T 330
  • 1 x Type K Thermocouple
  • 1 x Micro-USB Cable
  • 3 x 1.5 V AAA Batteries
  • 1 x User Manual
