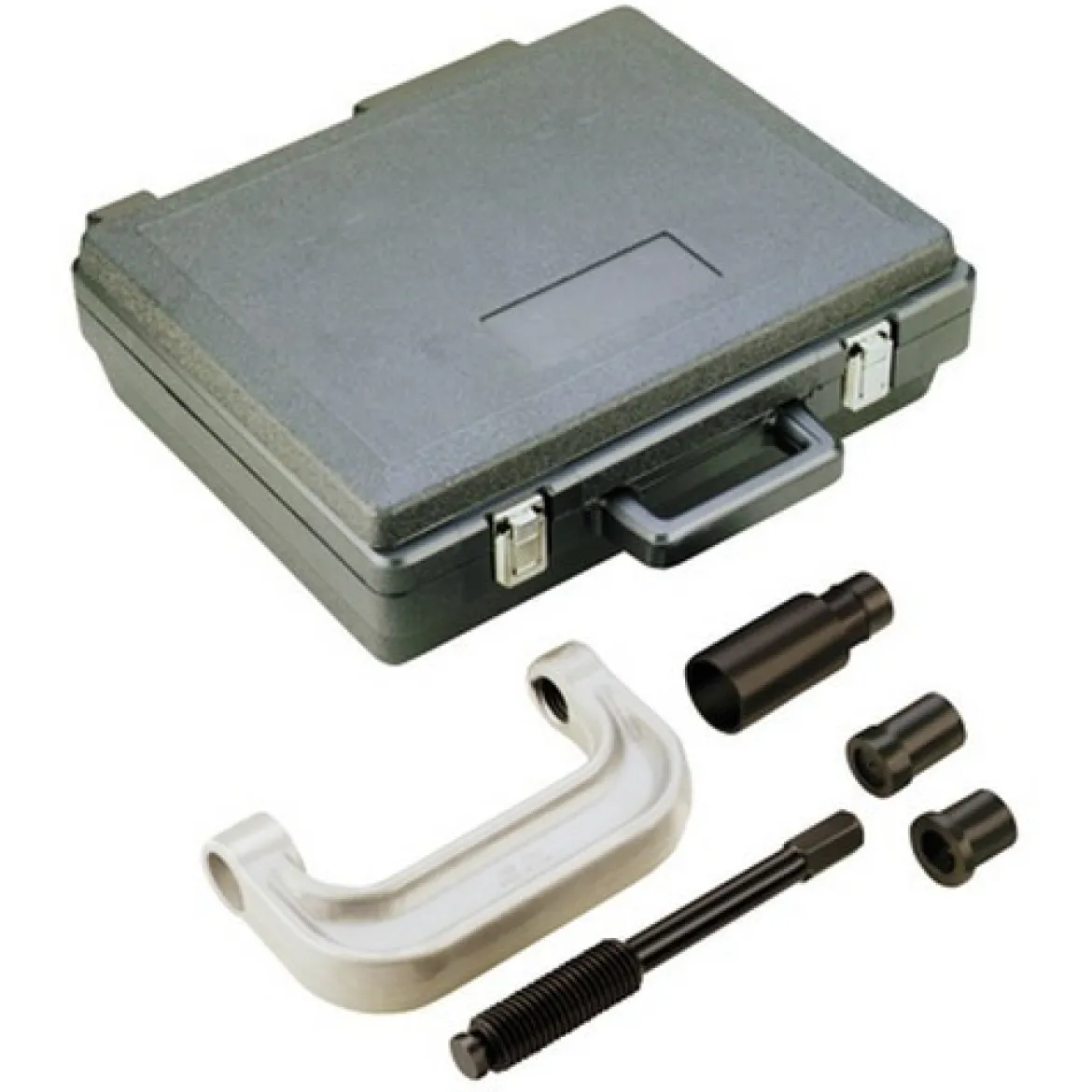

OTC Brake Anchor Pin and Bushing Service Set (5038)

The OTC Brake Anchor Pin and Bushing Service Set (5038) is a comprehensive solution for servicing 16-1/2″ S-cam trailer and tractor “Q” brake systems. This set eliminates the need to remove the bearing hub assembly, saving time and effort.

KEY FEATURES AND BENEFITS:

• Efficient Repair: Replace pins and bushings without removing the hub assembly.
• Specialized Tools: Includes essential tools for precise removal and installation.
• C-Frame Press: Provides the necessary force for efficient service.
• Time-Saving: Reduces repair time and labor costs.
• Professional Results: Ensures accurate and reliable brake system maintenance.

SPECIFICATIONS:

• Application: 16-1/2″ S-cam trailer and tractor “Q” brake systems
• Includes: C-frame press, specialized tools, and storage case

HOW TO USE:

1. Identify the Brake System: Ensure the brake system is compatible with the OTC 5038 set.
2. Prepare the Work Area: Clean the area around the brake assembly to prevent debris from entering the system.
3. Use the Specialized Tools: Employ the included tools to access and remove the old pins and bushings.
4. Install New Components: Insert the new pins and bushings, ensuring proper alignment and fit.
5. Utilize the C-Frame Press: Apply controlled pressure to secure the new components.
6. Test and Inspect: After installation, thoroughly test the brakes to verify proper function.

BENEFITS OF USING OTC BRAKE ANCHOR PIN AND BUSHING SERVICE SET (5038):

• Faster Repair Times: Reduces downtime and increases productivity.
• Cost-Effective: Saves labor costs by streamlining the repair process.
• Preserves Components: Minimizes the risk of damaging the bearing hub assembly.

FEATURES:

• Essential tooling: Includes all necessary tools for efficient service
• Durable construction: Built to withstand demanding workshop conditions
• Easy-to-use design: Simplifies the repair process for technicians of all skill levels
• Compact storage: Conveniently stores all components in a durable case
