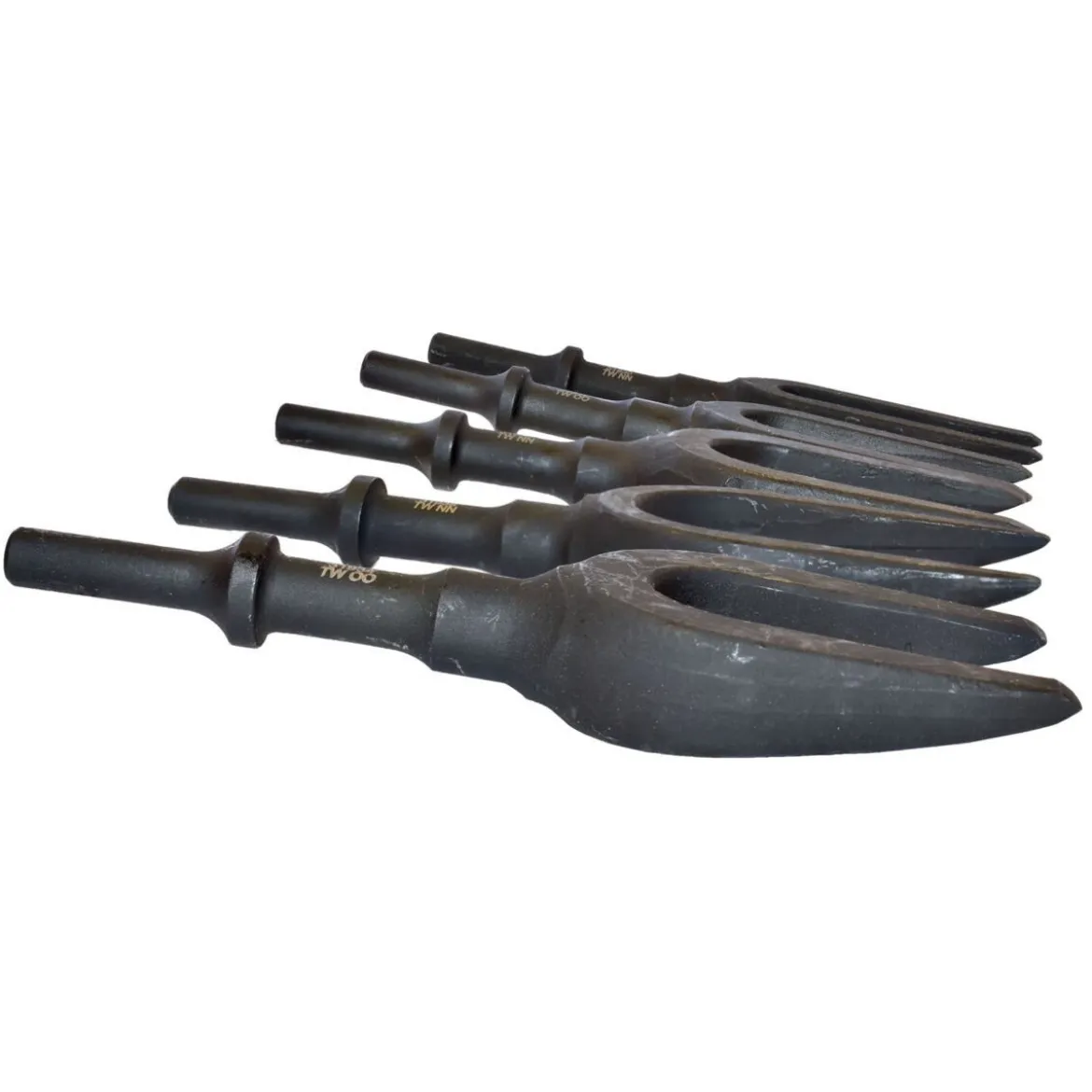

Mayhew 5-Pieces Separator Fork Pneumatic Set (31940)

The Mayhew 5-Pieces Separator Fork Pneumatic Set (31940) is a specialized and essential toolkit for automotive professionals and serious DIY enthusiasts. Engineered to address the common challenge of separating various automotive linkages, ball joints, and tie rods, this set offers a precise and efficient solution. Unlike methods that can cause damage to sensitive vehicle components, these pneumatic forks are designed to wedge between assemblies with controlled force, minimizing shock and preserving the integrity of the parts being worked on. Each fork in the set is constructed from heavy-duty alloy steel, ensuring long-lasting performance and resilience under demanding shop conditions. The black oxide finish not only enhances the tool’s aesthetic but also provides additional protection against rust and corrosion, extending its lifespan.

KEY FEATURES AND BENEFITS:

• Designed to efficiently wedge: between automotive linkages, knuckles, and joints for quick and easy separation.
• Specifically engineered: to separate ball joints and tie rods with minimal shock, thereby preventing damage to the surrounding vehicle components and assemblies.
• Constructed from heavy-duty alloy steel: providing exceptional strength and longevity for demanding professional use.
• Features a black oxide finish: that offers enhanced protection against rust and corrosion, prolonging tool life.
• Equipped with a standard .401 Parker shank size: ensuring universal compatibility with most pneumatic hammers.
• Offers a range of five different fork sizes: providing versatility to handle various component dimensions and applications.
• Backed by a lifetime warranty: underscoring the product’s quality and the manufacturer’s confidence.

SPECIFICATIONS:

• Product Weight: 4.15 lbs.
• Box Dimensions:
• Length: 7.75 inches
• Width: 4.25 inches
• Height: 3.25 inches
• Shank Size: 0.401 inches
• Origin: Made in Taiwan

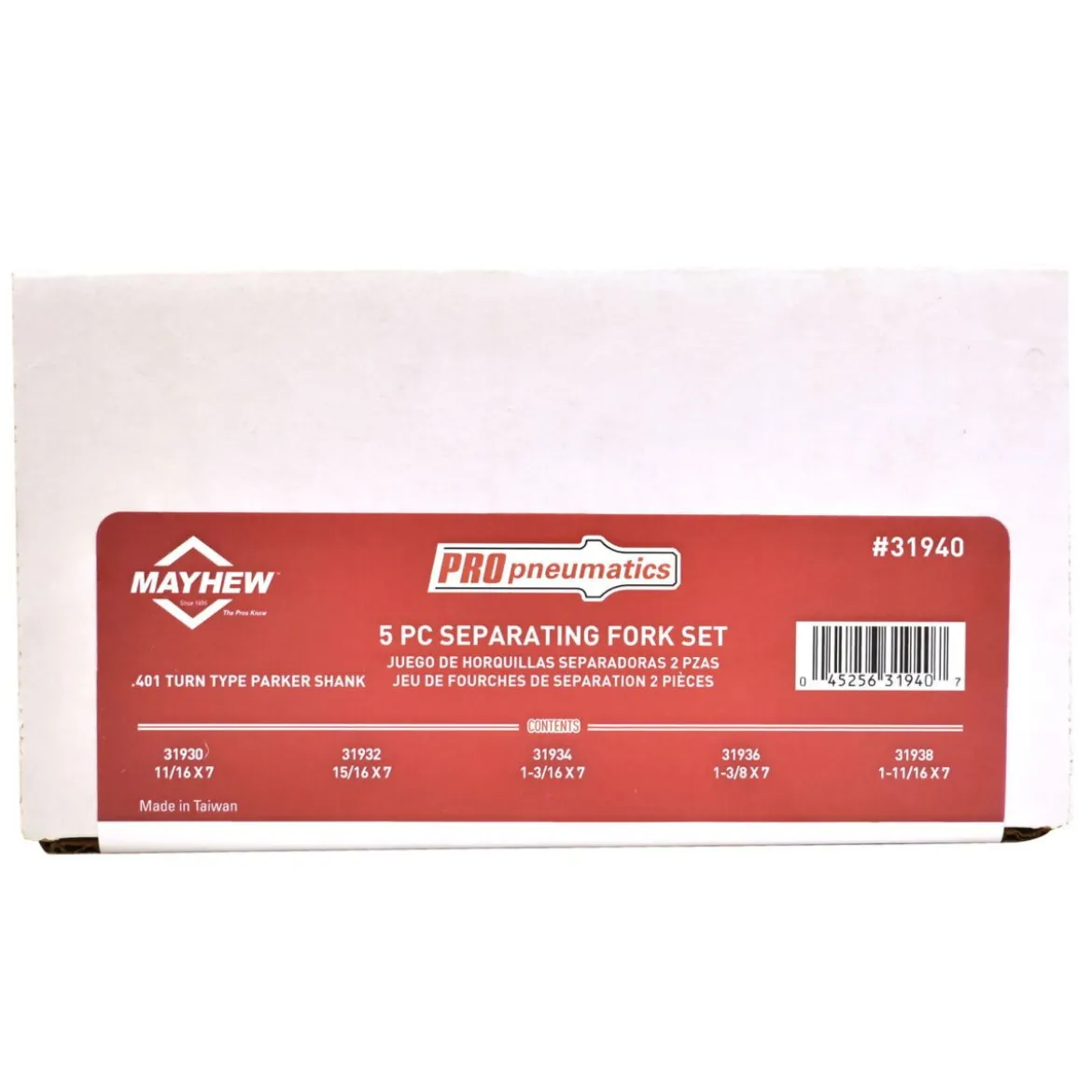

• Included in Set:
• Pneumatic Separating Fork 11/16″ x 7″ (Item #31930)
• Pneumatic Separating Fork 15/16″ x 7″ (Item #31932)
• Pneumatic Separating Fork 1-3/16″ x 7″ (Item #31934)
• Pneumatic Separating Fork 1-3/8″ x 7″ (Item #31936)
• Pneumatic Separating Fork 1-11/16″ x 7″ (Item #31938)

HOW TO USE:

1. Prepare the Vehicle: Safely lift and support the vehicle on jack stands or a lift, ensuring the wheel is removed to access the relevant suspension or steering components.
2. Identify Components: Locate the ball joint, tie rod end, or linkage that needs to be separated. Clean any excessive dirt or rust from the area if necessary.
3. Select the Correct Fork: Choose the appropriate size fork from the Mayhew set that best fits the gap between the component and its mating part. The fork should be snug but able to be inserted.
4. Insert the Fork: Position the chosen fork securely into the joint or linkage, aiming to wedge it directly between the two parts you intend to separate.
5. Connect to Air Hammer: Attach the .401 shank of the fork firmly into a compatible pneumatic air hammer. Ensure the connection is secure.
6. Apply Controlled Air Pressure: With appropriate safety gear (eye protection, gloves), activate the air hammer in short, controlled bursts. The vibrations and force from the hammer will drive the fork deeper into the joint, causing the components to separate.
7. Monitor Separation: Continuously observe the separation process to prevent over-extension or damage to surrounding parts. Adjust the angle or position of the fork if needed.
8. Remove Components: Once separated, carefully remove the components. Disconnect the fork from the air hammer and the separated parts.
9. Clean and Store: After use, clean the forks and store them in their original packaging to protect them from damage and maintain their condition.

BENEFITS OF USING MAYHEW 5-PIECES SEPARATOR FORK PNEUMATIC SET (31940):

• Enhanced Efficiency: Speeds up the separation process of stubborn components compared to manual methods, saving valuable time in the workshop.
• Reduced Risk of Damage: Designed to apply force precisely to the joint, significantly lowering the chance of damaging threads, boots, or other delicate parts of the suspension and steering system.
• Professional Results: Helps achieve clean and reliable separation, contributing to higher quality repairs and installations.
• Versatile Application: The variety of fork sizes ensures adaptability across a broad range of vehicle makes and models, addressing different component dimensions.
• Improved Safety: Reduces the need for brute force or improvised tools, leading to a safer working environment for the technician.
• Long-Term Value: Constructed with high-grade materials and backed by a lifetime warranty, offering a dependable tool that withstands rigorous use over many years.

FEATURES:

• Precisely tapered fork ends engineered for effective wedging action.
• Solid, one-piece construction for enhanced rigidity during high-impact use.
• Robust black oxide coating provides an extra layer of resistance against rust and corrosion.
• Integrated .401 shank designed for optimal power transfer from pneumatic hammers.

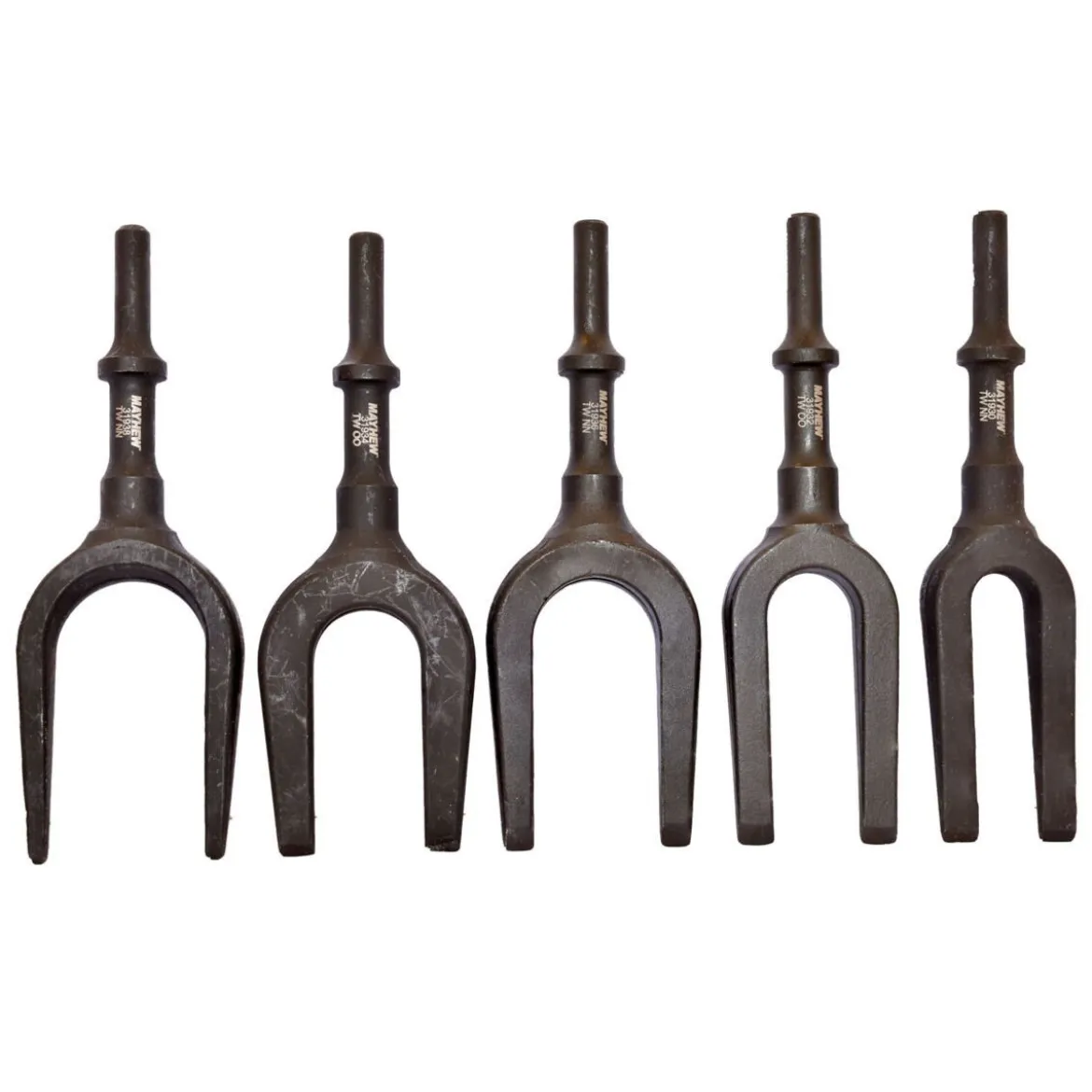

• Each fork is specifically sized (11/16″, 15/16″, 1-3/16″, 1-3/8″, 1-11/16″) to address various joint dimensions.
• Designed to minimize lateral stress on ball joint boots, preserving their integrity.
• Lightweight yet strong alloy steel composition for ease of handling and durability.
