Mastercool EVAP Diagnostic Smoke Machine for EV Leak Testing (43060-EV)

Mastercool EVAP Diagnostic Smoke Machine for EV Leak Testing (43060-EV)

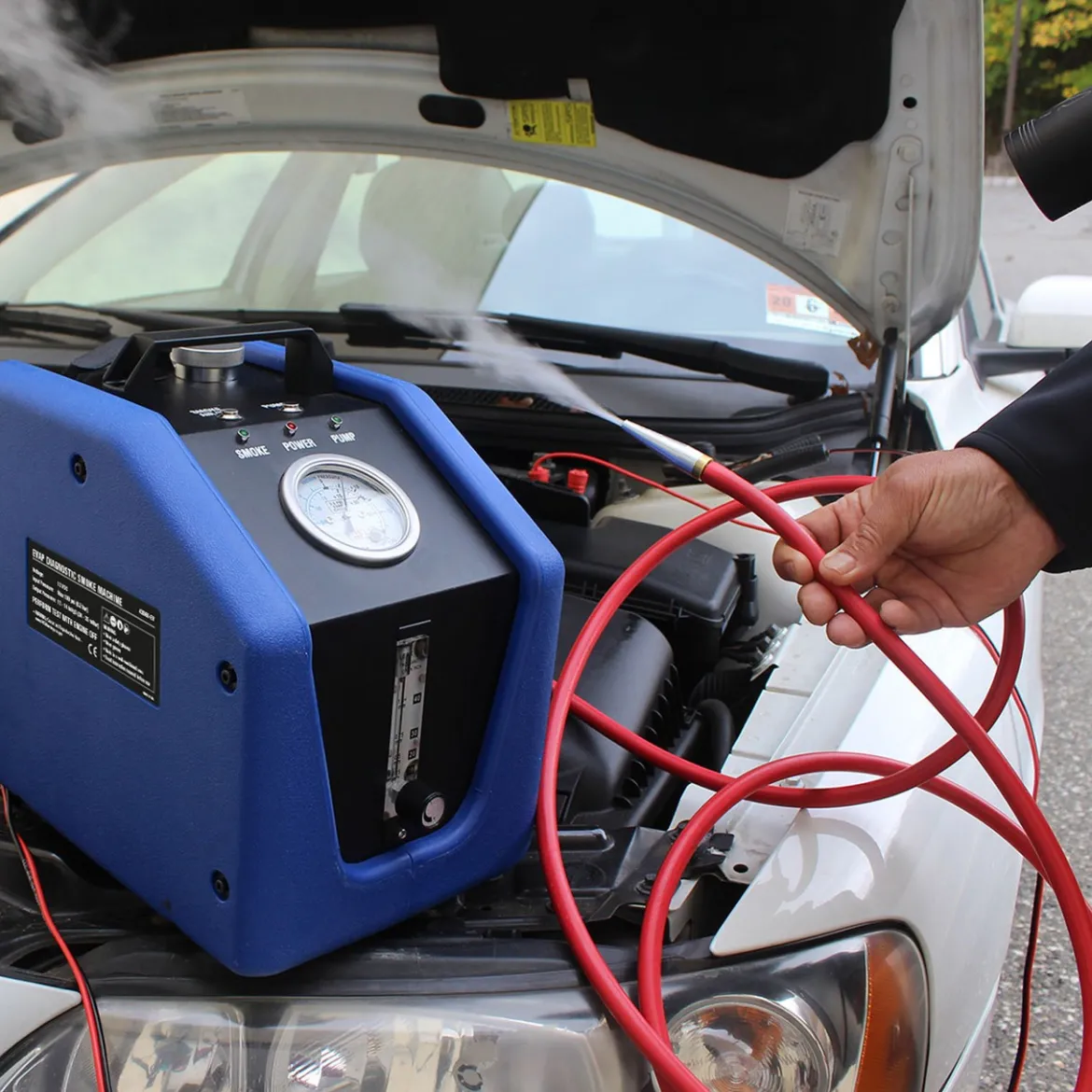

The Mastercool 43060-EV EVAP Diagnostic Smoke Machine is a versatile and essential tool designed for comprehensive testing and diagnostics of vehicle systems. Capable of identifying leaks in EVAP, intake, exhaust, and vacuum lines, as well as in vacuum components, window seals, sunroofs, and even headlight and taillight fixtures, this machine is perfect for thorough automotive inspections.

Equipped with multiple options for smoke injection, including a built-in internal compressor, shop air, and inert gases, the Mastercool 43060-EV adapts to various shop setups and requirements. This flexibility ensures effective diagnostics in diverse environments, from small garages to large repair facilities. The unit also includes an array of accessories designed to enhance its functionality and user efficiency in leak detection tasks.

Key Features & Benefits:

• Versatile Leak Detection: Suitable for a wide range of systems and components within vehicles, enhancing workshop diagnostic capabilities.
• Smoke Injection Options: Includes a built-in internal compressor, with additional capability to use shop air and inert gases for smoke injection, providing flexibility in operation.
• Quick Smoke Generation: Accelerates the diagnostic process by producing smoke quickly to identify leaks efficiently.
• Safety and Precision: Features a built-in safety pressure relief valve and is regulated at 0.5 PSI for safe EVAP testing.

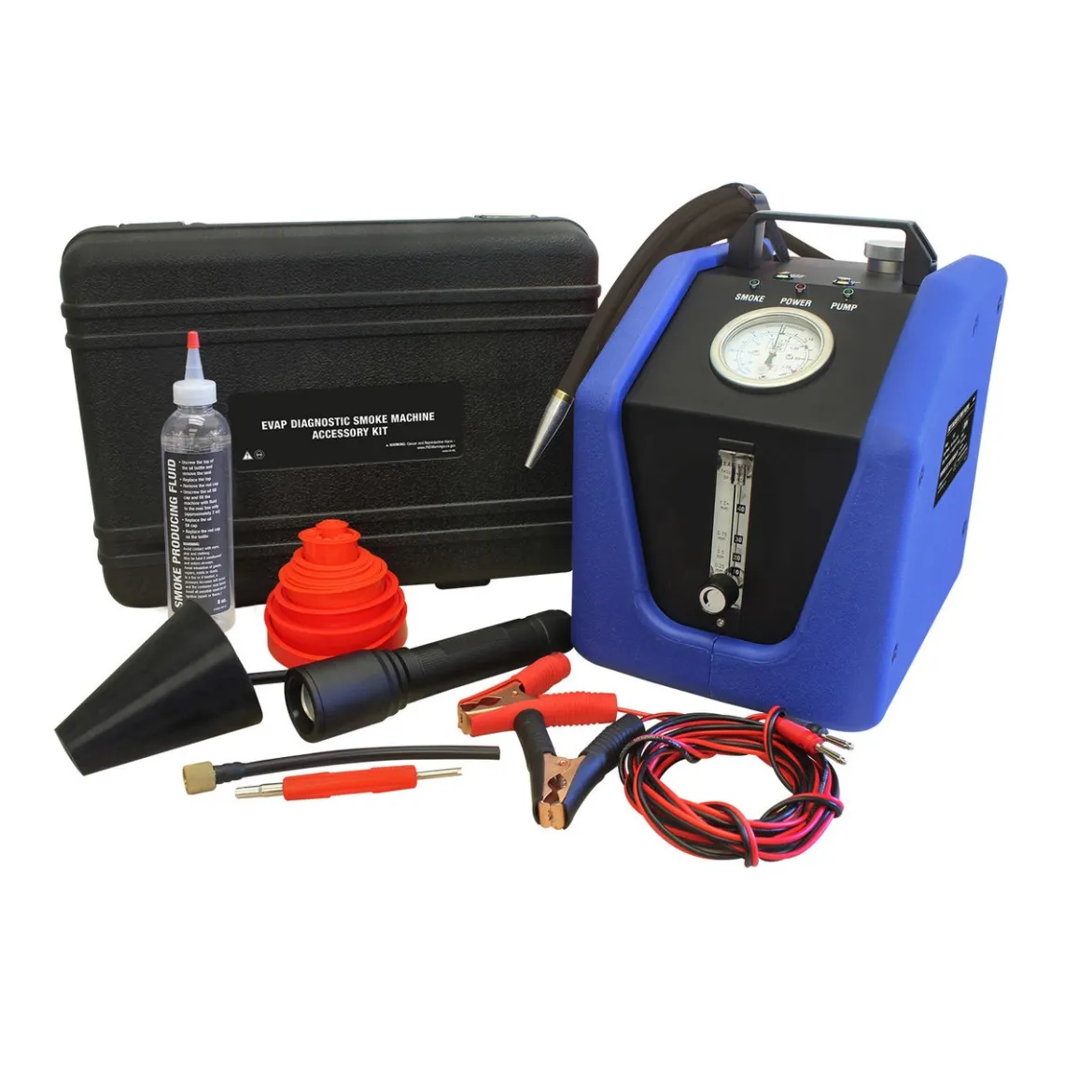

• Comprehensive Accessories:
  • Full set of block-off caps and an exhaust cone to suit different testing scenarios.
  • EVAP Schrader valve remover/installer and service port adapter hose with a green cap.
  • High intensity, battery-powered smoke illuminating flashlight for enhanced visibility in dark areas.
  • 8 oz of smoke producing fluid to ensure adequate supply for multiple tests.
• Durability and Reliability: Compact, heavy-duty design ensures years of reliable service in demanding automotive environments.
• User-Friendly Design: Features large, easy-to-read gauges and a clean flow meter, with convenient storage options including a Velcro strap for hose and power cable management.

Specifications:

• Voltage: 12 VDC
• Input Pressure: Max 100 psi (8.2 bar)
• Output Pressure: 12 – 14 inH2O (30 – 35 mBar)
• Safety Pressure Relief: 120 (±5) psi
• Auto Shut-off: 5-minute feature to prevent overheating and waste.
• Oil Fill Line Indicator: 3.4 oz (100 ml ±10 ml)
• Flow Meter: 0 – 0.040 in. (0 – 1.0 mm)
• Dimensions: 11.8 x 8.1 x 11 in (300 x 205 x 280 mm)
• Weight: 11.9 lbs (5.4 Kg); Shipping Weight: 20 lbs (9 Kg)
• Operating Conditions: Designed to operate between 0°F and 140°F with no restrictions on humidity or altitude.
