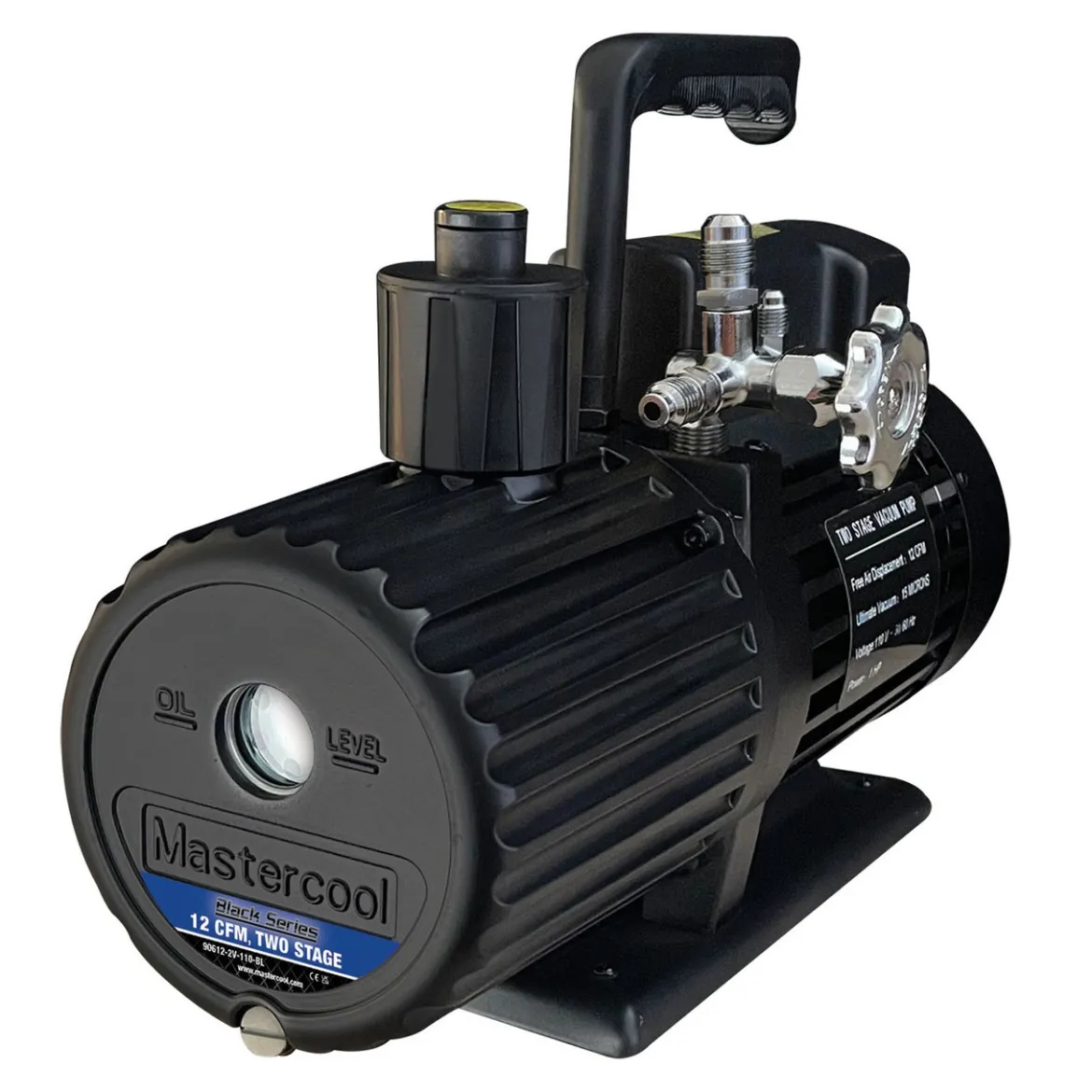

Mastercool Black Series 12 CFM Vacuum Pump Two Stage (90612-2V-110-BL)

Mastercool’s “Black Series” vacuum pumps are durable and time tested to stand up to the most grueling conditions and will provide years of reliable service. This vacuum pump providesthe power and mobility necessary for a wide variety of applications.

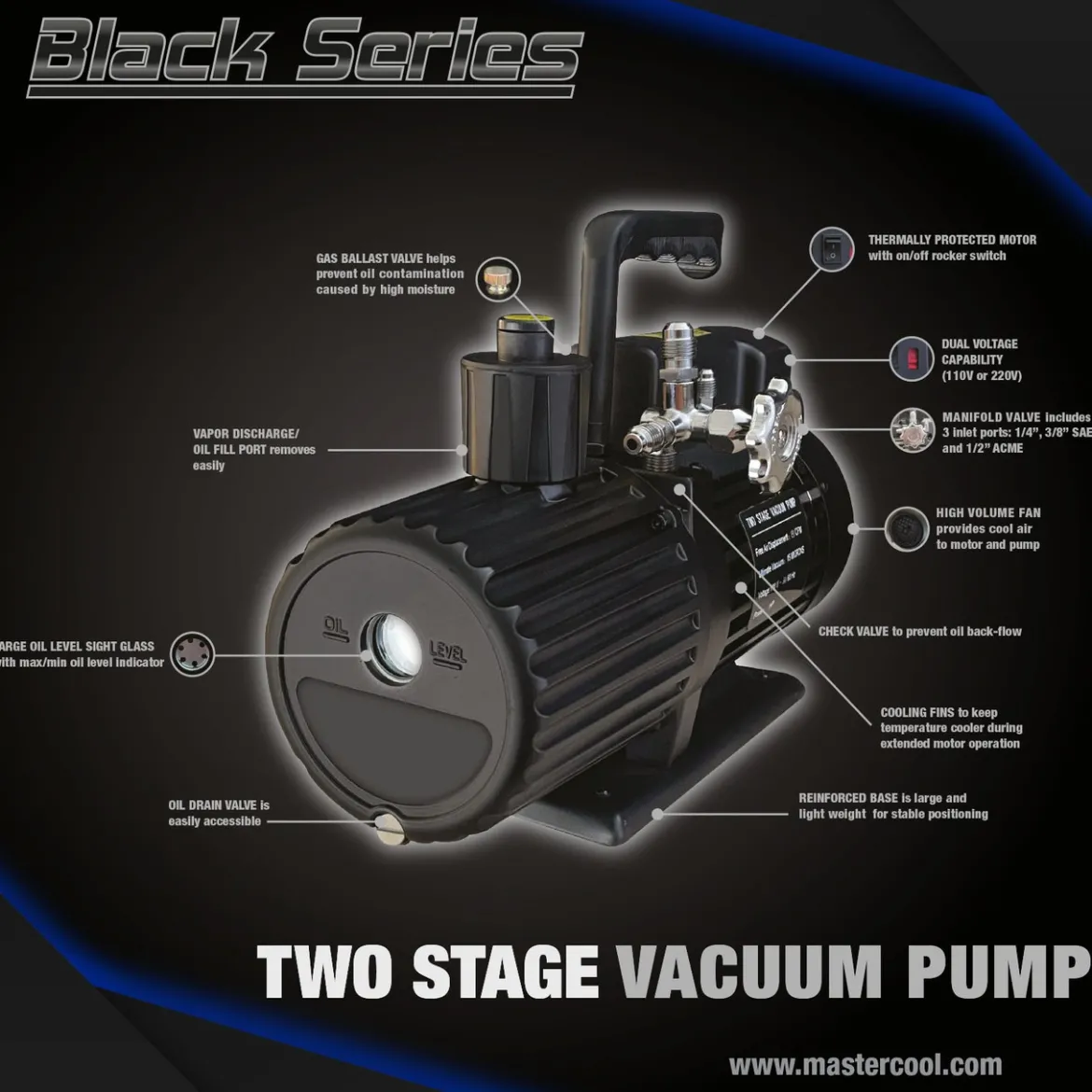

FEATURES:

• Refined cartridge machining process creates an improved surface finishextending the longevity of the pump life
• Expanded internal oil path creates less friction and ultimately less heat
• Upgraded seals insure maximum vacuum
• U.S. designed and tested
• Easy grip handle
• Gas ballast valve helps prevent oil contamination caused by high moisture
• Easily removable vapor discharge/oil fill port
• Large oil level sight glass with max/min level indicator
• Easily accessible oil drain valve
• Thermally protected motor with on/off rocker switch
• Manifold valve isolates pump from the system when testing for leaks. Includes 3 inlet ports, 1/4″, 3/8″ SAE and 1/2″ ACME
• High volume fan provides cool air to motor and pump
• Check valve prevents oil back-flow
• Cooling fins keep temperature cooler during extended operation
• Large, light weight reinforced base for stable positioning

SPECIFICATIONS:

• Stages: 2
• Free air displacement: 12 CFM
• Ultimate vacuum: 15 microns
• Motor: 1 HP
• Pump speed: 1720 RPM
• Electrical specs: 110/220 V, 50/60 Hz
• Power: 110 V cable
• Weight: 35.5 lbs (16 kg)
• Dimensions: 39 x 18 x 27 cm

Also Available:
90612-2V-220-BL

• Stages: 2
• Free air displacement: 340 lit/min (60 Hz), 283 lit/min (50 Hz)
• Ultimate vacuum: 15 microns
• Motor: 1 HP
• Pump speed: 1440 RPM
• Electrical specs: 110/220 V, 50/60 Hz
• Power: 220 V schuko cable
• Weight: 35.5 lbs (16 kg)
• Dimensions: 39 x 18 x 27 cm
