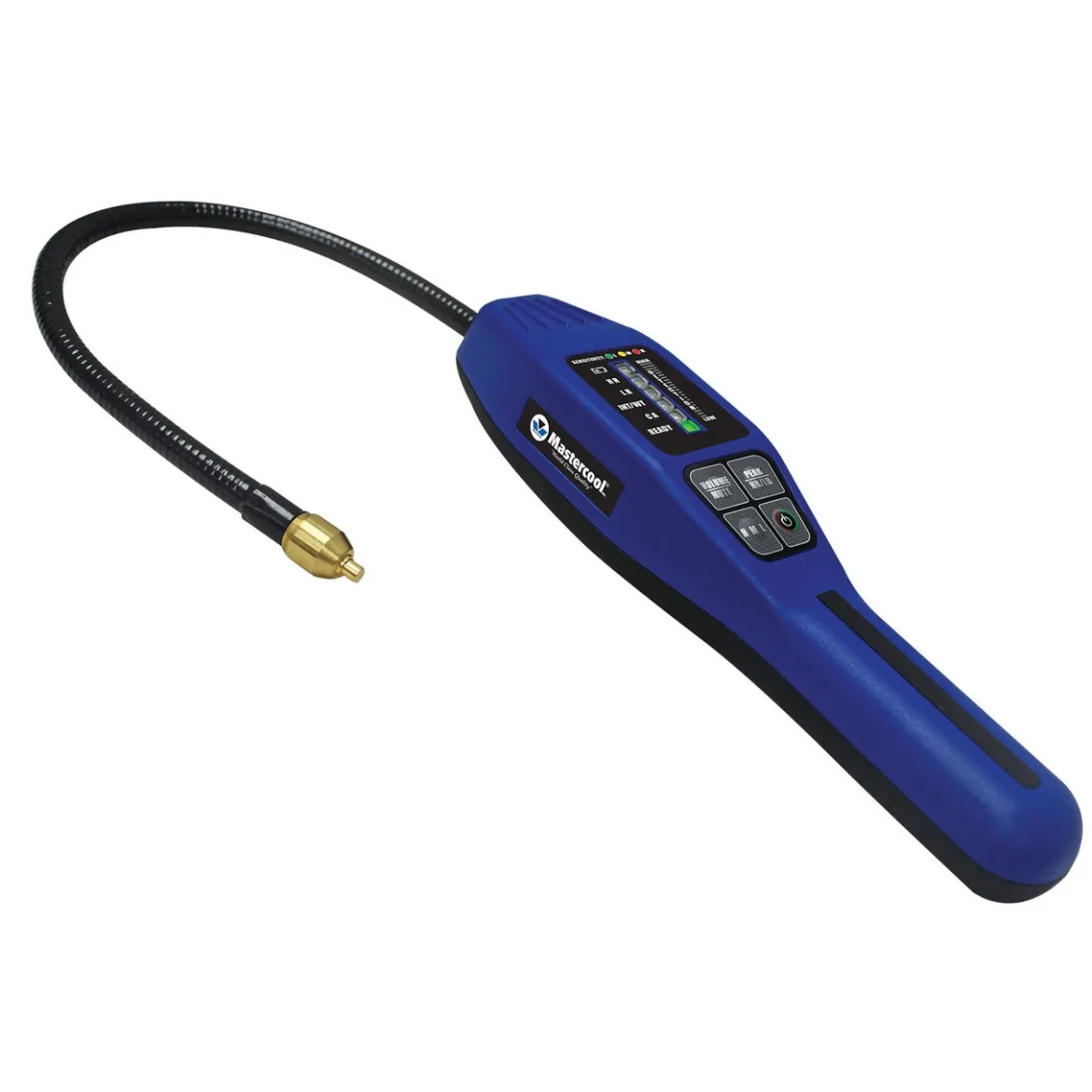

Mastercool 55900 Intellasense Ii Refrigerant Leak Detector

Mastercool 55900 Intellasense Ii Refrigerant Leak Detector

• “Super Sensitive Function” allows the unit further sensitizing beyond the standard settings for locating small leaks with gases such as R1234yf and R407C

• SENSITIVITY:
  • HIGH ≥ 0.15 oz/yr (4 g/yr)
  • MEDIUM ≥ 0.25 oz/yr (7 g/yr)
  • LOW ≥ 0.50 oz/yr (14 g/yr)
• PROBE:
  • Intelligent tip design that senses the condition of the environment, to eliminate the potential of false alarms.
  • Flexible 15.5” probe for difficult to reach locations
• DISPLAY:
  • Six vertical LED’s (red, yellow or green) display the following information to the user such as:
    • Relative signal level of the detected leak
    • Selected sensitivity range (low/medium or high) of the unit
    • Diagnostic information: low battery, interference/wait, contaminated atmosphere, readiness of the unit or fault
      conditions of the unit
• REFRIGERANTS: Detects all refrigerants (CFC’s, HCFC’s, & HFC’s and blends)
• SENSOR LIFE: 2000 hours
• SENSING ELEMENT: Heated tin oxide
• OPERATING TEMPERATURE RANGE: 0 to 140˚F
• RESPONSE TIME: Less than 1 second
• POWER: 2 C Alkaline 6000 mAh batteries
• BATTERY LIFE: 30 hours
• WEIGHT: 1.08 lbs

• KEYPAD FUNCTIONS:
  • ON/OFF: Press the ON/OFF button to turn the unit on or off
  • VOLUME/MUTE: Press the VOLUME/MUTE button to control the volume of the unit
  • H M L SENSITIVITY: Press the H M L SENSITIVITY button to select the desired sensitivity level
  • PEAK/HR/LR: The PEAK/HR/LR key serves a dual purpose:
    • (1) To assist the user in locating the “largest leak” in a system with multiple leaks present.
    • (2) To enable the user to switch between HR (high range) and LR (low range) modes.
