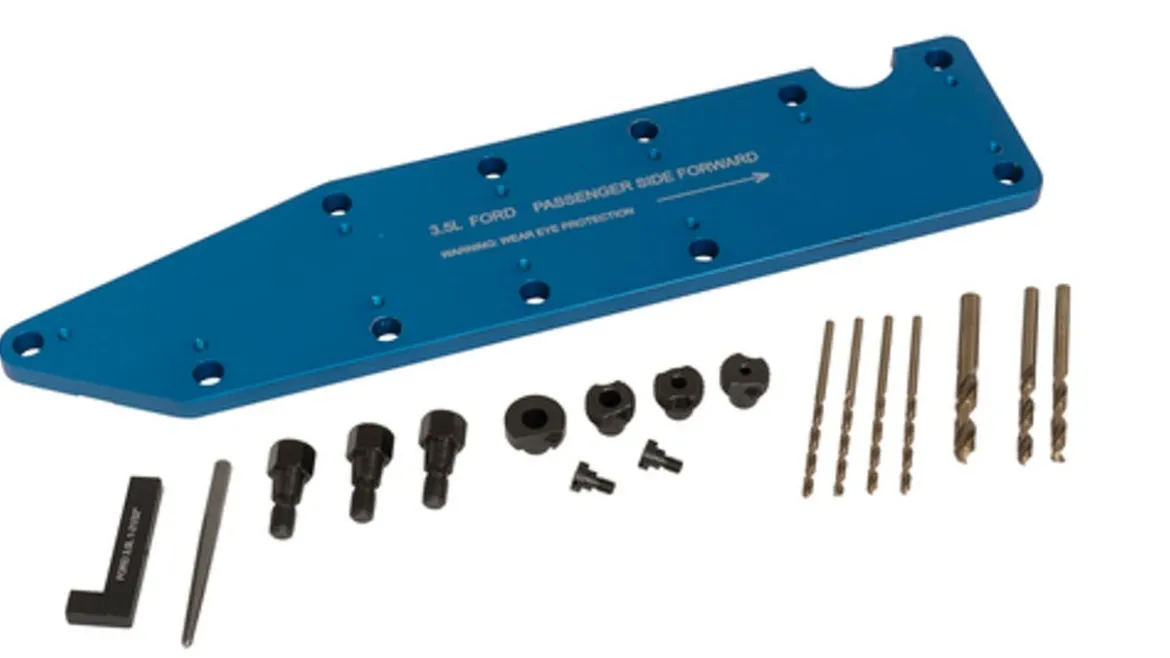

Lisle Manifold Drill Template for Ford 3.5L (72610)

The Lisle Manifold Drill Template for Ford 3.5L (72610) is a specialized tool designed to efficiently and safely remove broken exhaust manifold bolts on Ford 3.5L Ecoboost engines. This tool is essential for mechanics and DIY enthusiasts who encounter this common issue.

KEY FEATURES AND BENEFITS:

• Precise Alignment: The template’s tapered bolts ensure accurate alignment over bolt holes, minimizing the risk of damage to the cylinder head.
• Easy Maneuverability: The slip-fit bushing allows smooth movement between holes, streamlining the repair process.
• Efficient Bolt Removal: The included screw extractor is designed to securely grip and remove broken bolts.
• Versatile Solution: For cases where extraction is not feasible, the template provides a bushing for drilling to the appropriate tap size.

SPECIFICATIONS:

• Manufacturer: Lisle Corporation
• Part Number: 72610
• Application: Ford 3.5L Ecoboost engines

HOW TO USE:

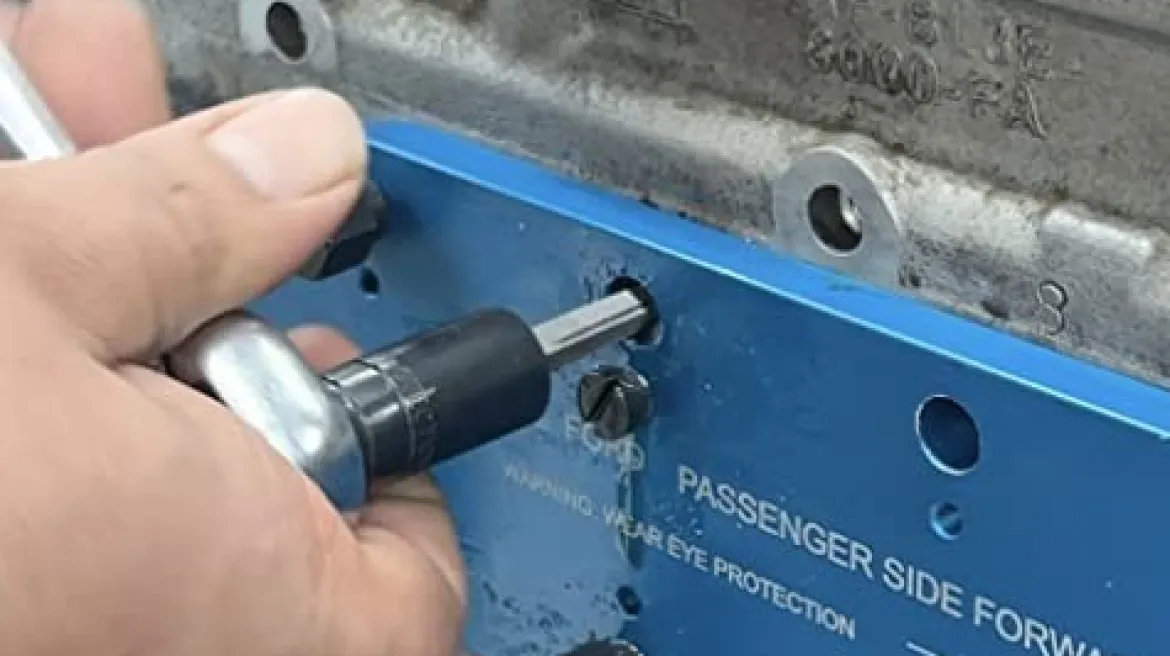

• Align the Template: Position the template over the broken bolt, ensuring the tapered bolts are centered in the corresponding holes.
• Insert the Bushing: Select the appropriate bushing and insert it into the template.

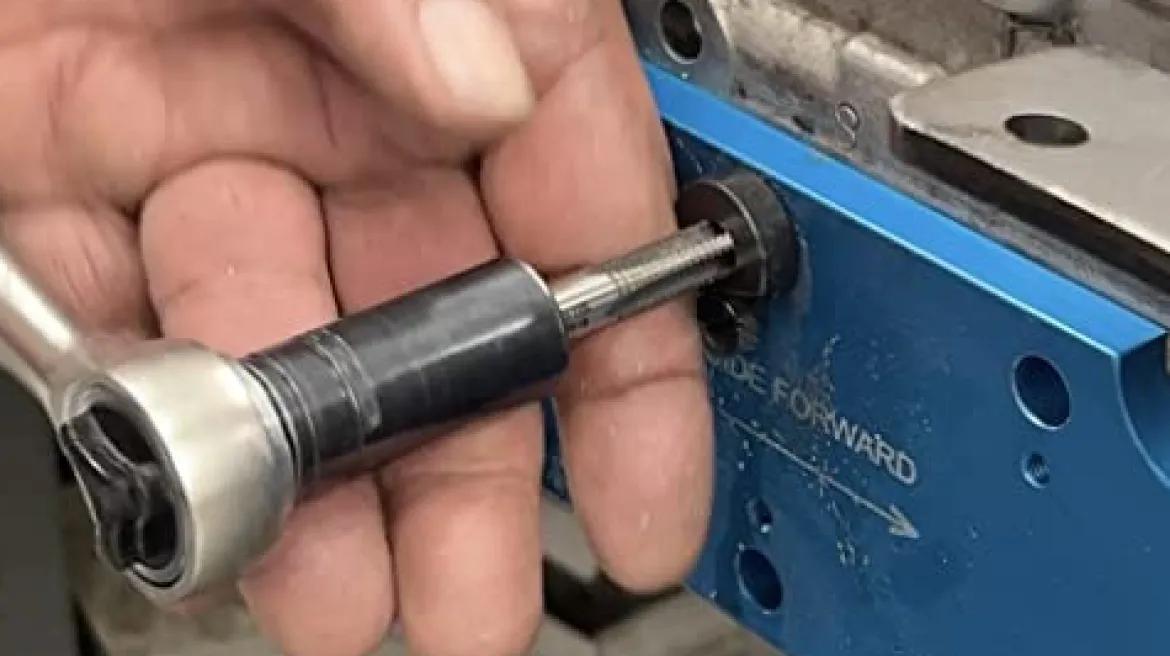

• Use the Screw Extractor: If possible, use the screw extractor to remove the broken bolt.

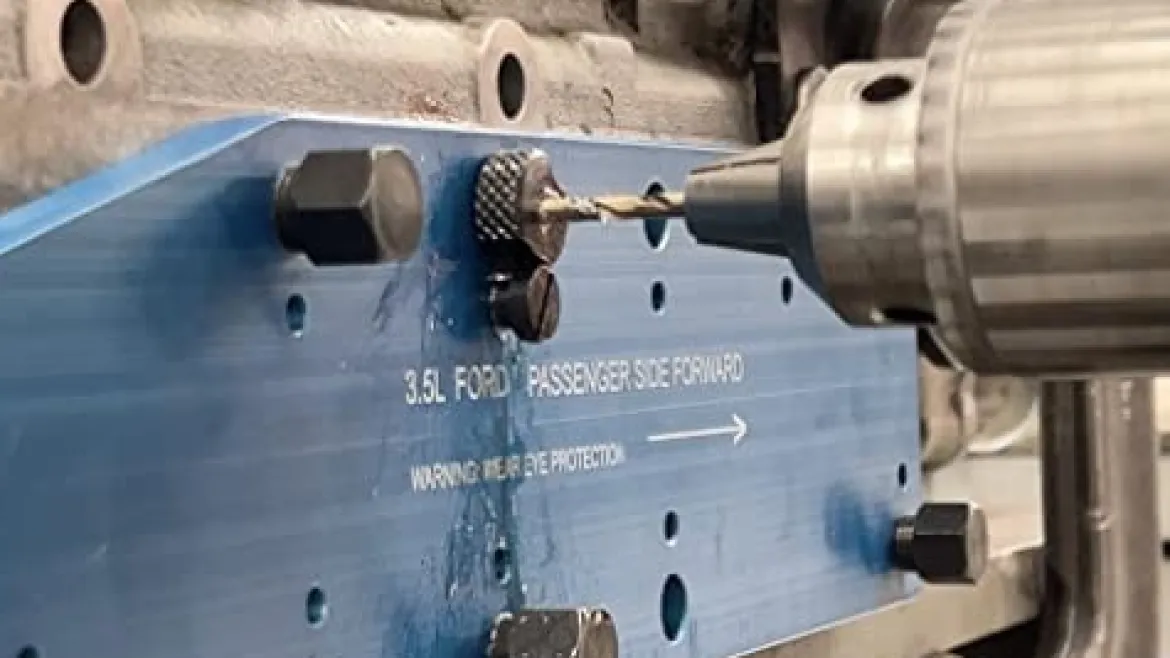

• Drill to Tap Size (if necessary): If extraction is not feasible, drill to the specified tap size using the included bushing.

BENEFITS OF USING LISLE MANIFOLD DRILL TEMPLATE FOR FORD 3.5L (72610):

• Prevents damage to the cylinder head
• Saves time and effort
• Provides a reliable solution for a common problem
• Easy to use, even for DIY enthusiasts

FEATURES:

• Tapered bolts: for precise alignment
• Slip-fit bushing: for easy maneuverability
• Included screw extractor: for efficient bolt removal
• Bushing for drilling: to tap size
