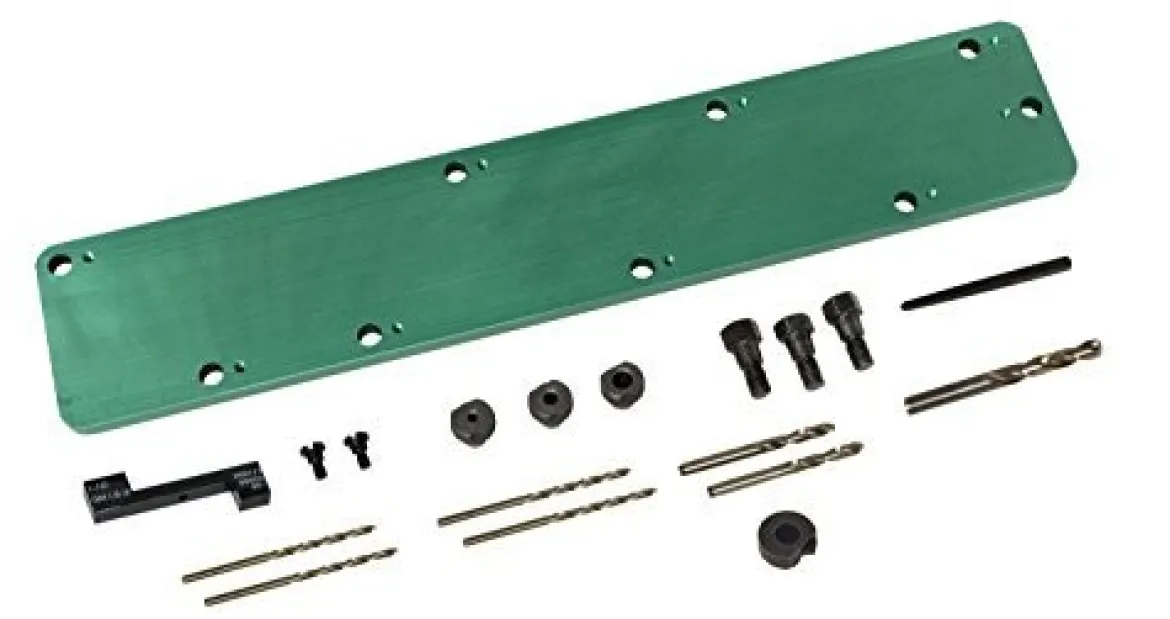

Lisle Manifold Drill Template for Dodge 5.7L Hemi (71500)

The Lisle Manifold Drill Template for Dodge 5.7L Hemi (71500) is a specialized tool designed to simplify the removal of broken exhaust manifold bolts on Dodge 5.7L Hemi engines without damaging the cylinder head.

KEY FEATURES AND BENEFITS:

• Precise Alignment: Tapered bolts and a slip-fit bushing ensure accurate positioning of the base plate over bolt holes.
• Efficient Bolt Removal: A screw extractor effectively removes broken bolts.

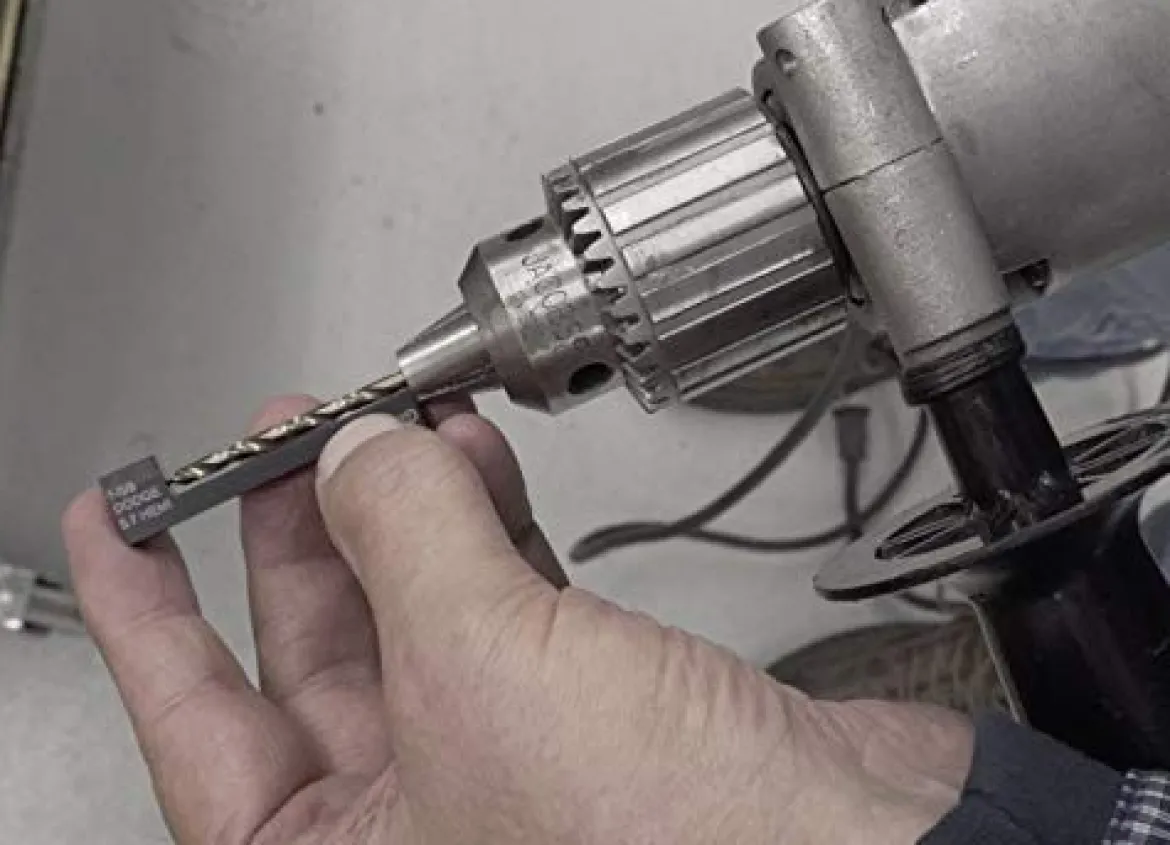

• Safe Drilling: A double-sided drill depth gauge prevents damage to the water jacket.
• Versatile Tool: Includes a drill bushing for drilling to the correct tap size when necessary.

SPECIFICATIONS:

• Manufacturer: Lisle Corporation
• Part Number: 71500
• Application: Dodge 5.7L Hemi engines

HOW TO USE:

• Align the Base Plate: Use the tapered bolts to secure the base plate over the broken bolt.
• Insert the Screw Extractor: Position the screw extractor into the broken bolt and tighten.
• Remove the Broken Bolt: Carefully turn the screw extractor to loosen and remove the bolt.
• Drill (if necessary): If the screw extractor is ineffective, use the drill bushing to drill to the correct tap size.
• Clean the Hole: Thoroughly clean the hole before installing a new bolt.

BENEFITS OF USING LISLE MANIFOLD DRILL TEMPLATE FOR DODGE 5.7L HEMI (71500):

• Saves time and effort during repairs
• Prevents damage to the cylinder head
• Ensures accurate bolt removal and replacement
• Professional-quality tool for DIY enthusiasts and mechanics

FEATURES:

• Tapered bolts for precise alignment
• Slip-fit bushing for easy positioning
• Screw extractor for efficient bolt removal
• Double-sided drill depth gauge for safety
• Drill bushing for versatile use
