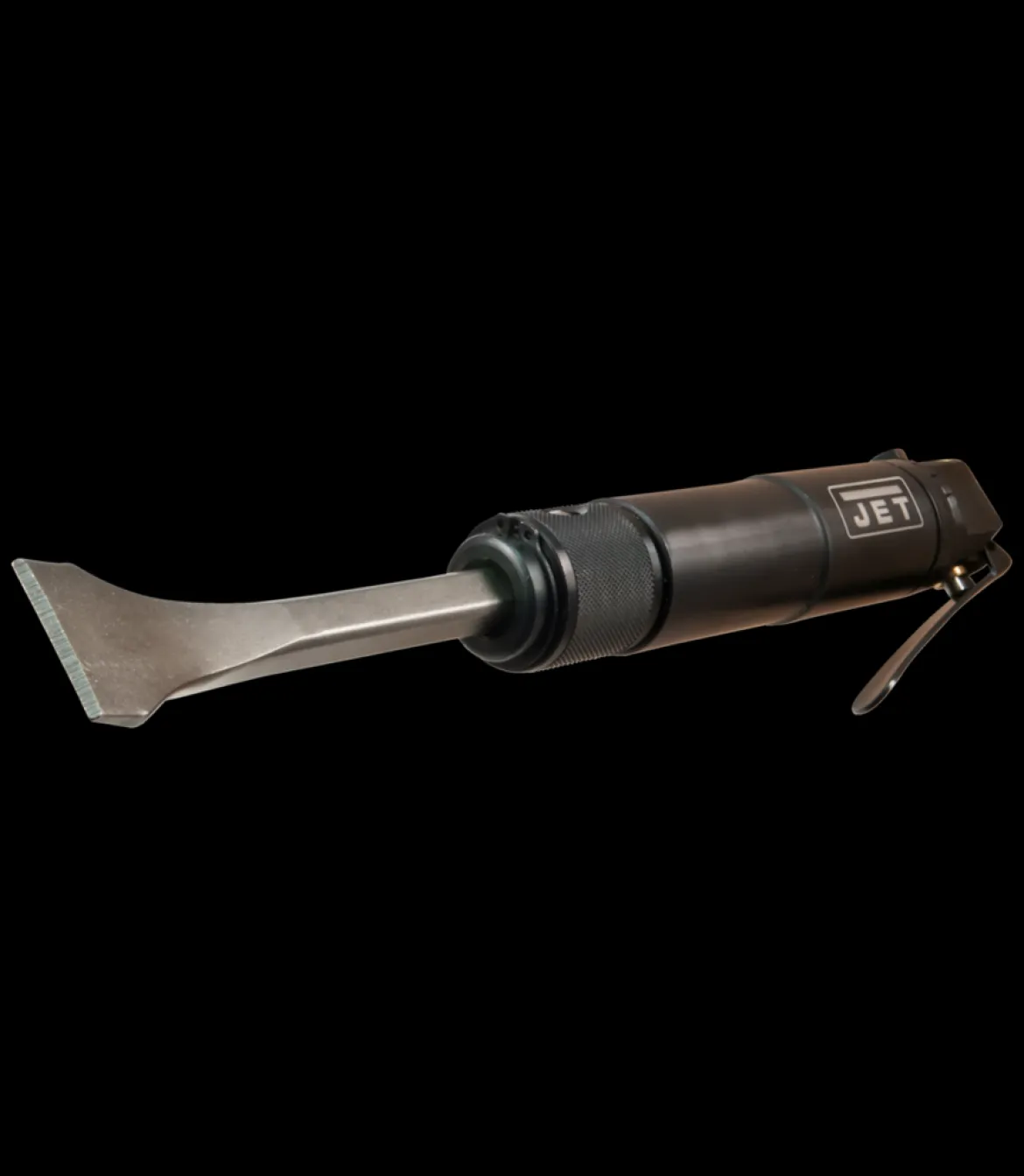

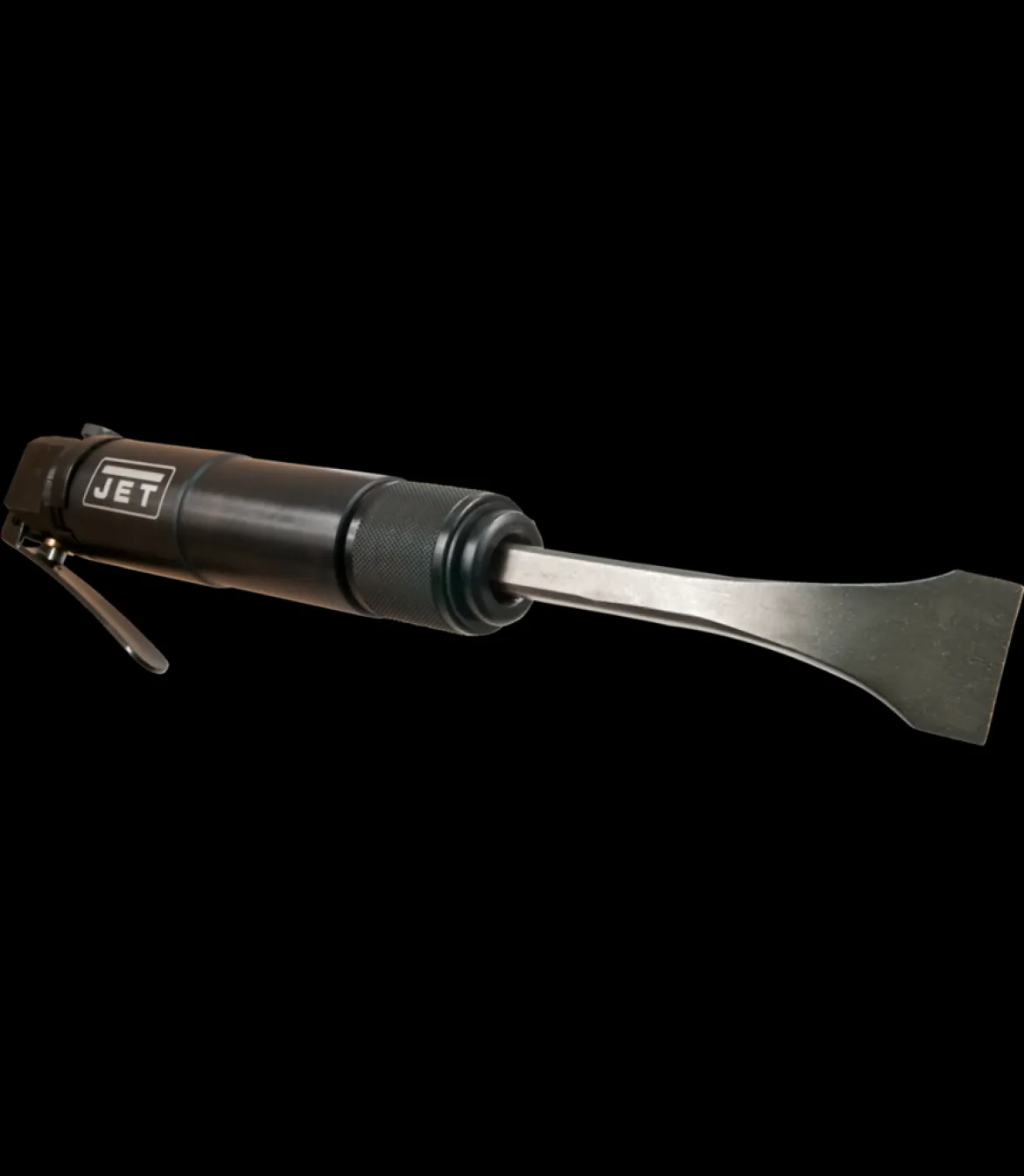

Jet JAT-820 R8 Series Flux Chipper (505820)

The Jet JAT-820 R8 Series Flux Chipper (505820) is a powerful and durable tool designed for efficient surface preparation. Built for heavy-duty industrial use, it effectively removes rust, paint, slag, and spatter from various surfaces.

KEY FEATURES AND BENEFITS:

• Ball Lock Retainer: Quickly and easily change chisels without hassle.
• Heavy-Duty Construction: Built to withstand demanding work environments.
• Wide-Angle Chisel: Effective removal of materials from surfaces.
• Powerful Performance: Efficiently removes rust, paint, slag, and spatter.

SPECIFICATIONS:

• Retainer Type: Ball Lock
• Blows Per Minute: 4,000
• Stroke Length: 7/8 inch
• Weight: 3.81 lbs
• Overall Length: 13.13 inches
• Air Consumption: 4 CFM
• Air Inlet: 1/4 NPT
• Air Hose: 3/8 ID
• Vibration Value: 14.5 m/s²
• Sound Pressure: 90 dB(A)
• Sound Power: 102 dB(A)
• Warranty: 2 years

HOW TO USE:

1. Safety First: Wear appropriate safety gear, including eye protection, ear protection, and a dust mask.
2. Connect Air Hose: Securely connect the 3/8 inch air hose to the 1/4 NPT air inlet.
3. Attach Chisel: Insert the desired chisel into the tool and secure it with the ball lock retainer.
4. Turn On Air Compressor: Ensure the air compressor is running and providing adequate air pressure (90 PSI).
5. Grip the Tool: Hold the flux chipper firmly with both hands.
6. Start Chipping: Gently apply the chisel to the surface and begin removing material.
7. Maintain Control: Use steady and controlled movements to prevent damage to the surface.
8. Regular Cleaning: Clean the tool and chisel after each use to prevent build-up.

BENEFITS OF USING JET JAT-820 R8 SERIES FLUX CHIPPER (505820):

• Increased Efficiency: Quickly removes materials for faster project completion.
• Improved Productivity: Durable construction and reliable performance for consistent results.
• Versatility: Suitable for various surface preparation tasks.
• Cost-Effective: Long-lasting tool with a 2-year warranty for value.

FEATURES:

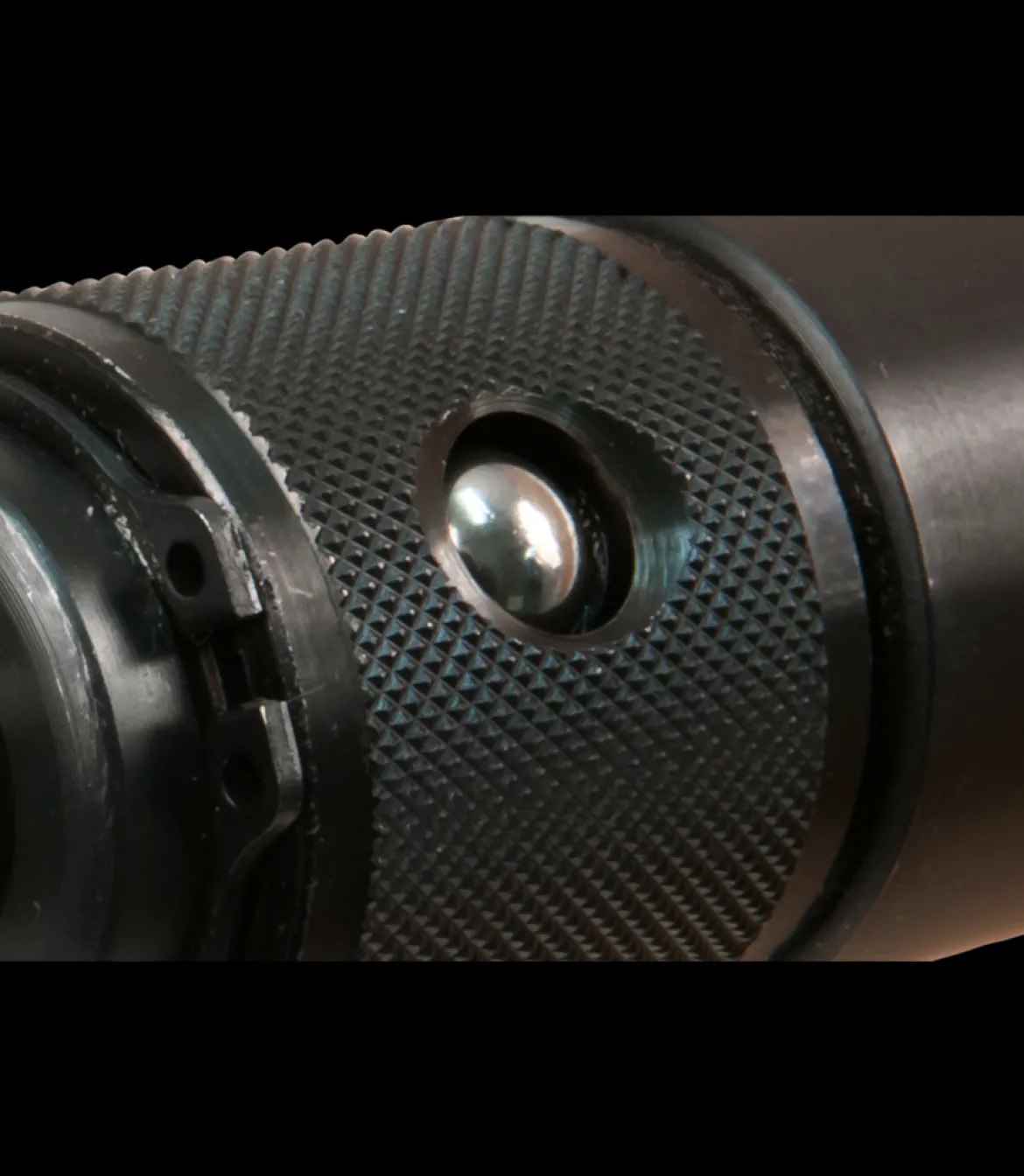

• Ball lock retainer for quick tool change
• Heavy-duty, heat-treated barrels and pistons

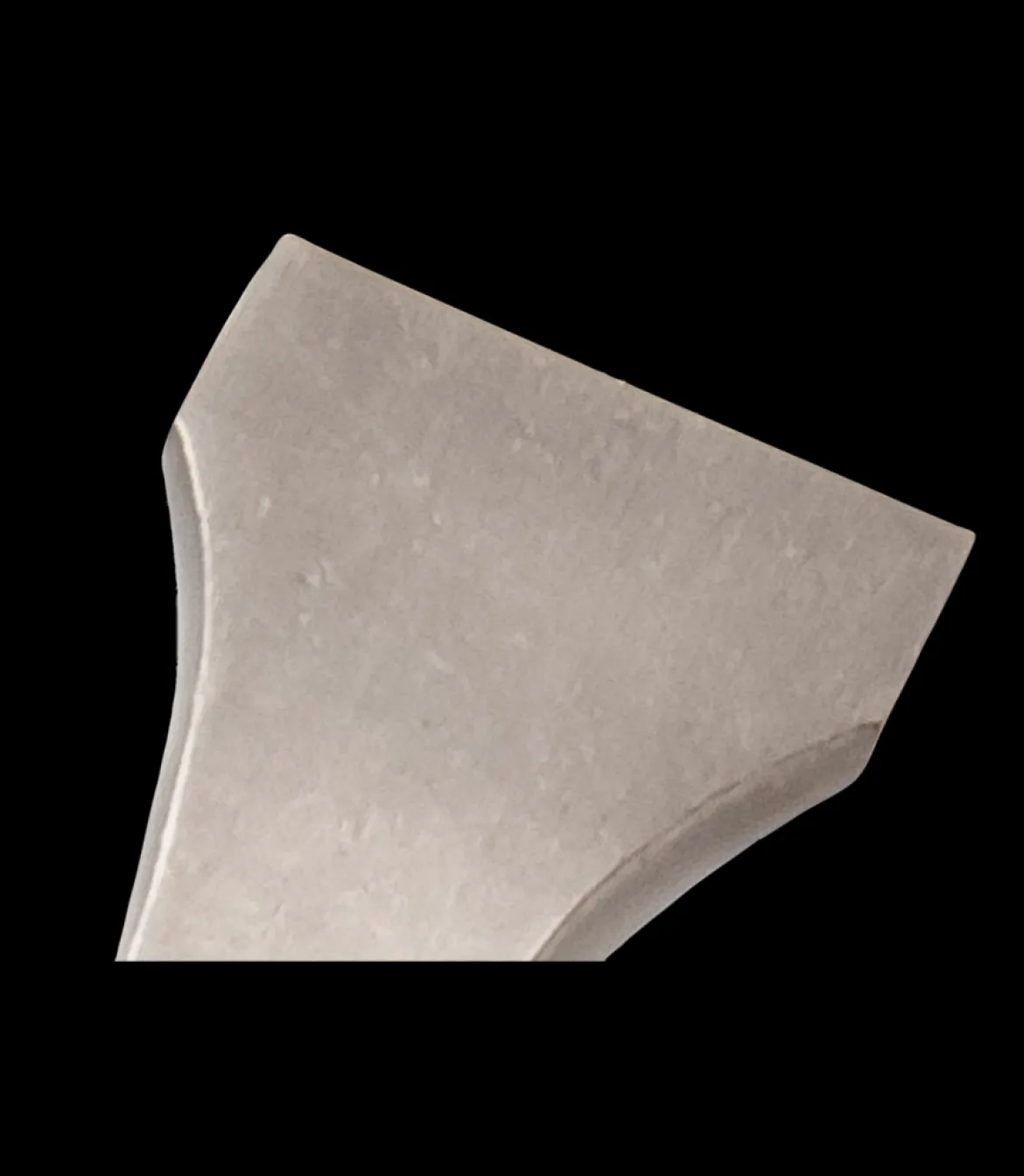

• Includes one wide-angle chisel
• Designed for demanding industrial use
• Efficient removal of rust, paint, slag, and spatter
