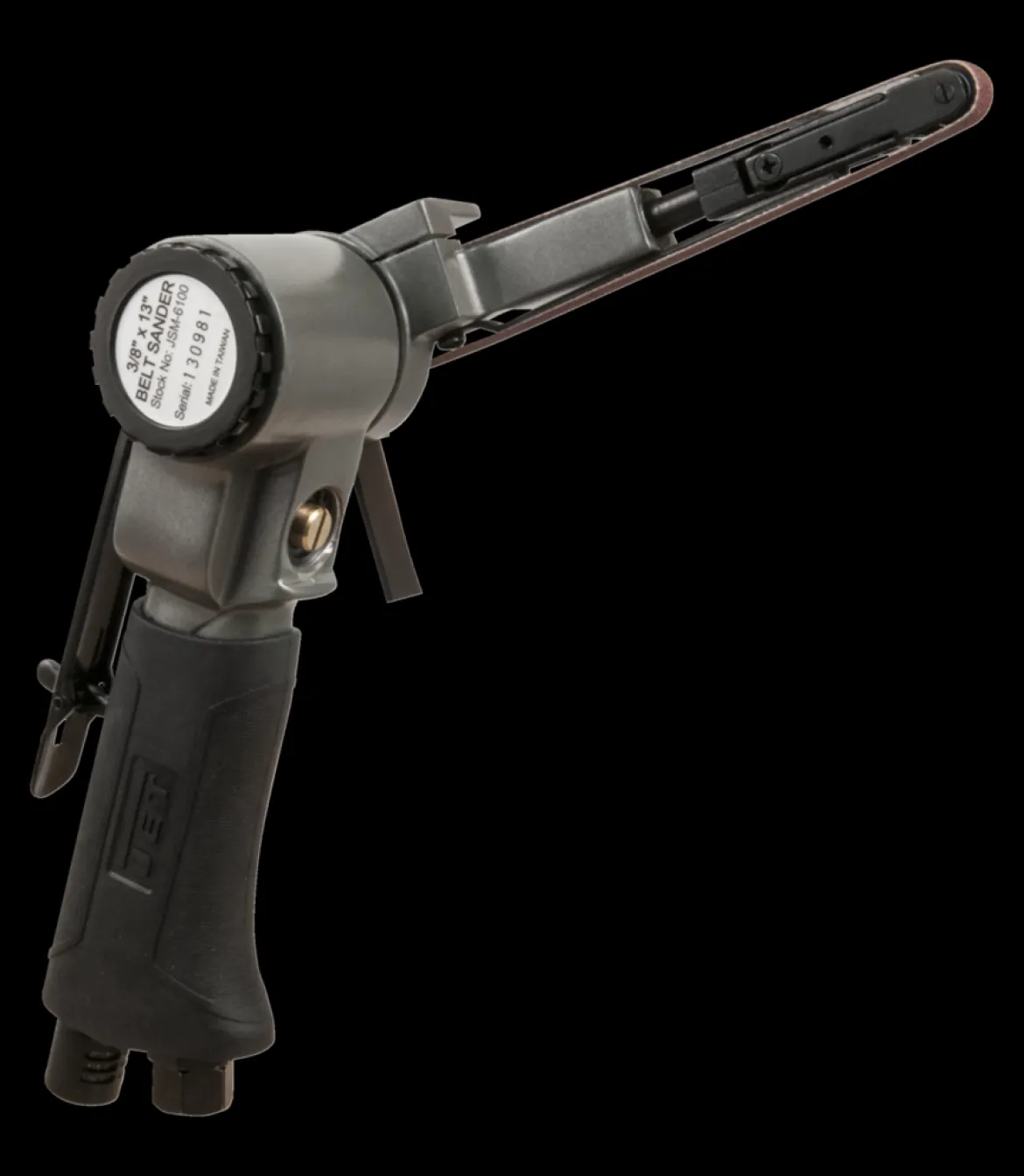

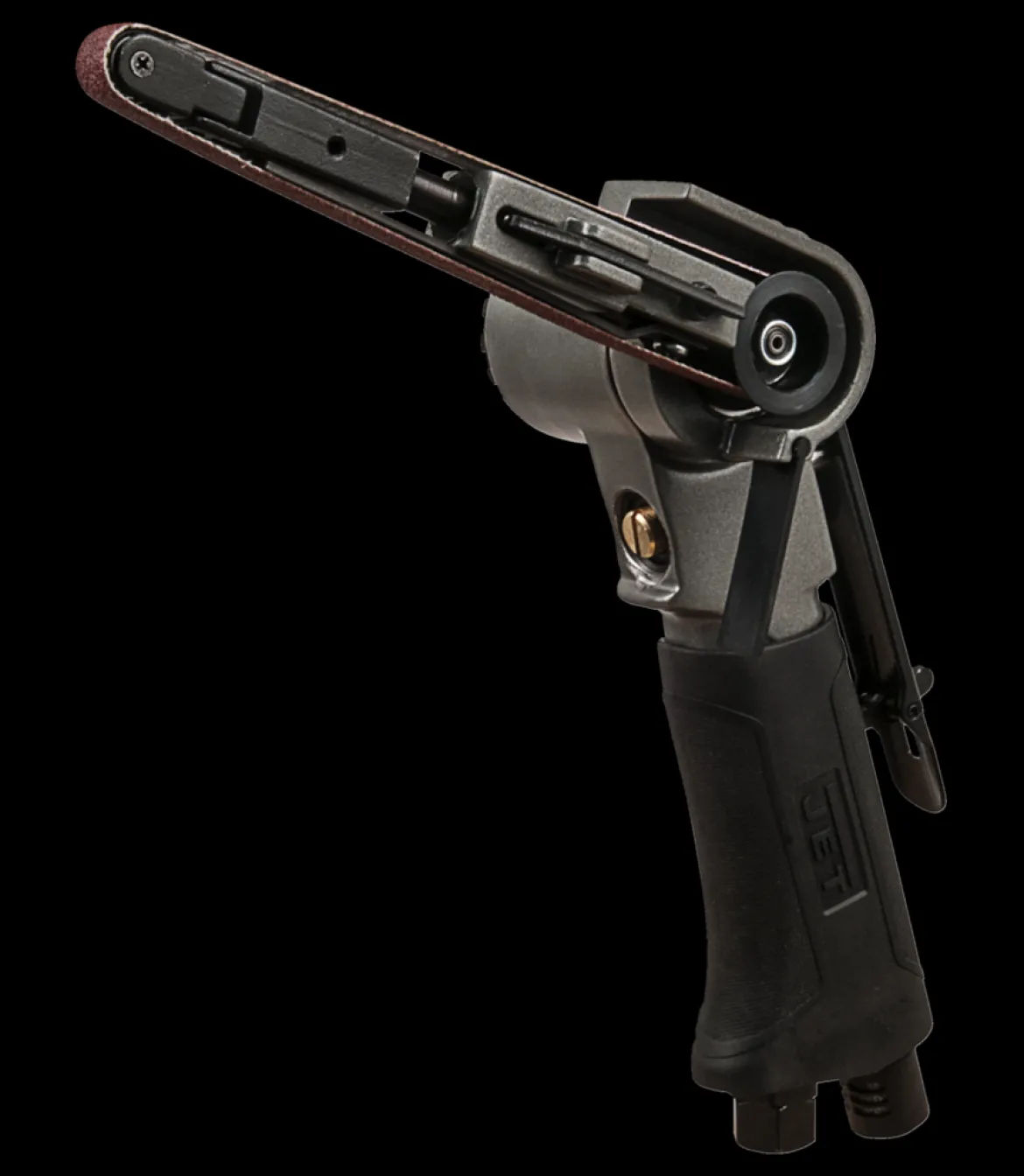

Jet JAT-750 20000 RPM 3/8″ x 13″ Mini Belt Sander (505750)

The Jet JAT-750 20000 RPM 3/8″ x 13″ Mini Belt Sander (505750) is a compact and powerful tool designed for efficient sanding in tight spaces and awkward angles. Its lightweight aluminum construction ensures easy handling, while the variable speed control provides precision for different materials.

KEY FEATURES AND BENEFITS:

• 360-Degree Head Rotation: Easily access and sand in confined areas.
• Variable Speed Control: Adjust speed for optimal performance on various materials.

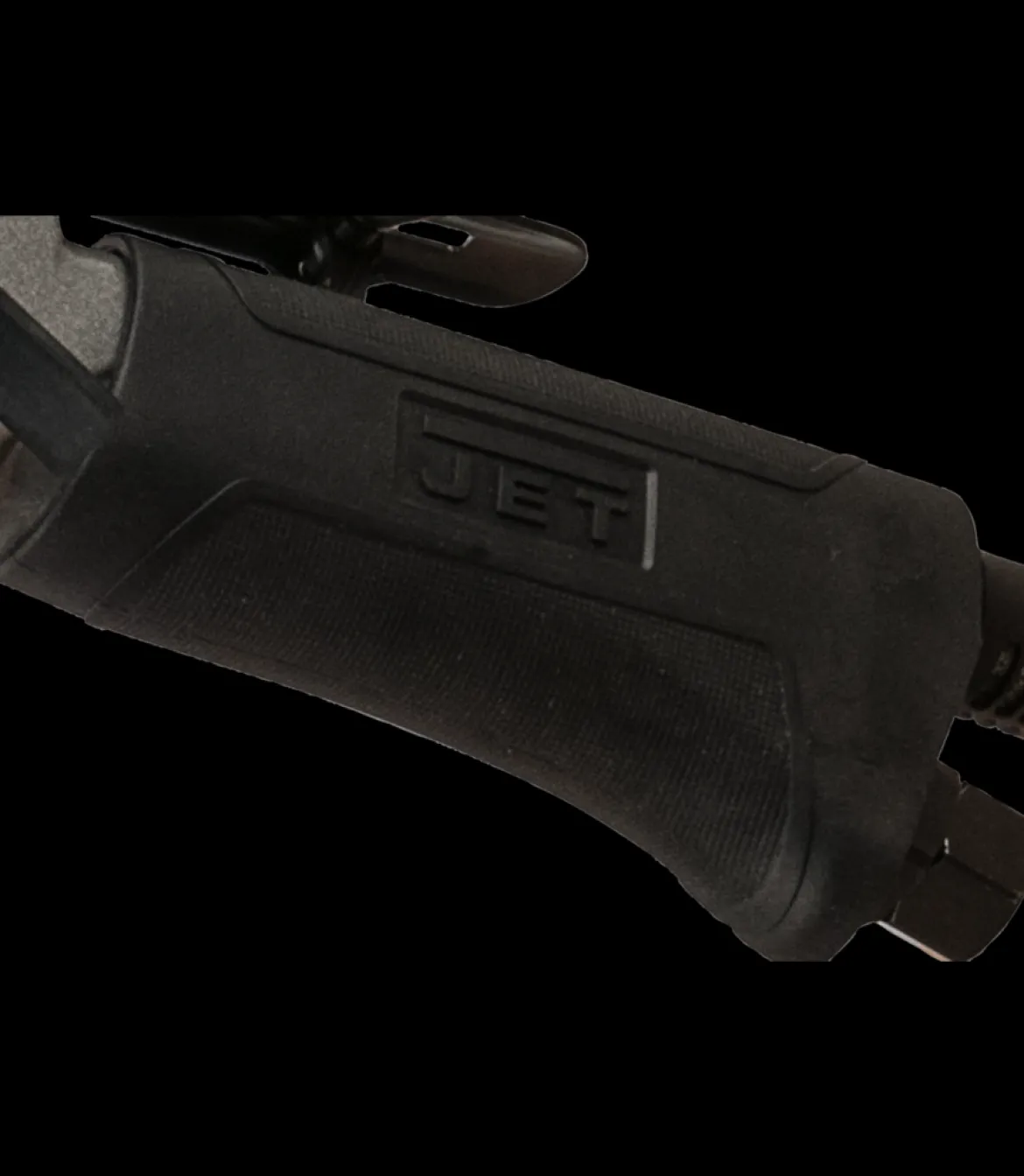

• Ergonomic Grip: Reduces hand fatigue during extended use.
• Safety Throttle Lock: Prevents accidental start-up.
• Lightweight Aluminum Construction: Ensures easy handling and durability.

SPECIFICATIONS:

• Belt Size: 3/8″ x 13″
• Free Speed: 20,000 RPM
• Horsepower: 0.5 HP
• Air Hose (ID): 3/8″
• Air Inlet (NPT): 1/4″
• Air Pressure: 90 PSI
• Air Consumption: 4.2 CFM
• Sound Pressure: 86 dB
• Sound Power: 93 dB
• Vibration Value: 1.3 m/s²
• Overall Length Open: 13″
• Overall Length Folded: 8-1/8″
• Weight: 1.94 lbs

HOW TO USE:

1. Attach the Air Hose: Connect the 3/8″ air hose to the 1/4″ NPT air inlet.
2. Adjust Air Pressure: Set the air pressure to 90 PSI for optimal performance.
3. Install Sanding Belt: Open the belt clamp, insert the sanding belt, and close the clamp securely.
4. Adjust Head Angle: Rotate the sander head to the desired angle for your project.
5. Engage Safety Lock: Press and hold the safety throttle lock.
6. Start Sander: Pull the trigger to start the sander.
7. Adjust Speed: Use the variable speed throttle to control sanding speed.
8. Sanding: Apply the sander to the surface and move it back and forth with gentle pressure.
9. Release Safety Lock: Release the safety throttle lock to stop the sander.

BENEFITS OF USING JET JAT-750 20000 RPM 3/8″ x 13″ MINI BELT SANDER (505750):

• Increased Efficiency: Sand hard-to-reach areas quickly and effectively.
• Improved Control and Precision: Achieve the desired finish with variable speed control.
• Reduced User Fatigue: Ergonomic design ensures comfort during extended use.
• Enhanced Safety: Safety throttle lock prevents accidental start-up.
• Durable Construction: Built to last, offering long-term performance.

FEATURES:

• Lightweight aluminum body
• 360-degree head rotation
• Variable speed throttle
• Ergonomic grip
• Safety throttle lock
• Built-in air regulator
