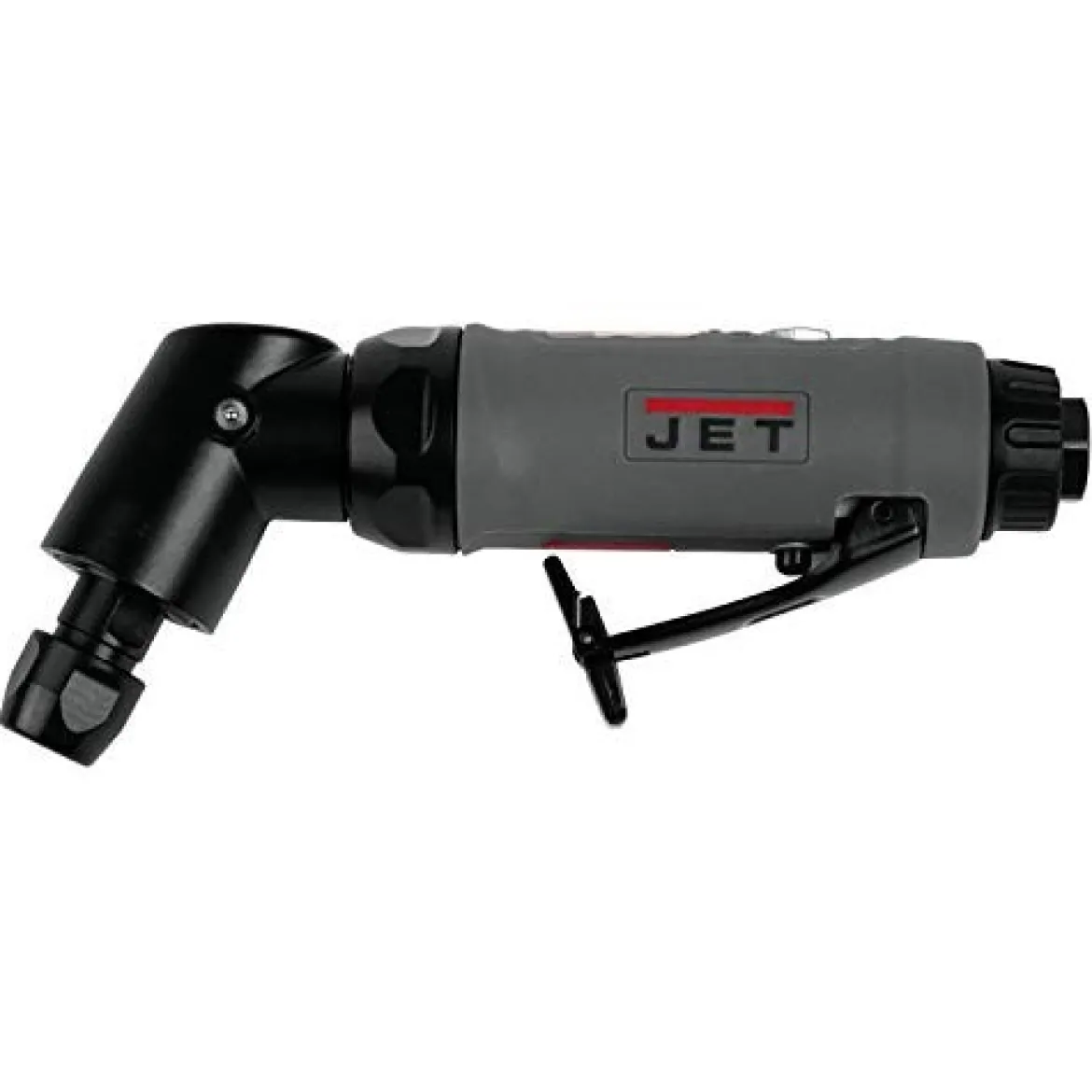

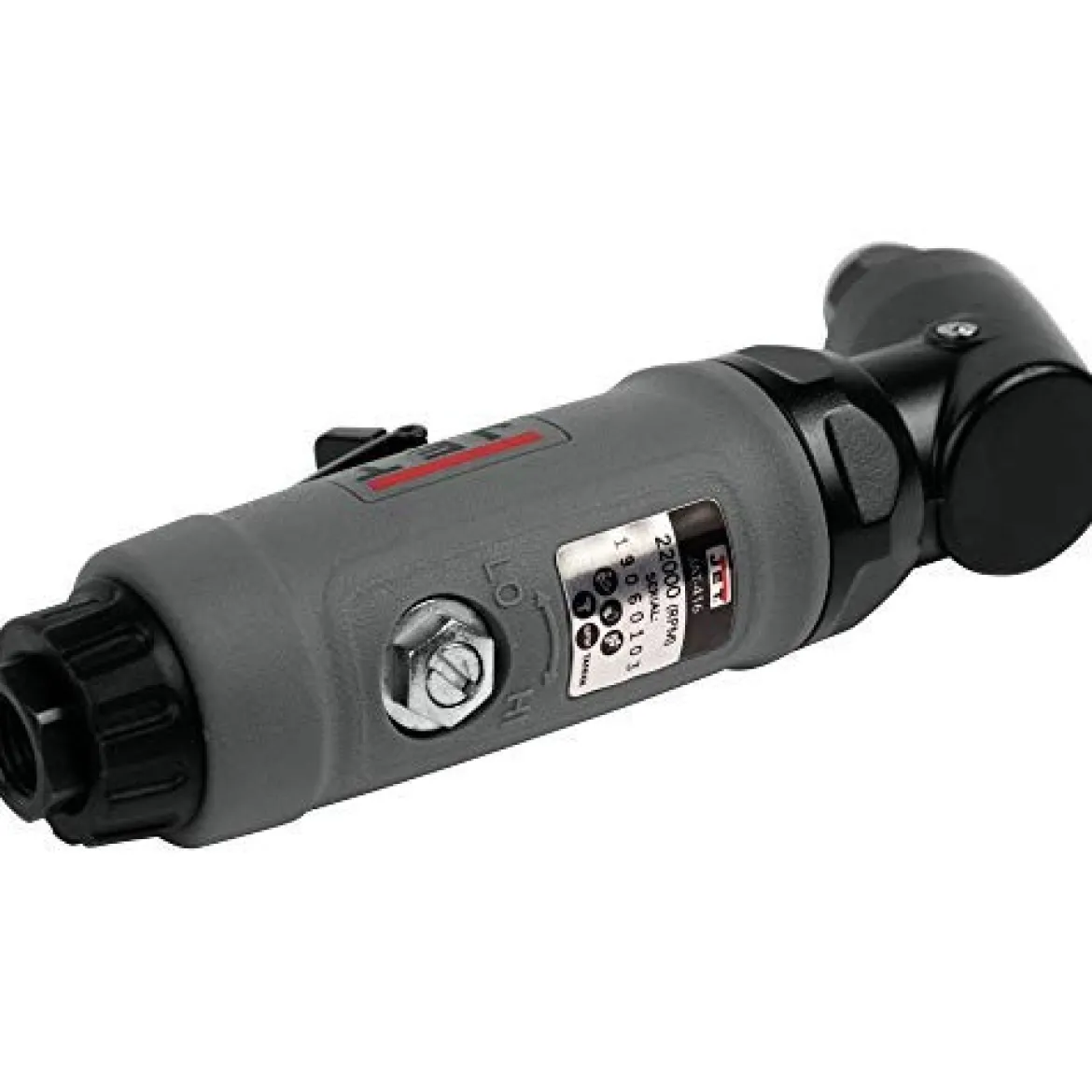

Jet JAT-416 Model 1/4-Inch Angle Composite Die Grinder (505416)

The Jet JAT-416 Model 1/4-Inch Angle Composite Die Grinder (505416) is a versatile tool designed for precision grinding, sanding, polishing, and deburring tasks. Its compact size and powerful motor make it ideal for working in tight spaces.

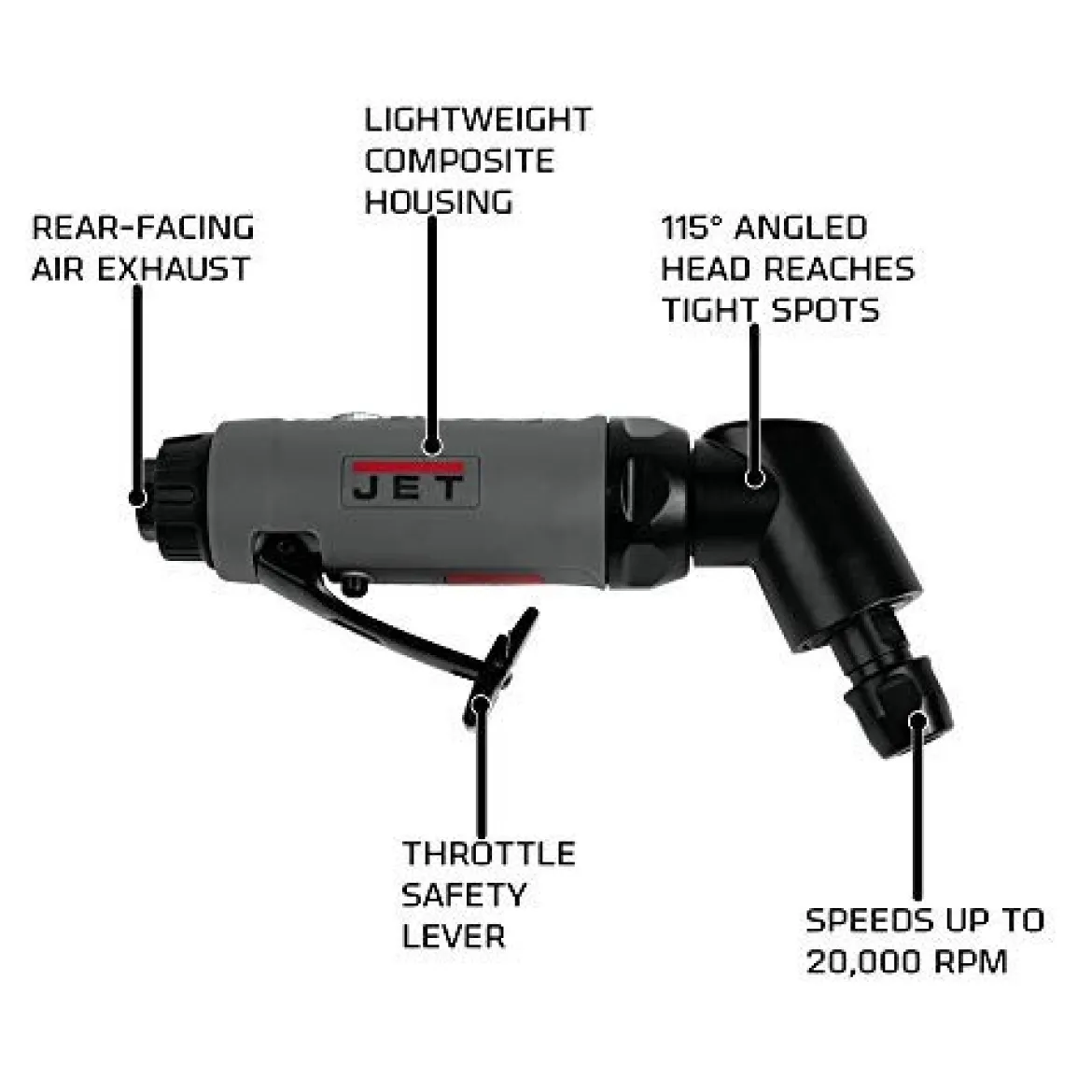

KEY FEATURES AND BENEFITS:

• Powerful Performance: Delivers efficient cutting and grinding with a 0.34 HP motor.
• Lightweight Design: Composite housing reduces operator fatigue for extended use.
• Enhanced Accessibility: 115-degree angled head reaches hard-to-reach areas.
• Safety First: Advanced lockoff switch and easy release safety lever for secure operation.
• Quiet Operation: Advanced muffler system minimizes noise levels.
• Reduced Vibration: Precision-beveled gears for smoother operation and longer tool life.
• Precise Control: Built-in air regulator for adjustable speed.

SPECIFICATIONS:

• Air Consumption: 2.6 CFM
• Air Inlet: 1/4 NPT
• Air Pressure: 90 PSI
• Free Speed: 18,000 RPM
• Horsepower: 0.34 HP
• Length: 7 inches
• Weight: 1.5 pounds
• Warranty: 2 years

HOW TO USE:

1. Connect the air hose: Attach it to the die grinder’s air inlet using a quick-connect coupler.
2. Turn on the air compressor: Provide compressed air to the tool.
3. Engage the safety lever: Press the start switch to activate the tool.
4. Adjust the speed: Use the built-in air regulator as needed.
5. Attach the accessory: Fix the desired grinding or sanding accessory to the collet.
6. Apply the tool: Use gentle pressure and control on the workpiece.
7. Stop the tool: Release the start switch.
8. Disconnect the air hose: Remove it when finished.

BENEFITS OF USING Jet JAT-416 Model 1/4-Inch Angle Composite Die Grinder (505416):

• Experience increased efficiency, precision, and comfort in your grinding and finishing tasks.
• The Jet JAT-416’s powerful performance, ergonomic design, and safety features make it a valuable tool for professionals and DIY enthusiasts alike.

FEATURES:

• Durable composite housing
• Adjustable rear exhaust
• Easy-to-use safety lever
• Precision-machined components
• Compatible with various accessories
