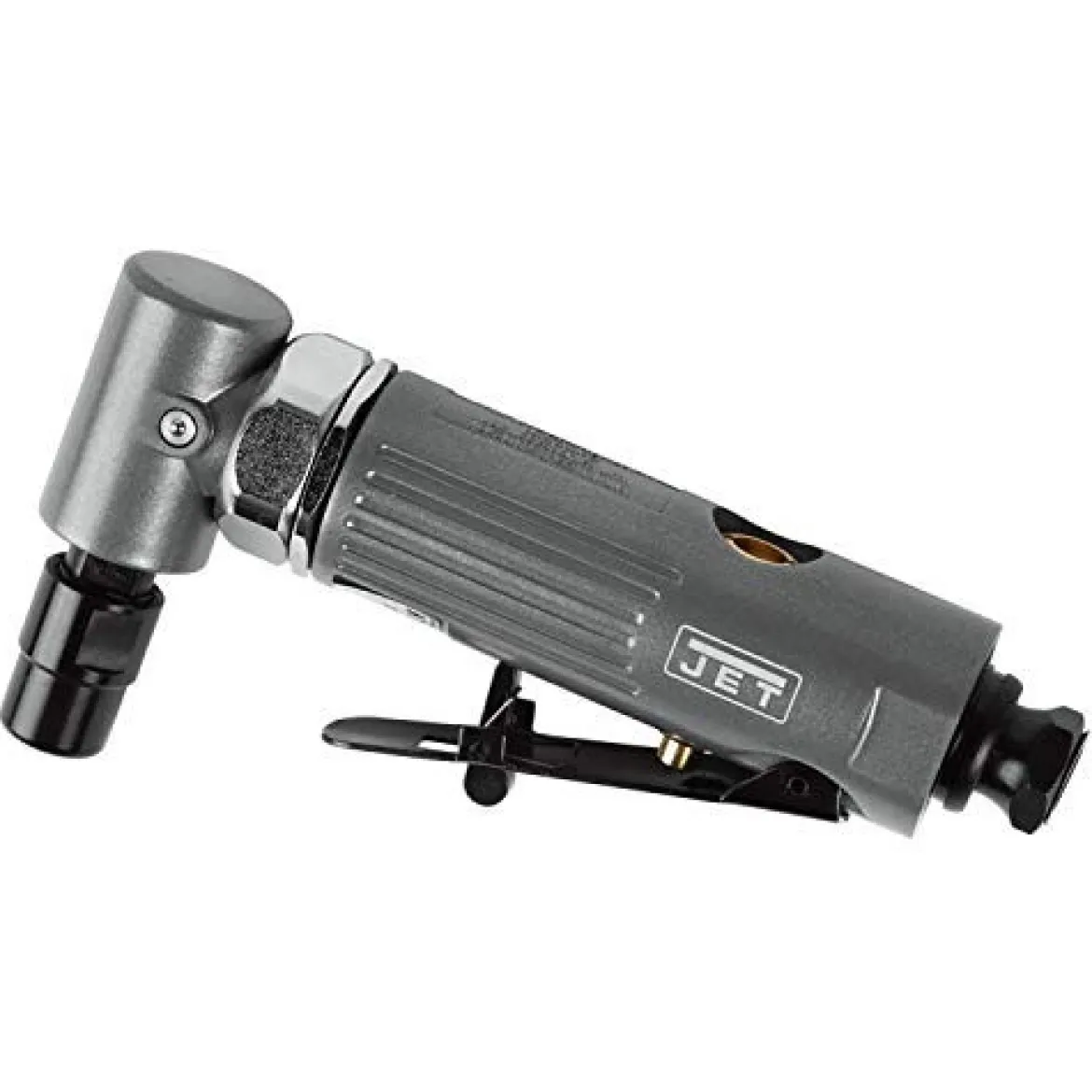

Jet JAT-403 Model 22000 RPM 1/4″ Right Angle Die Grinder (505403)

The Jet JAT-403 Model 22000 RPM 1/4″ Right Angle Die Grinder (505403) is a compact and powerful tool designed for precision grinding in tight spaces. Its quiet operation and built-in air regulator allow for precise speed control, while the safety throttle lock prevents accidental engagement.

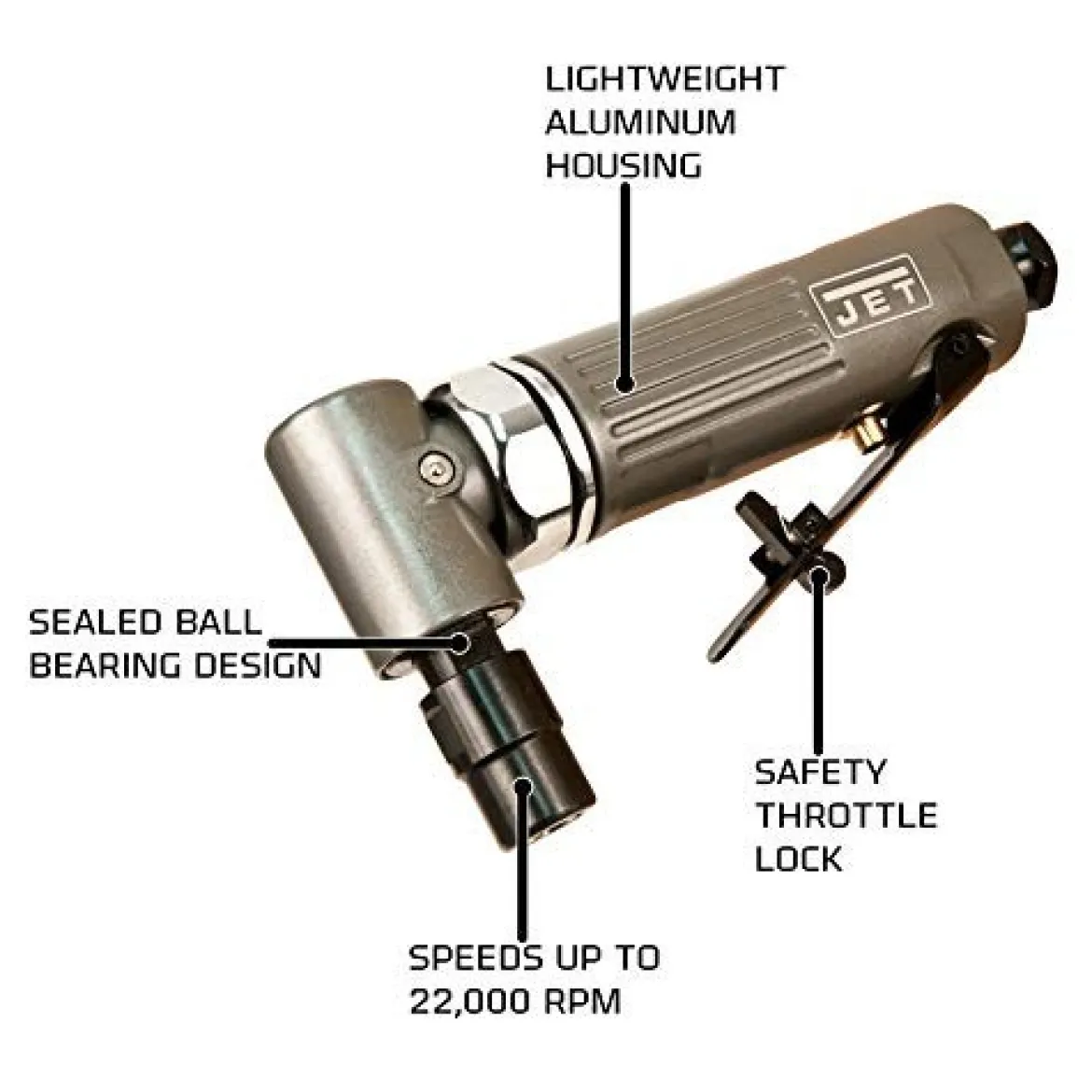

KEY FEATURES AND BENEFITS:

• Compact design: Easily fits into tight spaces for versatile use.
• Quiet operation: Reduced noise for a more comfortable work environment.
• Precise speed control: Built-in air regulator for tailored performance.

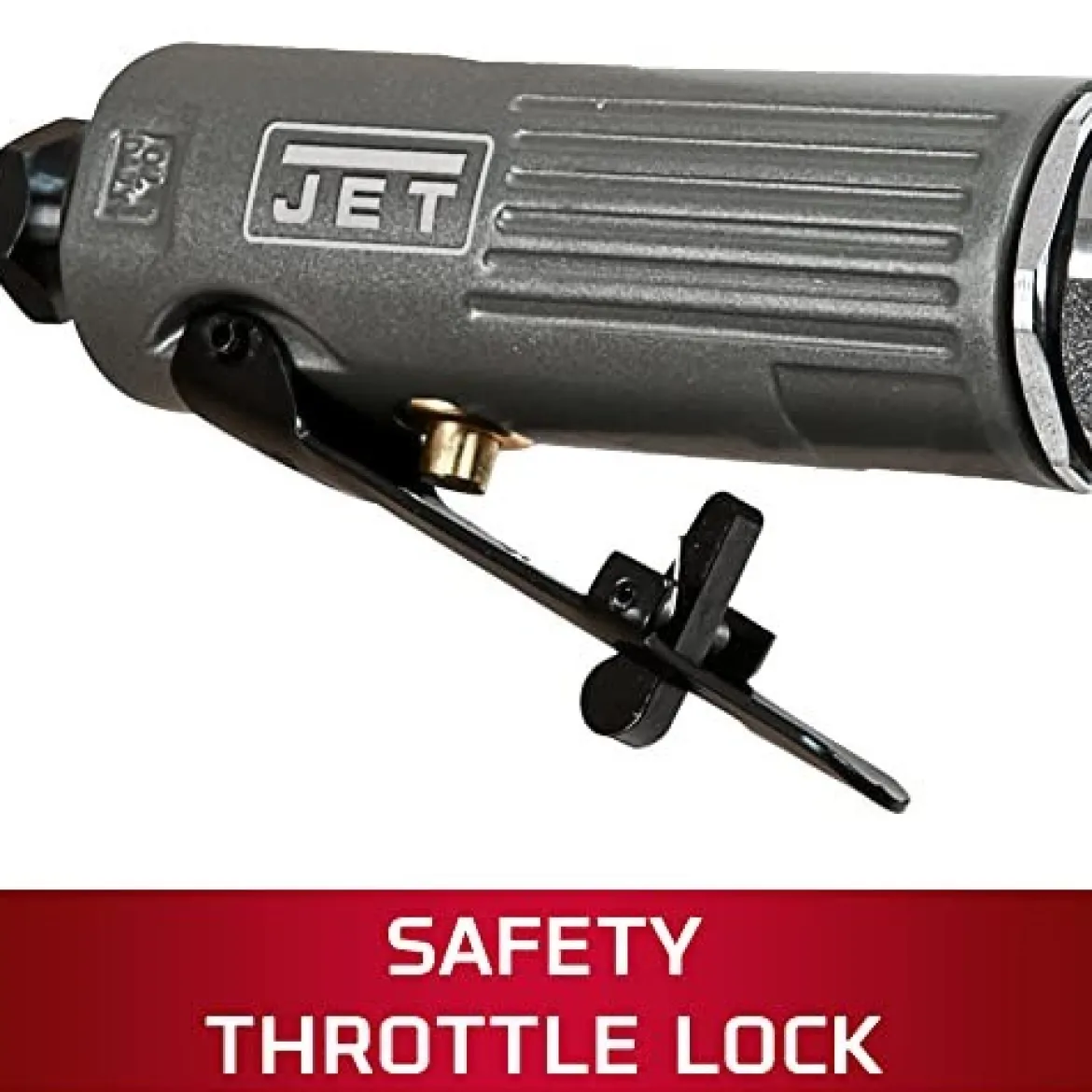

• Safety features: Throttle lock prevents accidental startup.

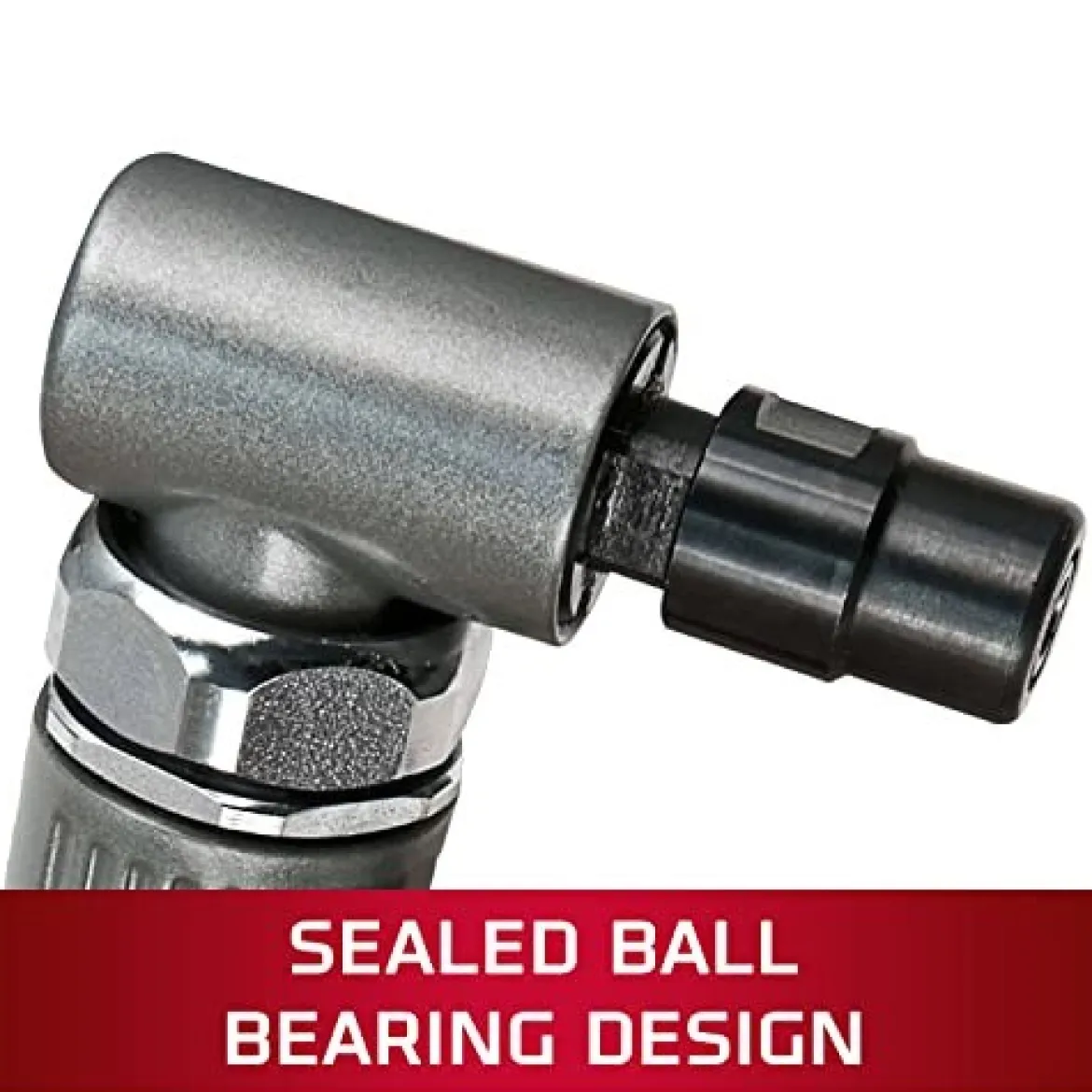

• Durable construction: Sealed ball bearings for long-lasting performance.

SPECIFICATIONS:

• Air Consumption: 3 CFM
• Air Hose: 3/8 inch
• Air Inlet: 1/4 NPT
• Air Pressure: 90 PSI
• Collet Size: 1/4 inch
• Free Speed: 22,000 RPM
• Horsepower: 0.3 HP
• Overall Length: 6-1/8 inches
• Sound Power: 97 dB(A)
• Sound Pressure: 90 dB(A)
• Vibration Value: 1.24 m/s²
• Warranty: 2 years
• Weight: 1.32 lbs
• Gross Weight: 1.52 lbs

HOW TO USE:

1. Connect the air hose: Securely connect the 3/8 inch air hose to the 1/4 NPT air inlet.
2. Adjust air pressure: Use the built-in air regulator to set the desired air pressure.
3. Secure the grinding bit: Insert the desired grinding bit into the 1/4 inch collet and tighten securely with the collet wrench.
4. Engage the tool: Slowly squeeze the throttle to start the die grinder.
5. Control speed: Adjust the speed by varying the pressure on the throttle.
6. Release the throttle: Release the throttle to stop the die grinder.

BENEFITS OF USING Jet JAT-403 Model 22000 RPM 1/4″ Right Angle Die Grinder (505403):

• Increased efficiency in tight spaces
• Reduced operator fatigue due to quiet operation
• Precise control over grinding tasks
• Enhanced safety with throttle lock
• Improved durability with sealed ball bearing design

FEATURES:

• Compact and lightweight for easy handling
• Right-angle head for accessing hard-to-reach areas
• Variable-speed throttle for versatility
• Rear exhaust port to direct air away from the operator
• Ergonomic grip for comfortable use
