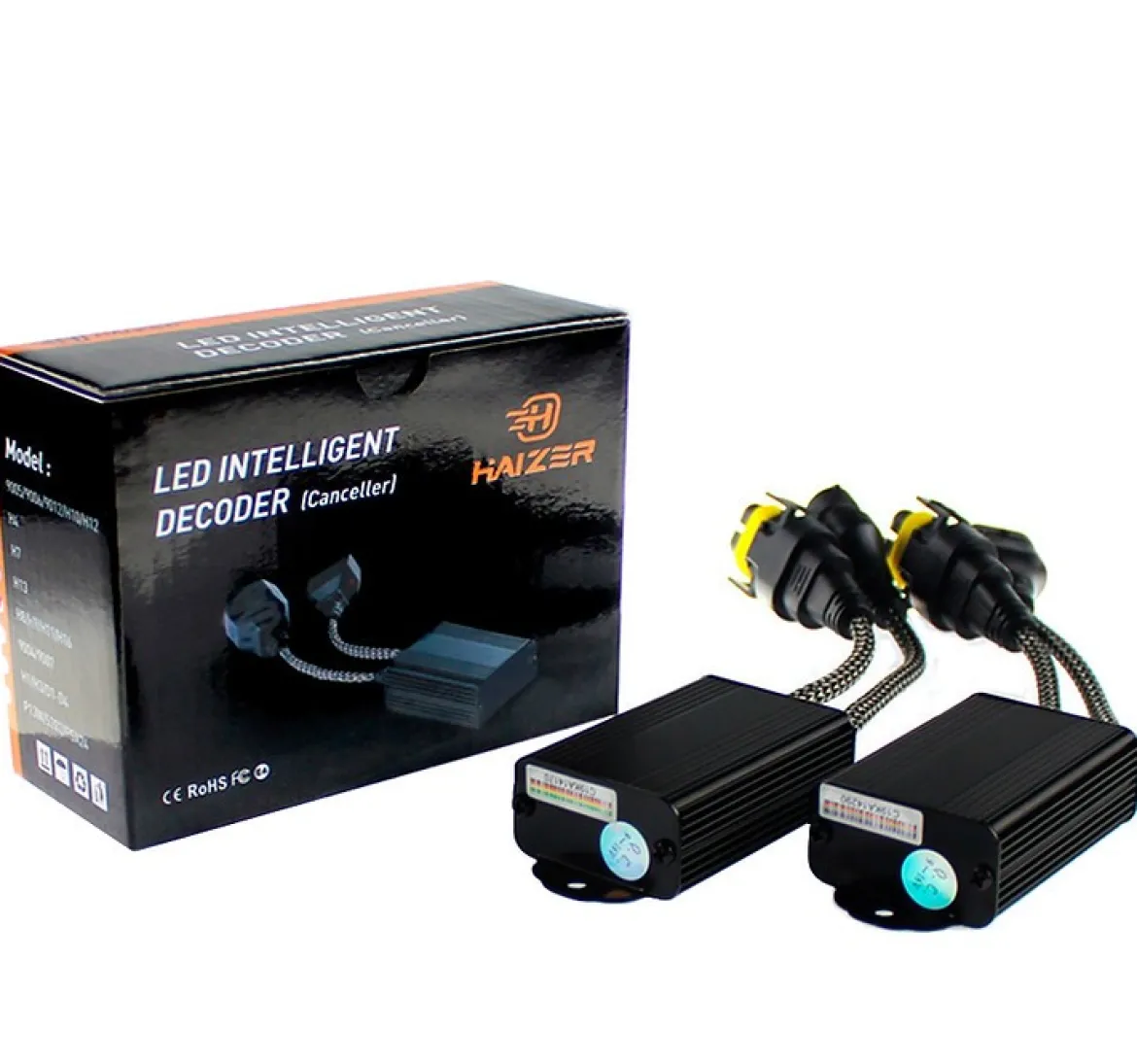

Haizer USA H13 PWM & CANBUS Error Decoders (HZR-DECH13)

The Haizer USA H13 PWM & CANBUS Error Decoders (HZR-DECH13) are specialized electrical components designed to optimize the performance of aftermarket H13 LED headlight bulbs in vehicles. These decoders address common issues that arise when replacing factory halogen bulbs with LEDs, such as flickering and dashboard error messages. By providing stable power delivery and correctly interfacing with a vehicle’s electrical system, the HZR-DECH13 ensures that your LED headlights operate efficiently and without disruption. They offer a straightforward, plug-and-play solution for a clean and reliable LED lighting upgrade.

KEY FEATURES AND BENEFITS:

• Eliminates Headlight Flickering: Many modern vehicles utilize Pulse Width Modulation (PWM) to control headlight power. This pulsating power can cause aftermarket LED bulbs to flicker. These decoders stabilize the current and voltage, providing a constant power supply to your H13 LED bulbs and preventing any visible flickering.
• Resolves Dashboard Error Messages: Vehicles equipped with CANBUS (Controller Area Network bus) systems monitor electrical components. When lower-wattage LED bulbs are installed, the system may detect insufficient current draw, triggering “bulb out” warnings or other error indicators on your dashboard. The Haizer decoders mimic the electrical load of a traditional halogen bulb, satisfying the CANBUS system and eliminating these unwanted error messages.
• Simple Plug-and-Play Installation: Designed for user convenience, the decoders connect directly between your H13 LED headlight bulb and the vehicle’s existing wiring harness. This design typically allows for installation without the need for complex wiring modifications or specialized tools.
• Improves LED Headlight Performance: By correcting electrical inconsistencies, these decoders enable your H13 LED headlights to perform optimally, delivering consistent brightness and full functionality without the common drawbacks associated with LED conversions.

SPECIFICATIONS:

• Model/Part Number: HZR-DECH13
• Bulb Compatibility: H13 (9008)
• Voltage: 9-16V
• Electric Current: 0.5 amps at 13.5 volts
• Power: 6.5 watts at 13.5 volts
• Service Temperature: -40 to 185 degrees Fahrenheit / -40 to 85 degrees Celsius
• Included in Product: 2 x HZR-DECH13 Decoders

HOW TO USE:

1. Locate Headlight Wiring: Identify the existing H13 headlight wiring harness in your vehicle.
2. Disconnect Halogen Bulb (if applicable): If a halogen bulb is currently installed, carefully disconnect it from the vehicle’s wiring harness.
3. Connect Decoder to Vehicle Harness: Take one Haizer H13 decoder and plug its input connector directly into your vehicle’s factory H13 headlight wiring harness.
4. Connect LED Bulb to Decoder: Take your H13 LED headlight bulb and plug its connector into the output connector of the Haizer H13 decoder.
5. Secure Connections: Ensure all connections are secure and properly seated.
6. Repeat for Second Headlight: Follow the same steps for the other H13 headlight assembly.
7. Test Functionality: Turn on your vehicle’s headlights to confirm that the LED bulbs illuminate without flickering and that no dashboard error messages are present.

BENEFITS OF USING HAIZER USA H13 PWM & CANBUS ERROR DECODERS (HZR-DECH13):

• Provides a stable electrical environment for sensitive LED components.
• Prevents common electrical glitches that occur during LED conversions.
• Saves time and effort by offering a simple installation process.
• Contributes to the longevity and optimal performance of your LED headlight bulbs.
• Ensures a clean and professional appearance of your vehicle’s dashboard, free from warning lights.
• Designed to integrate smoothly with diverse vehicle electrical systems.

FEATURES:

• Specifically engineered for H13 (9008) LED headlight applications.
• Comes as a pair of decoders to support both headlights.
• Constructed for efficient heat management during operation.
• Resistant to a wide range of operating temperatures.
• Designed for direct in-line connection to existing vehicle wiring.
• Helps maintain the intended lifespan of aftermarket LED bulbs.
