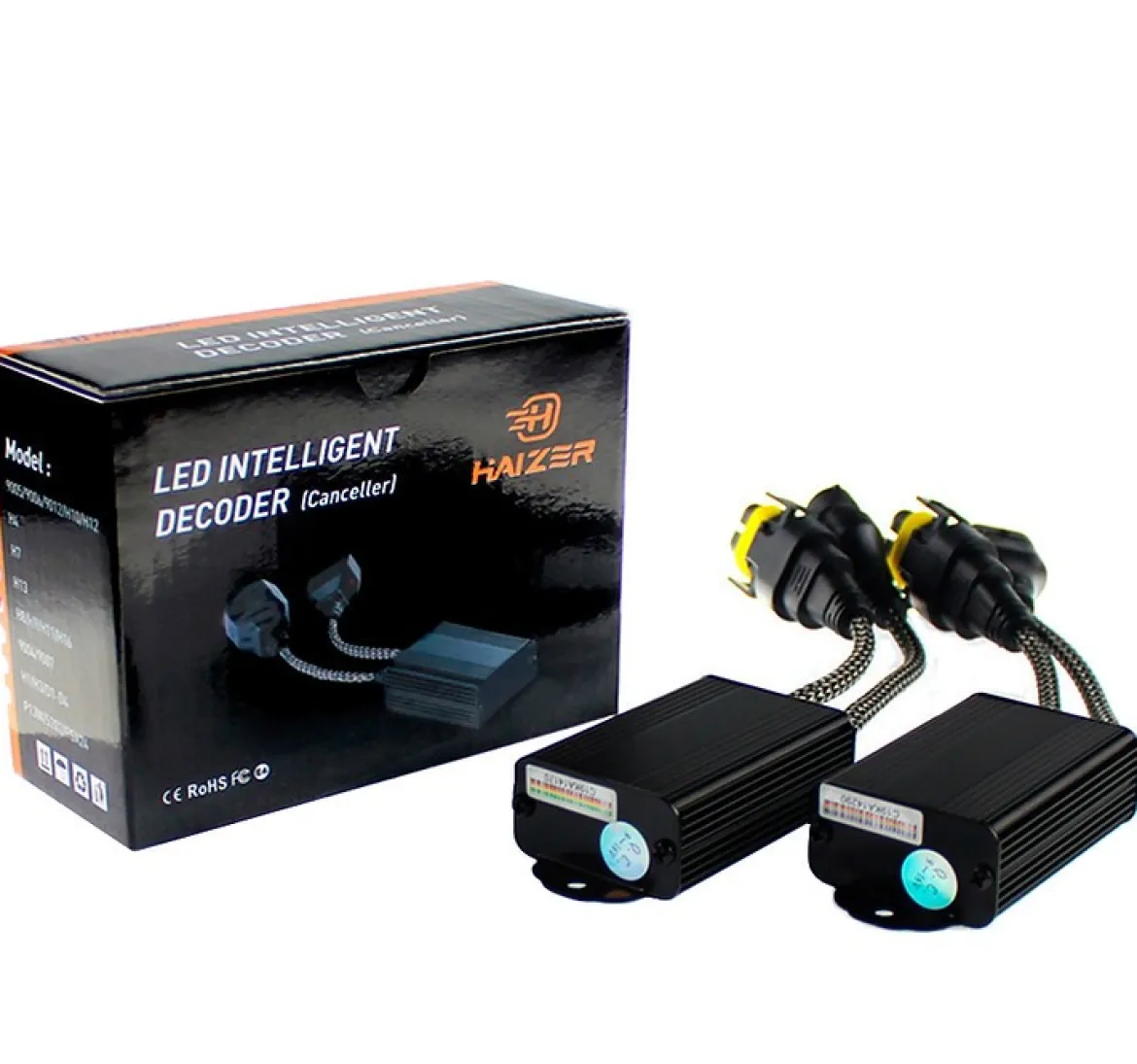

Haizer USA H1 PWM & CANBUS Error Decoders (HZR-DECH1)

The Haizer USA H1 PWM & CANBUS Error Decoders (HZR-DECH1) provide a reliable solution for common electrical challenges encountered when upgrading vehicle headlights to H1 LED bulbs. Modern vehicle electrical systems, particularly those featuring Pulse Width Modulation (PWM) for brightness control or a Controller Area Network (CANBUS), can misinterpret the lower power draw of LED bulbs compared to traditional halogen bulbs. This often results in undesirable effects such as flickering, dashboard error messages like “bulb out,” or even the LED lights turning off unexpectedly. These decoders are specifically engineered to interface between your new H1 LED bulbs and your vehicle’s existing wiring, effectively mimicking the electrical characteristics of a standard halogen bulb. By doing so, they ensure proper communication with the vehicle’s computer, stabilizing power delivery to the LEDs and eliminating frustrating electrical inconsistencies. The HZR-DECH1 promotes a seamless and functional LED headlight conversion, allowing you to enjoy the benefits of improved illumination without electrical complications.

KEY FEATURES AND BENEFITS:

• Flicker Elimination: Effectively resolves issues where aftermarket H1 LED bulbs exhibit rapid flickering or unstable illumination. These decoders stabilize the electrical current, providing a consistent power flow for smooth LED operation.
• Error Message Prevention: Prevents dashboard warnings such as “bulb out,” “bulb failure,” or other diagnostic trouble codes that can appear when a vehicle’s CANBUS system detects the lower power consumption of LED bulbs.
• System Compatibility: Ensures that your vehicle’s electrical system, including its computer and CANBUS, correctly recognizes the installed H1 LED bulbs, preventing various operational issues.
• High Beam Indicator Functionality: Corrects instances where the high beam indicator on the dashboard fails to illuminate or functions improperly after an LED headlight conversion.
• Plug-and-Play Installation: Designed for ease of use, these decoders integrate directly into your vehicle’s existing wiring harness without requiring any cutting, splicing, or complex modifications.

SPECIFICATIONS:

• Model/Part Number: HZR-DECH1
• Voltage: 9-16V
• Electric Current: 0.5 Amps (at 13.5 volts)
• Power: 6.5 Watts (at 13.5 volts)
• Service/Working Temperature: -40°F to 185°F (-40°C to +85°C)
• Included in Purchase: 2 x Haizer USA H1 PWM & CANBUS Error Decoders

HOW TO USE:

1. Locate Bulb Socket: Identify the H1 bulb socket in your vehicle’s headlight assembly.
2. Disconnect Existing Bulb (if applicable): If a halogen bulb is currently installed, carefully disconnect its power connector.
3. Connect Decoder Input: Take one Haizer H1 decoder. Connect the input side of the decoder (the connector designed to plug into your vehicle’s factory wiring harness) to the vehicle’s H1 headlight power connector.
4. Connect LED Bulb Output: Take your H1 LED headlight bulb. Connect the power connector from the H1 LED bulb to the output side of the Haizer H1 decoder.
5. Secure Wiring: Ensure all connections are firm and secure.
6. Repeat for Second Headlight: Follow the same steps for the other H1 headlight.
7. Test Functionality: Turn on your vehicle’s headlights to verify that both H1 LED bulbs illuminate correctly, without flickering or triggering dashboard error messages.
8. Mount Decoder: Securely mount the decoders within the headlight assembly area, ensuring they are not interfering with moving parts and are placed in a location with adequate airflow if possible.

BENEFITS OF USING HAIZER USA H1 PWM & CANBUS ERROR DECODERS (HZR-DECH1):

• Optimized LED Performance: Ensures your H1 LED bulbs receive a stable and consistent power supply, allowing them to operate at their intended brightness and lifespan.
• Enhanced Driving Safety: Eliminates distracting flickering and ensures reliable illumination, contributing to clearer visibility while driving.
• Maintained Vehicle Aesthetics: Prevents unsightly dashboard warning lights from appearing, preserving the clean look of your vehicle’s interior.
• Simplified LED Upgrade: Makes the process of converting to H1 LED headlights straightforward by addressing common compatibility issues upfront.
• Long-Term Reliability: By regulating power and preventing system conflicts, these decoders help protect your new LED bulbs from potential damage caused by irregular electrical signals.

FEATURES:

• Compatible with H1 LED headlight and fog light bulb applications.
• Functions as a load equalizer by simulating the power draw of halogen bulbs.
• Prevents LED lights from turning off unexpectedly during use.
• Resolves issues where one LED headlight functions while the other does not.
• Helps minimize radio interference from aftermarket LED bulbs.
• Engineered to operate effectively across a broad temperature range.
• Enables accurate communication between LED lights and vehicle systems.
