FiTech Throttle Body Hardware Kit (60002)

The FiTech Throttle Body Hardware Kit (60002) is a comprehensive set of fasteners designed to facilitate the installation of FiTech throttle body electronic fuel injection (EFI) systems. This kit provides the necessary hardware for securing your throttle body to the intake manifold, as well as components for air cleaner assembly and throttle linkage adjustments.

KEY FEATURES AND BENEFITS:

• Complete Hardware Set: Includes all the required studs, nuts, and washers for a secure and stable installation of your FiTech EFI system.
• Durable Materials: The mix of zinc-plated steel and stainless-steel materials offers proper mechanical strength for the application.
• Simplified Installation: The included air cleaner stud and linkage hardware help make the overall EFI installation simpler.

SPECIFICATIONS:

• Brand: FiTech Fuel Injection
• Manufacturer’s Part Number: 600021
• Part Type: Studs
• Product Line: FiTech Throttle Body Hardware Kits
• UPC: 812061034661
• Base Thread Size: 5/16 in.-18
• Top Thread Size: 5/16 in.-24
• Fastener Material: Steel (Zinc plated)
• Fastener Color: Zinc
• Nuts Included: Yes
• Nut Style: Hex
• Nut Material: Stainless steel
• Nut Color: Zinc
• Washers Included: Yes
• Quantity: Sold as a kit.

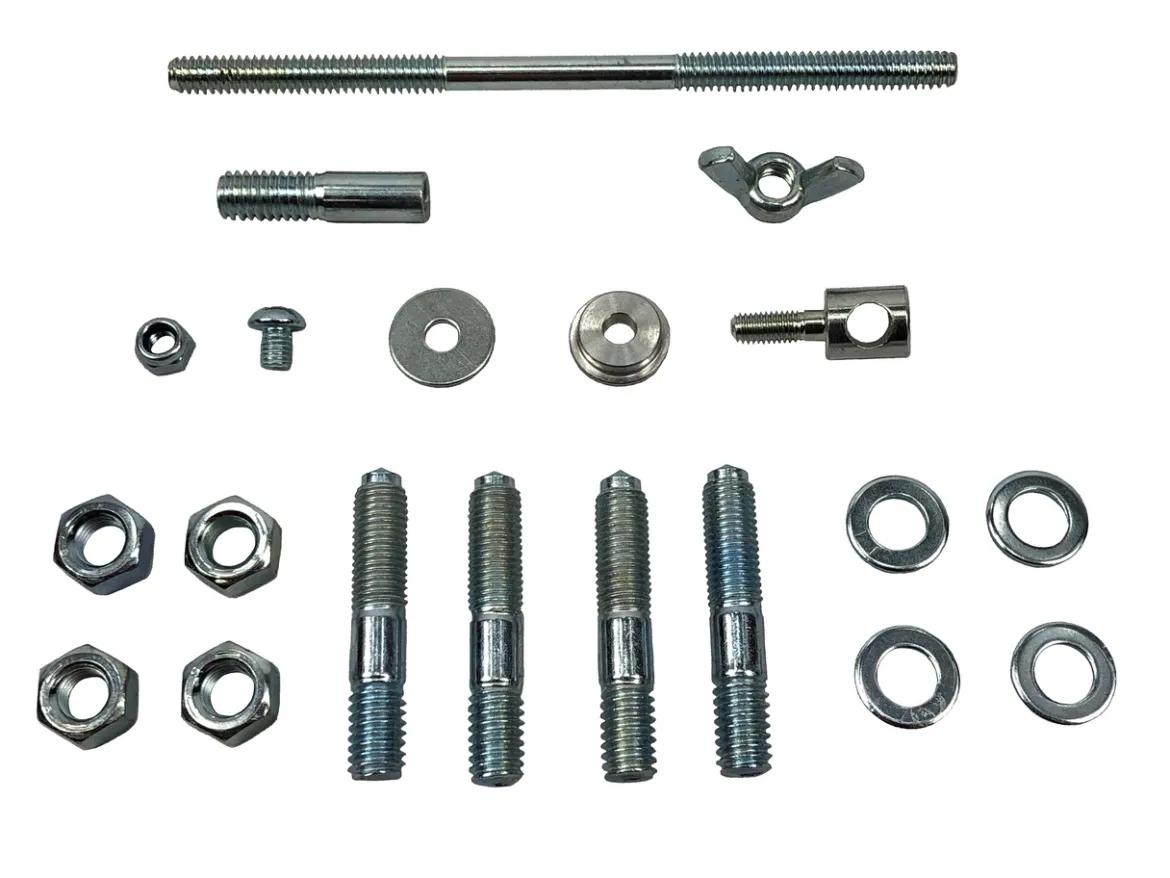

• Kit Includes: Throttle body mounting studs, washers, nuts, air cleaner stud (with optional extension), wing nut, and throttle connection eyelet stud.

HOW TO USE:

• Prepare the Intake Manifold: Ensure the intake manifold’s mounting surface is clean and free of debris.
• Install the Mounting Studs: Thread the 5/16 in.-18 base of the studs into the intake manifold’s carburetor mounting holes.
• Place the Throttle Body: Position the FiTech throttle body over the installed studs, aligning the mounting holes.
• Secure with Washers and Nuts: Place a washer over each stud, followed by a stainless steel hex nut. Tighten the nuts evenly to secure the throttle body.
• Assemble the Air Cleaner: If necessary, install the air cleaner stud and optional extension, then attach the air cleaner assembly using the provided wing nut.
• Connect Throttle Linkage: Use the throttle connection eyelet stud to connect the throttle linkage to the throttle body, ensuring smooth operation.
• Verify Tightness: Once everything is placed, verify and if needed, re-tighten all hardware.
• Use Thread Lock: It is recommended that thread-lock be used on some hardware components during installation.

BENEFITS OF USING THE FITECH THROTTLE BODY HARDWARE KIT (60002):

• Provides all the essential hardware in one convenient kit.
• Simplifies the installation process of FiTech EFI systems.
• Ensures a secure and stable mounting of the throttle body.
• Offers compatibility with most 4-barrel carburetors or throttle body EFI units.
• Contains components to connect the throttle linkage.

FEATURES:

• Zinc-Plated Steel Studs: For strength and corrosion resistance.
• Includes Air Cleaner Stud: With optional extension for flexibility.
• Throttle Connection Eyelet Stud: For easy linkage connection.
• Hex Nuts Provided: Ensuring secure fastening.
• Proper Washers Included: For effective load distribution.
• Compatibility: Kit provides hardware compatibility with FiTech EFI systems.
