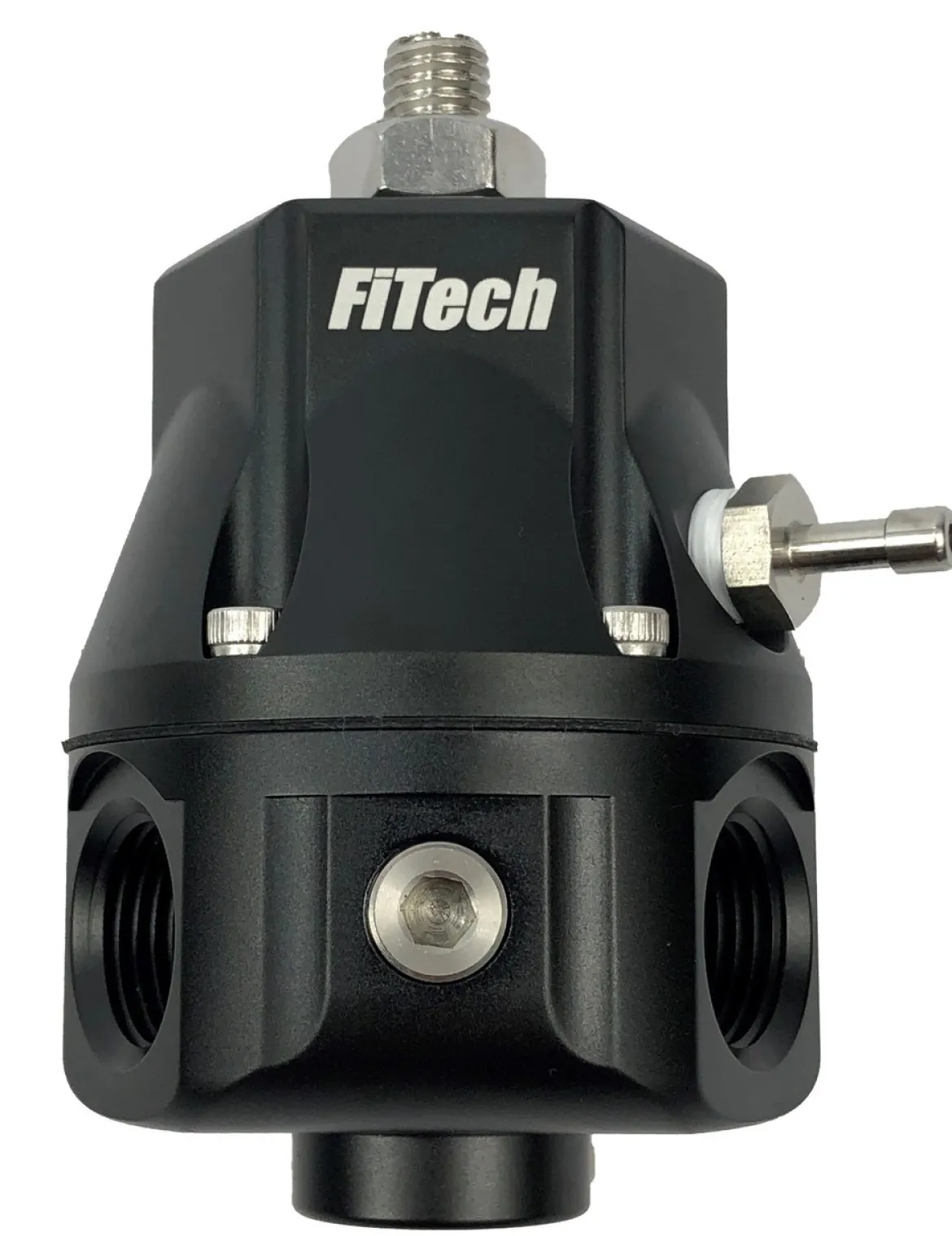

FiTech Dual Output Fuel Pressure Regulator w/Gauge & Fittings (54002)

The FiTech Dual Output Fuel Pressure Regulator w/Gauge & Fittings (54002) is designed to provide precise fuel pressure control for high-performance EFI systems. This dual-output regulator allows for adjustments between 30 and 70 psi, ensuring optimal fuel delivery for both naturally aspirated and boosted engines. Constructed from billet aluminum, it features -6 AN ORB ports, a vacuum/boost reference port, and includes a liquid-filled pressure gauge. This regulator is compatible with various gasoline blends, including E85, and is capable of supporting up to 1600 horsepower.

KEY FEATURES AND BENEFITS:

• Precise Fuel Pressure Adjustment: Allows for fine-tuning of fuel pressure from 30 to 70 psi, ensuring optimal engine performance.
• High-Flow Capacity: Capable of handling high-flow fuel pumps and supporting up to 1600 horsepower on gasoline engines.
• Dual Output Design: Provides versatile fuel system plumbing options.
• Durable Construction: Billet aluminum construction ensures longevity and reliability.
• Fuel Compatibility: Viton diaphragm is compatible with various gasoline blends, including E85.
• Boost/Vacuum Reference: Includes a vacuum/boost reference port for accurate fuel pressure control in boosted applications.
• Complete Kit: Includes a liquid-filled pressure gauge and AN fittings for easy installation.

SPECIFICATIONS:

• Brand: FiTech Fuel Injection
• Part Number: 54002
• Pressure Range: 30-70 psi
• Regulator Style: Return
• Regulator Location: Inline
• Inlet/Outlet Size: -6 AN ORB
• Material: Billet Aluminum
• Fuel Type: Gasoline, E85 compatible
• Horsepower Support: Up to 1600 hp (gas engines)

HOW TO USE:

• Mount the Regulator: Secure the regulator in a suitable location using the included mounting bracket.
• Connect Fuel Lines: Attach the fuel inlet and outlet lines to the -6 AN ORB ports using the provided AN fittings.
• Connect Vacuum/Boost Line (if applicable): If using a boosted application, connect the vacuum/boost reference line to the designated port.
• Install Pressure Gauge: Attach the liquid-filled pressure gauge to the gauge port.
• Adjust Fuel Pressure: Use the adjustment screw to set the desired fuel pressure within the 30-70 psi range.
• Verify Connections: Check all connections for leaks and ensure proper sealing.
• Start Engine and Monitor: Start the engine and monitor the fuel pressure gauge to confirm the desired setting.
• Fine Tune: Make any necessary adjustments to the fuel pressure as required.

BENEFITS OF USING THE FITECH DUAL OUTPUT FUEL PRESSURE REGULATOR W/GAUGE & FITTINGS (54002):

• Consistent and reliable fuel pressure delivery.
• Improved engine performance and efficiency.
• Versatile application for various EFI systems.
• Easy installation and adjustment.
• High-quality construction for long-term use.

FEATURES:

• Dual -6 AN ORB output ports.
• Integrated vacuum/boost reference port.
• Liquid-filled pressure gauge included.
• Billet aluminum housing, black anodized finish.
• Viton diaphragm for fuel compatibility.
• Included AN fittings for immediate install.
• Internal rebuildable design.
• Designed for high flow fuel pumps.
