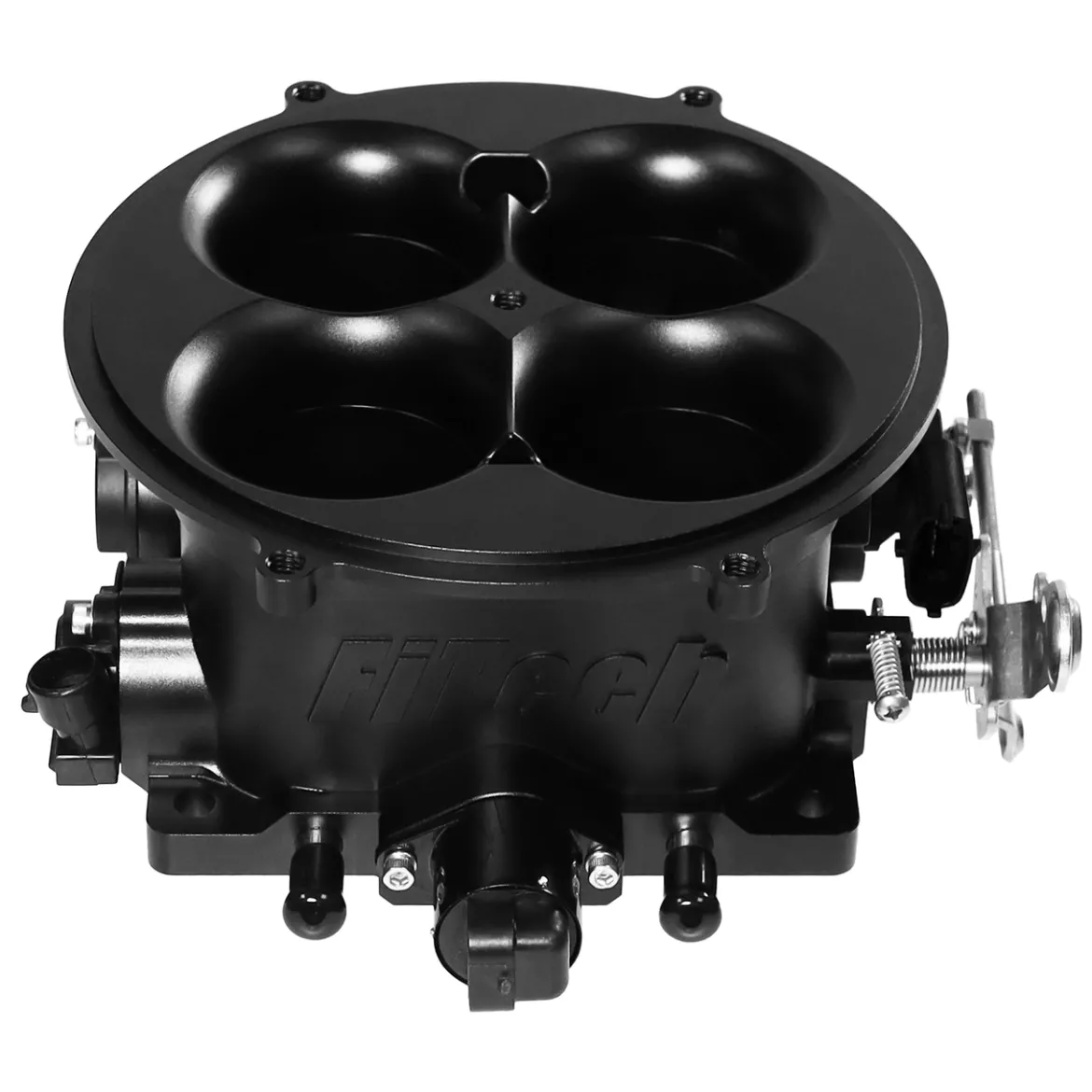

FiTech Black Nemesis TMAP Universal 4500 4BBL Throttle Body (30038)

FiTech Black Nemesis TMAP Universal 4500 4BBL Throttle Body (30038) is engineered to significantly enhance the performance of your engine. Designed for multi-port fuel injection (MPI) systems, this unit is a direct bolt-on for 4500 4-barrel mounts, offering a universal fit for a wide range of applications. Constructed from high-quality billet aluminum with a sleek black finish, the Nemesis 4500 is built to deliver improved throttle response and maximize airflow, unlocking your engine’s hidden power. This throttle body is a comprehensive solution, including essential sensors and hardware to ensure a smooth installation process.

KEY FEATURES AND BENEFITS:

• Optimized Airflow: Featuring four 58.40mm venturis, the FiTech 30038 delivers an impressive airflow rate of 1820 cfm. This increased airflow is crucial for enhancing engine performance, particularly at higher RPMs.
• Enhanced Throttle Response: The cable actuation design provides a direct and responsive connection between the throttle pedal and the throttle body, leading to improved acceleration and overall drivability.
• Integrated Sensors: Equipped with both a Throttle Position Sensor (TPS) and an Idle Air Control (IAC) motor, this throttle body ensures precise control over idle speed and throttle position, contributing to smooth engine operation.
• T-MAP Sensor for Intelligent Tuning: The inclusion of a T-MAP sensor allows the engine control unit (ECU) to monitor both the temperature and pressure of the intake air. This data enables more accurate fuel and timing adjustments, optimizing engine performance based on real-time conditions. Specifically, timing can be adjusted based on intake air temperature.
• Complete Installation Package: The FiTech 30038 comes with all necessary gaskets and hardware, simplifying the installation process and ensuring a proper seal and secure mounting.
• Durable Construction: Machined from billet aluminum, this throttle body is built for strength and longevity, capable of withstanding the demands of high-performance engines.
• Universal Compatibility: Designed to fit any 4500 4-barrel mount, offering broad compatibility across various engine setups.

SPECIFICATIONS:

• Part Number: 30038
• Brand: FiTech Fuel Injection
• Product Line: Nemesis 4500 Throttle Bodies
• Throttle Body Style: Multi-port injection (MPI)
• Throttle Body Actuation: Cable
• Venturi Quantity: 4
• Venturi Diameter: 58.40mm
• Airflow Rate: 1,820 cfm
• TPS Sensor Included: Yes
• IAC Motor Included: Yes
• Gaskets Included: Yes
• Hardware Included: Yes
• Injectors Included: No
• Throttle Body Material: Billet aluminum
• Throttle Body Color: Black
• Remanufactured: No
• Compatibility: Universal fitment for 4500 4-barrel mounts.

HOW TO USE:

• Preparation: Ensure the engine is cool and the ignition is turned off. Gather all necessary tools and the included FiTech 30038 throttle body, gaskets, and hardware.
• Removal of Old Throttle Body (if applicable): Carefully disconnect the throttle cable, any electrical connectors (sensors, IAC), and fuel lines connected to the existing throttle body or carburetor. Remove the old unit from the intake manifold.
• Gasket Installation: Place the provided gasket onto the intake manifold’s 4500 flange. Ensure it is properly aligned with the bolt holes.
• Throttle Body Mounting: Position the FiTech 30038 throttle body onto the gasket and align the bolt holes. Secure the throttle body to the intake manifold using the included hardware. Tighten the bolts to the manufacturer’s recommended torque specifications.
• Sensor and Motor Connection: Connect the electrical connectors for the Throttle Position Sensor (TPS) and the Idle Air Control (IAC) motor. Ensure the connections are secure.
• Throttle Cable Attachment: Reattach the throttle cable to the new throttle body linkage. Adjust the cable tension as needed to ensure proper throttle operation.
• Fuel System Connection (if applicable): If adapting from a system with fuel lines connected to the throttle body, carefully connect these lines to the appropriate ports on the FiTech 30038. Ensure all connections are tight and leak-free.
• Final Checks: Double-check all connections, ensuring that all hoses, wires, and cables are properly connected and secured.
• Initial Startup: Start the engine and check for any leaks or unusual noises. Allow the engine to reach operating temperature and monitor idle speed. Adjust idle as necessary.
• Tuning (if required): Depending on your specific application and ECU setup, you may need to adjust fuel and timing settings to optimize performance with the new throttle body. Refer to your ECU documentation or a professional tuner for assistance.

BENEFITS OF USING THE FITECH BLACK NEMESIS TMAP UNIVERSAL 4500 4BBL THROTTLE BODY (30038):

• Increased Engine Power: By maximizing airflow into the engine, this throttle body can contribute to significant gains in horsepower and torque.
• Improved Throttle Responsiveness: The direct cable actuation and optimized airflow pathways result in quicker and more precise throttle response, enhancing the driving experience.
• Enhanced Drivability: The precise control offered by the integrated TPS and IAC motor leads to smoother idle and improved overall engine operation across different driving conditions.
• Optimized Fuel Efficiency and Performance: The T-MAP sensor allows the ECU to make more informed decisions about fuel delivery and ignition timing, potentially improving fuel economy while maximizing performance.
• Reliable Performance: Constructed from durable billet aluminum, the FiTech 30038 is designed to withstand the rigors of high-performance applications, ensuring long-lasting reliability.
• Straightforward Installation: The inclusion of gaskets and hardware simplifies the installation process for those familiar with automotive modifications.

FEATURES:

• Billet Aluminum Construction: Provides strength and durability while maintaining a relatively lightweight design.
• Four 58.4mm Venturis: Optimized for high airflow, supporting increased engine output.
• Cable Throttle Actuation: Offers a direct and mechanical connection for immediate throttle response.
• Integrated TPS Sensor: Provides accurate throttle position data to the ECU.
• Integrated IAC Motor: Controls idle speed for smooth engine operation.
• T-MAP Sensor: Measures intake air temperature and pressure for intelligent engine management.
• Black Anodized Finish: Offers a sleek and professional look while providing some corrosion resistance.
• Universal 4500 Flange Mount: Ensures compatibility with a wide range of intake manifolds.
• Includes Necessary Gaskets: Provides a proper seal between the throttle body and the intake manifold.
• Includes Mounting Hardware: Simplifies installation by providing the required fasteners.
